D932220
Bedroom: 2
Bathroom: 2
Area: 93 m2
Steel:
89S41G350-0.75 mm
89S41G350-0.95 mm
89S41G350-0.95 mm
Floor: 2
Garage: 0
Structure Weight: 2740 kg
Longest Length: 9.00 m
SNOW
Characteristic Value of Snow Load:
sk = 0.50 kN/m2
WIND
Fundamental Basic Wind Velocity:
vb,0 = 40.00 m/s
Basic Velocity Pressure:
qb = 0.80 kN/m2
SEISMIC
Reference Value of Peak Ground Acceleration:
agR = 0.20 m/s2
Packages Price
| Foundation | 90 |
| Architectural Drawings | 90 |
| Complete BOQ | 50 |
| Drawings, calculations & CNC files | 110 |
| Full Package | 340 |
Plan Description
Modern A frame cabin House Plans (10.5X7m)
- A wide deck opens to the combined living room and kitchen/breakfast area that span two-stories high.
- Windows flood this vacation home with an abundance of light, keeping the area bright and cheerful.
- The second floor loft offers a spacious area perfect for a play room or home theater.
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing.
WHAT'S INCLUDED IN THIS PLAN SET

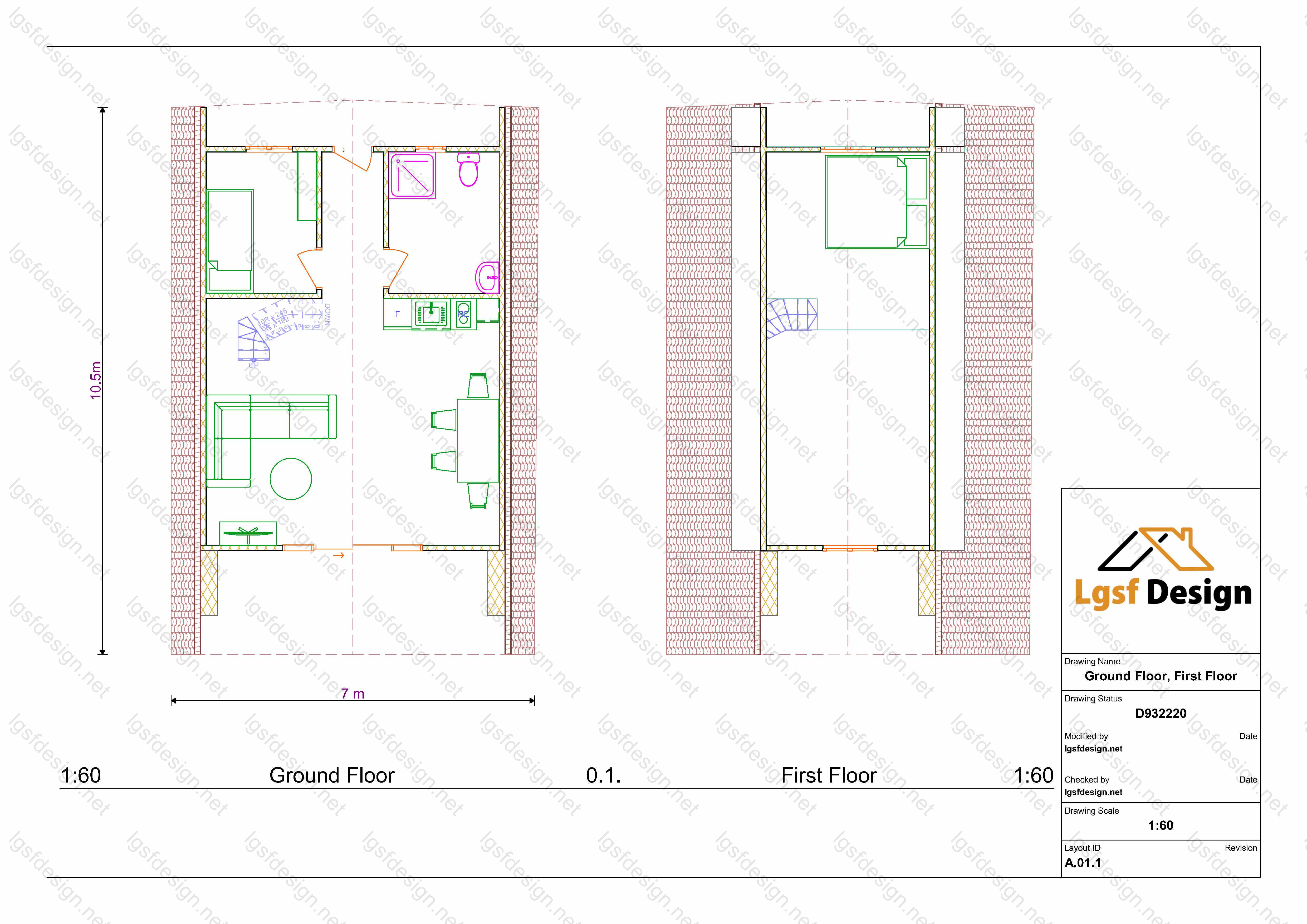

- Foundation plan: Typically includes dimensioned foundation plan with footing details
- Exterior elevations of all four views,
- Building sections and details as required to construct the individual design
- Roof plans
- Gravity and Lateral Analysis and Design using Standard sections
- Cold-Formed Steel Structural Drawings
- Cold-Formed Steel Shop Drawings
- Exact material takeoff for price estimation (by sqm of surface Area)
- Cold-Formed Steel Connection Design and Details
- Exact material takeoff for price estimation
- Hot Rolled Steel as per the Project Requirement
- Roll Forming File for your framecad machine (If you need complete files for other machines, like HOWICK, PINNACLE, and any other VERTEX BD supported machine, just send us the brand and the model of your machine and the desired plan number to info@lgsfdesign.net, We will respond in few hours with a quotation.)
