  Bedroom: 3
  Bathroom: 2
  Area: 162 m2
  Steel: 89S41G350-0.75 mm
                 89S41G350-0.95 mm
  Floor: 1
  Garage: 0
  Structure Weight: 3497 kg
  Longest Length: 9.80 m
  SNOW
Characteristic Value of Snow Load:
sk = 0.70 kN/m2
  WIND
Fundamental Basic Wind Velocity:
vb,0 = 40.00 m/s
Basic Velocity Pressure:
qb = 0.90 kN/m2
  SEISMIC
Reference Value of Peak Ground Acceleration:
agR = 0.23 m/s2
Packages Price
Foundation 160
Architectural Drawings 160
Complete BOQ 50
Drawings, calculations & CNC files 190
Full Package 560

Plan Description

This beautiful 1740-square-foot home offers a perfect blend of space and comfort, making it an ideal choice for families. The house features three spacious bedrooms, including a luxurious master suite that provides a private retreat for rest.

Two well-appointed bathrooms ensure that everyone in the household has the convenience and privacy they need. The large, separate laundry room offers ample space for all your washing needs, making laundry day a breeze.

The heart of the home is undoubtedly the expansive kitchen, which boasts a generous island that serves as both a functional workspace and a gathering spot for friends and family. With plenty of counter and storage space, the kitchen is perfect for cooking and entertaining.

Adjacent to the kitchen, you'll find a large living area that provides a comfortable space for relaxation and socializing. The open-concept layout allows for easy flow between the kitchen and living room, making it perfect for hosting gatherings or simply enjoying family time.

This 1740-square-foot home offers a fantastic combination of spaciousness, functionality, and comfort. With three bedrooms, two bathrooms, a large laundry room, and an open-concept kitchen and living area, it's the perfect home for families seeking a welcoming and well-designed space.

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing.

SIMILAR PLANS

Looking for a house plan that's similar to the one you're currently viewing? We've got you covered.

WHAT'S INCLUDED IN THIS PLAN SET

  • Foundation plan: Typically includes dimensioned foundation plan with footing details
  • Exterior elevations of all four views,
  • Building sections and details as required to construct the individual design
  • Roof plans
  • Gravity and Lateral Analysis and Design using Standard sections

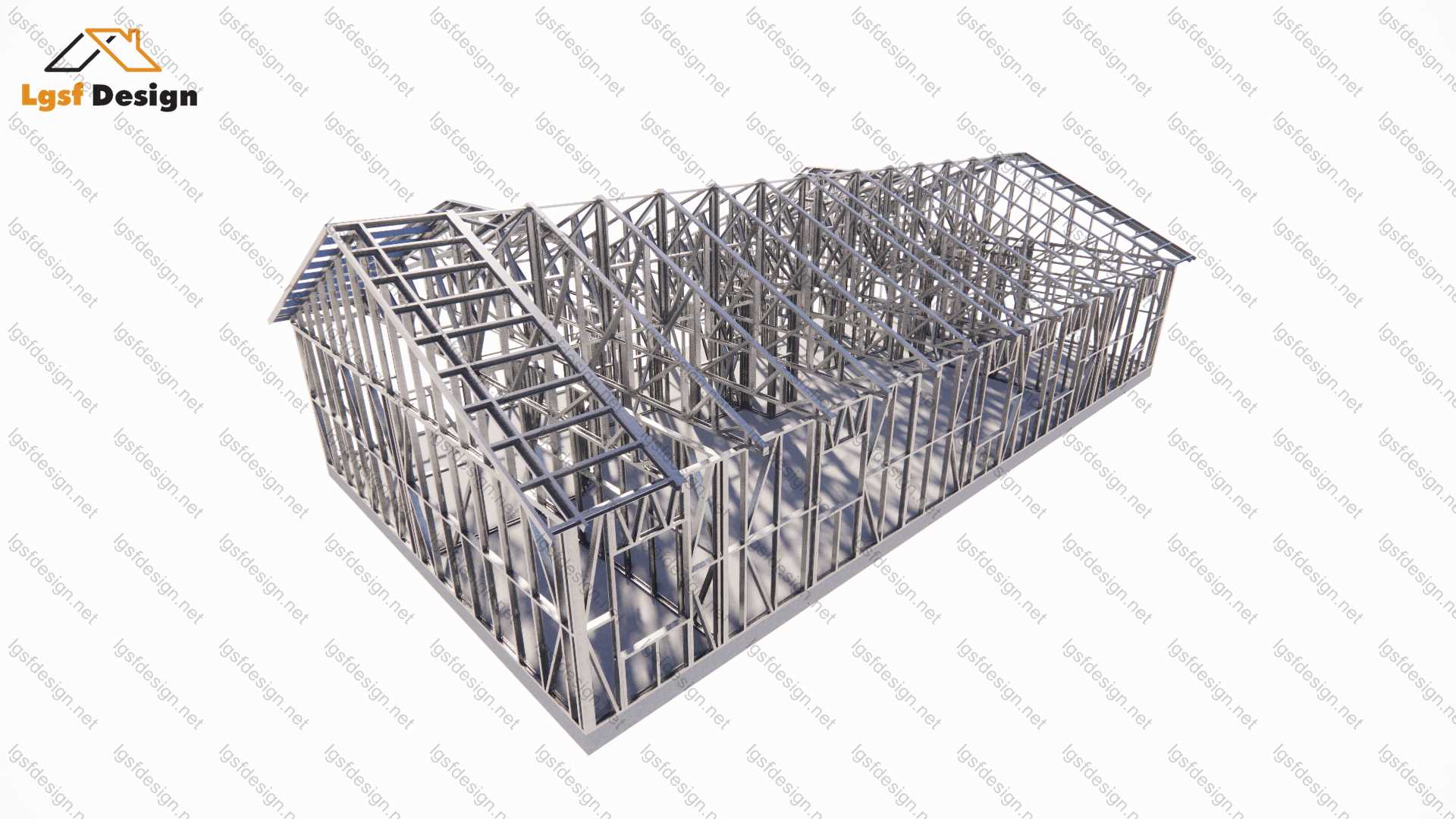

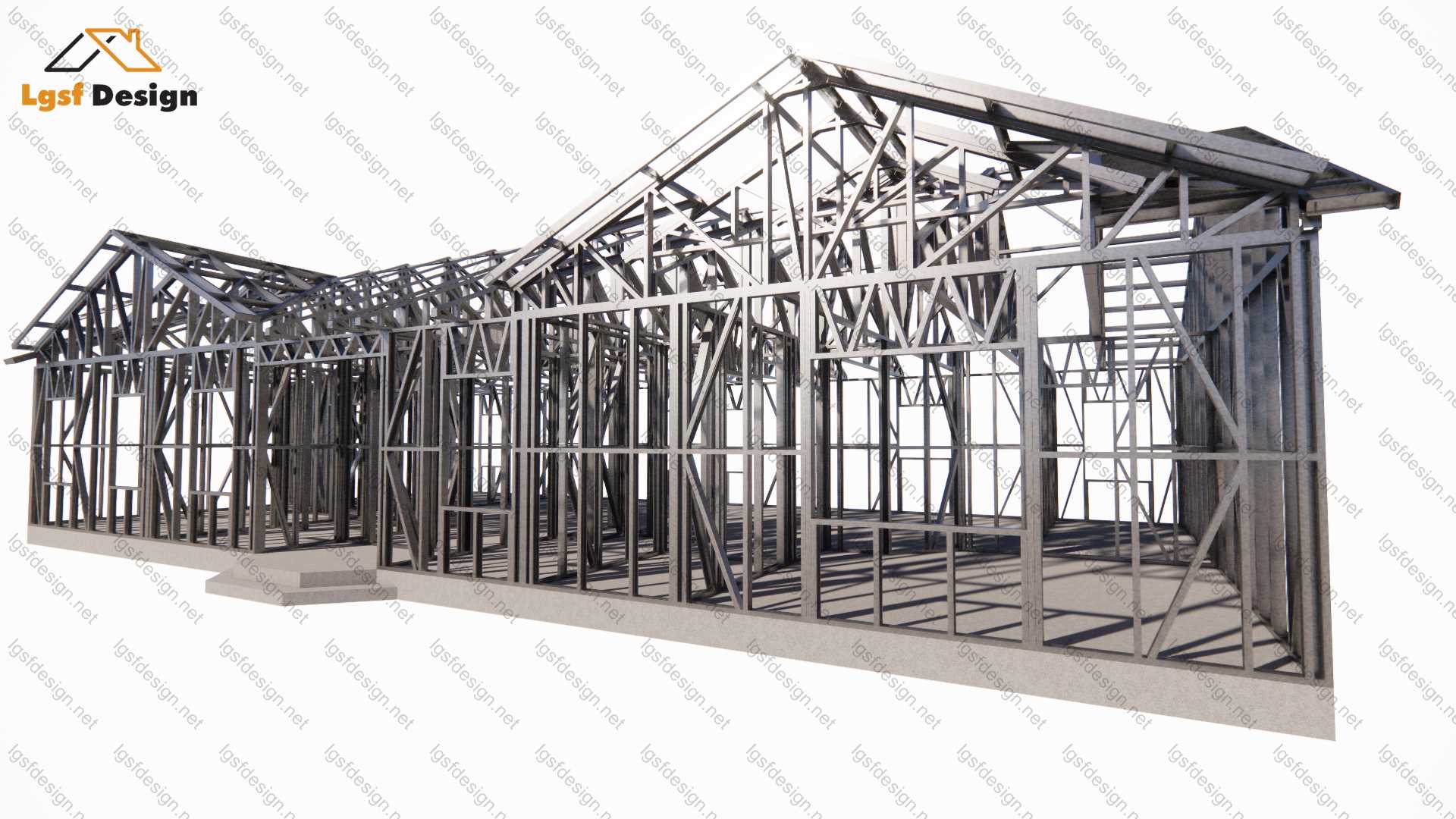

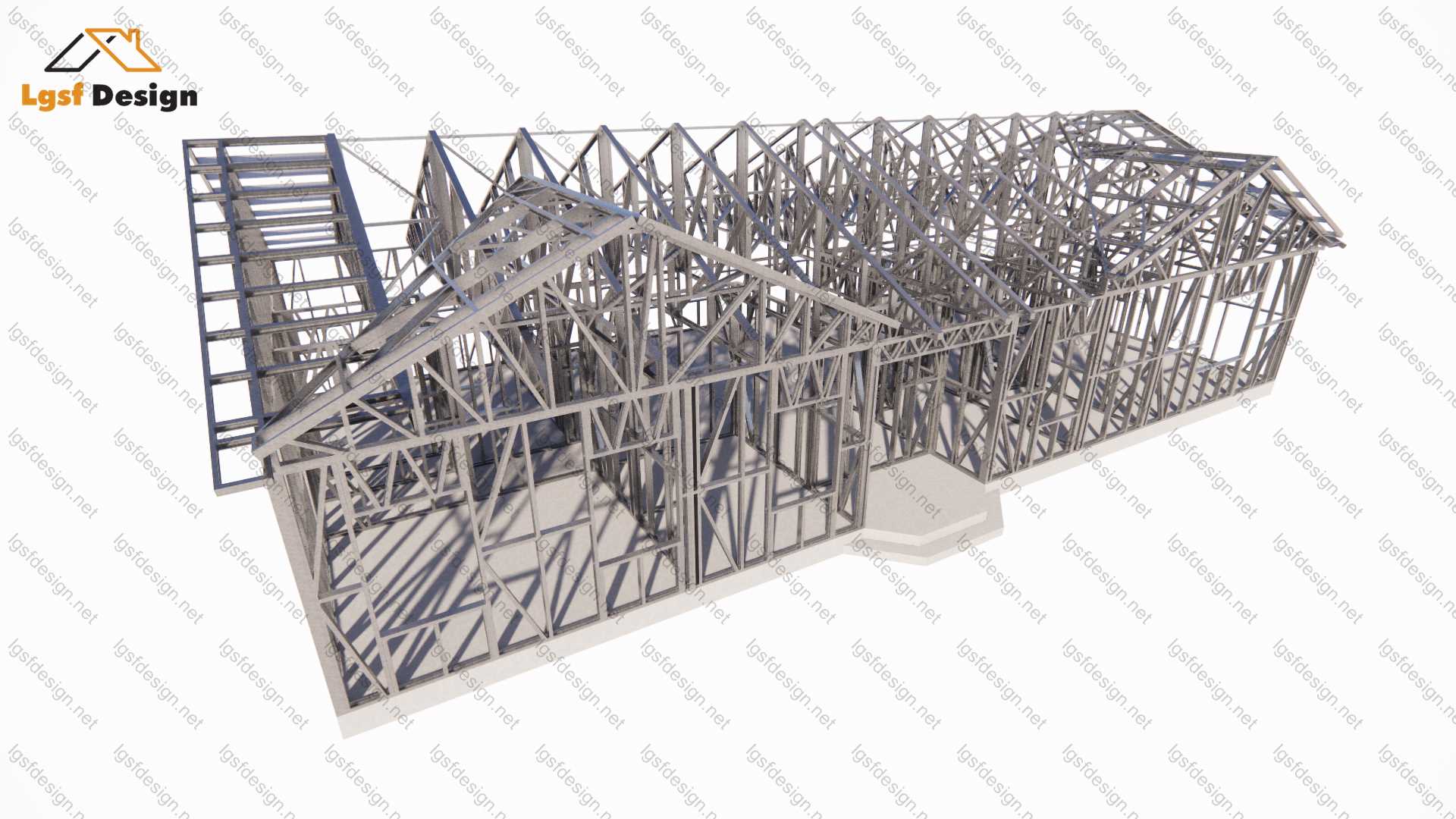

  • Cold-Formed Steel Structural Drawings
  • Cold-Formed Steel Shop Drawings
  • Exact material takeoff for price estimation (by sqm of surface Area)
  • Cold-Formed Steel Connection Design and Details
  • Exact material takeoff for price estimation
  • Hot Rolled Steel as per the Project Requirement
  • Roll Forming File for your framecad machine (If you need complete files for other machines, like HOWICK, PINNACLE, and any other VERTEX BD supported machine, just send us the brand and the model of your machine and the desired plan number to info@lgsfdesign.net, We will respond in few hours with a quotation.)
