LGSF DESIGN | D97430

D97430

$ 410.0

+3

+3

+3

Packages Price

Foundation	$ 100.0
Architectural Drawings	$ 110.0
Complete BOQ	$ 80.0
Drawings, calculations & CNC files	$ 120.0
Full Package	$ 410.0

Key Specs

Title :
Price :
Area :
Bedroom :

D97430
$ 410
97 m²
4

Bathroom :
Garage :
Floor :
Hot Rolled Steel :

3
0
1
No

Additional Details

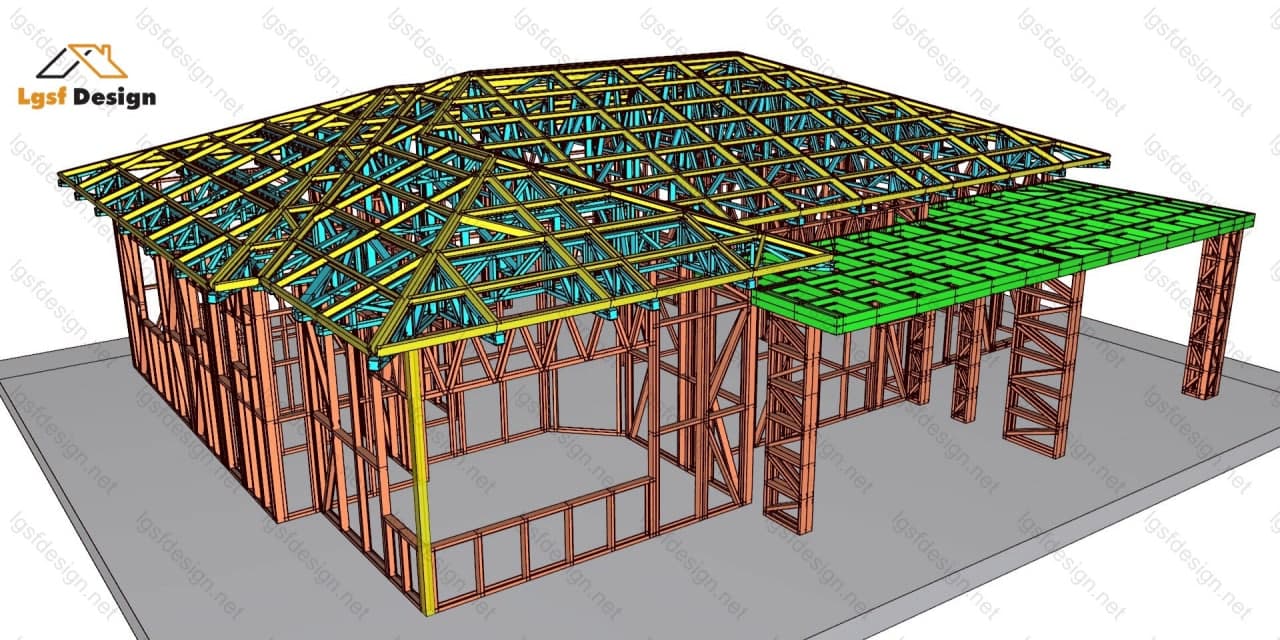

Structure Weight :
Steels :

3485 kg
89S41G350-0.75 mm , 89S41G350-0.95 mm

Load Conditions

Designing Code :
Characteristic Value of Snow Load :
Fundamental Basic Wind Velocity :
Basic Velocity Pressure :
Reference Value of Peak Ground Acceleration :

IBC 2021
0.50 kN/m²
40.00 m/s
1.00 kN/m²
0.20 m/s²

Floor plans

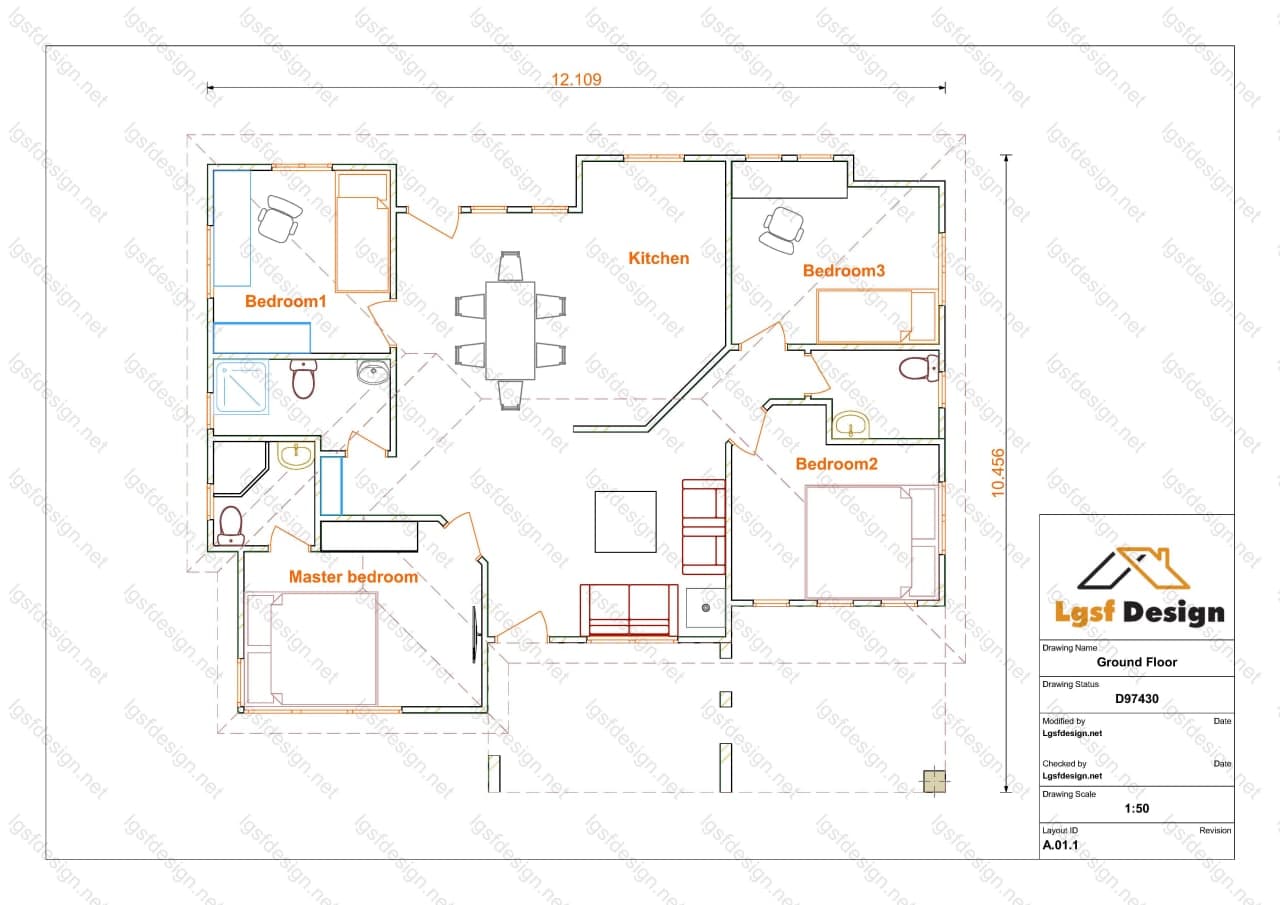

Floor Plan

0 Review
( 0.0 out of 5.0 )
Write a Review

No Review for this plan.

Write a Review

Your Rating & Review
