D87212
Bedroom: 2
Bathroom: 1
Area: 87 m2
Steel:
89S41G350-0.95 mm
89S41G350-0.75 mm
89S41G350-0.75 mm
Floor: 2
Garage: 0
Structure Weight: 1592 kg
Longest Length: 4.50 m
SNOW
Characteristic Value of Snow Load:
sk = 0.50 kN/m2
WIND
Fundamental Basic Wind Velocity:
vb,0 = 44.00 m/s
Basic Velocity Pressure:
qb = 0.96 kN/m2
SEISMIC
Reference Value of Peak Ground Acceleration:
agR = 0.20 m/s2
Packages Price
| Foundation | 90 |
| Architectural Drawings | 90 |
| Complete BOQ | 50 |
| Drawings, calculations & CNC files | 100 |
| Full Package | 330 |
Plan Description
Discover this charming 930-square-foot home that boasts a variety of features to make it the perfect retreat for your next getaway. This delightful house offers two cozy bedrooms, providing a comfortable space to rest after a day of fun and exploration. The home is equipped with a modern bathroom, ensuring you have all the amenities you need for a pleasant stay. One of the standout features of this property is its rooftop terrace, which serves as an ideal gathering spot for social events and parties with friends or family. This inviting house is not only ideal for vacations but also a great place to create lasting memories with your loved ones. Don't miss the opportunity to experience this lovely home and all it has to offer.
3D Tour
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing.
WHAT'S INCLUDED IN THIS PLAN SET

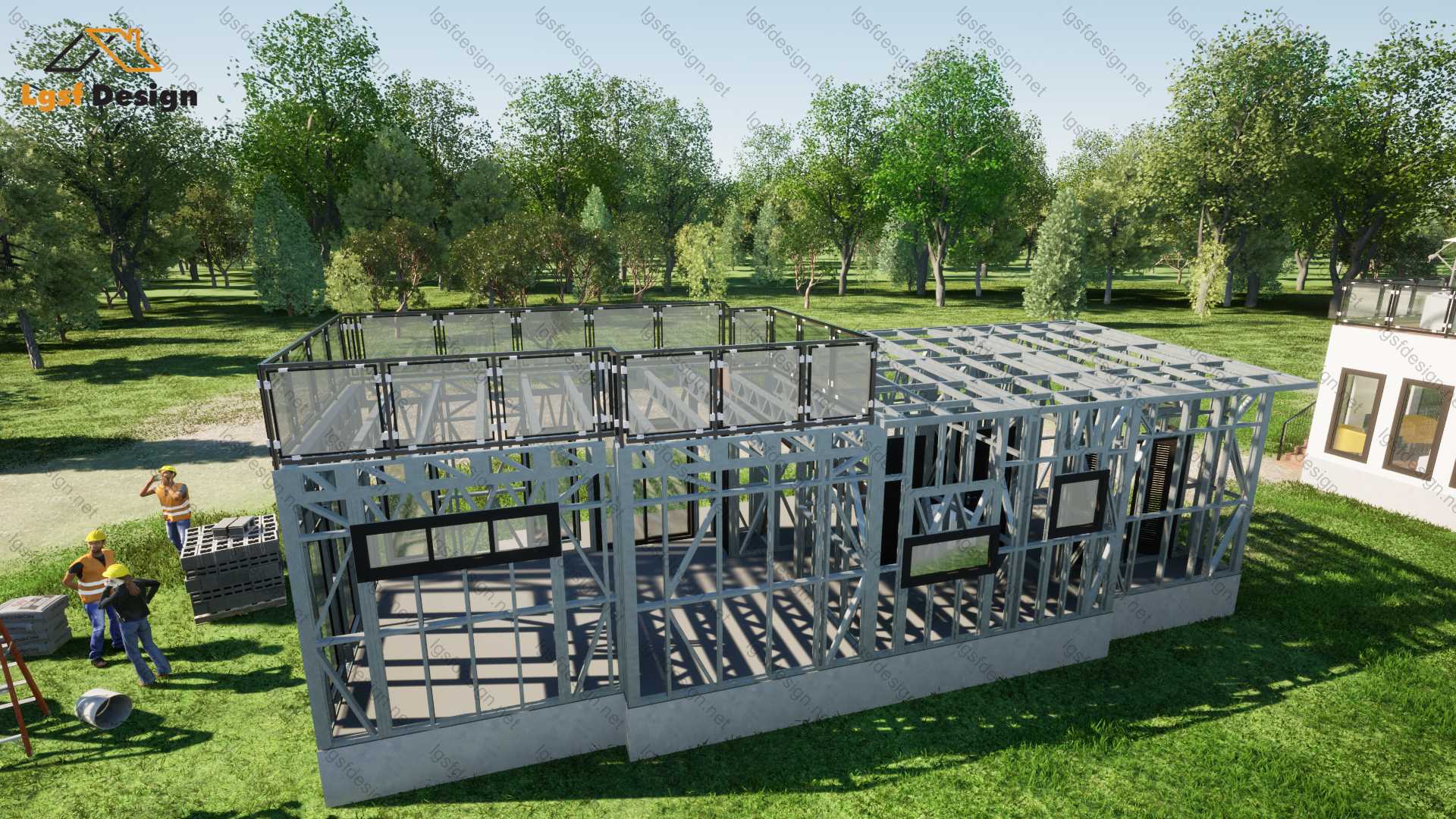

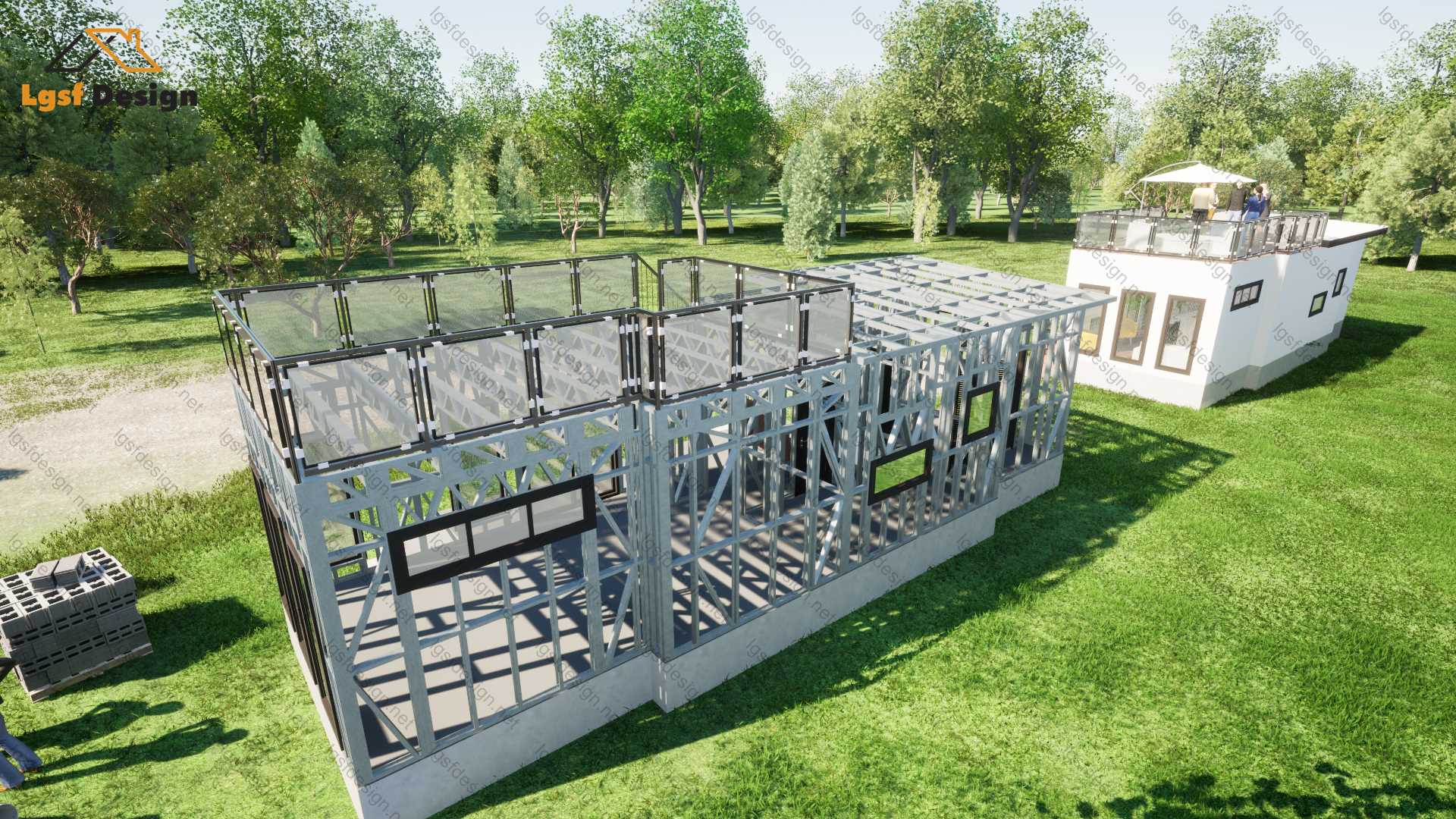

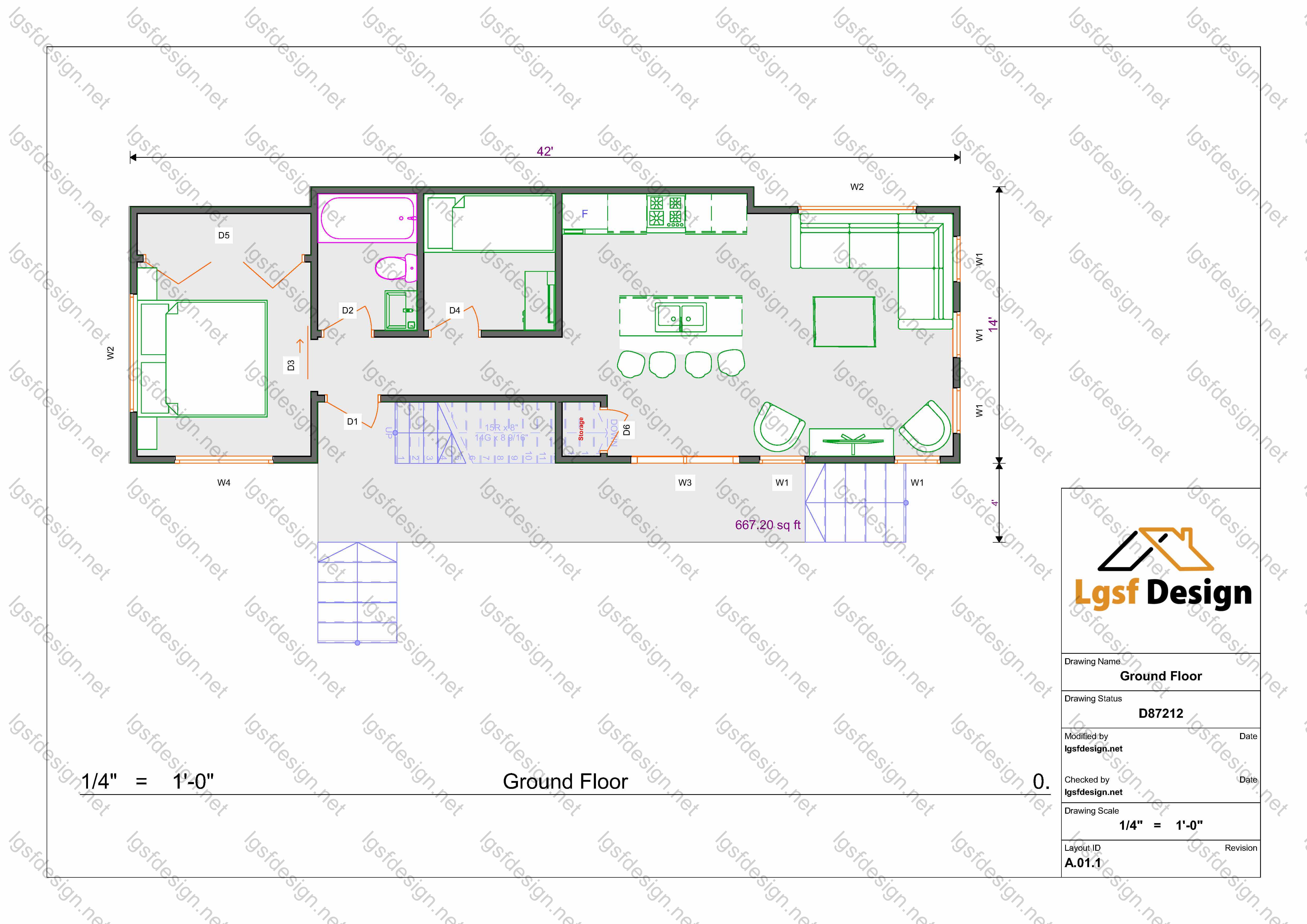

- Foundation plan: Typically includes dimensioned foundation plan with footing details
- Exterior elevations of all four views,
- Building sections and details as required to construct the individual design
- Roof plans
- Gravity and Lateral Analysis and Design using Standard sections

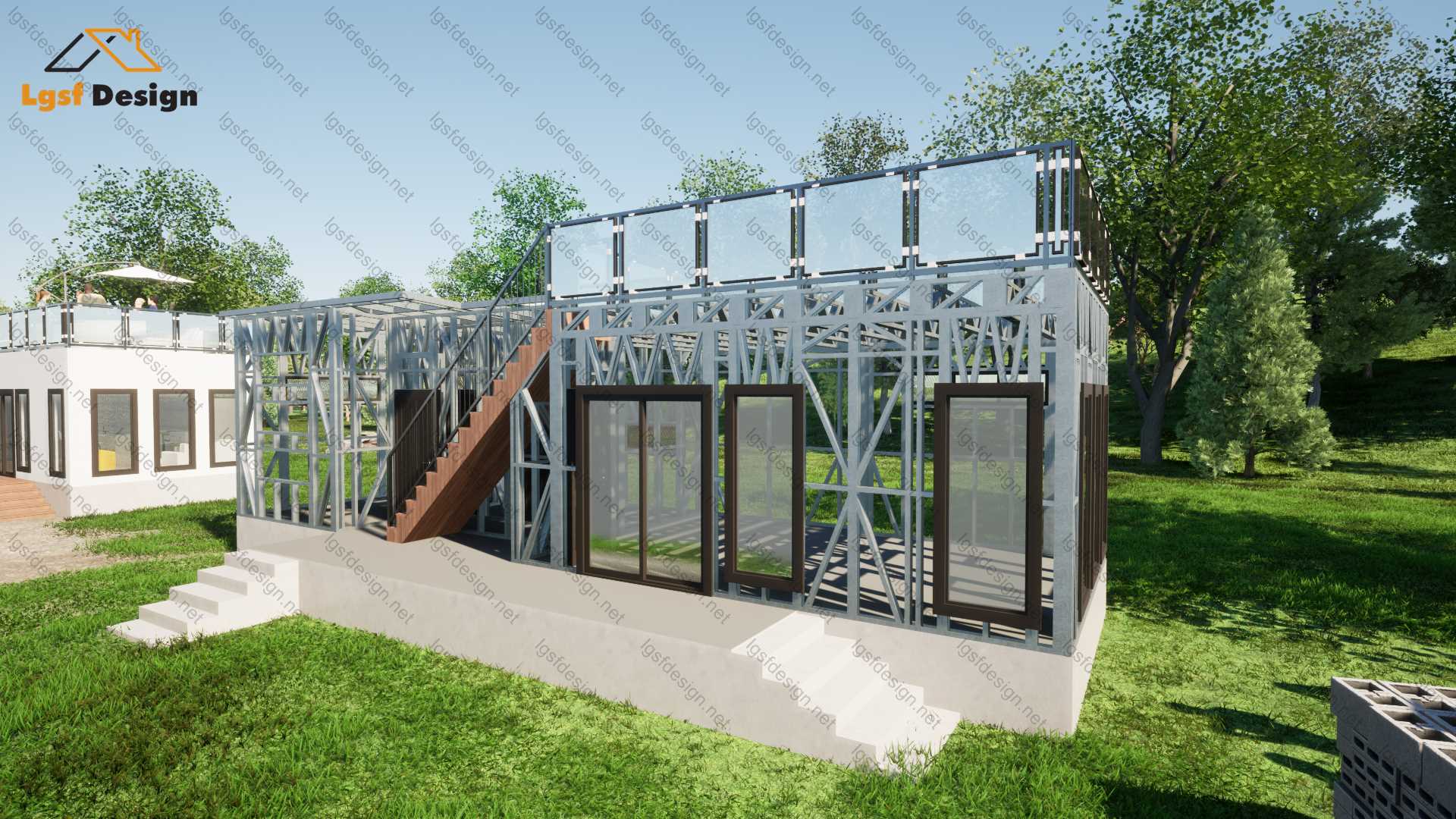

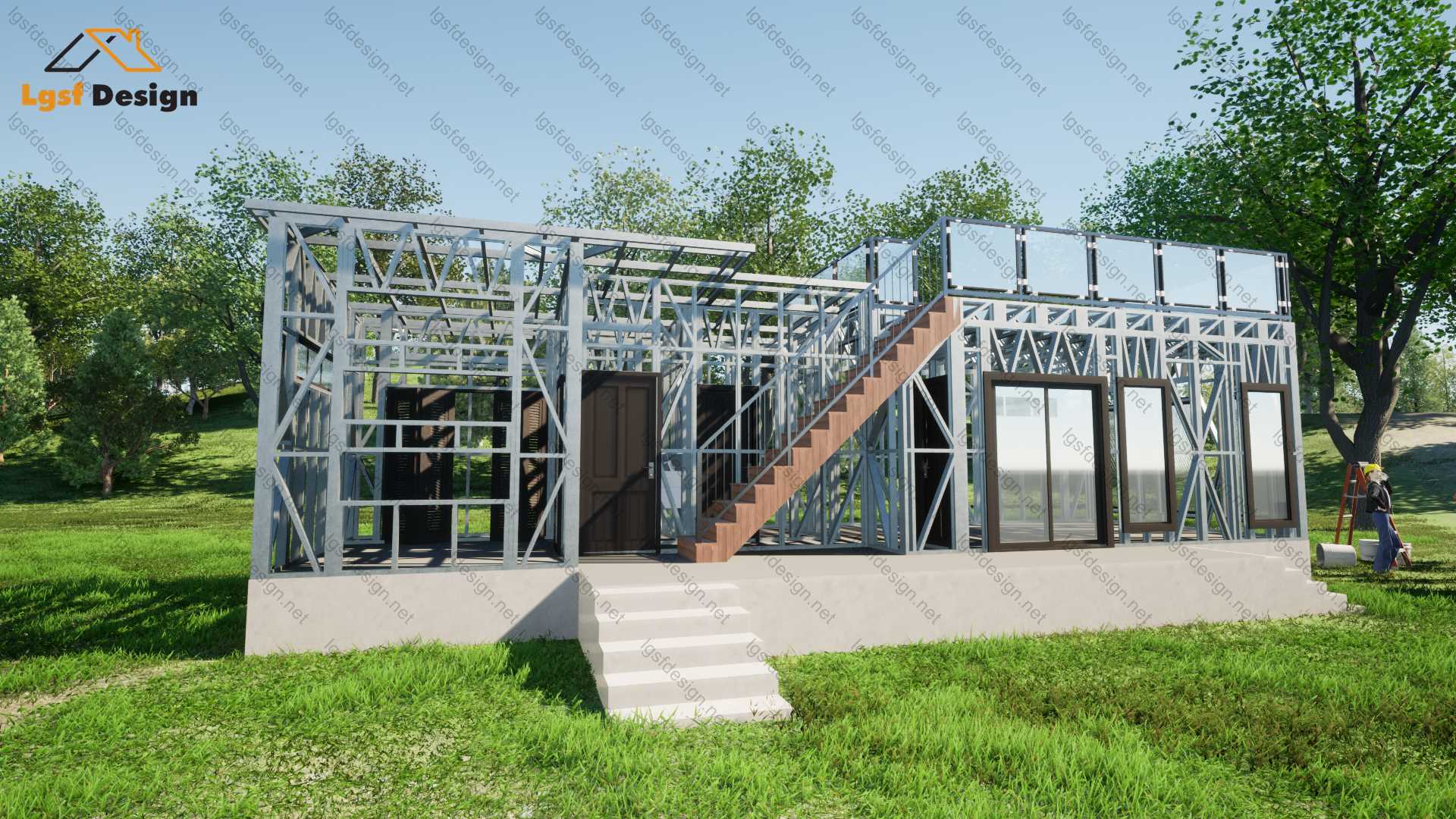

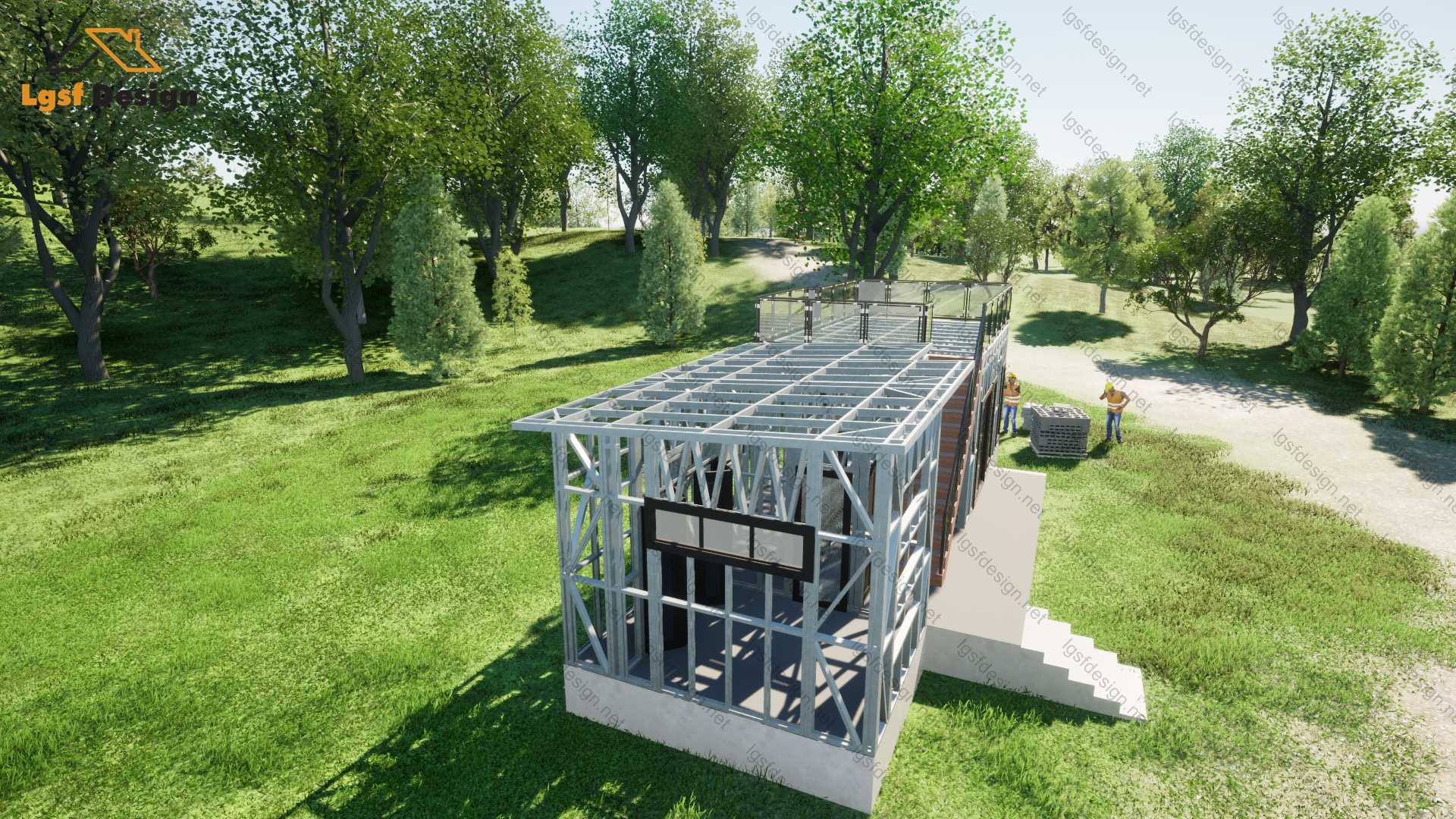

- Cold-Formed Steel Structural Drawings
- Cold-Formed Steel Shop Drawings
- Exact material takeoff for price estimation (by sqm of surface Area)
- Cold-Formed Steel Connection Design and Details
- Exact material takeoff for price estimation
- Hot Rolled Steel as per the Project Requirement
- Roll Forming File for your framecad machine (If you need complete files for other machines, like HOWICK, PINNACLE, and any other VERTEX BD supported machine, just send us the brand and the model of your machine and the desired plan number to info@lgsfdesign.net, We will respond in few hours with a quotation.)
