LGSF DESIGN | D127320

D127320

$ 510.0

+6

+6

+6

+6

+6

+6

Packages Price

Foundation	$ 130.0
Architectural Drawings	$ 140.0
Complete BOQ	$ 80.0
Drawings, calculations & CNC files	$ 160.0
Full Package	$ 510.0

Key Specs

Title :
Price :
Area :
Bedroom :

D127320
$ 510
127 m²
3

Bathroom :
Garage :
Floor :
Hot Rolled Steel :

2
0
1
No

Additional Details

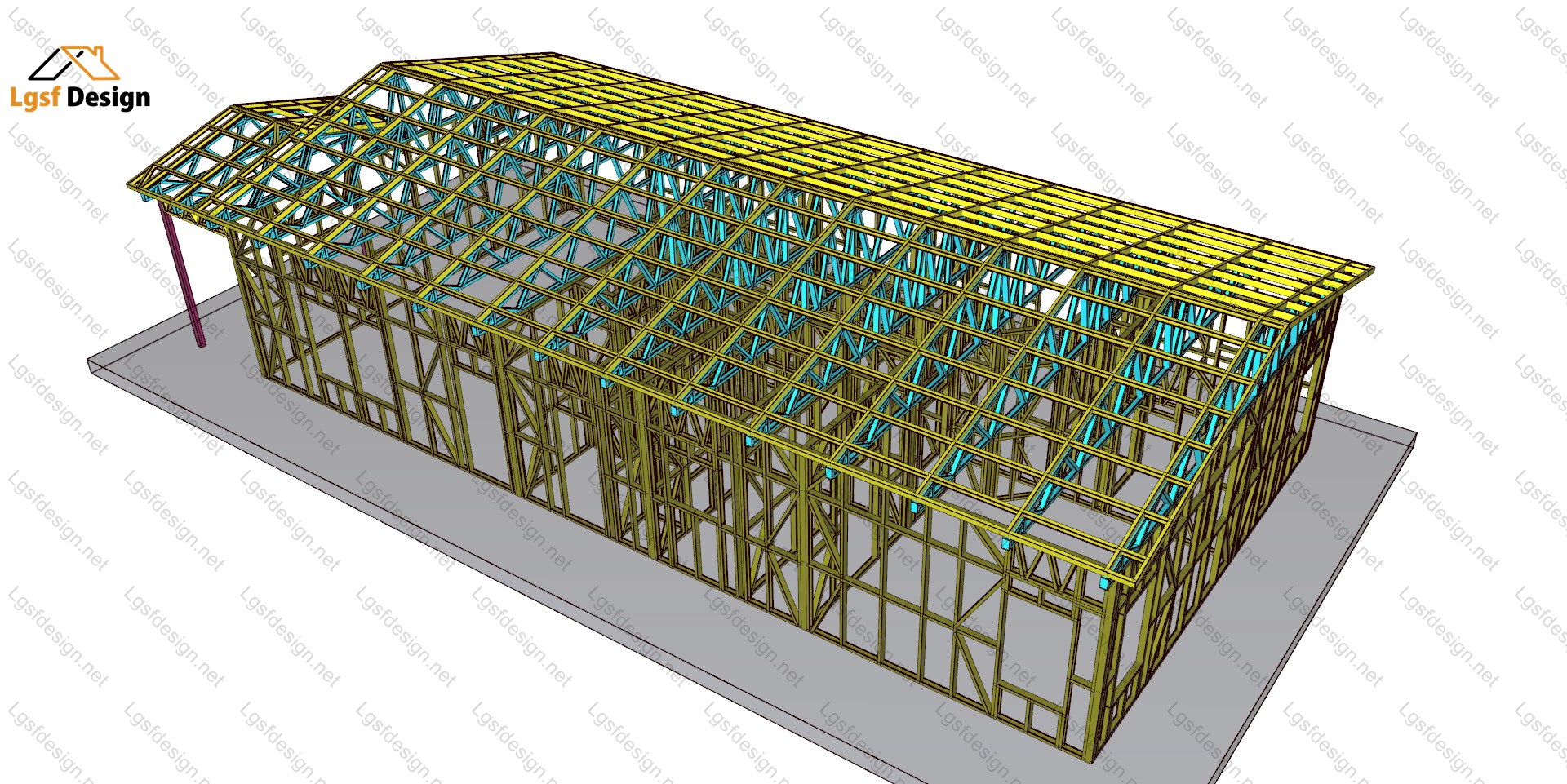

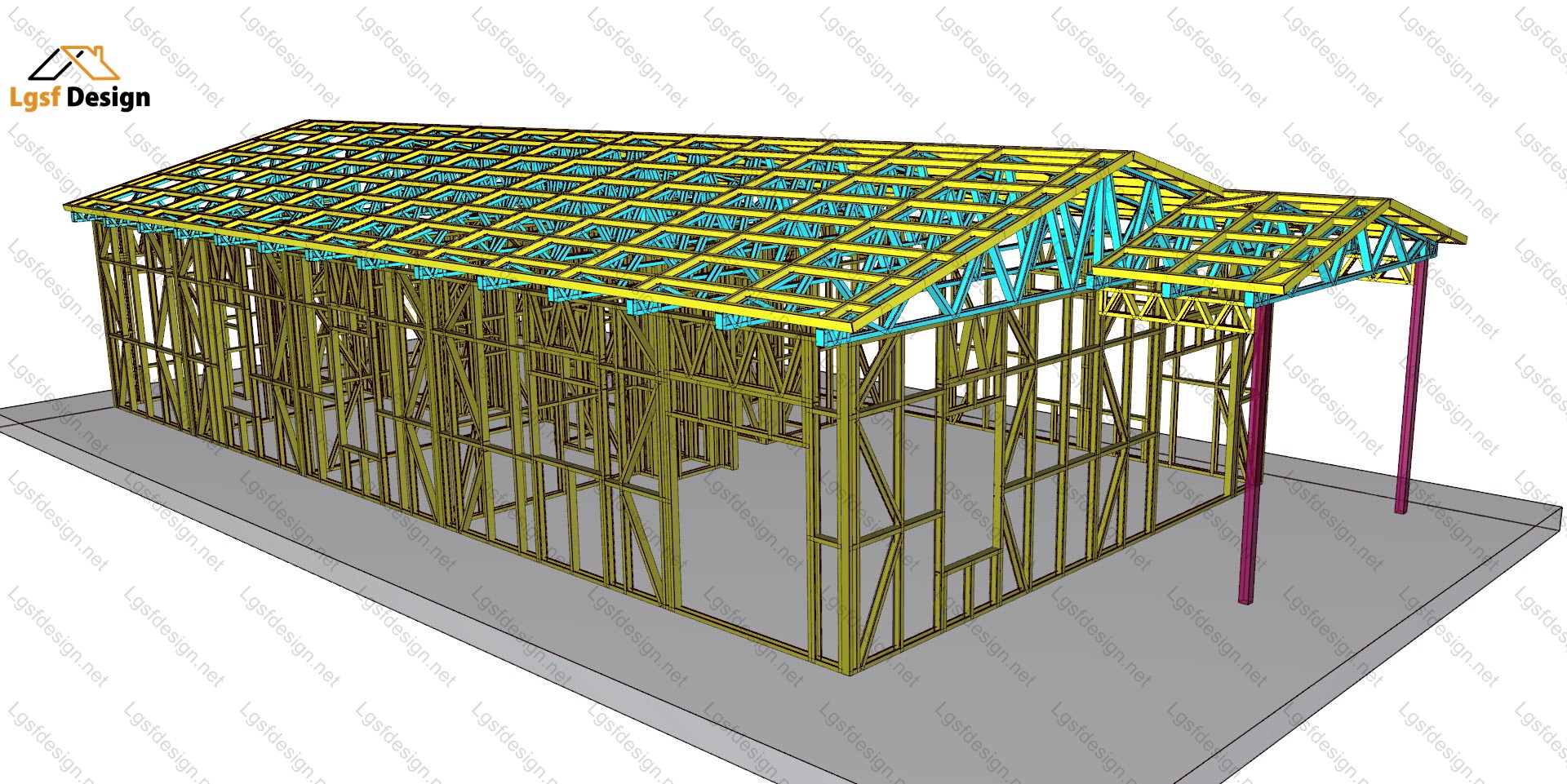

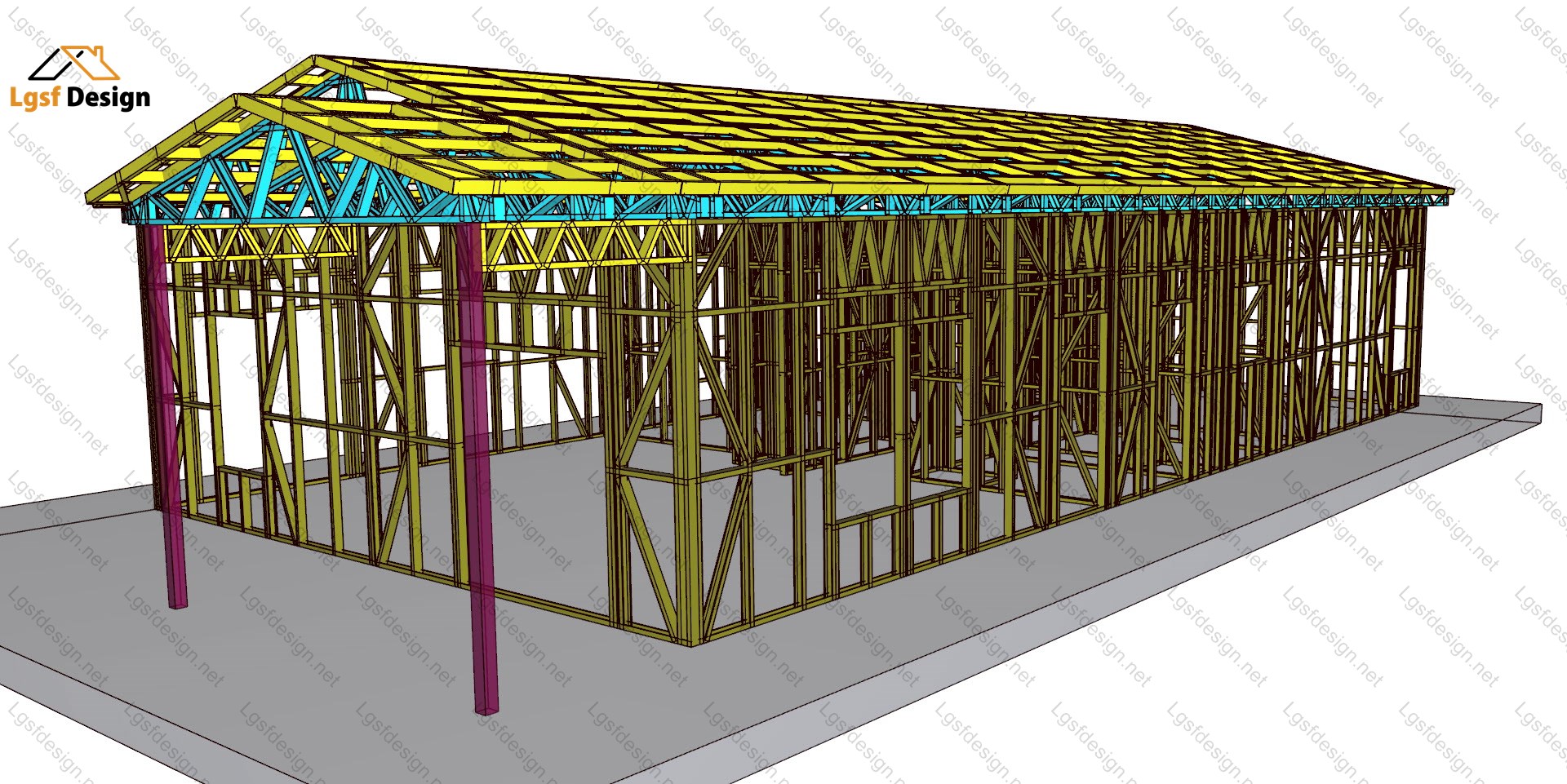

Structure Weight :
Steels :

3480 kg
89S41G350-0.75 mm , 89S41G350-0.95 mm

Load Conditions

Designing Code :
Characteristic Value of Snow Load :
Fundamental Basic Wind Velocity :
Basic Velocity Pressure :
Reference Value of Peak Ground Acceleration :

IBC 2021
0.50 kN/m²
40.00 m/s
1.00 kN/m²
0.20 m/s²

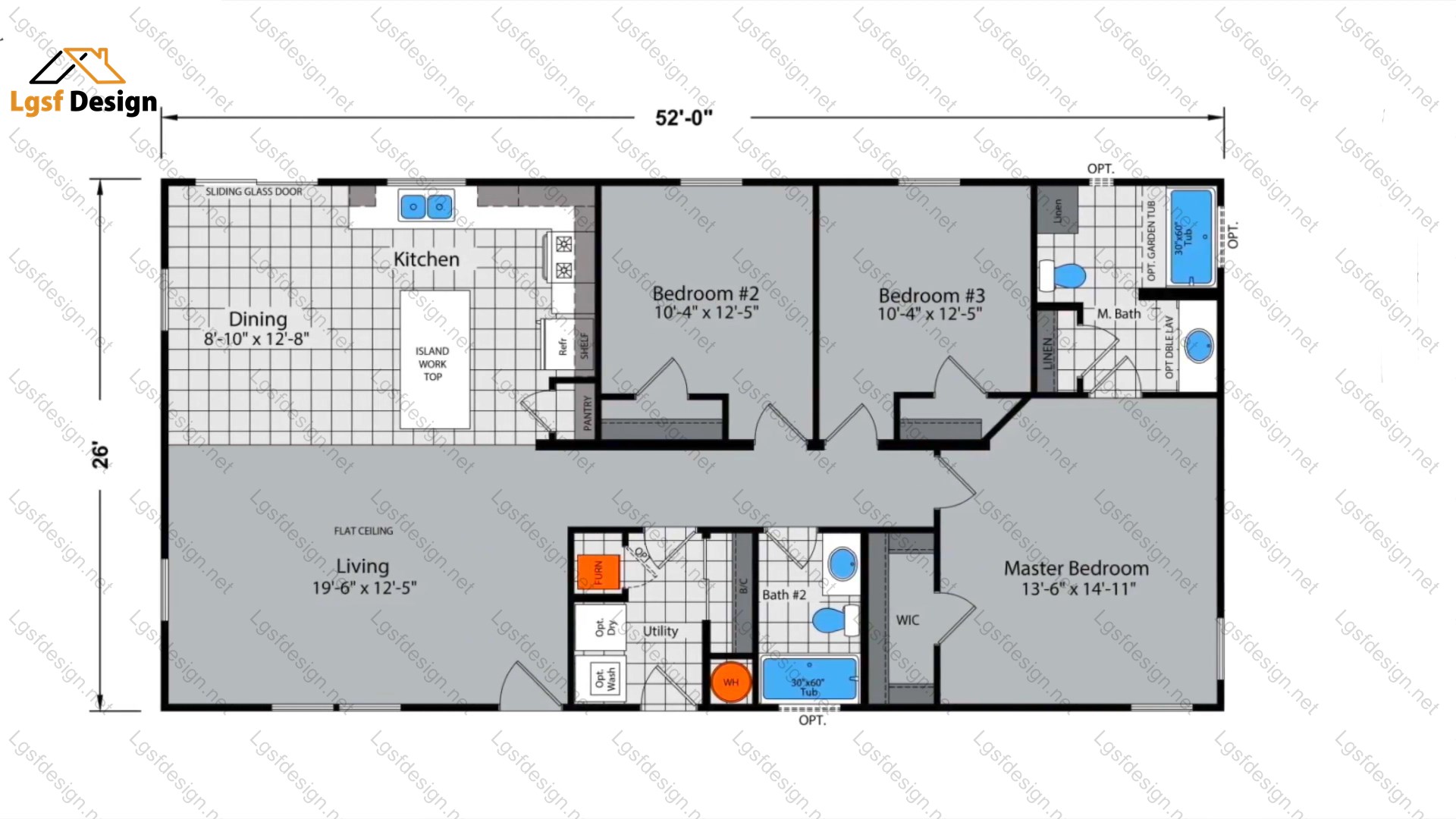

Floor plans

Floor Plan

0 Review
( 0.0 out of 5.0 )
Write a Review

No Review for this plan.

Write a Review

Your Rating & Review

Similar Plans

D101320

Ready to Roll

D101320

2
3
0
1
120 m²

D118320

Ready to Roll

D118320

3
2
2
1
118 m²

D137420

Ready to Roll

D137420

4
2
0
1
137 m²

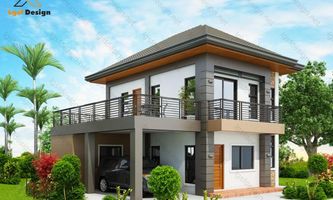

D134321
