LGSF DESIGN | D118320

D118320

$ 480.0

+6

+6

+6

+6

+6

+6

Packages Price

Foundation	$ 120.0
Architectural Drawings	$ 130.0
Complete BOQ	$ 80.0
Drawings, calculations & CNC files	$ 150.0
Full Package	$ 480.0

Key Specs

Title :
Price :
Area :
Bedroom :

D118320
$ 480
118 m²
3

Bathroom :
Garage :
Floor :
Hot Rolled Steel :

2
2
1
No

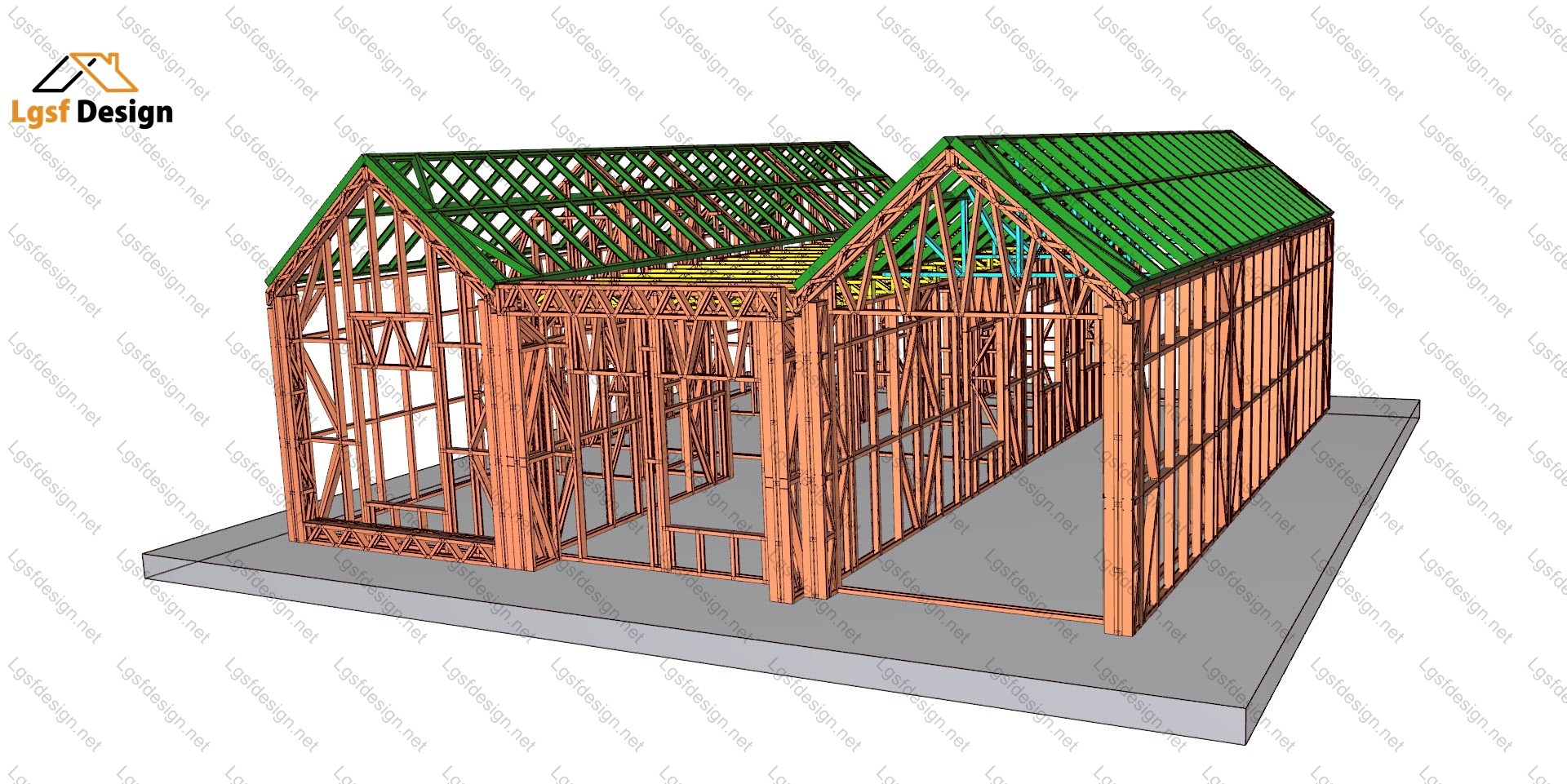

Additional Details

Structure Weight :
Steels :

3184 kg
89S41G350-0.75 mm , 89S41G350-0.95 mm

Load Conditions

Designing Code :
Characteristic Value of Snow Load :
Fundamental Basic Wind Velocity :
Basic Velocity Pressure :
Reference Value of Peak Ground Acceleration :

IBC 2021
0.50 kN/m²
40.00 m/s
1.00 kN/m²
0.20 m/s²

Floor plans

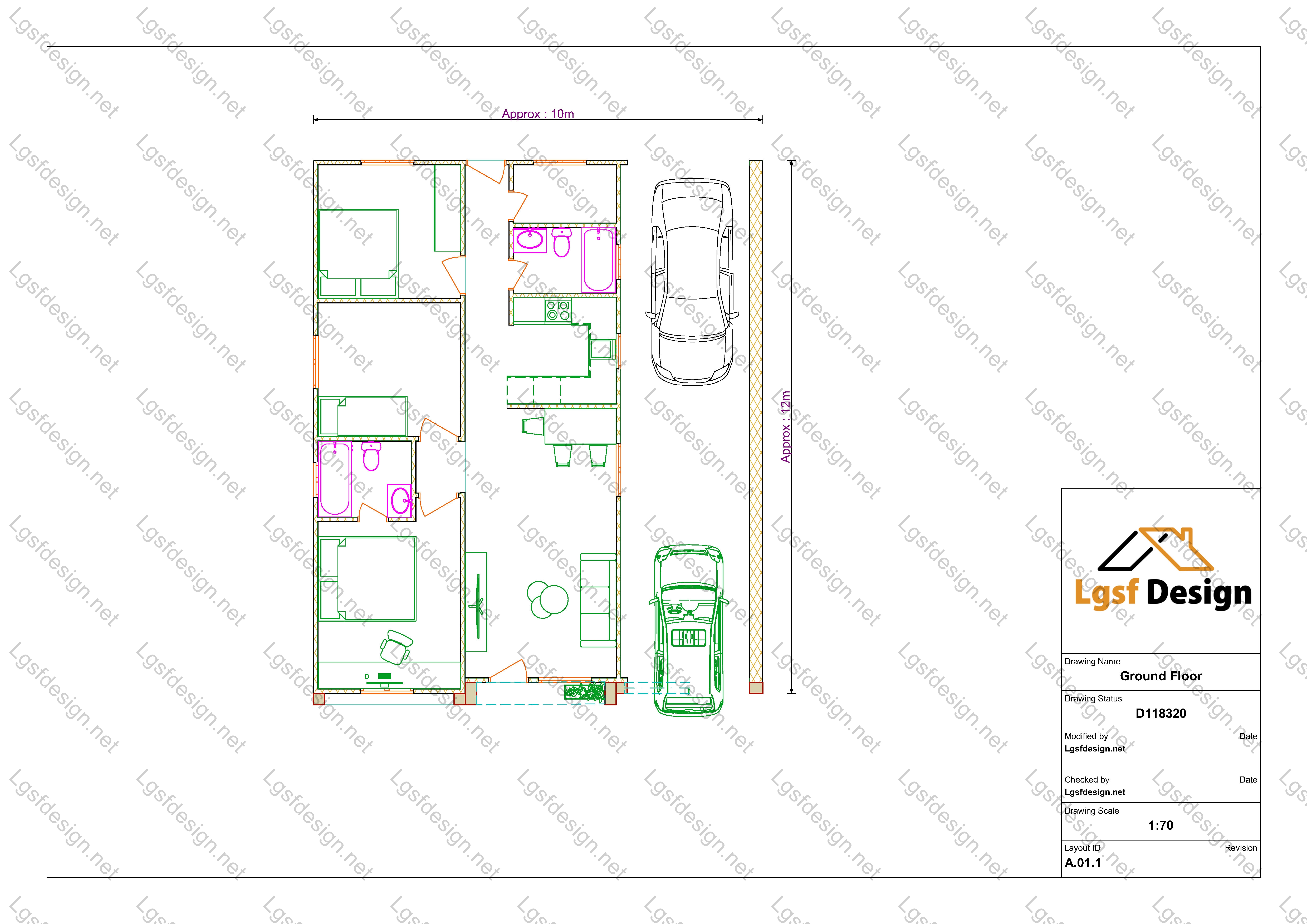

Floor Plan
