LGSF DESIGN | D56110

D56110

$ 280.0

+4

+4

+4

+4

Packages Price

Foundation	$ 60.0
Architectural Drawings	$ 70.0
Complete BOQ	$ 80.0
Drawings, calculations & CNC files	$ 70.0
Full Package	$ 280.0

Key Specs

Title :
Price :
Area :
Bedroom :

D56110
$ 280
56 m²
1

Bathroom :
Garage :
Floor :
Hot Rolled Steel :

1
0
1
No

Additional Details

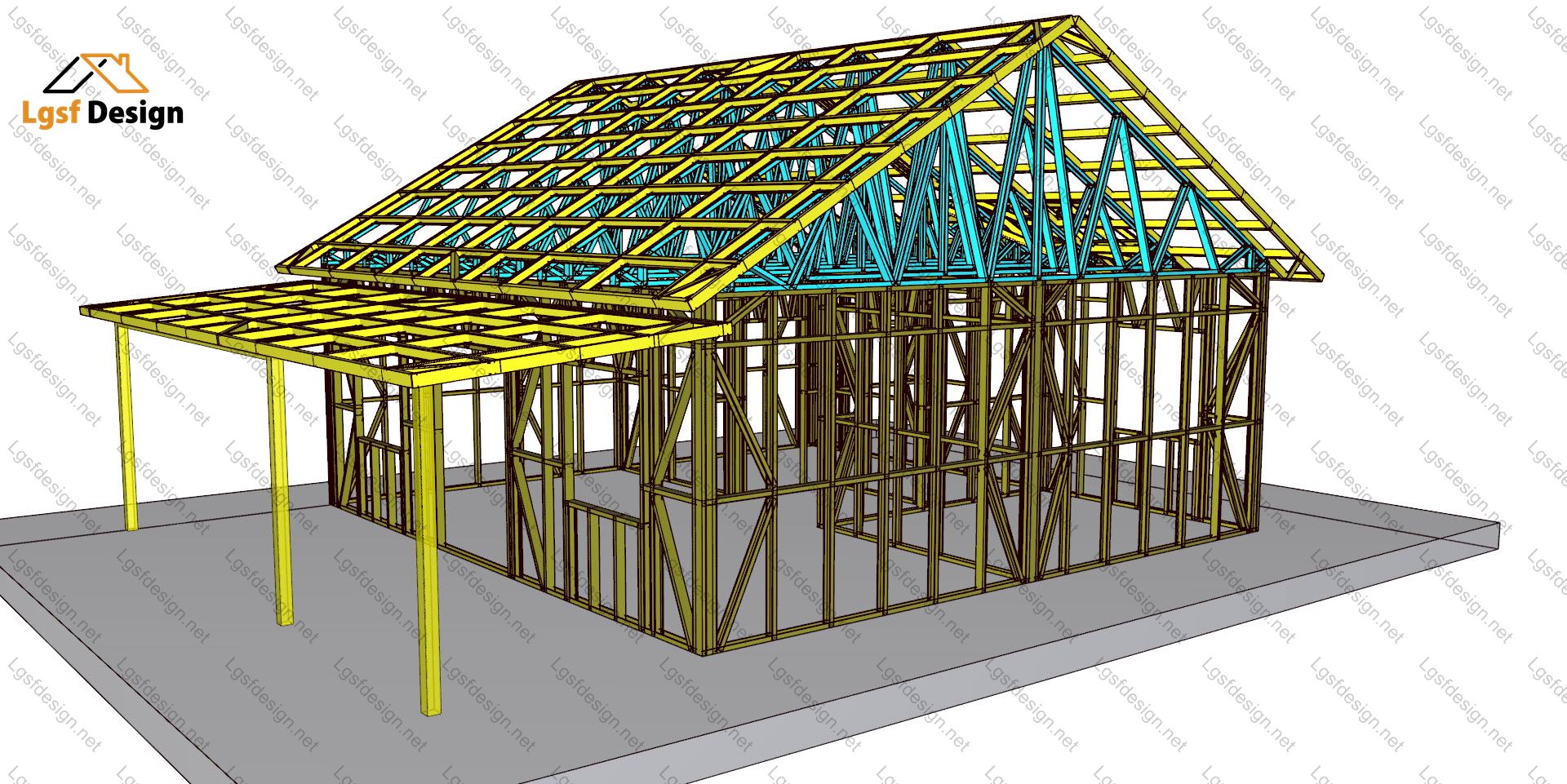

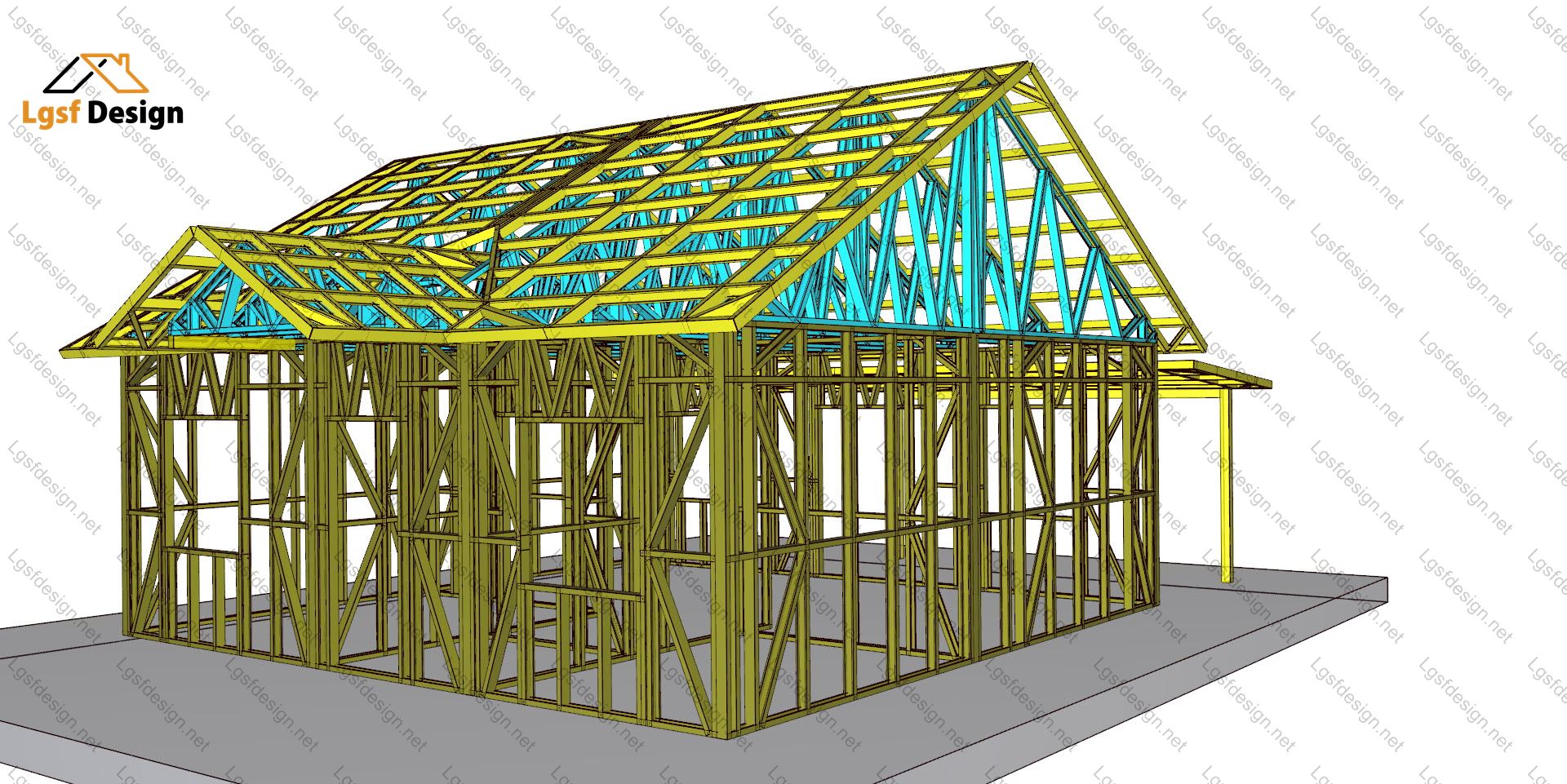

Structure Weight :
Steels :

1425 kg
89S41G350-0.75 mm , 89S41G350-0.95 mm

Load Conditions

Designing Code :
Characteristic Value of Snow Load :
Fundamental Basic Wind Velocity :
Basic Velocity Pressure :
Reference Value of Peak Ground Acceleration :

IBC 2021
0.50 kN/m²
40.00 m/s
1.00 kN/m²
0.20 m/s²

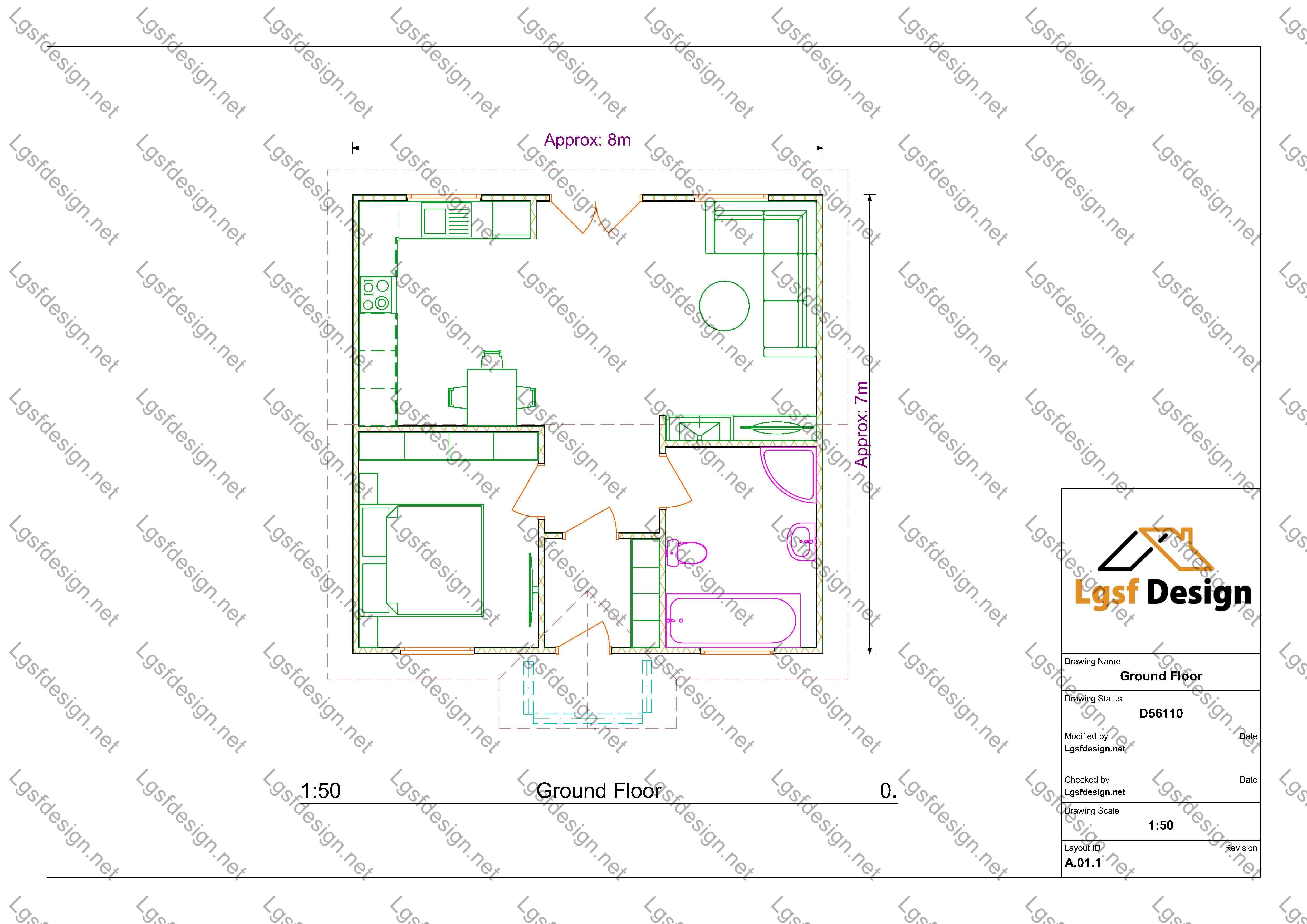

Floor plans

Floor Plan
