D141220
Bedroom: 2
Bathroom: 2
Area: 141 m2
Steel:
89S41G350-0.75 mm
89S41G350-0.95 mm
89S41G350-0.95 mm
Floor: 1
Garage: 0
Structure Weight: 4230 kg
SNOW
Characteristic Value of Snow Load:
sk = 0.50 kN/m2
WIND
Fundamental Basic Wind Velocity:
vb,0 = 40.00 m/s
Basic Velocity Pressure:
qb = 1.00 kN/m2
SEISMIC
Reference Value of Peak Ground Acceleration:
agR = 0.20 m/s2
Packages Price
| Foundation | 140 |
| Architectural Drawings | 140 |
| Complete BOQ | 50 |
| Drawings, calculations & CNC files | 170 |
| Full Package | 500 |
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing.
WHAT'S INCLUDED IN THIS PLAN SET

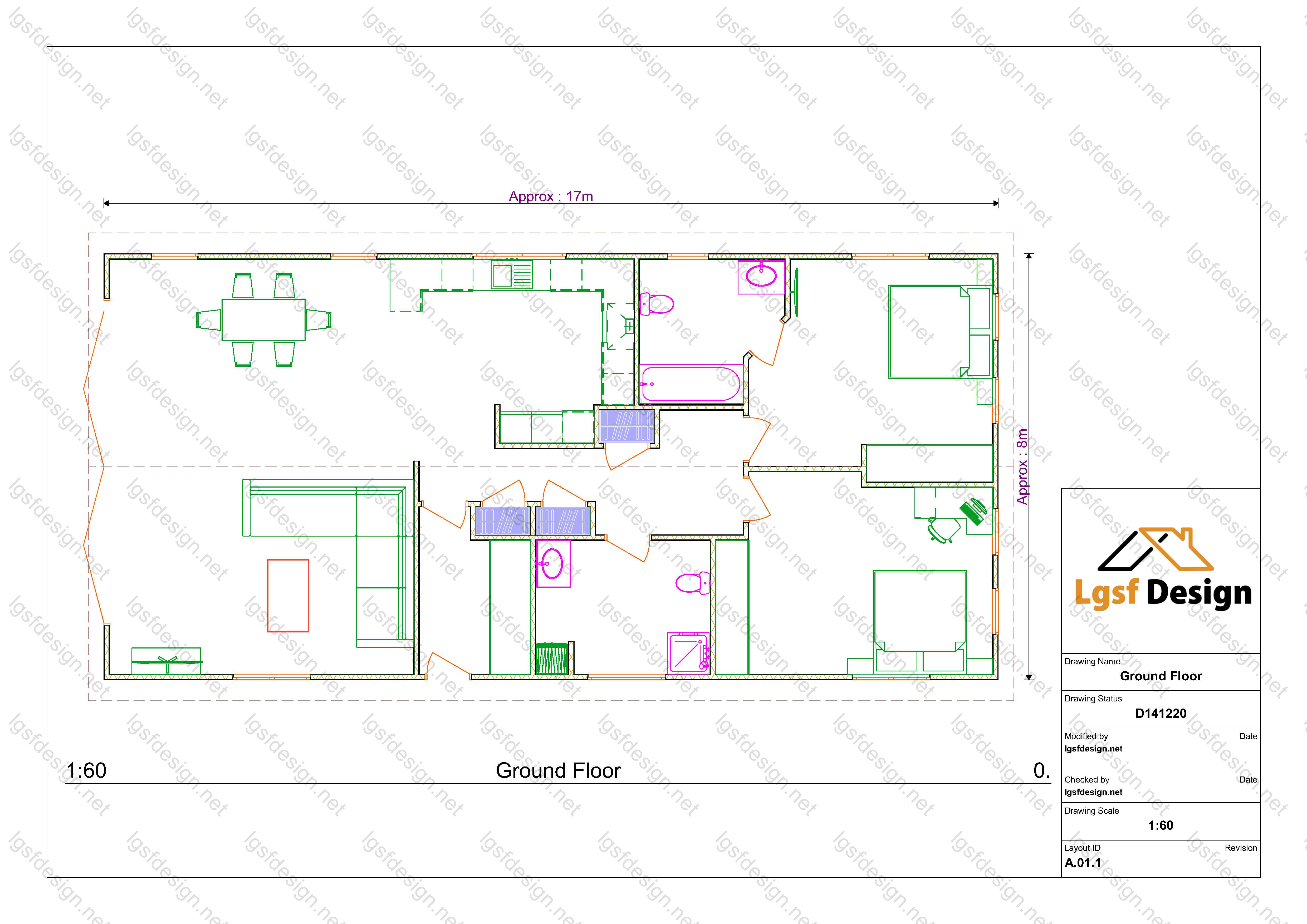

- Foundation plan: Typically includes dimensioned foundation plan with footing details
- Exterior elevations of all four views,
- Building sections and details as required to construct the individual design
- Roof plans
- Gravity and Lateral Analysis and Design using Standard sections

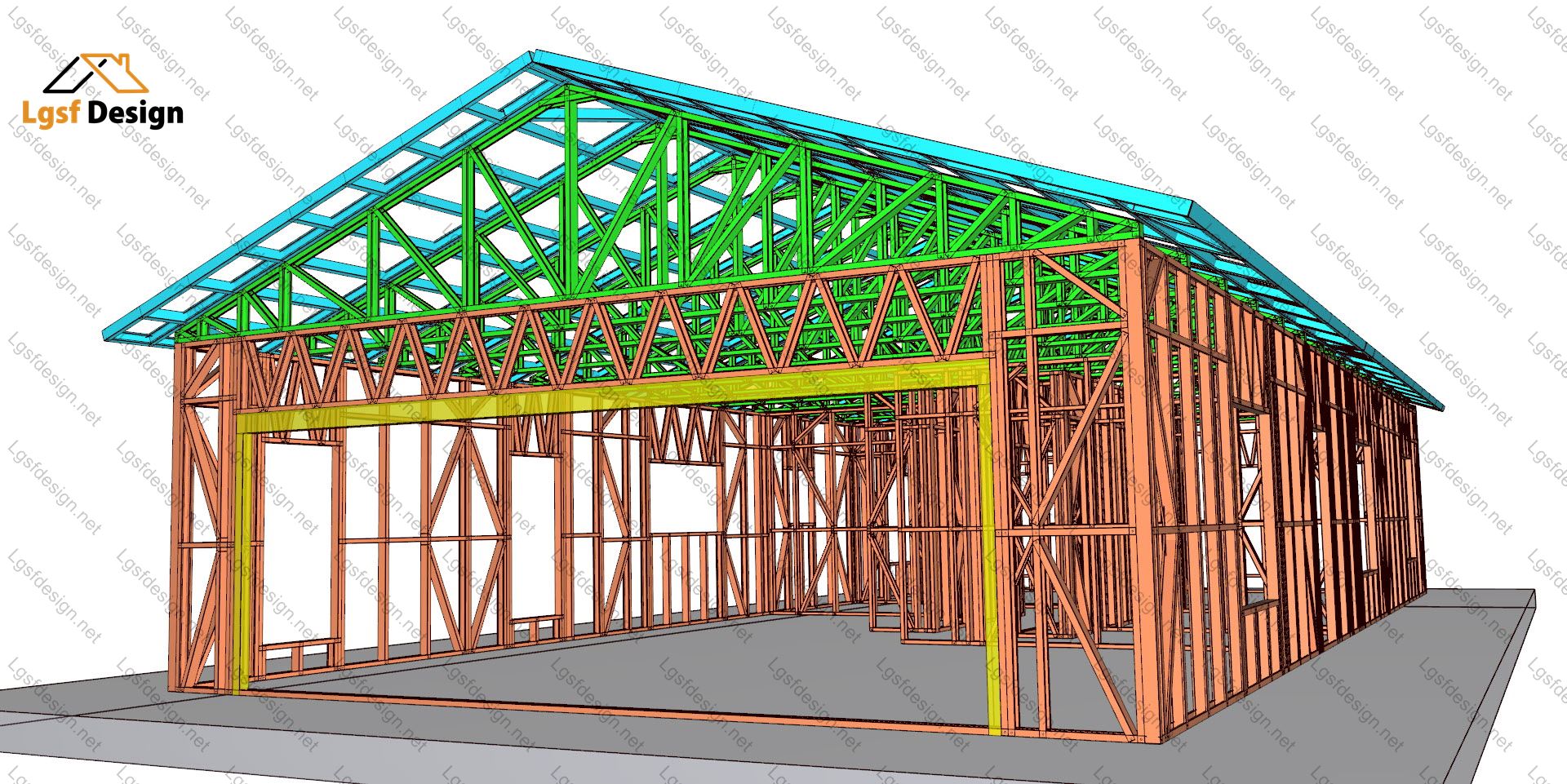

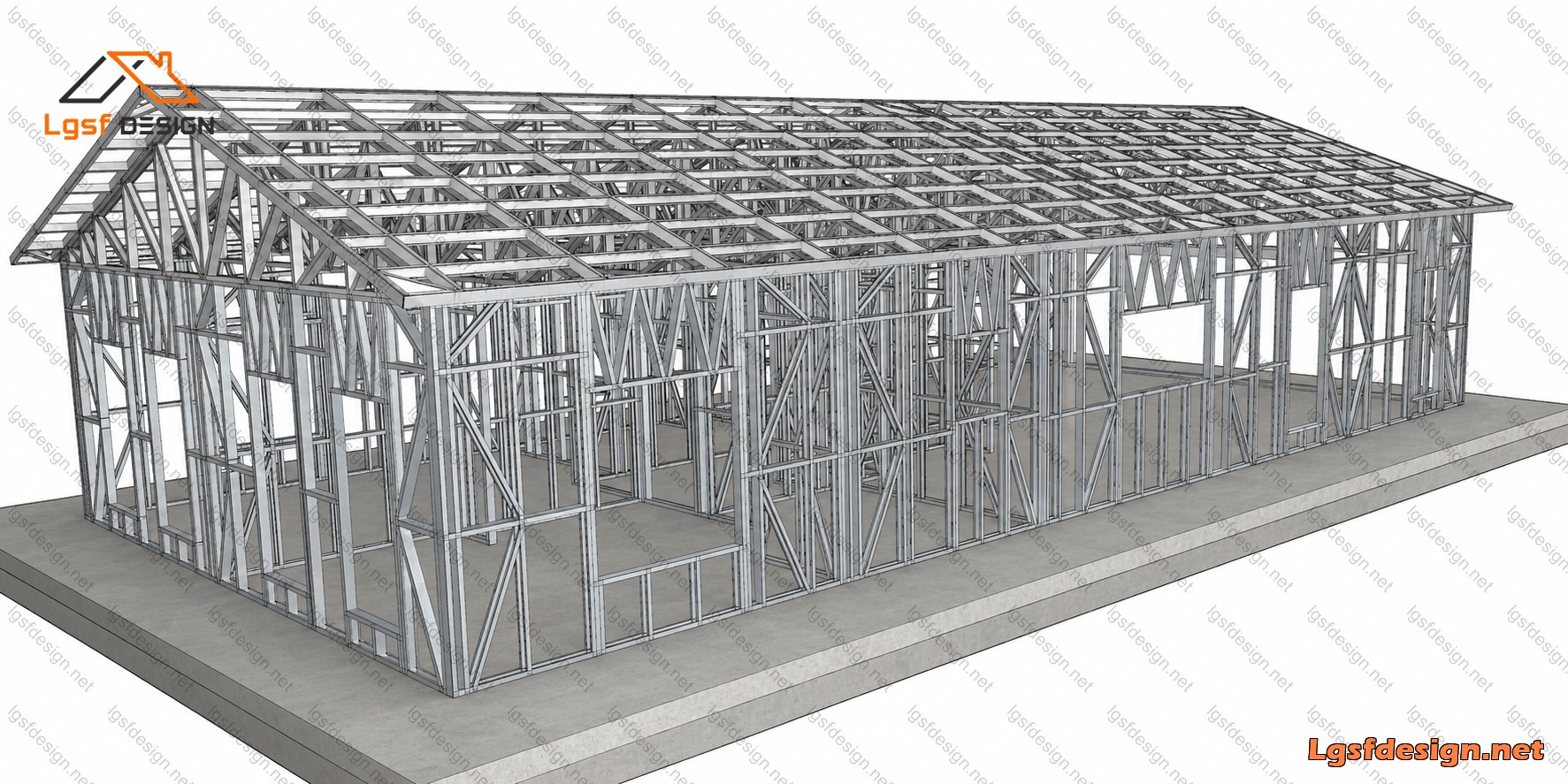

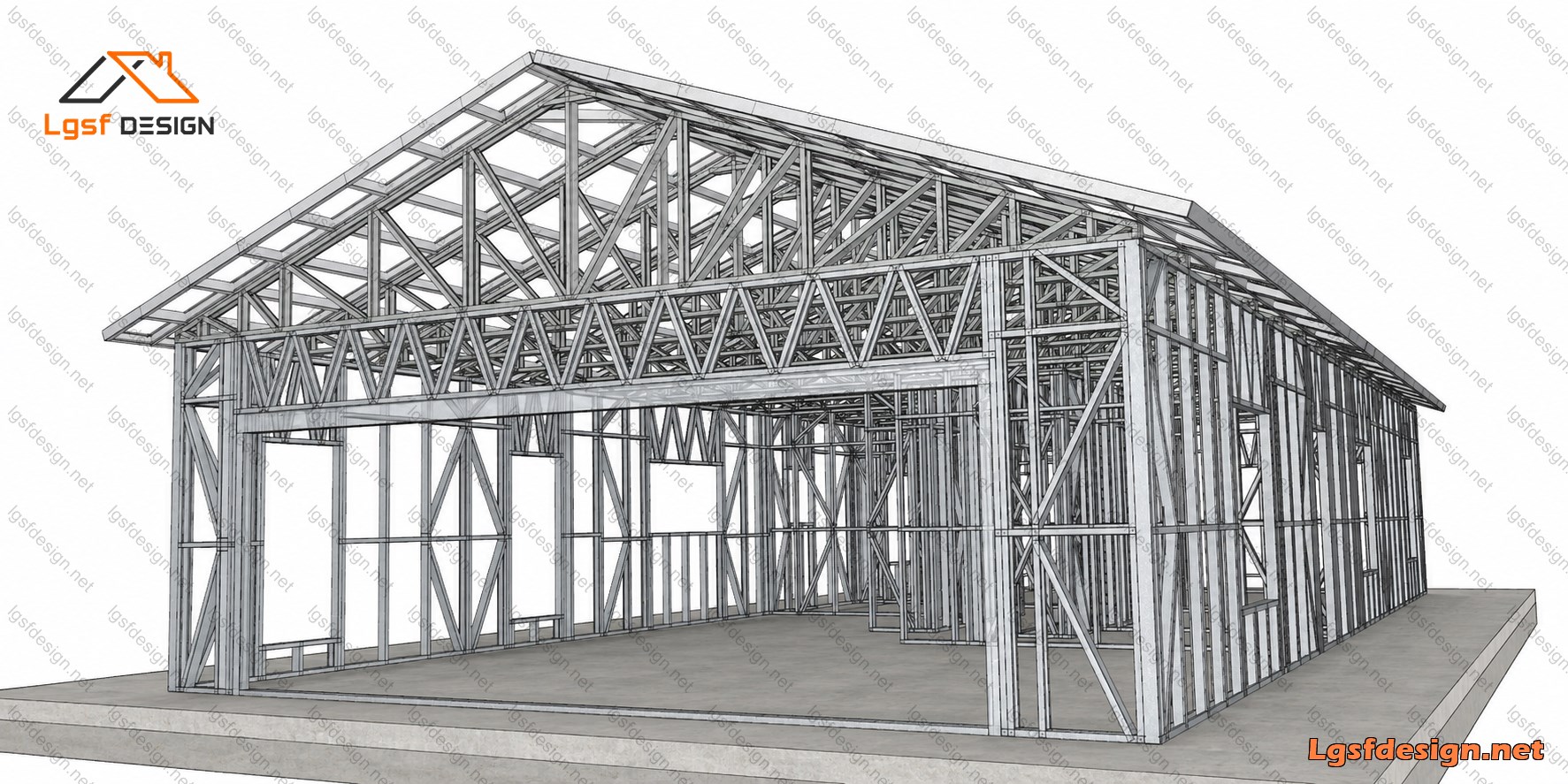

- Cold-Formed Steel Structural Drawings
- Cold-Formed Steel Shop Drawings
- Exact material takeoff for price estimation (by sqm of surface Area)
- Cold-Formed Steel Connection Design and Details
- Exact material takeoff for price estimation
- Hot Rolled Steel as per the Project Requirement
- Roll Forming File for your framecad machine (If you need complete files for other machines, like HOWICK, PINNACLE, and any other VERTEX BD supported machine, just send us the brand and the model of your machine and the desired plan number to info@lgsfdesign.net, We will respond in few hours with a quotation.)
