LGSF DESIGN | D1404200

D1404200

$ 550.0

+4

+4

+4

+4

Packages Price

Foundation	$ 140.0
Architectural Drawings	$ 160.0
Complete BOQ	$ 80.0
Drawings, calculations & CNC files	$ 170.0
Full Package	$ 550.0

Key Specs

Title :
Price :
Area :
Bedroom :

D1404200
$ 550
140 m²
4

Bathroom :
Garage :
Floor :
Hot Rolled Steel :

2
0
2
No

Additional Details

Structure Weight :
Steels :

4580 kg
89S41G350-0.75 mm , 89S41G350-0.95 mm

Load Conditions

Designing Code :
Characteristic Value of Snow Load :
Fundamental Basic Wind Velocity :
Basic Velocity Pressure :
Reference Value of Peak Ground Acceleration :

IBC 2021
0.50 kN/m²
40.00 m/s
1.00 kN/m²
0.20 m/s²

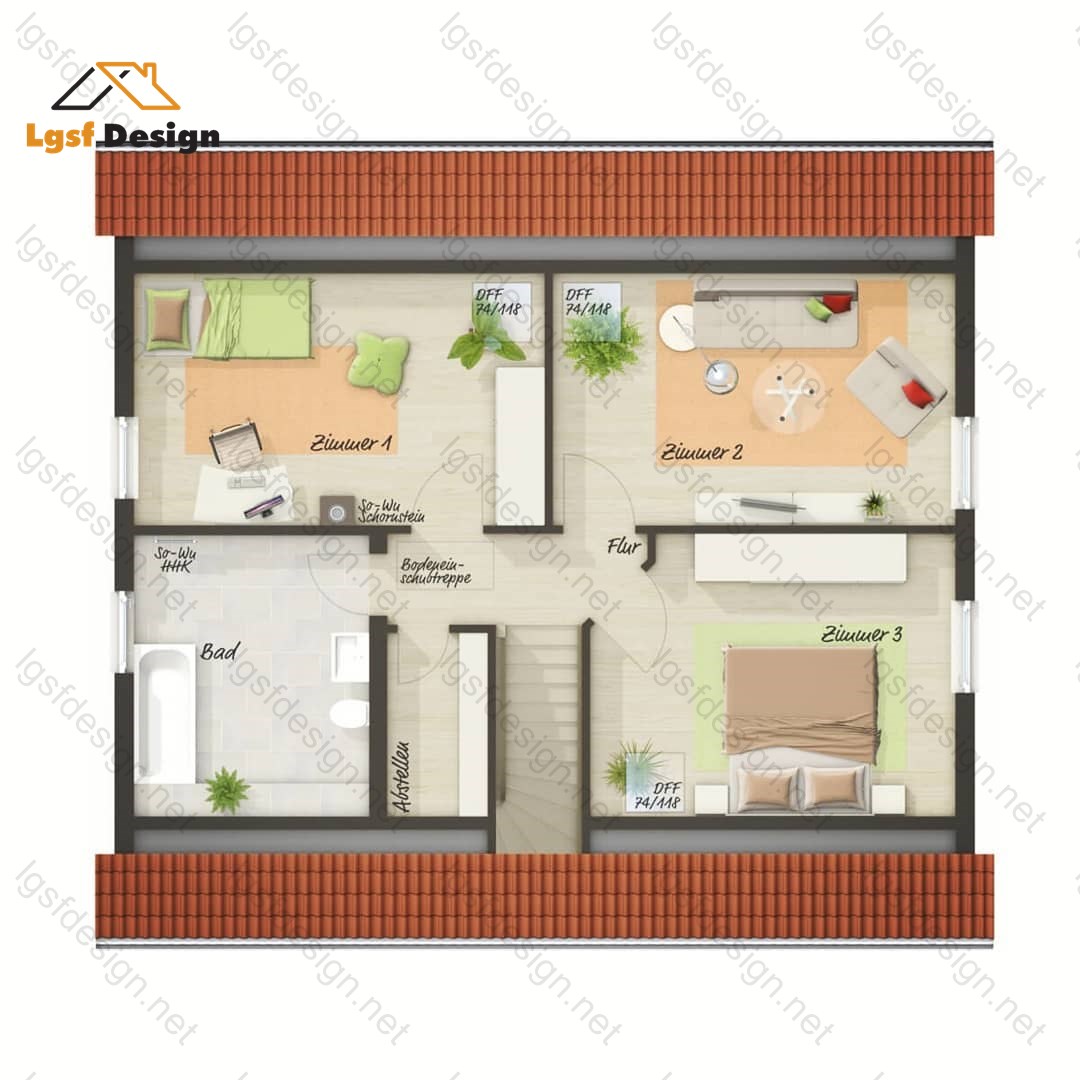

Floor plans
