LGSF DESIGN | D38110

D38110

$ 230.0

+5

+5

+5

+5

+5

Packages Price

Foundation	$ 50.0
Architectural Drawings	$ 50.0
Complete BOQ	$ 80.0
Drawings, calculations & CNC files	$ 50.0
Full Package	$ 230.0

Key Specs

Title :
Price :
Area :
Bedroom :

D38110
$ 230
38 m²
1

Bathroom :
Garage :
Floor :
Hot Rolled Steel :

1
0
1
No

Additional Details

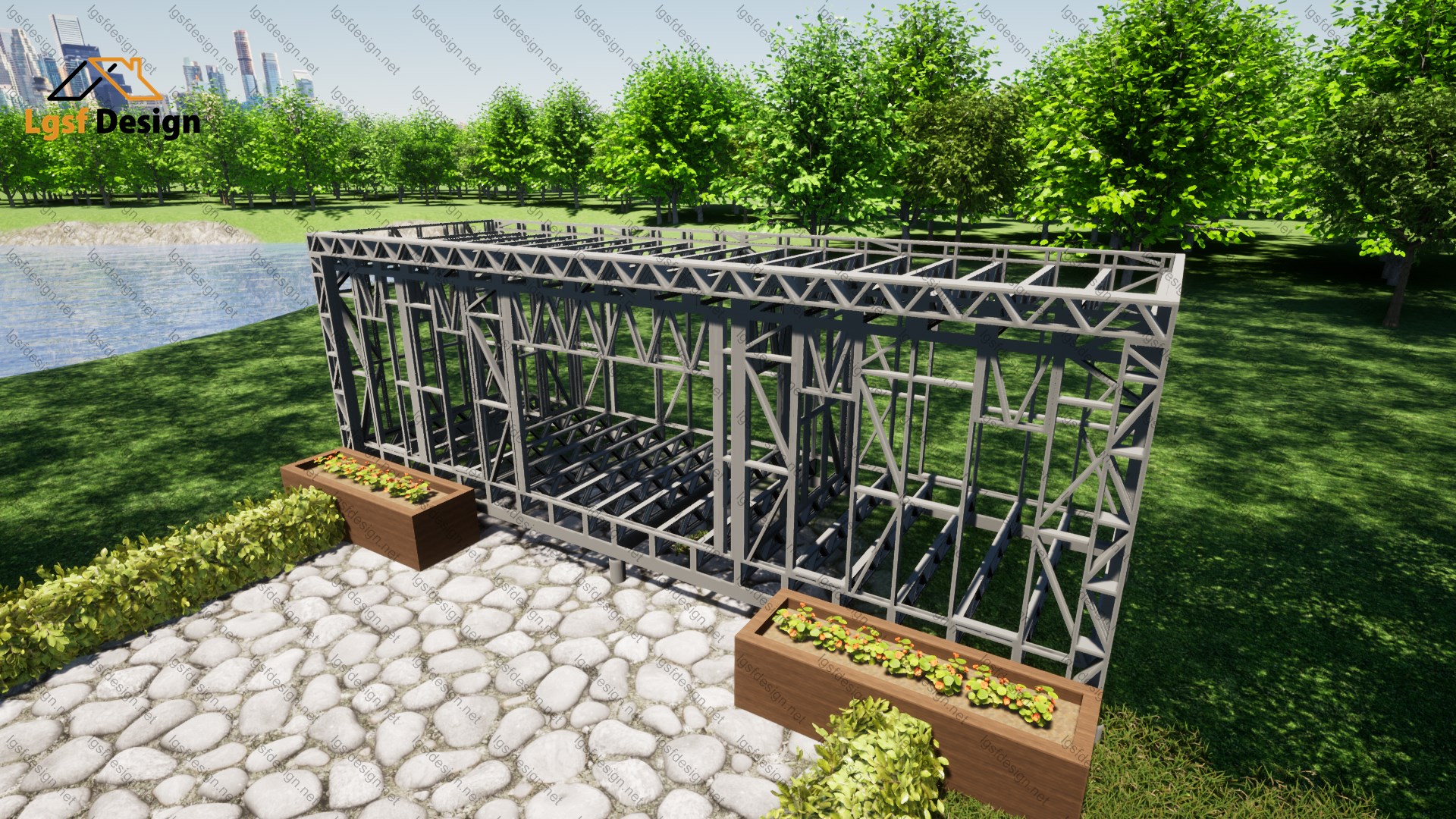

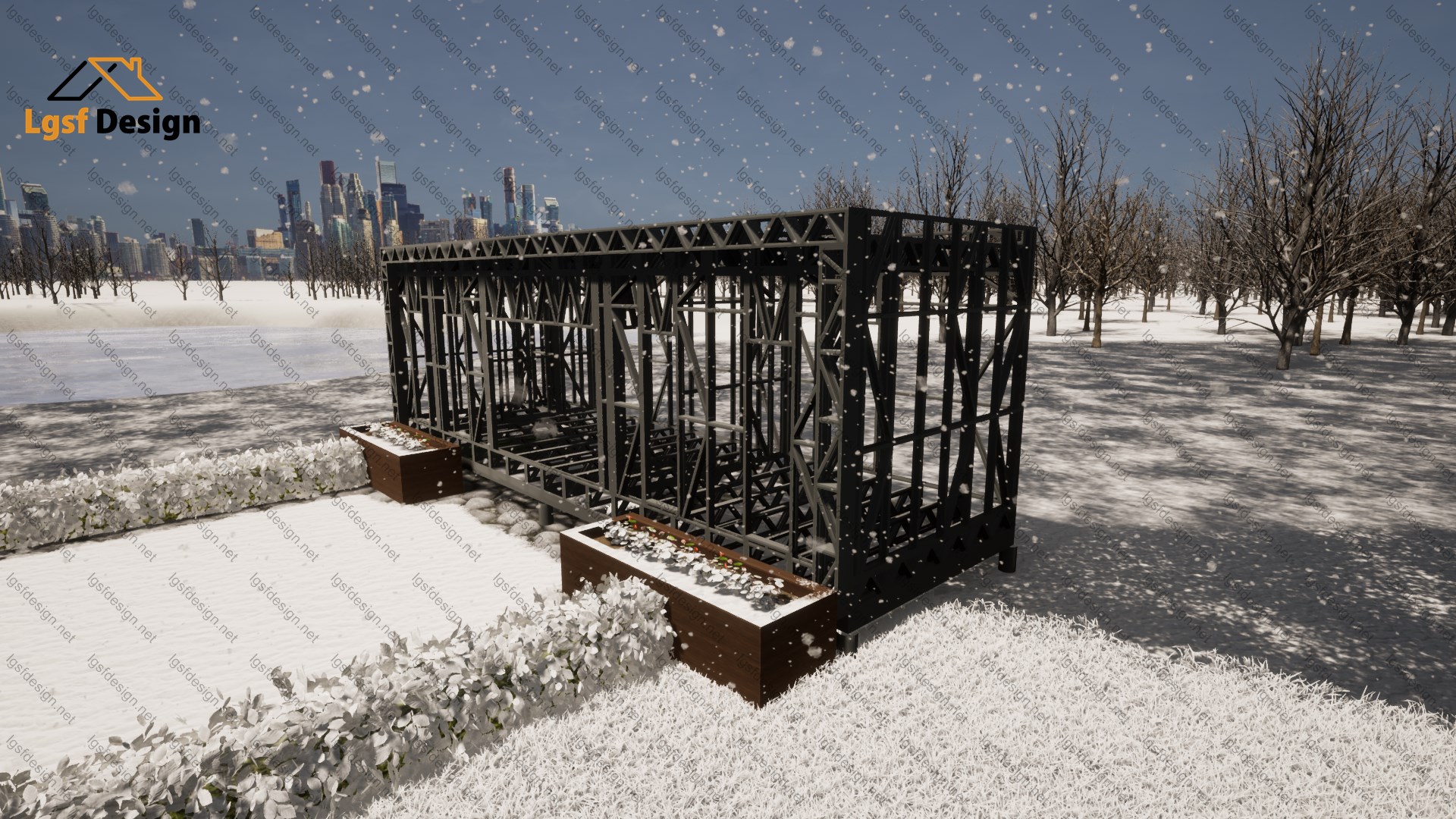

Structure Weight :
Steels :

1445 kg
89S41G350-0.95 mm

Load Conditions

Designing Code :
Characteristic Value of Snow Load :
Fundamental Basic Wind Velocity :
Basic Velocity Pressure :
Reference Value of Peak Ground Acceleration :

IBC 2021
0.50 kN/m²
40.00 m/s
1.00 kN/m²
0.20 m/s²

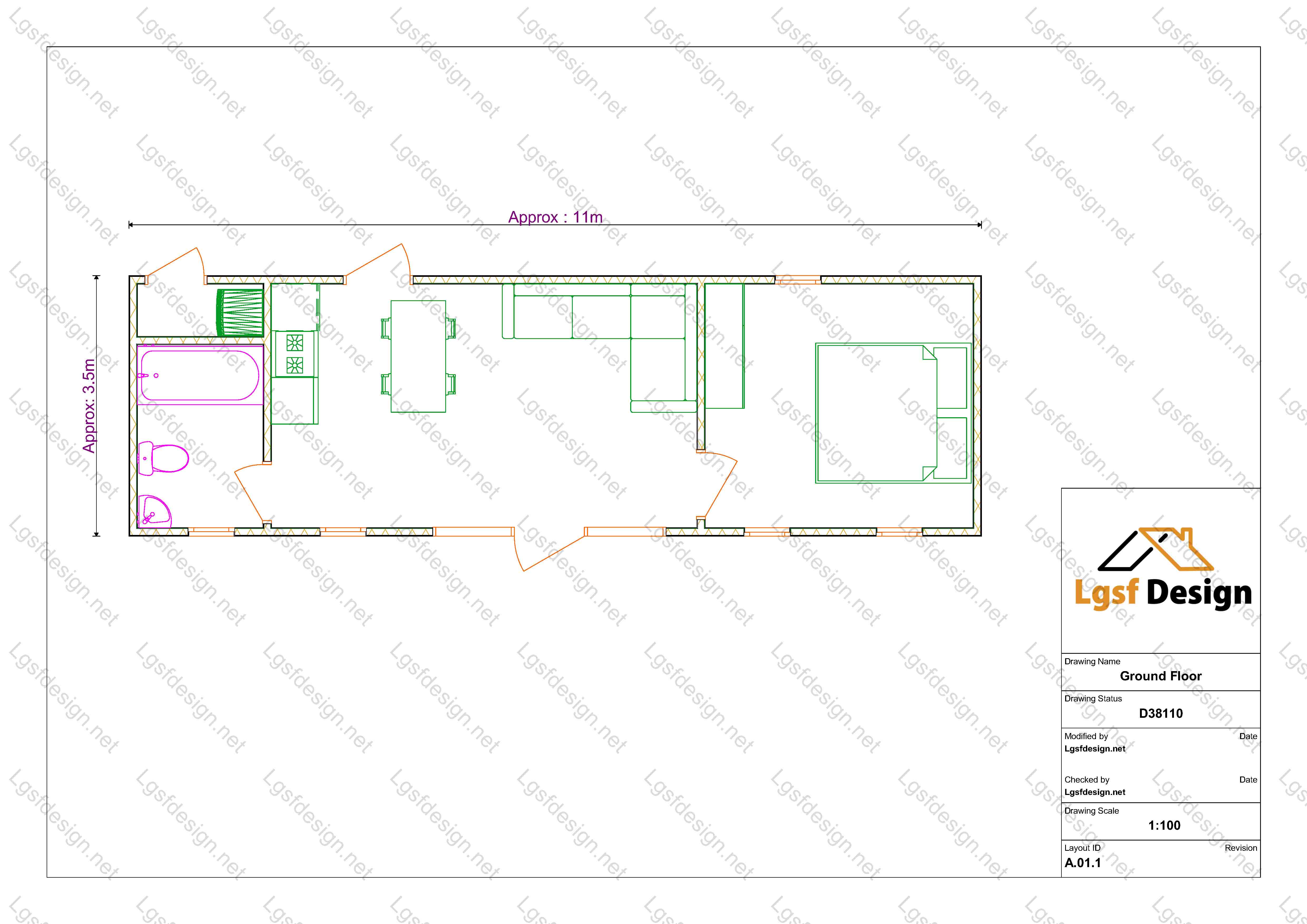

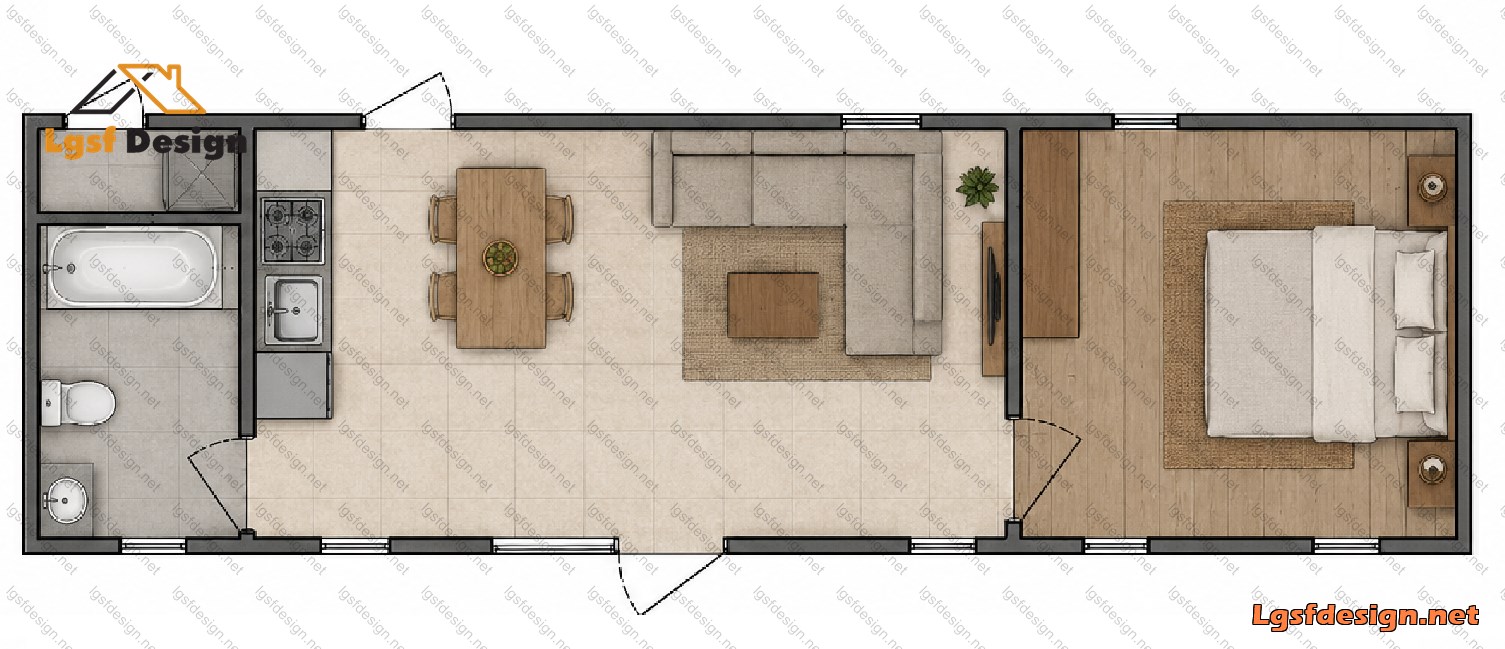

Floor plans

Floor Plan

0 Review
( 0.0 out of 5.0 )
Write a Review

No Review for this plan.

Write a Review

Your Rating & Review
