Key Specs
  Bedroom: 3
  Bathroom: 2
  Area: 188 m2

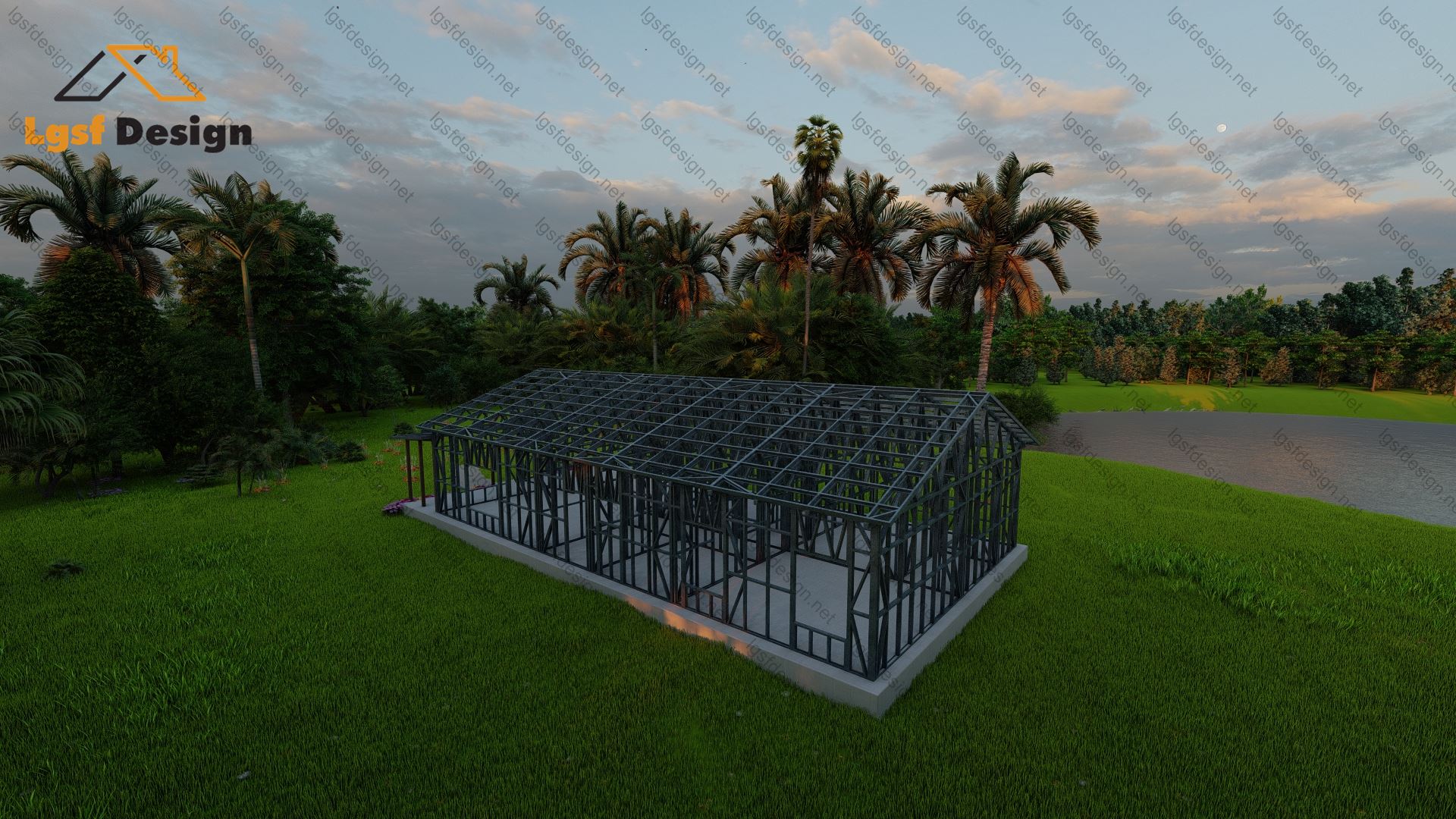

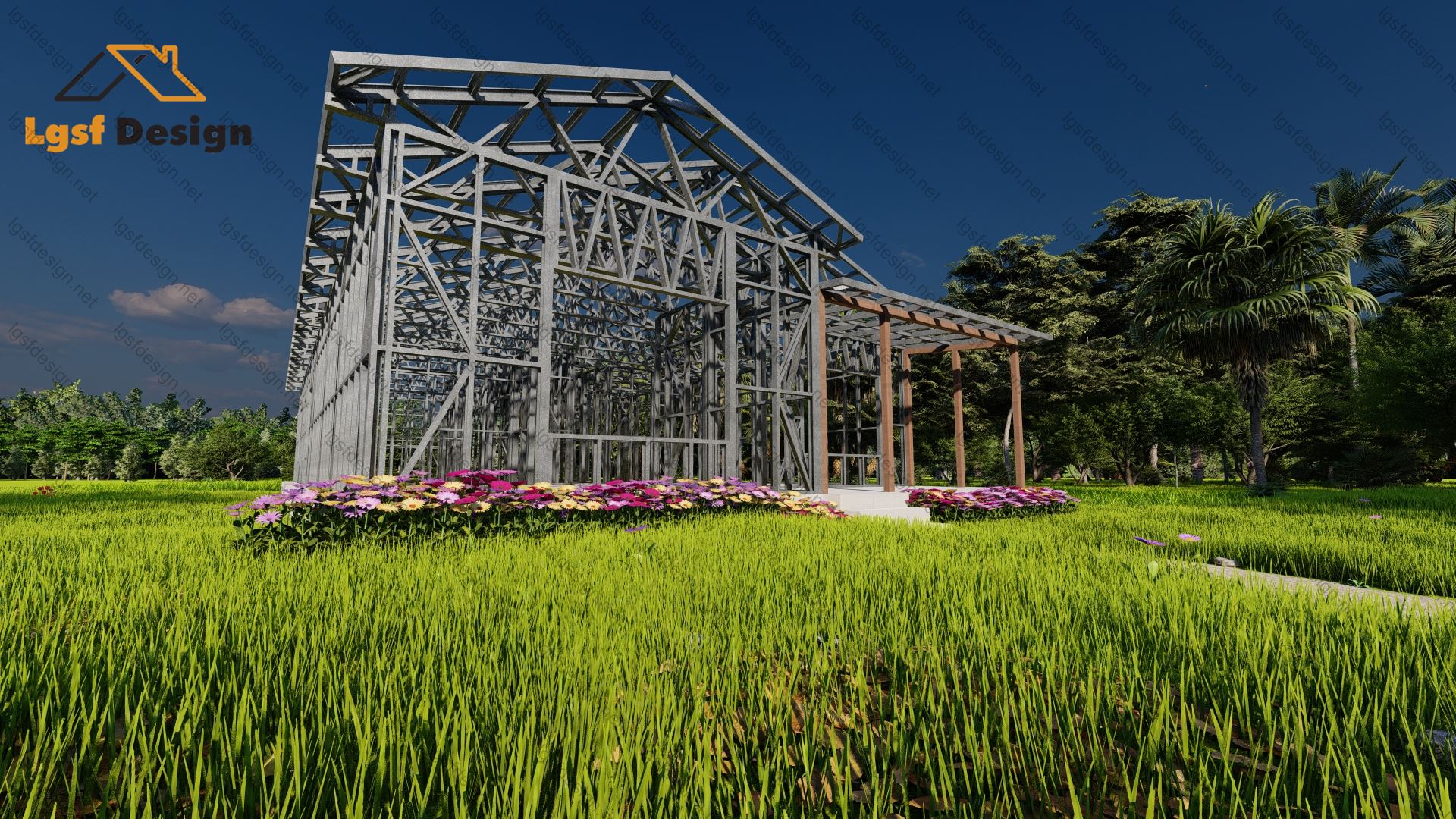

  Steel: 89S41G350-0.95 mm
                 89S41G350-0.75 mm
  Floor: 1
  Garage: 0
  Structure Weight: 3600 kg
Packages Price
Foundation 190
Architectural Drawings 190
Complete BOQ 190
Framecad drawings & roll forming file 110
Framecad FCP file 50
Full Package 730

Plan Description

The master bedroom has a large walk-in closet and private bath. The master bath has dual sinks, a custom shower, and a private toilet area. The laundry is located close to the kitchen and master bedroom for easy access. Bedrooms 2 and 3 share a full bath. Front and rear covered porches are perfect for relaxing.

3D Tour

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing.

WHAT'S INCLUDED IN THIS PLAN SET

  • Foundation plan: Typically includes dimensioned foundation plan with footing details
  • Exterior elevations of all four views,
  • Building sections and details as required to construct the individual design
  • Roof plans
  • Gravity and Lateral Analysis and Design using Standard sections
  • Cold-Formed Steel Structural Drawings
  • Cold-Formed Steel Shop Drawings
  • Exact material takeoff for price estimation (by sqm of surface Area)
  • Cold-Formed Steel Connection Design and Details
  • Exact material takeoff for price estimation
  • Hot Rolled Steel as per the Project Requirement
  • Roll Forming File for your framecad machine (If you need complete files for other machines, like HOWICK, PINNACLE, and any other VERTEX BD supported machine, just send us the brand and the model of your machine and the desired plan number to info@lgsfdesign.net, We will respond in few hours with a quotation.)
