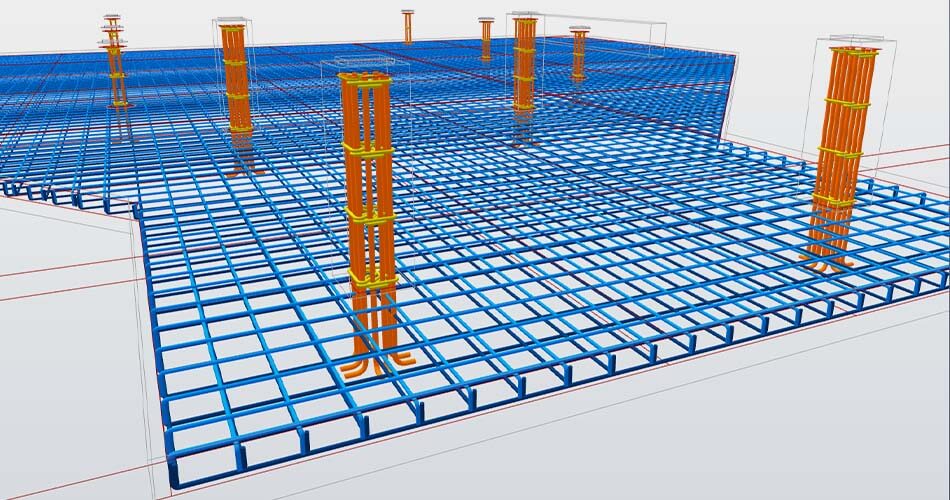

Rigid vs. Flexible Mat Foundation Design
In designing a mat foundation, two primary assumptions are considered: rigid foundation and flexible foundation. The difference lies in how the foundation interacts with the underlying soil.
1. Rigid Foundation
- Definition: It is assumed that the foundation is entirely rigid, and deformations are negligible. The load distribution on the underlying soil is considered uniform or nearly uniform.
- Characteristics:
- Deformations are uniform across the foundation surface.
- Soil stress directly corresponds to the applied loads.
- Typically used for smaller systems or where the soil is very stiff.
- Advantages:
- Simpler analysis and design.
- Suitable for conditions with high soil stiffness.
- Disadvantages:
- May provide unrealistic results when the soil is soft.
2. Flexible Foundation
- Definition: It is assumed that the foundation is flexible, and its deformations depend on the soil stiffness and applied loads. The stress beneath the foundation varies and is calculated based on deformations.
- Characteristics:
- Deformations vary across the foundation surface.
- Soil stress depends on soil stiffness and applied loads.
- Typically analyzed using models such as the Winkler model or advanced 3D finite element methods (FEM).
- Advantages:
- Provides more realistic results for soft or heterogeneous soils.
- Allows precise analysis of stress and settlement distribution.
- Disadvantages:
- More complex analysis requiring advanced software tools.
Comparison Table
| Feature | Rigid Foundation | Flexible Foundation |
|---|---|---|
| Load Distribution | Uniform or nearly uniform | Variable, depending on soil stiffness |
| Deformations | Negligible and uniform | Variable across the foundation surface |
| Analysis Complexity | Simpler | More complex |
| Application | Stiff soil, small structures | Soft soil, large or complex structures |
Design Standards
-
Rigid Foundation Standards:
- ACI 318 (American Concrete Institute): Governs the structural design of concrete foundations.
- Eurocode 2 (EN 1992): Provides rules for designing reinforced concrete structures.
-
Flexible Foundation Standards:
- ACI 336.2R-88: Covers the analysis and design of foundations on deformable soil.
- Eurocode 7 (EN 1997): Specifies guidelines for geotechnical design, including soil-structure interaction.
- IS 2950-1965: Indian Standard for design and construction of mat foundations.
Conclusion
- For stiff soils and smaller structures, the Rigid Foundation assumption is sufficient.
- For soft soils or large and complex structures, the Flexible Foundation approach provides more accurate and realistic results.
