W2530

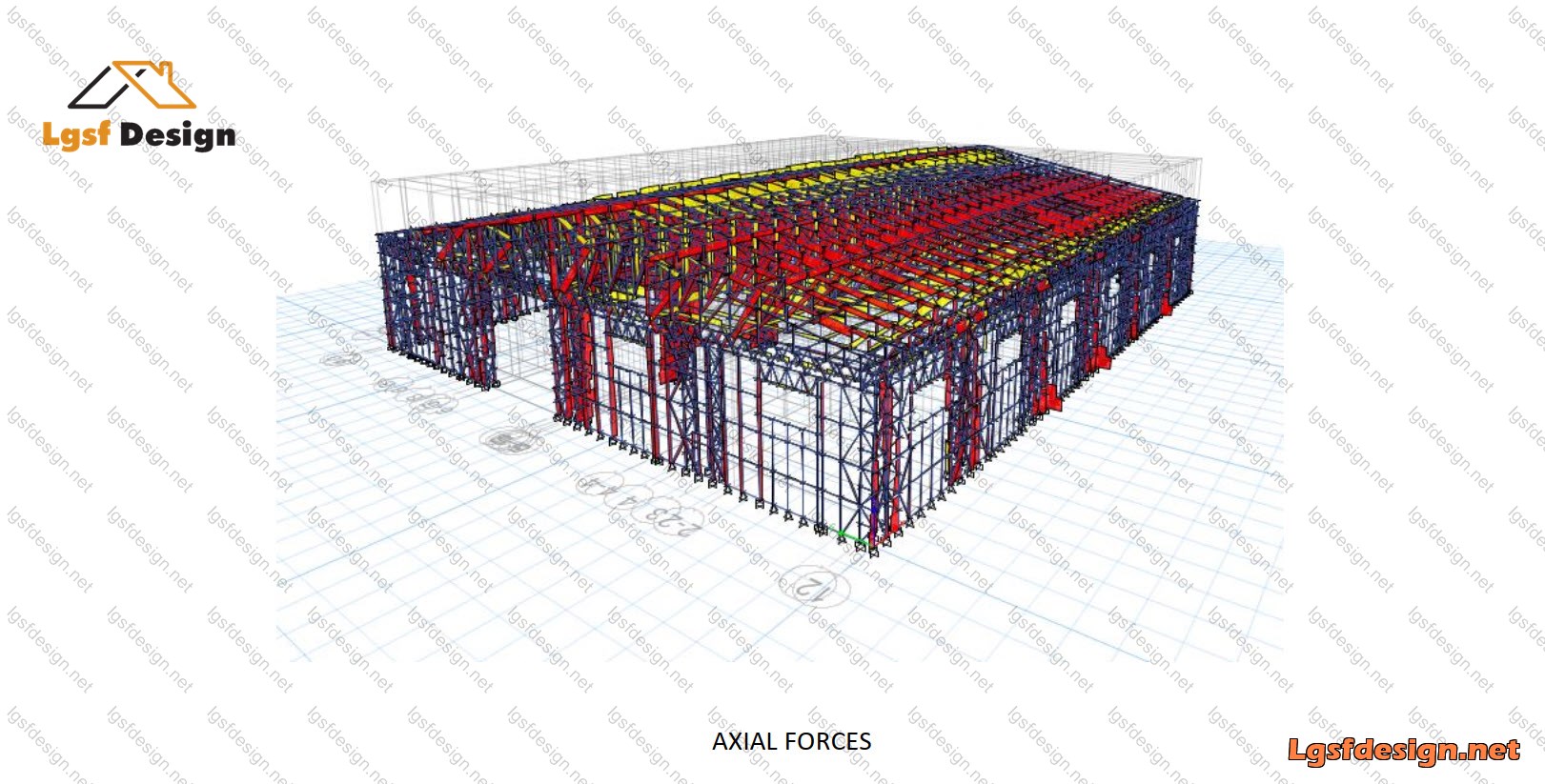

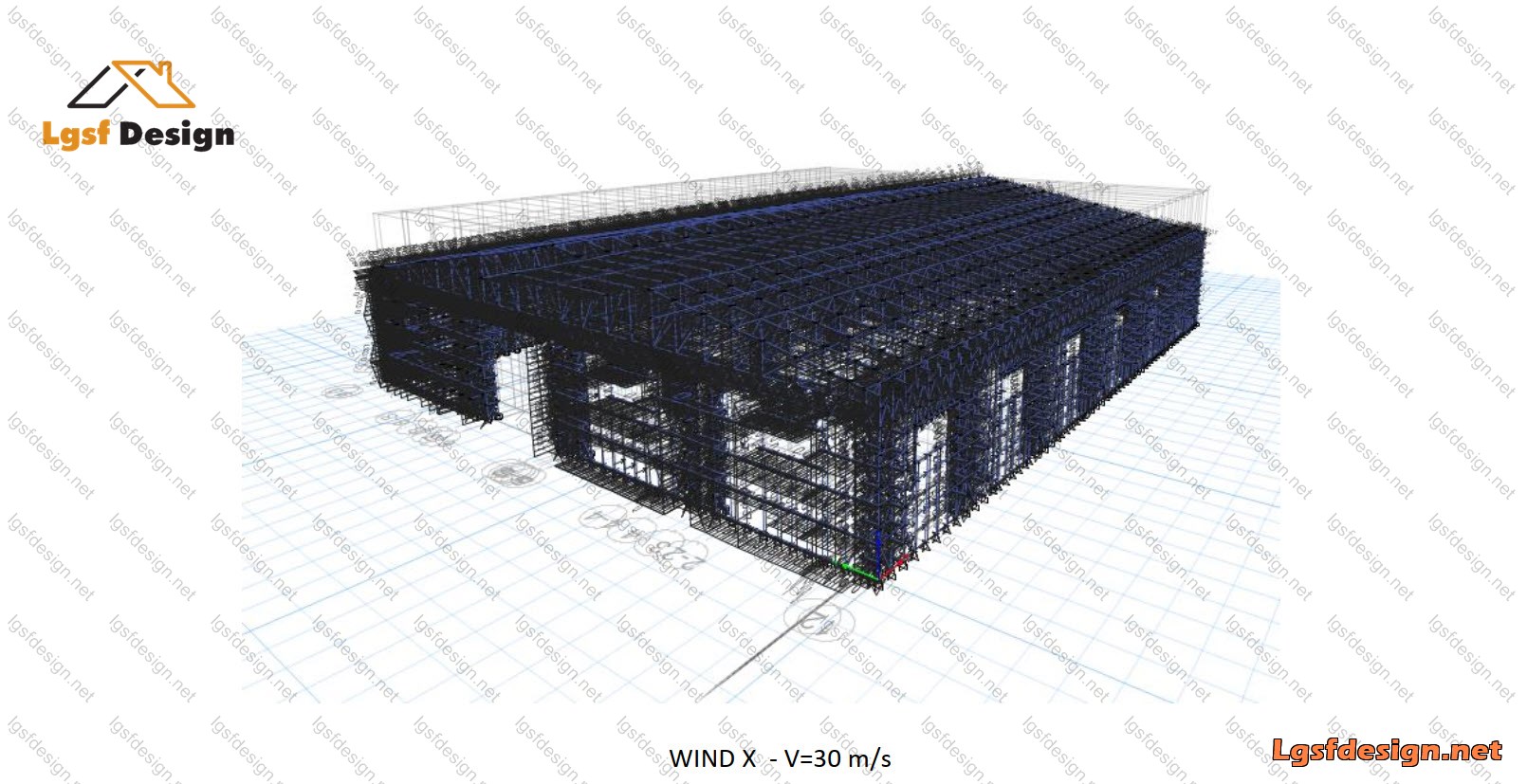

3D Structure Model
Description

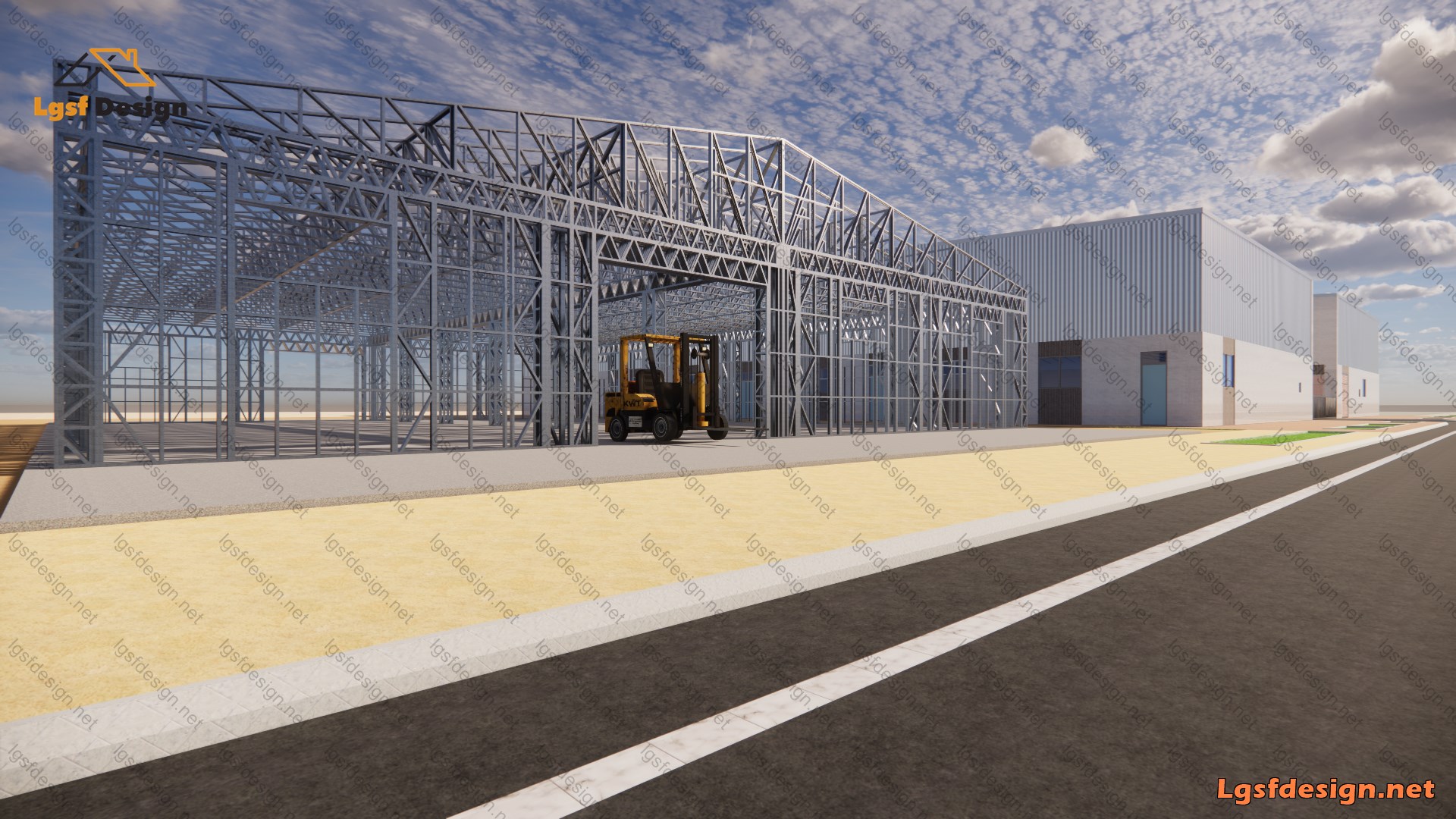

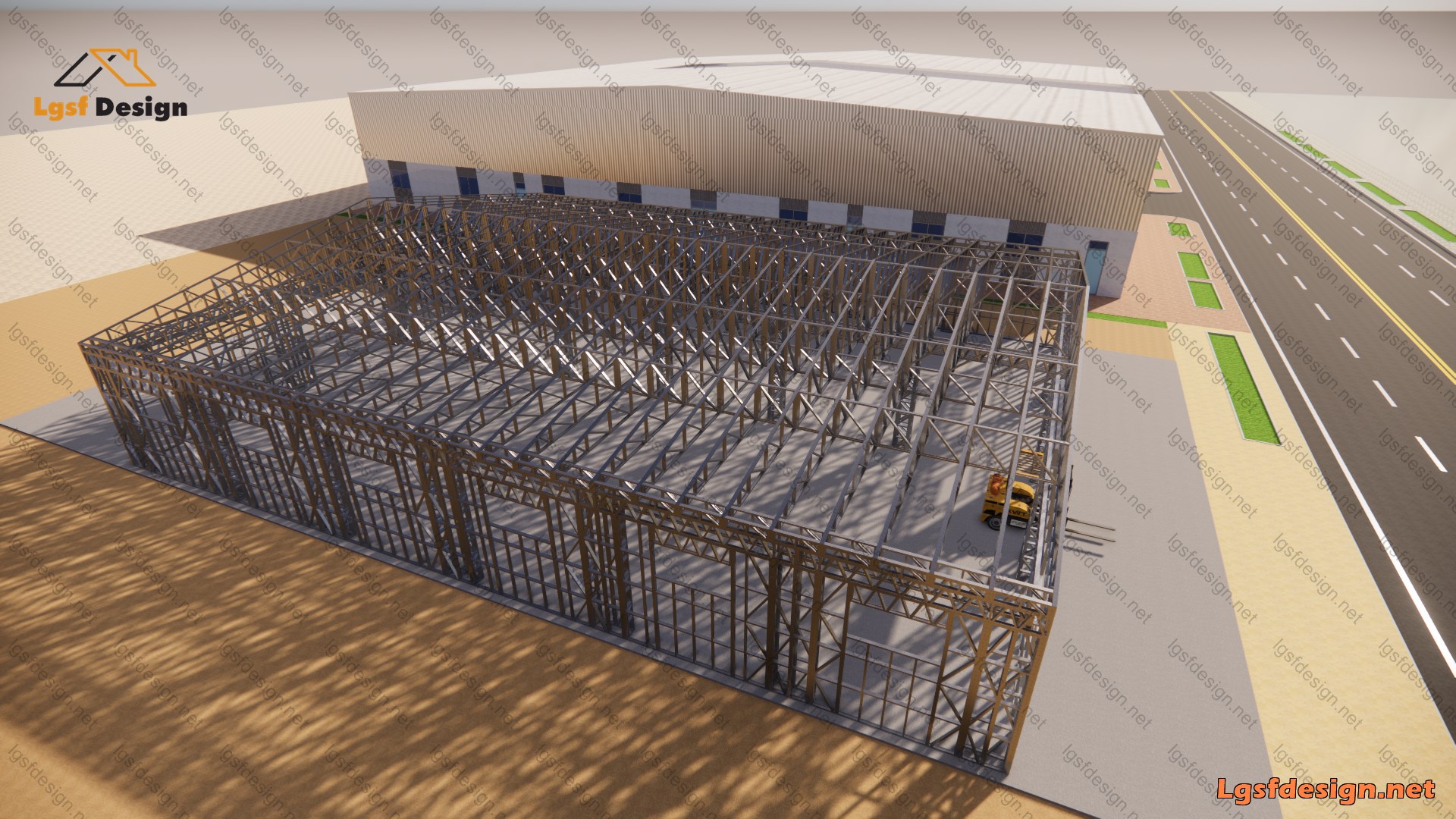

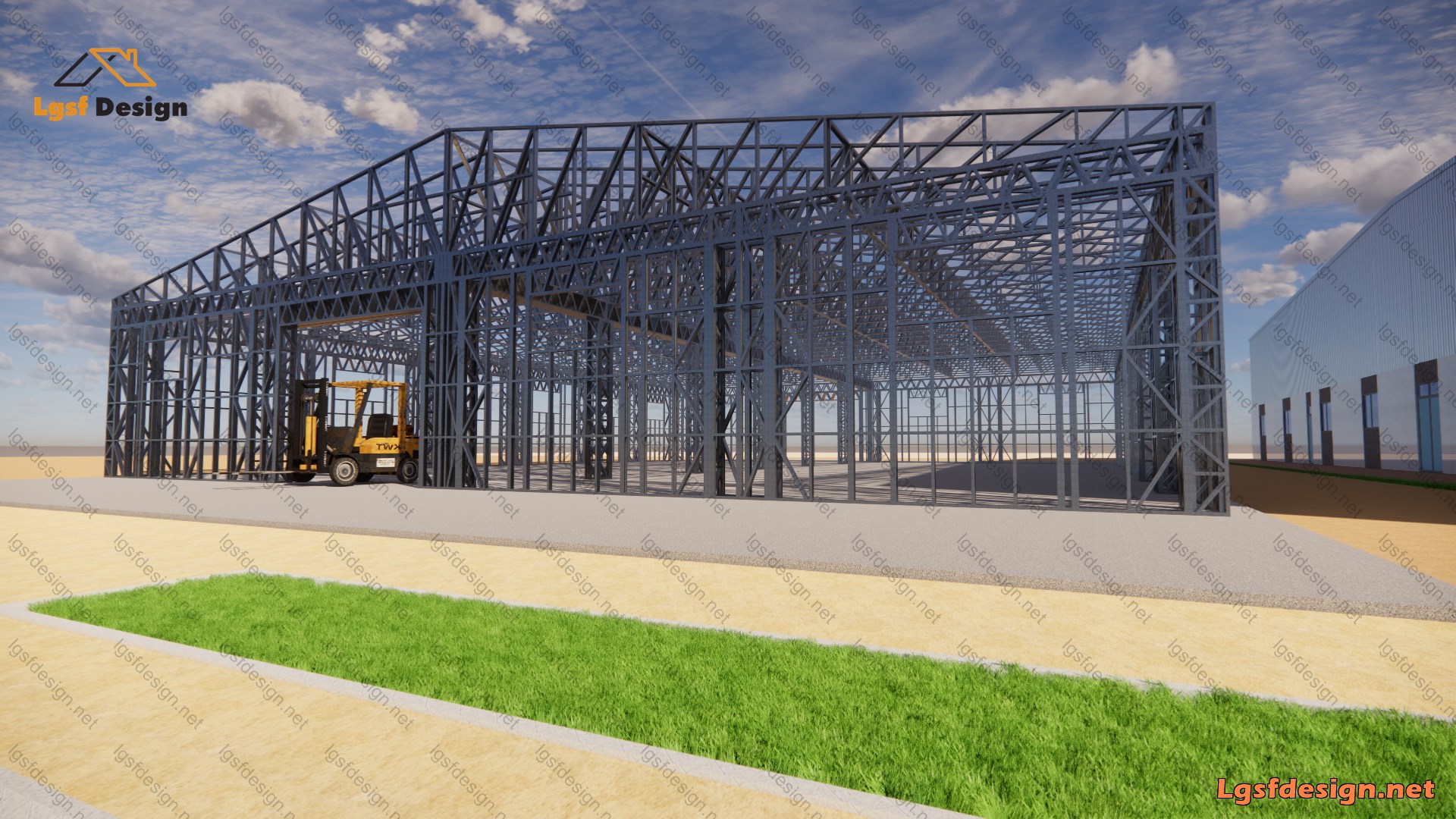

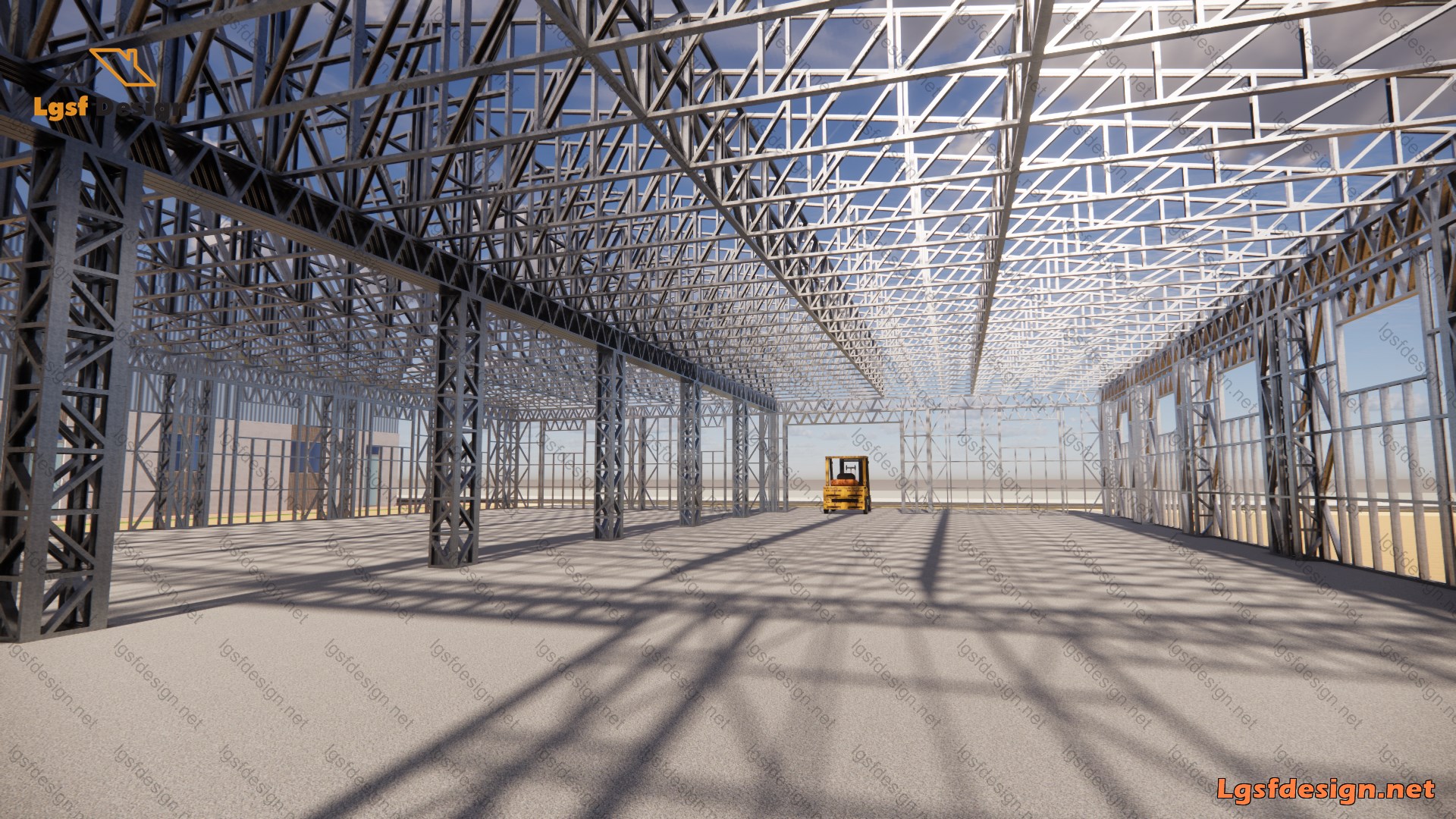

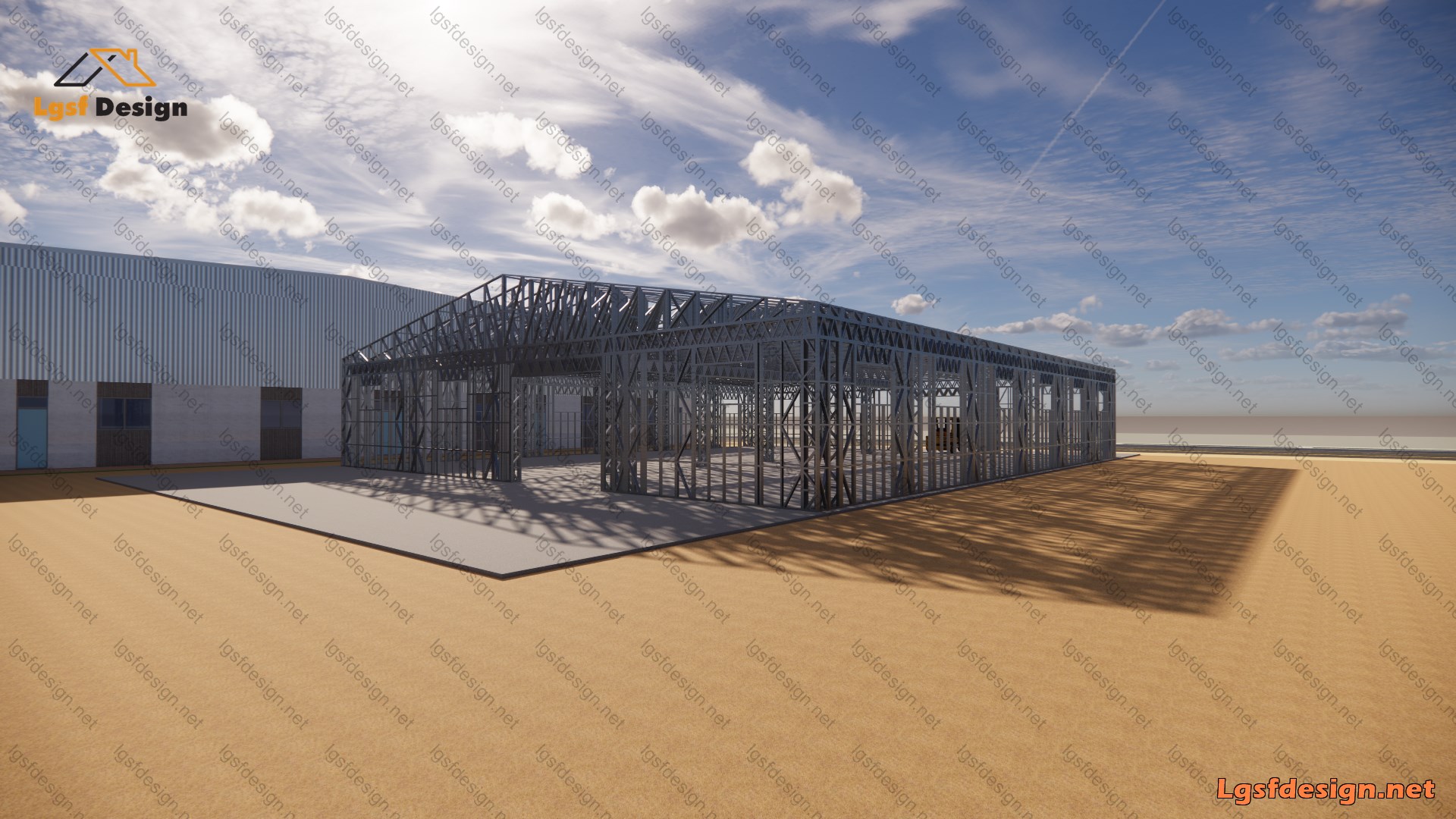

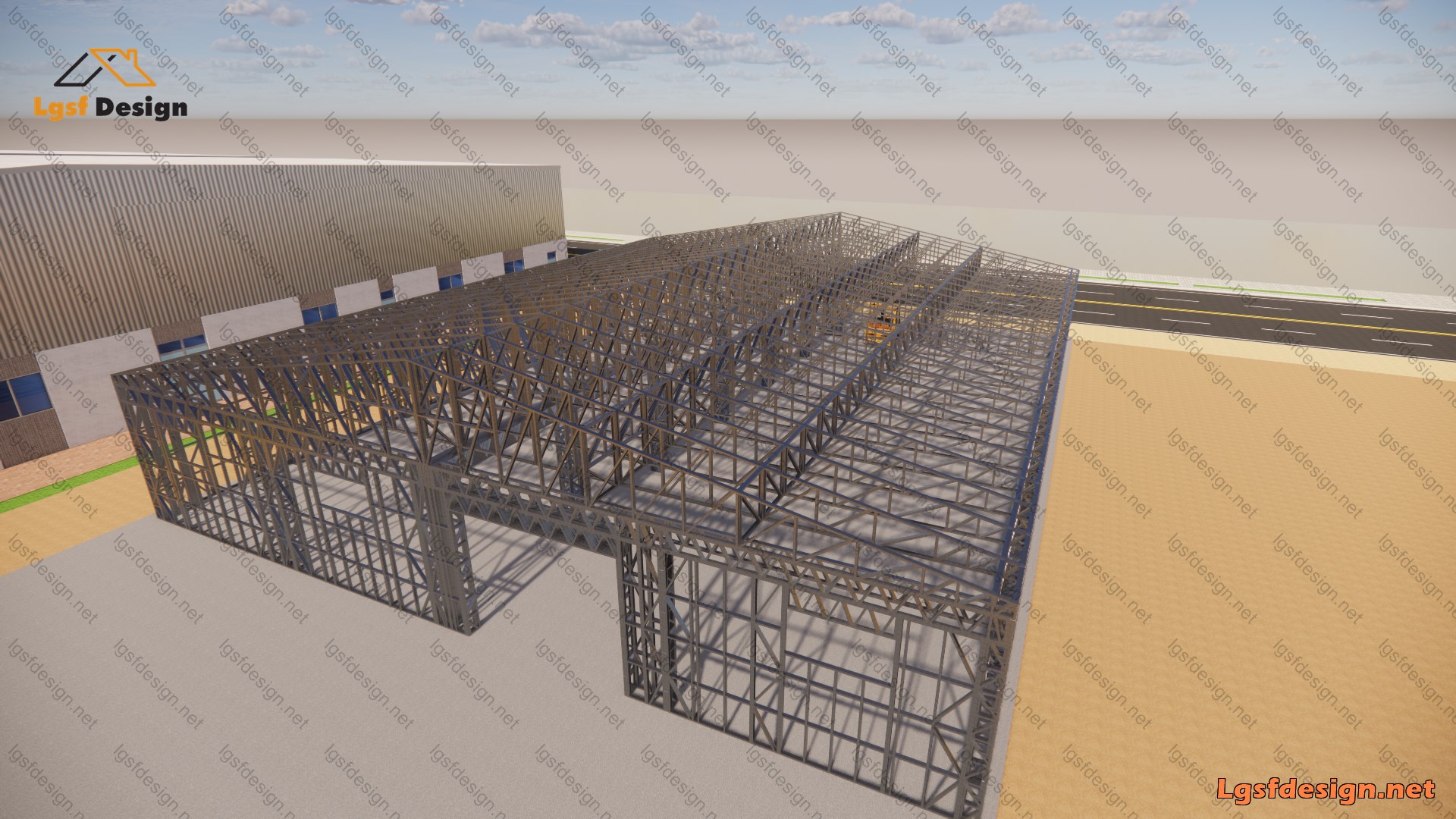

This warehouse, designed with the LSF system, has a clear span of 25 meters, a length of 30 meters, and an effective height of 4 meters. The structure is composed of 89 mm profiles with a thickness of 1 mm, ensuring both strength and lightweight construction. With a total structural weight of 20 kg/m², this warehouse offers a cost-effective and efficient solution for storage needs.
Designed for construction in Cameroon, this LSF warehouse provides durability, rapid assembly, and excellent resistance to environmental conditions.
For similar structural design inquiries, feel free to contact us.
Key Specs
Title :
Location :
Area :
W2530
Cameroon750 m2
Additional Details
Heavy Steel :
Roll Former Machine :
Longest Member :
Time to Design :
No
Dahezb
12.50 m
3
Load Conditions
Designing Code :
Characteristic Value of Snow Load :
Fundamental Basic Wind Velocity :
Basic Velocity Pressure :

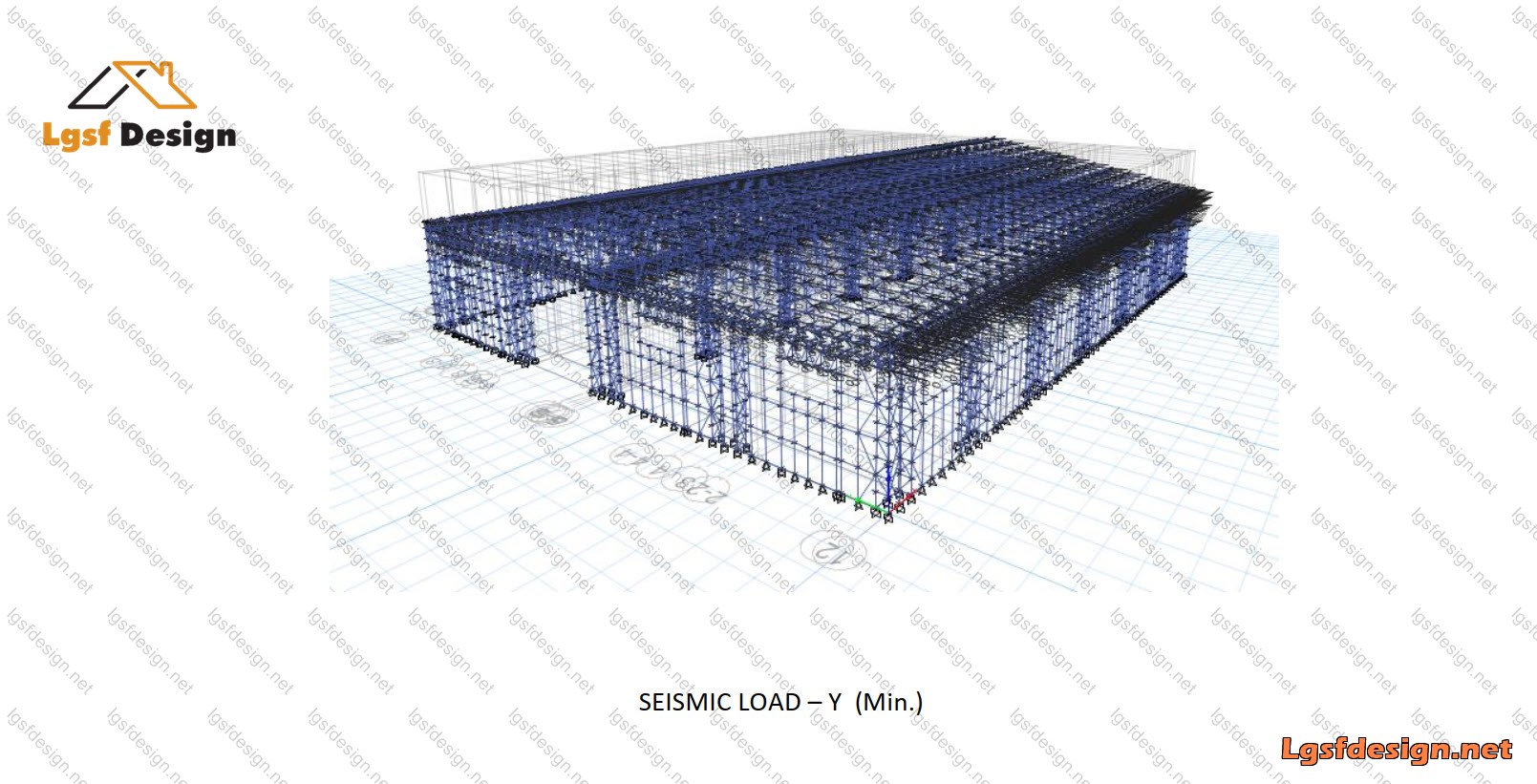

Reference Value of Peak Ground Acceleration :
IBC 2021
0.00 kN/m2
30.00 m/s
0.55 kN/m2
0.20 m/s2
