Description

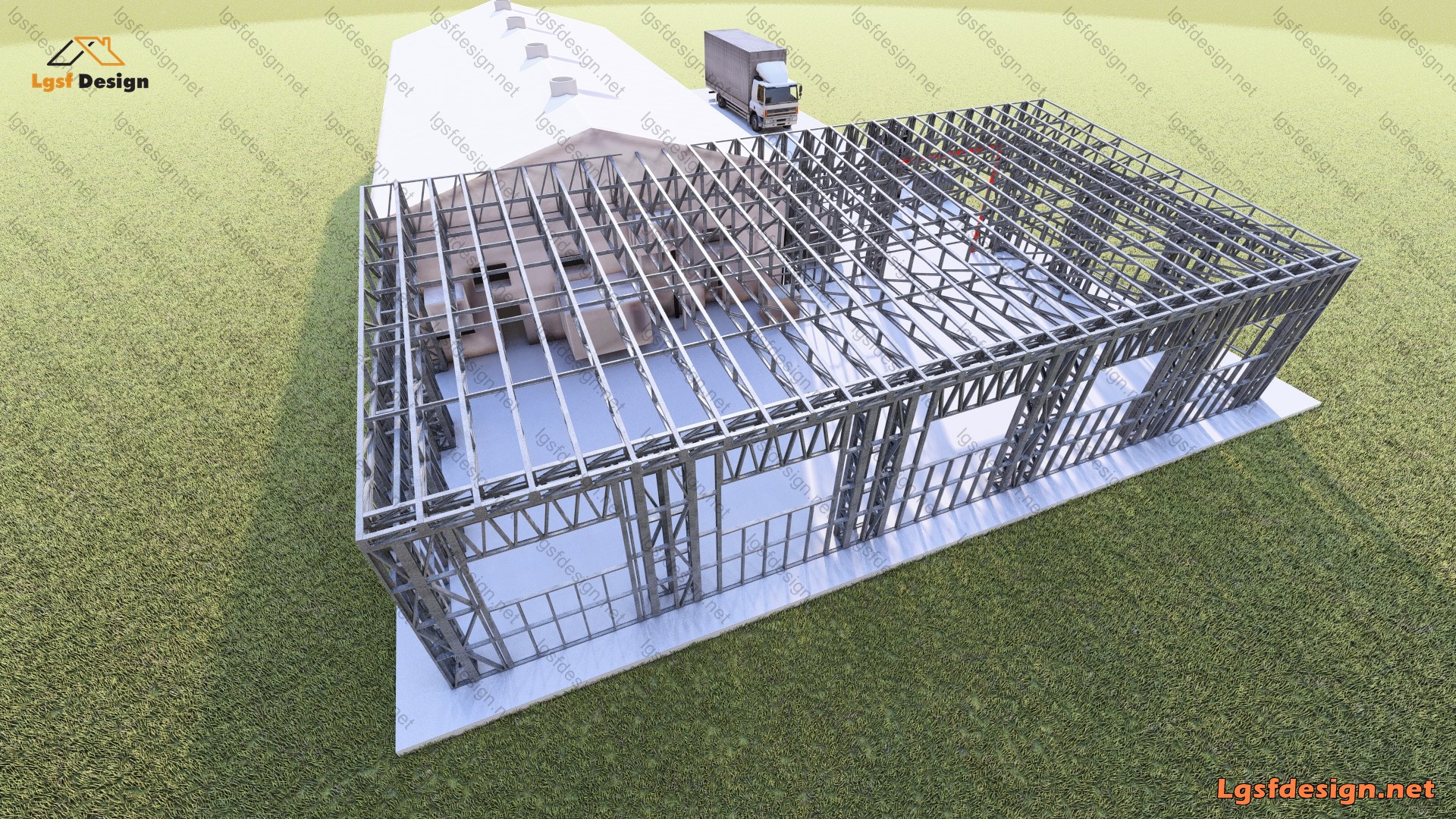

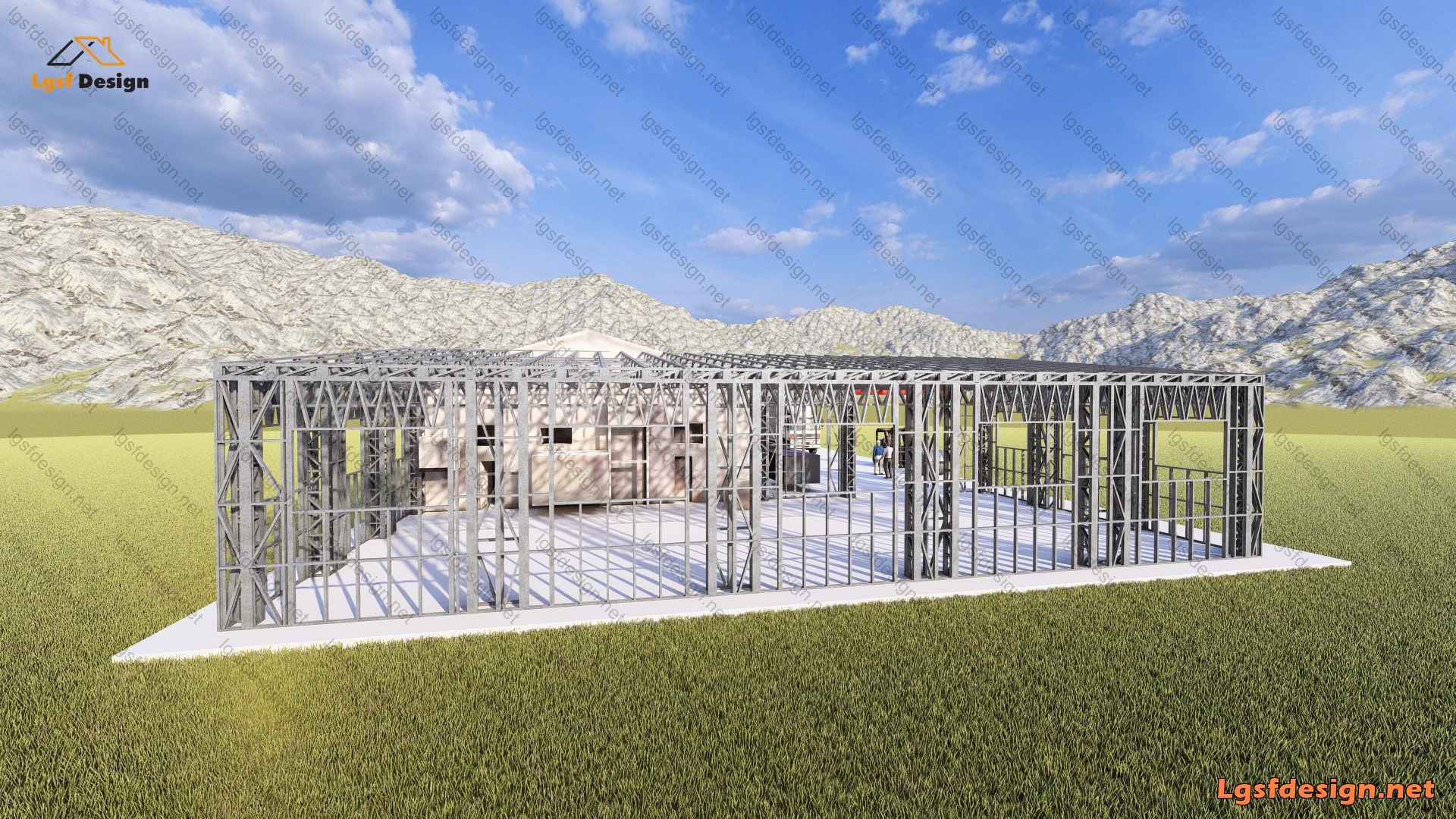

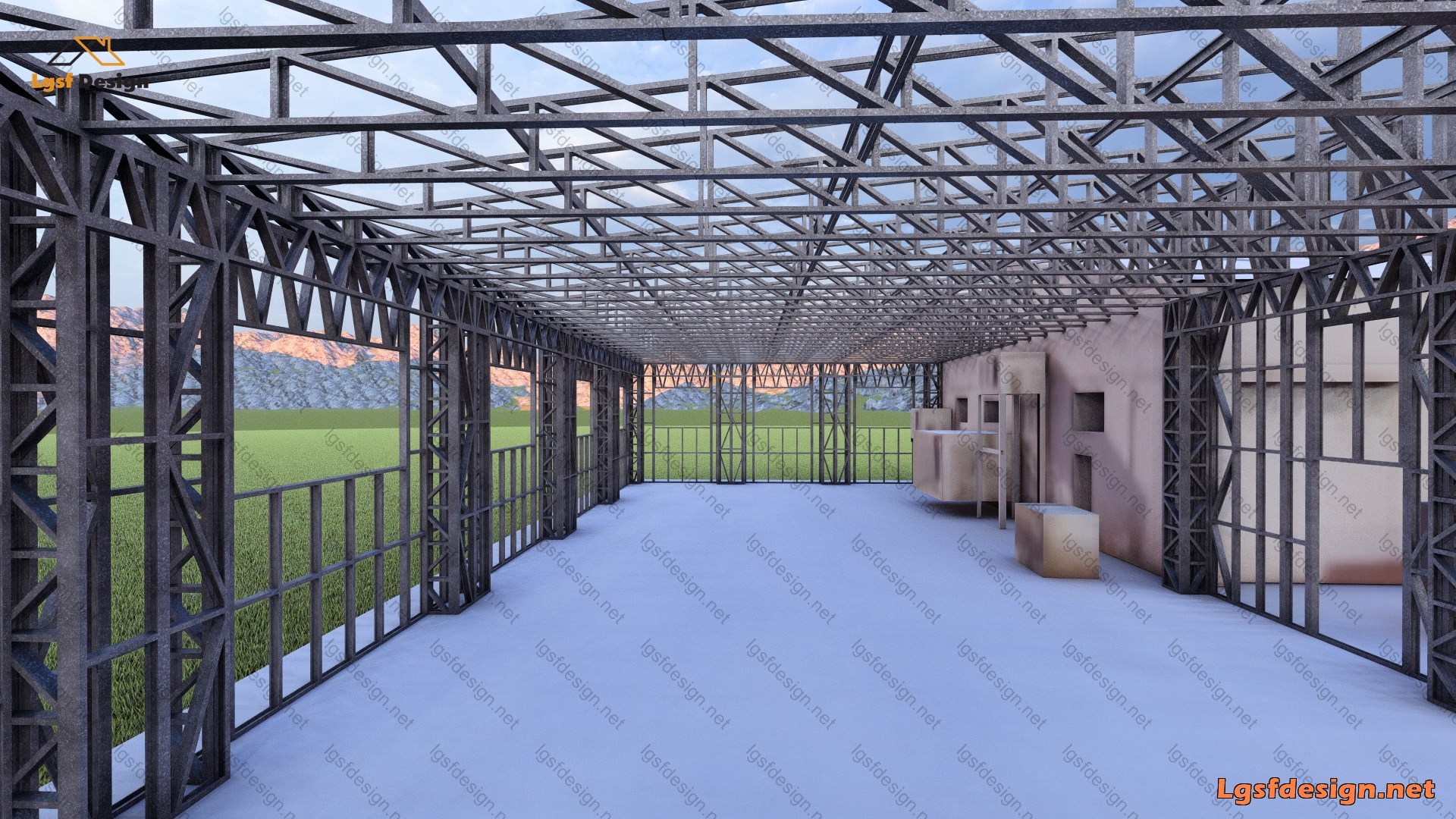

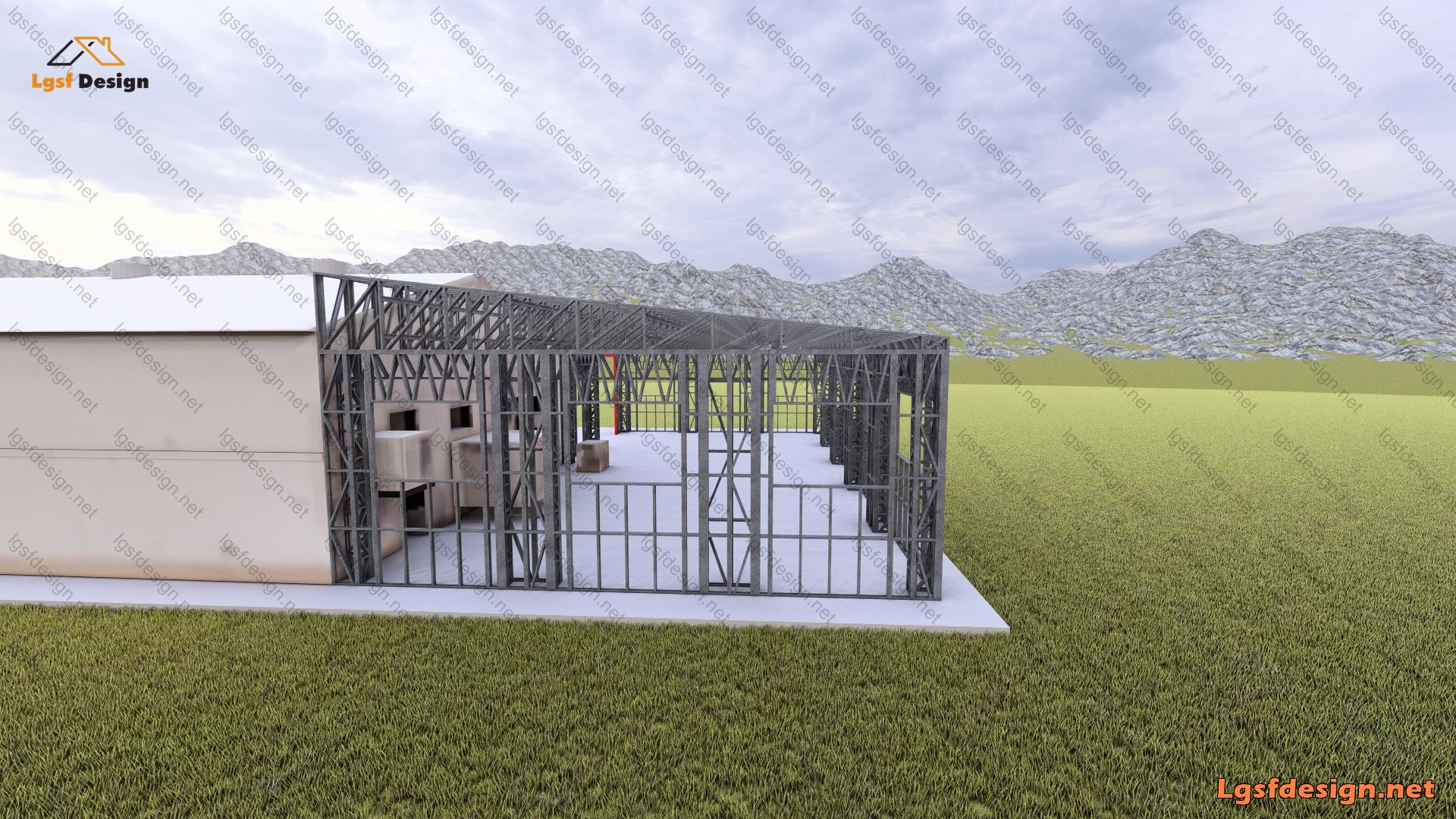

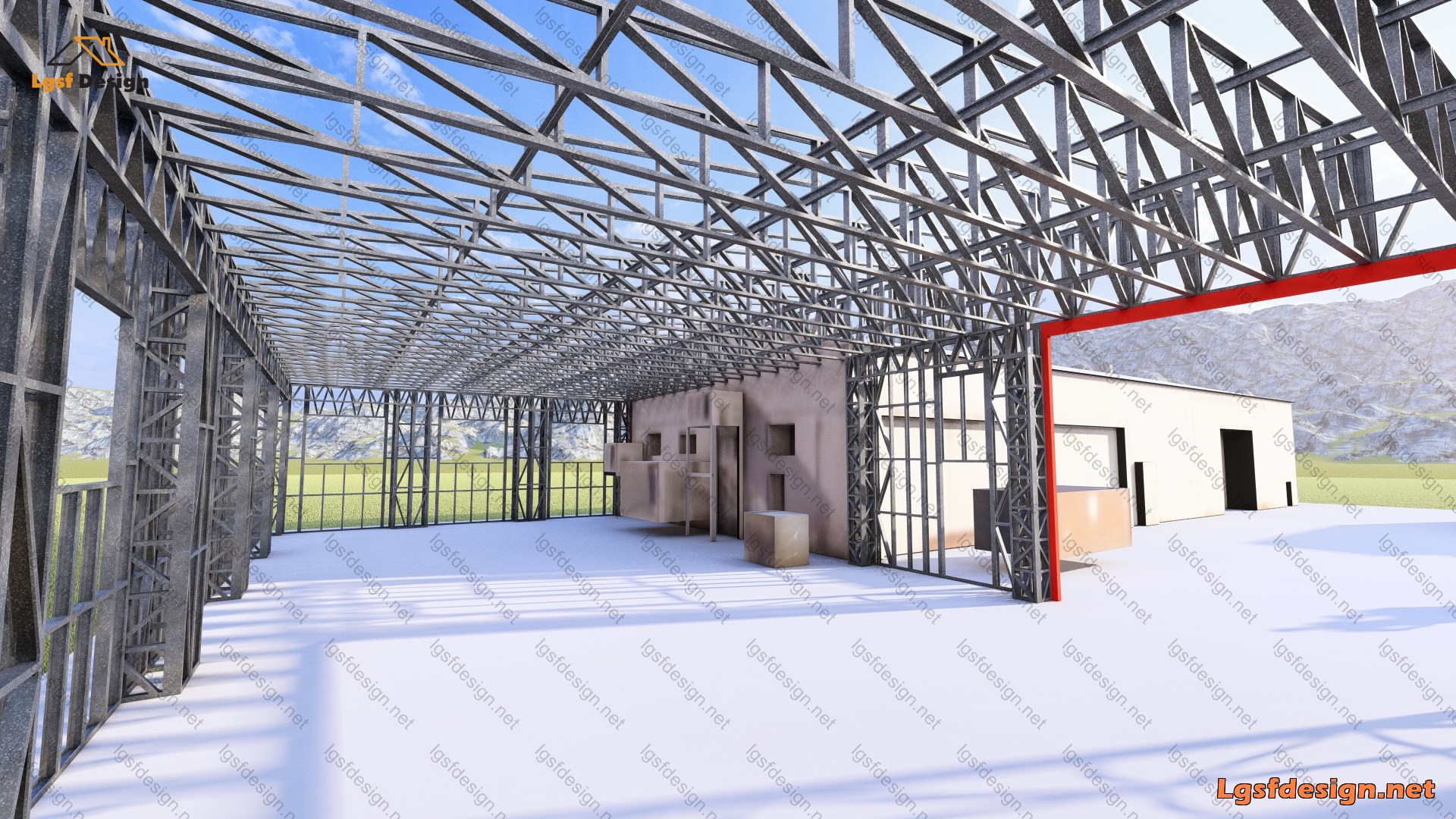

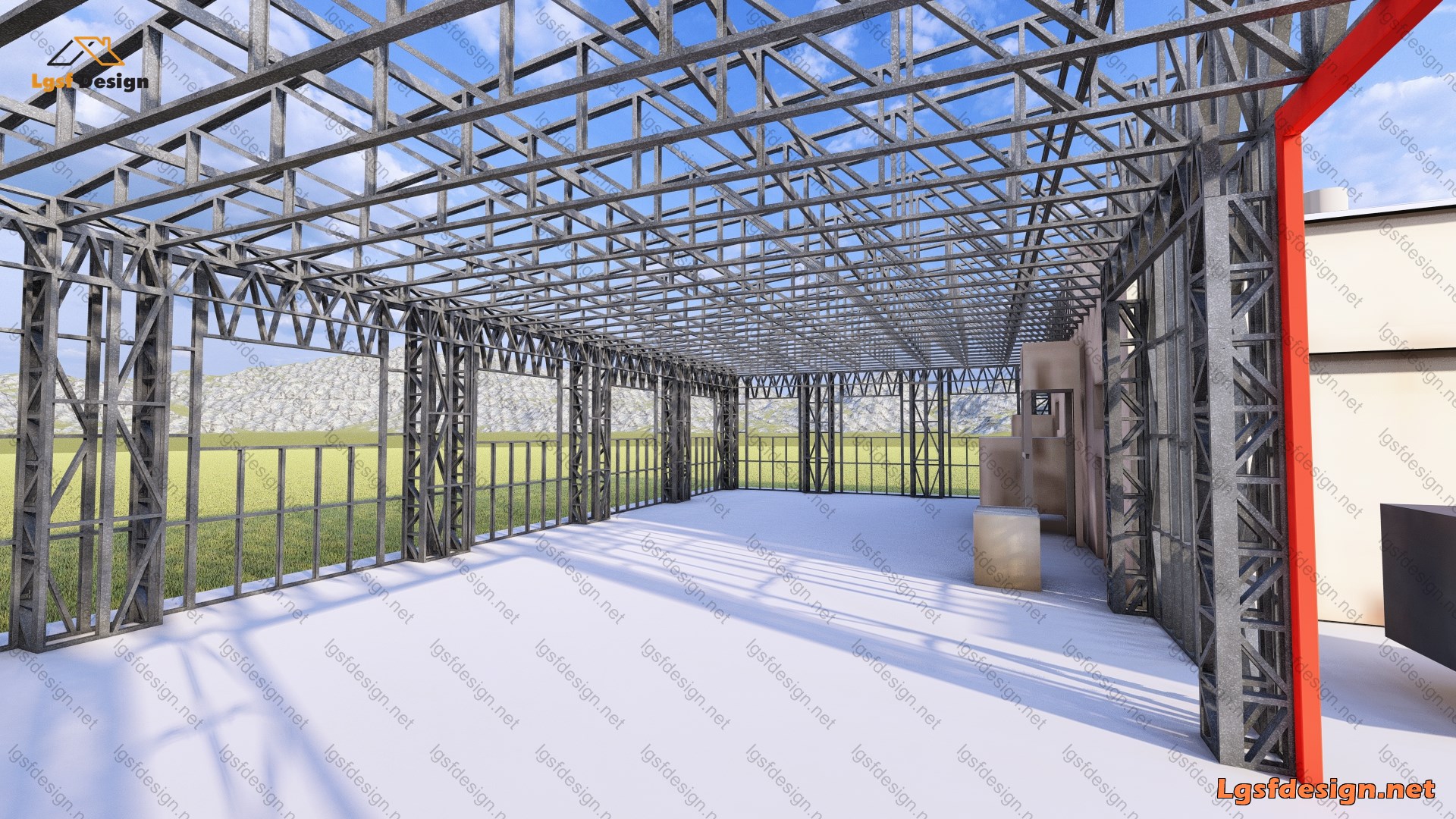

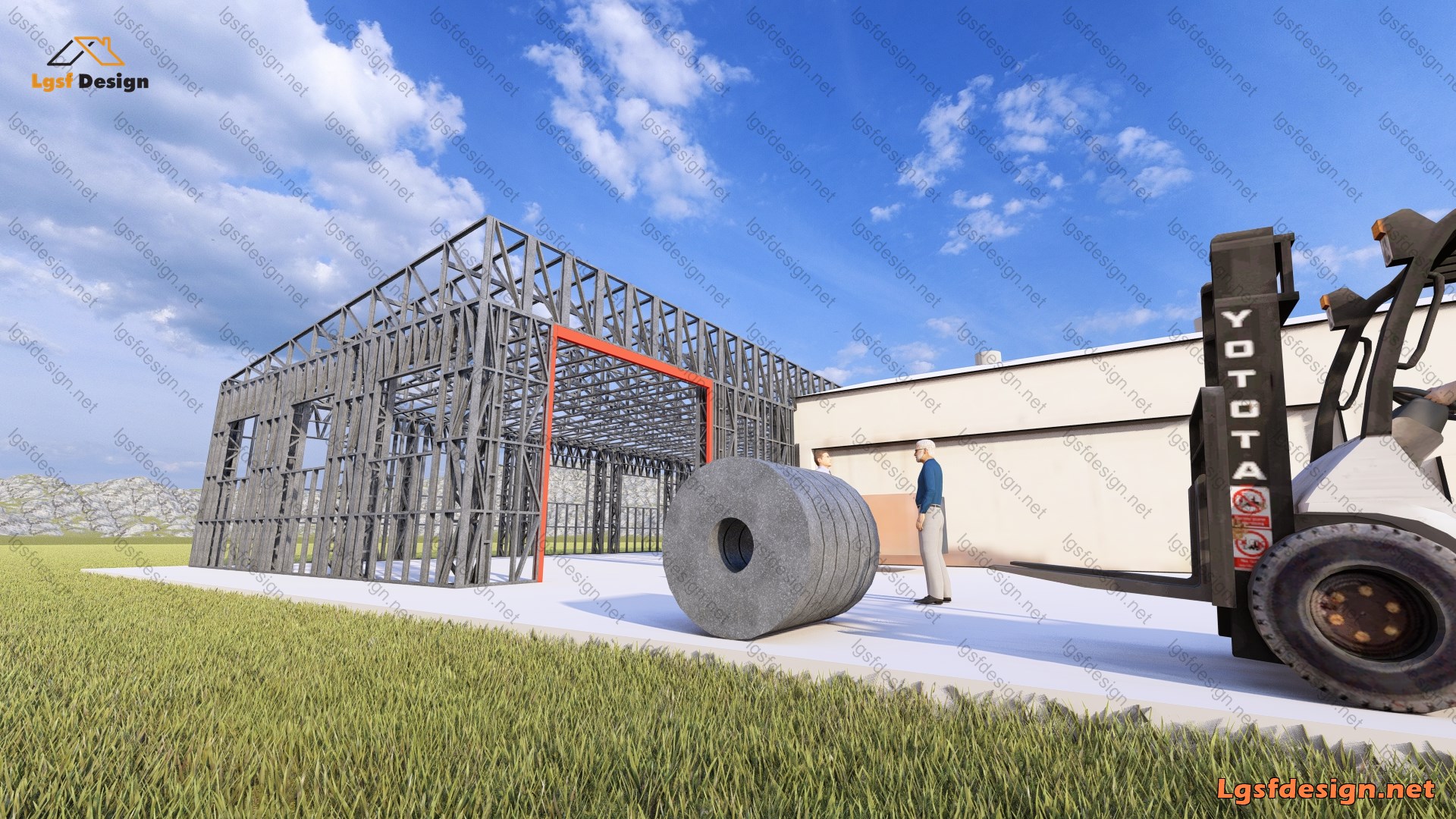

A warehouse with an area of 242 square meters (11 meters wide and 22 meters long) is being constructed in Croatia. The usable height of this warehouse is 4.5 meters, and it is being built opposite an existing warehouse. Contact us to order the design of similar projects.
Key Specs
Title :
Location :
Area :
W2211
Croatia242 m2
Additional Details
Heavy Steel :
Roll Former Machine :
Longest Member :
Time to Design :
No
Dahezb
11.00 m
2 Days
Load Conditions
Designing Code :
Characteristic Value of Snow Load :
Fundamental Basic Wind Velocity :
Basic Velocity Pressure :
Reference Value of Peak Ground Acceleration :
IBC 2021
1.50 kN/m2
28.00 m/s
0.50 kN/m2
0.20 m/s2
