3D Structure Model

Click here to view the 3D model online or download .wrl or .ifc file
EXPLORE 3D STRUCTURE VISUALIZATION

Description

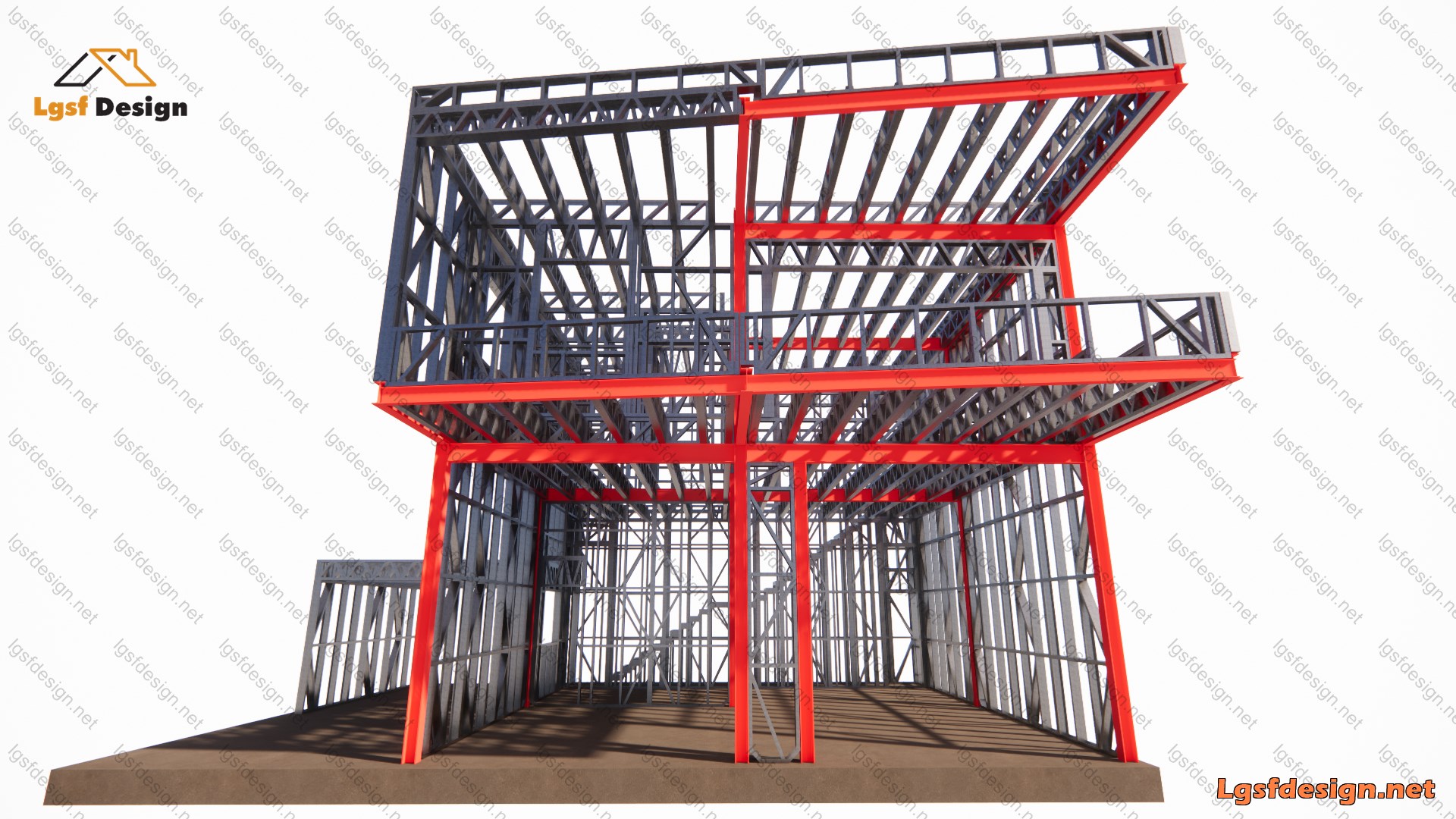

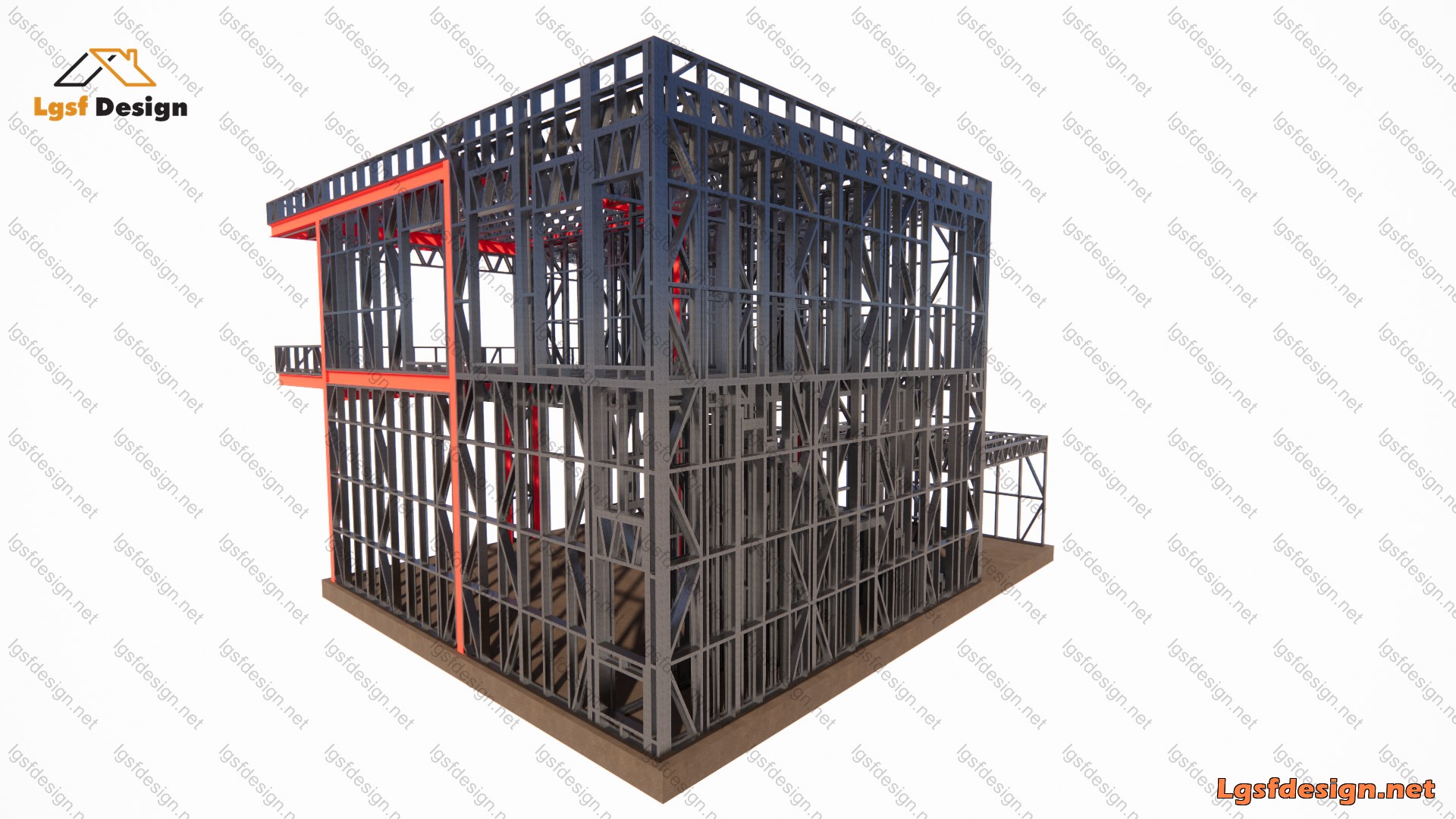

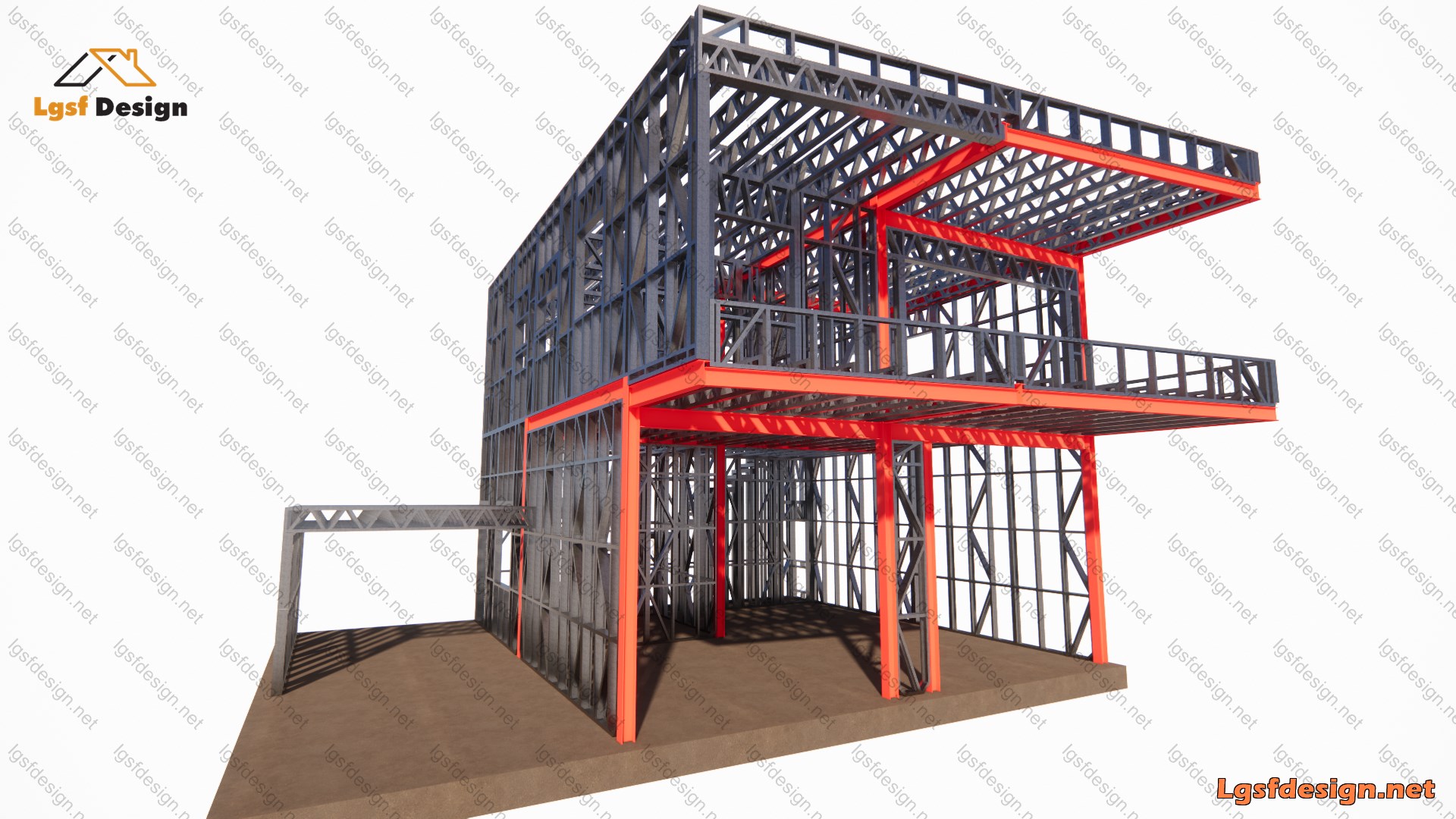

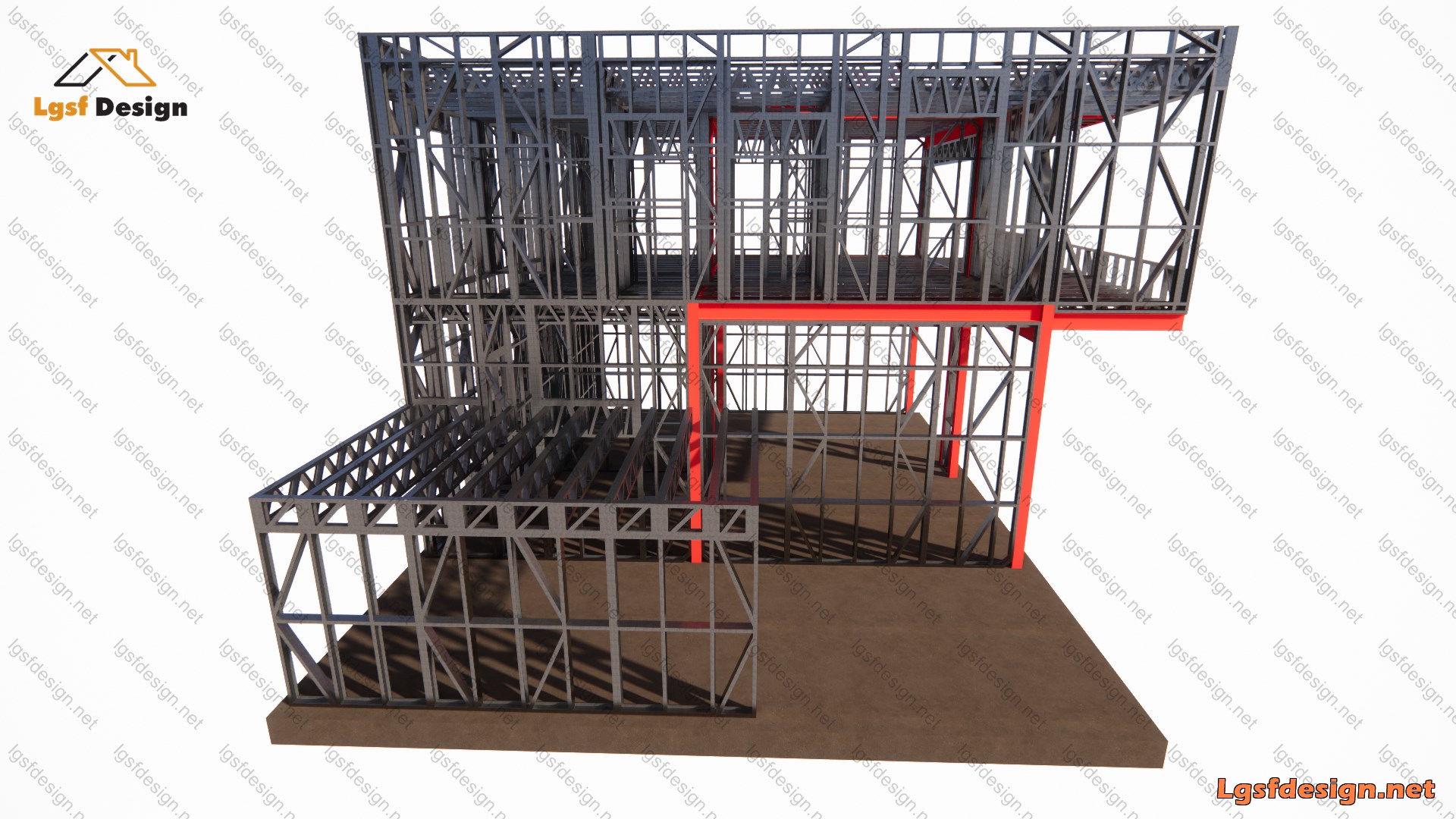

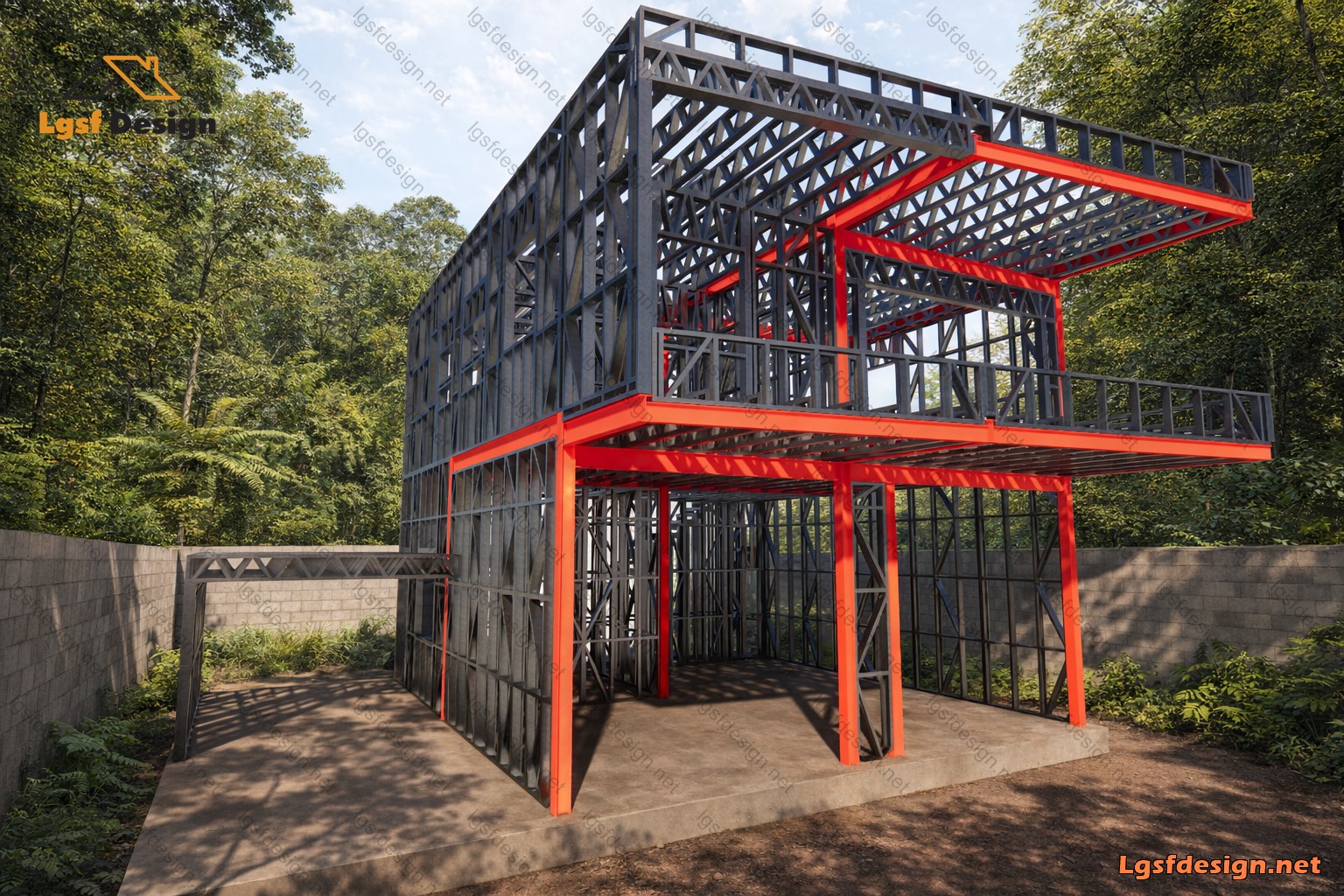

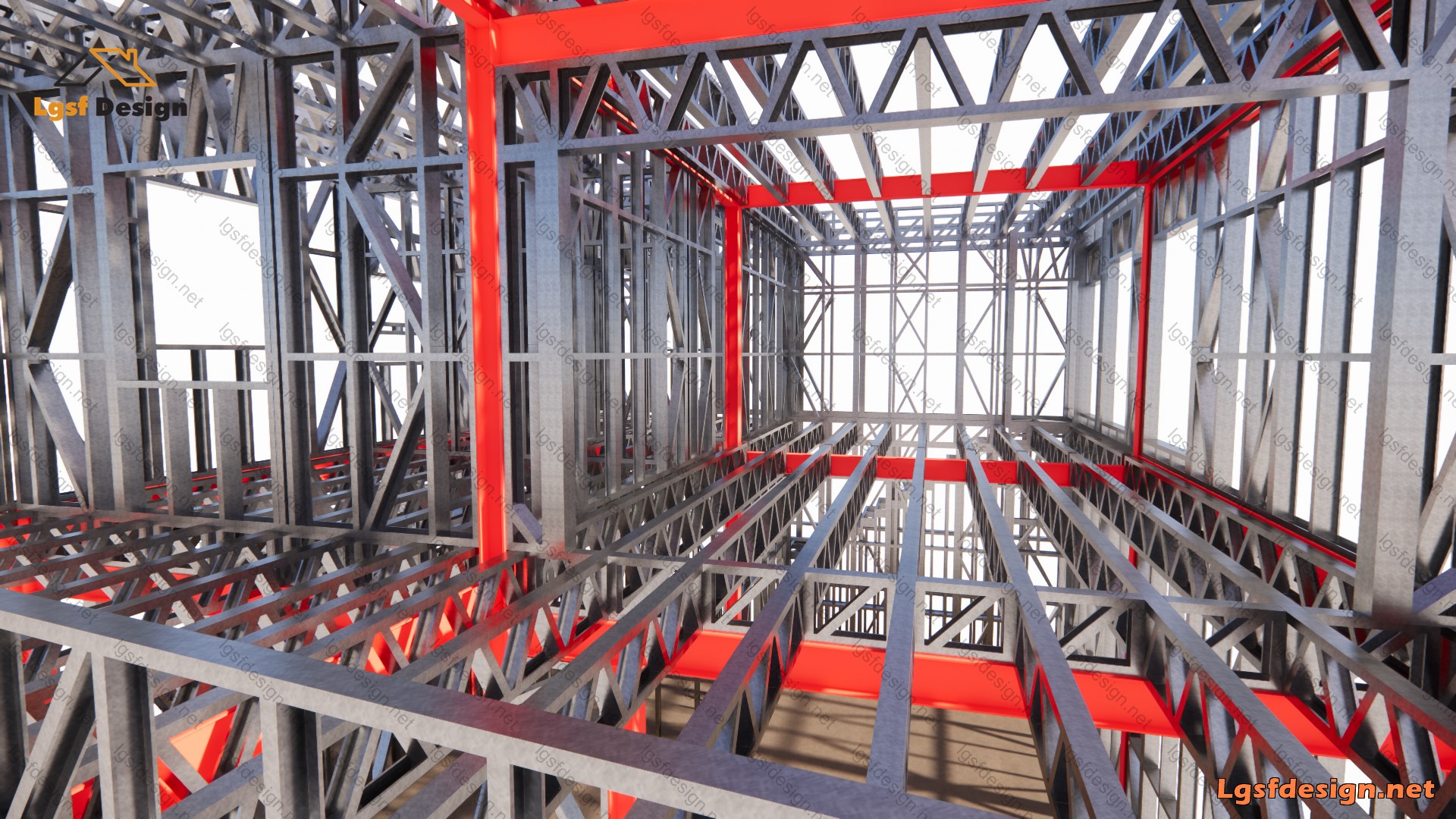

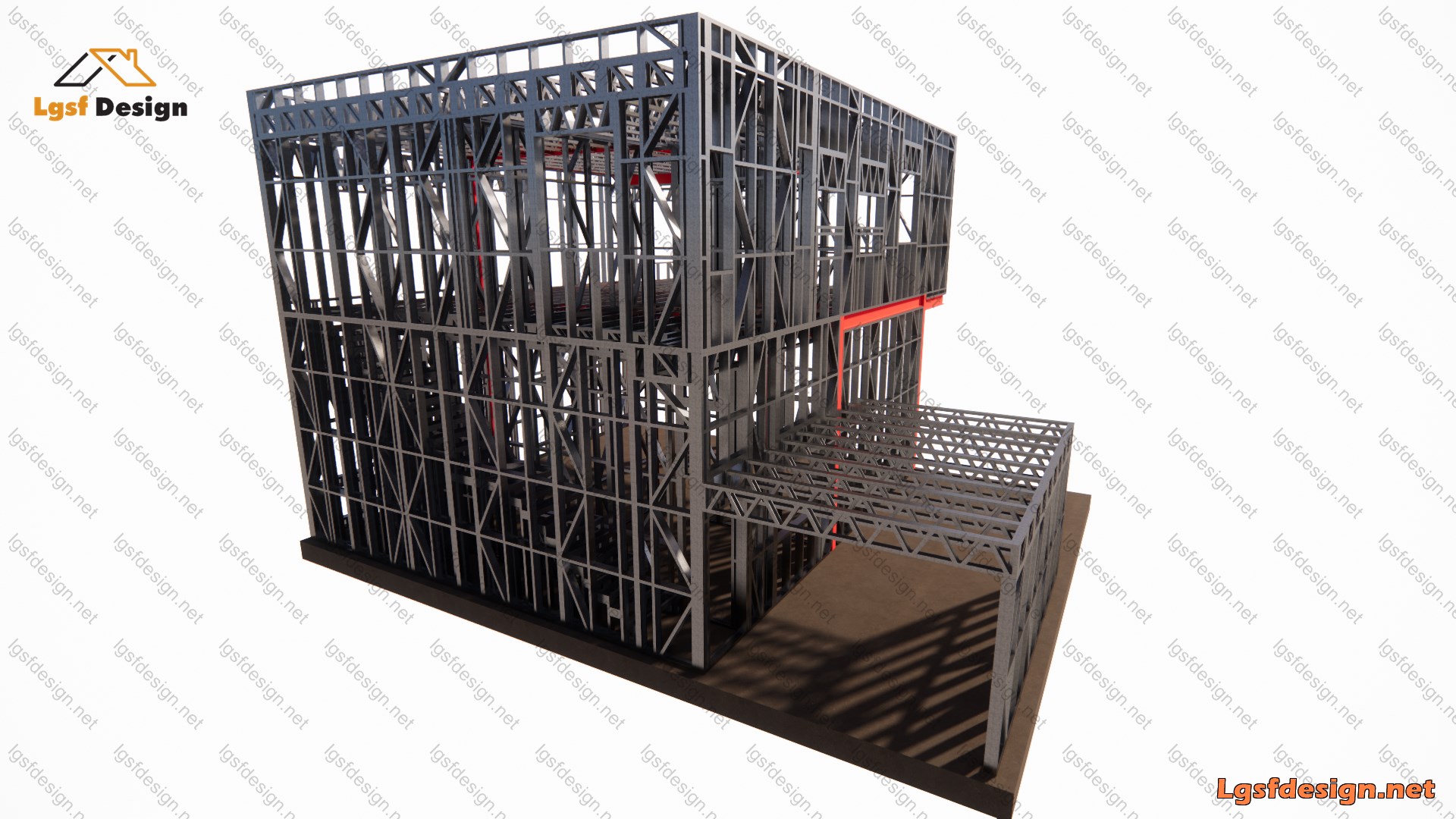

This building is designed and constructed using the Light Steel Frame (LSF) system, combined with steel girder elements to achieve higher structural capacity and flexibility. The hybrid use of LSF and steel girders allows for efficient load transfer, precise construction, and improved seismic and wind performance, which is well suited to regional requirements.

The total built-up area of the project is approximately 260 m². The ground floor is dedicated to commercial use and includes a retail space designed for shops, providing an open and adaptable layout suitable for various business activities. The structural system on this level is optimized to allow larger spans and fewer internal columns, creating a functional and flexible commercial environment.

The upper floor consists of a residential unit designed as a comfortable private living space. It includes two bedrooms and two bathrooms, arranged to maximize usability, natural light, and privacy. The LSF system ensures high construction accuracy, good thermal performance, and reduced structural weight, contributing to both comfort and long-term durability.

This project is located in Cyprus, where the combination of LSF technology and steel girders offers advantages such as fast construction, high quality control, corrosion-resistant detailing, and compliance with modern structural and energy-efficiency standards. The result is a modern, efficient, and versatile building that successfully integrates commercial and residential functions within a single structure.

Key Specs

  • Title :

  • Location :

  • Area :

  • Bedroom :

  • Bathroom :

  • PICASSO

  • Cyprus

  • 260 m2

  • 2

  • 2

Additional Details

  • Heavy Steel :

  • Roll Former Machine :

  • Longest Member :

  • Time to Design :

  • Yes

  • Howick

  • 5.00 m

  • 3 Days

Load Conditions

  • Designing Code :

  • Characteristic Value of Snow Load :

  • Fundamental Basic Wind Velocity :

  • Basic Velocity Pressure :

  • Reference Value of Peak Ground Acceleration :

  • IBC 2021

  • 0.00 kN/m2

  • 30.00 m/s

  • 0.60 kN/m2

  • 0.20 m/s2
