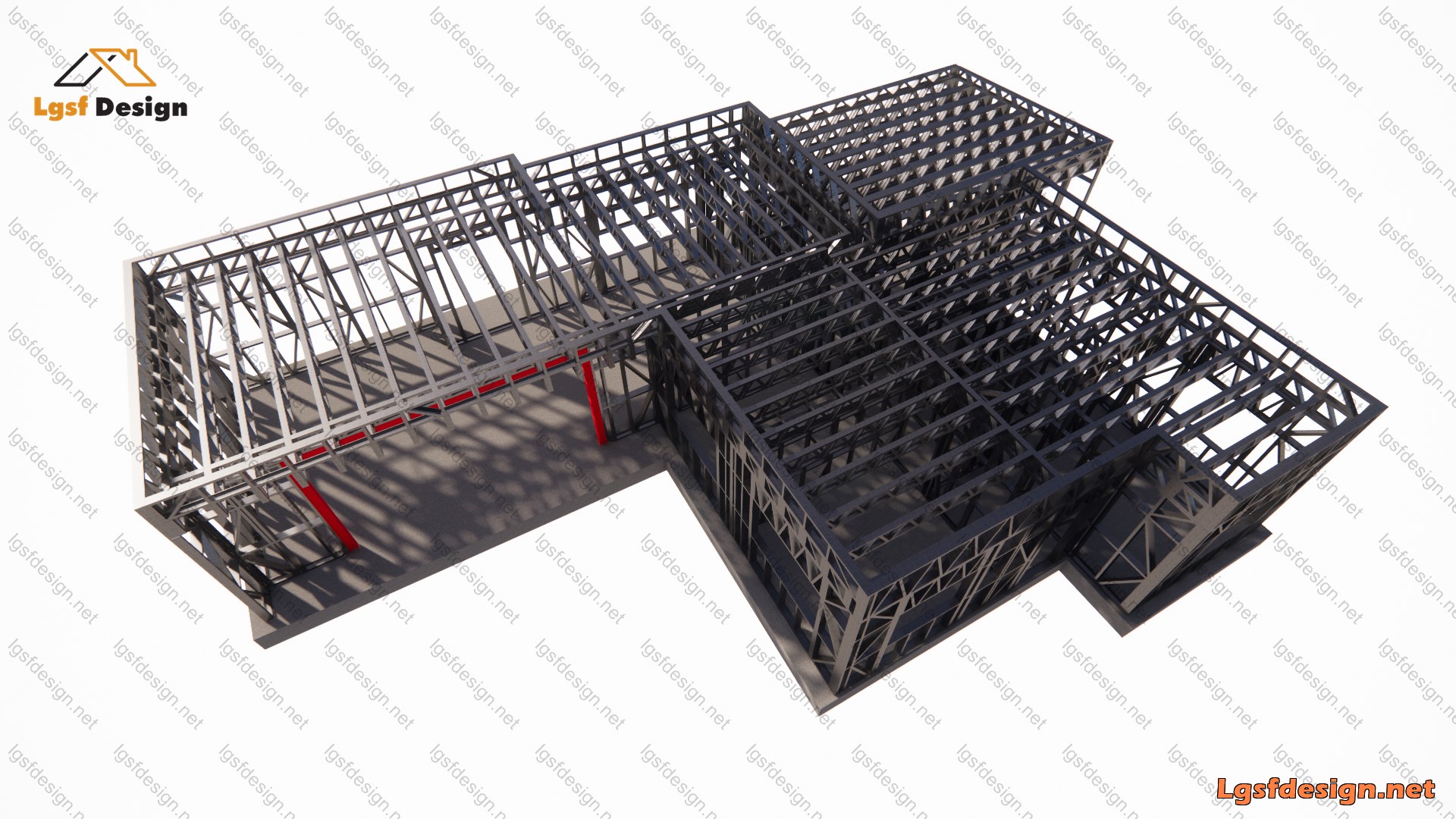

3D Structure Model

Click here to view the 3D model online or download .wrl or .ifc file
EXPLORE 3D STRUCTURE VISUALIZATION

Description

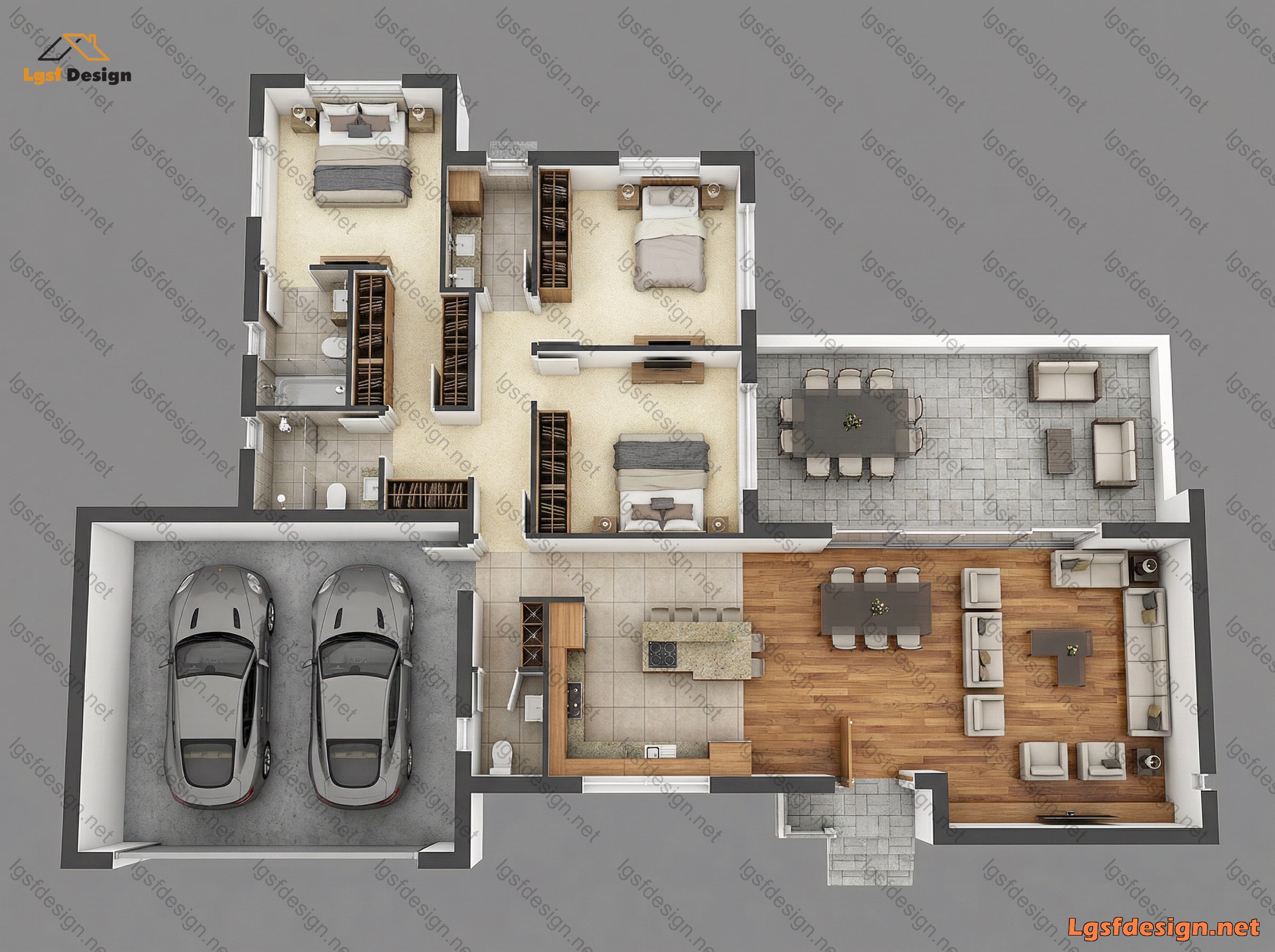

This residential project is a single-story house designed with a clear and functional layout, presented through a three-dimensional cutaway view that reveals the spatial organization and interior character of the plan. The total built area of the house is 180 m², and the structure is designed using the Light Steel Frame (LSF) construction system, ensuring high structural efficiency, precision in execution, and long-term durability. The project is planned for construction in Cyprus, taking into account local climate conditions and contemporary living standards.

The plan is organized into two main zones: a private area and a public living area. The private zone includes well-proportioned bedrooms, all finished with carpet flooring to create a warm and comfortable atmosphere. Storage spaces and bathrooms are efficiently integrated, allowing for smooth circulation and practical daily use. The spatial relationships between rooms are compact yet open, providing privacy without unnecessary corridors.

The public area consists of an open-plan living room, dining space, and kitchen. This layout enhances natural light penetration and visual continuity while supporting modern family living. The kitchen is centrally positioned with direct access to the dining area, making it suitable for both everyday use and social gatherings. Finishes and materials are selected to balance warmth and simplicity, complementing the structural clarity of the LSF system.

A direct connection to the outdoor terrace extends the living space and strengthens the relationship between interior and exterior areas, which is especially important for the Mediterranean climate of Cyprus. Overall, this project combines efficient LSF structural design with a clean architectural layout, resulting in a modern, comfortable, and constructible residential solution.

Key Specs

  • Title :

  • Location :

  • Area :

  • Bedroom :

  • Bathroom :

  • LUTUS

  • Cyprus

  • 180 m2

  • 3

  • 3

Additional Details

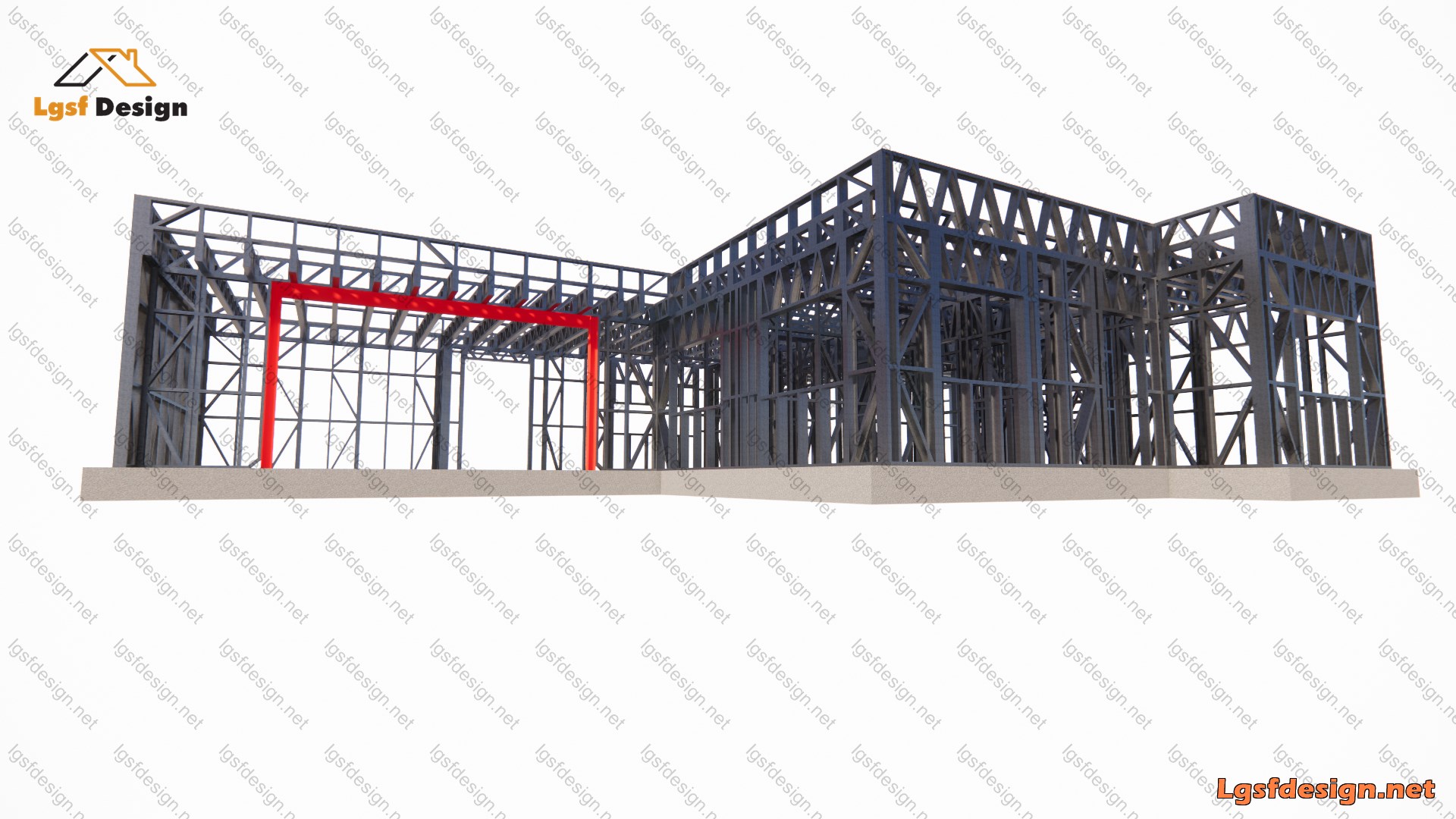

  • Heavy Steel :

  • Roll Former Machine :

  • Longest Member :

  • Time to Design :

  • Yes

  • Howick

  • 6.00 m

  • 1 Day

Load Conditions

  • Designing Code :

  • Characteristic Value of Snow Load :

  • Fundamental Basic Wind Velocity :

  • Basic Velocity Pressure :

  • Reference Value of Peak Ground Acceleration :

  • IBC 2021

  • 0.00 kN/m2

  • 30.00 m/s

  • 0.60 kN/m2

  • 0.20 m/s2

Leave a message if you have similar project and need to design.
