Description

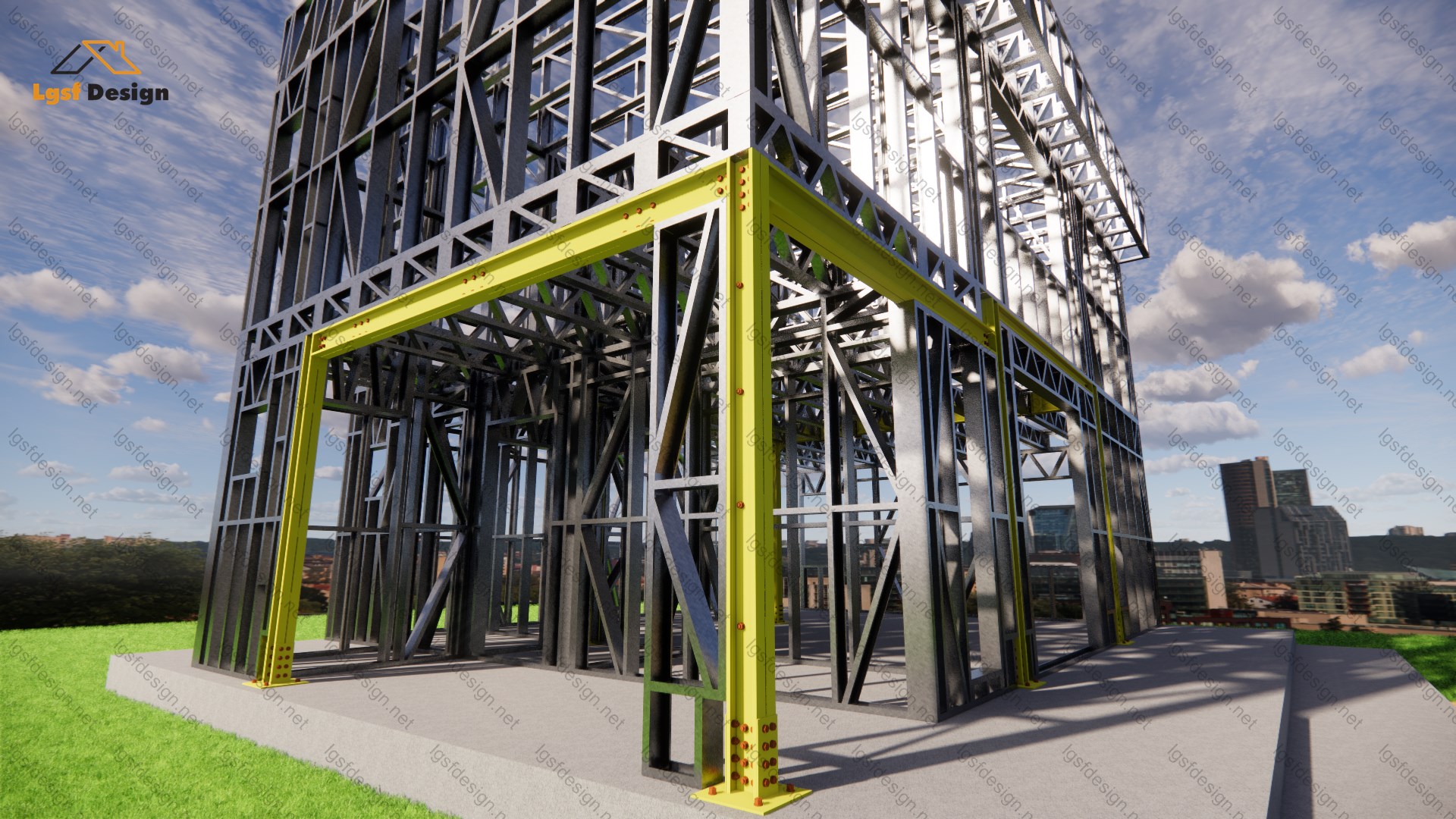

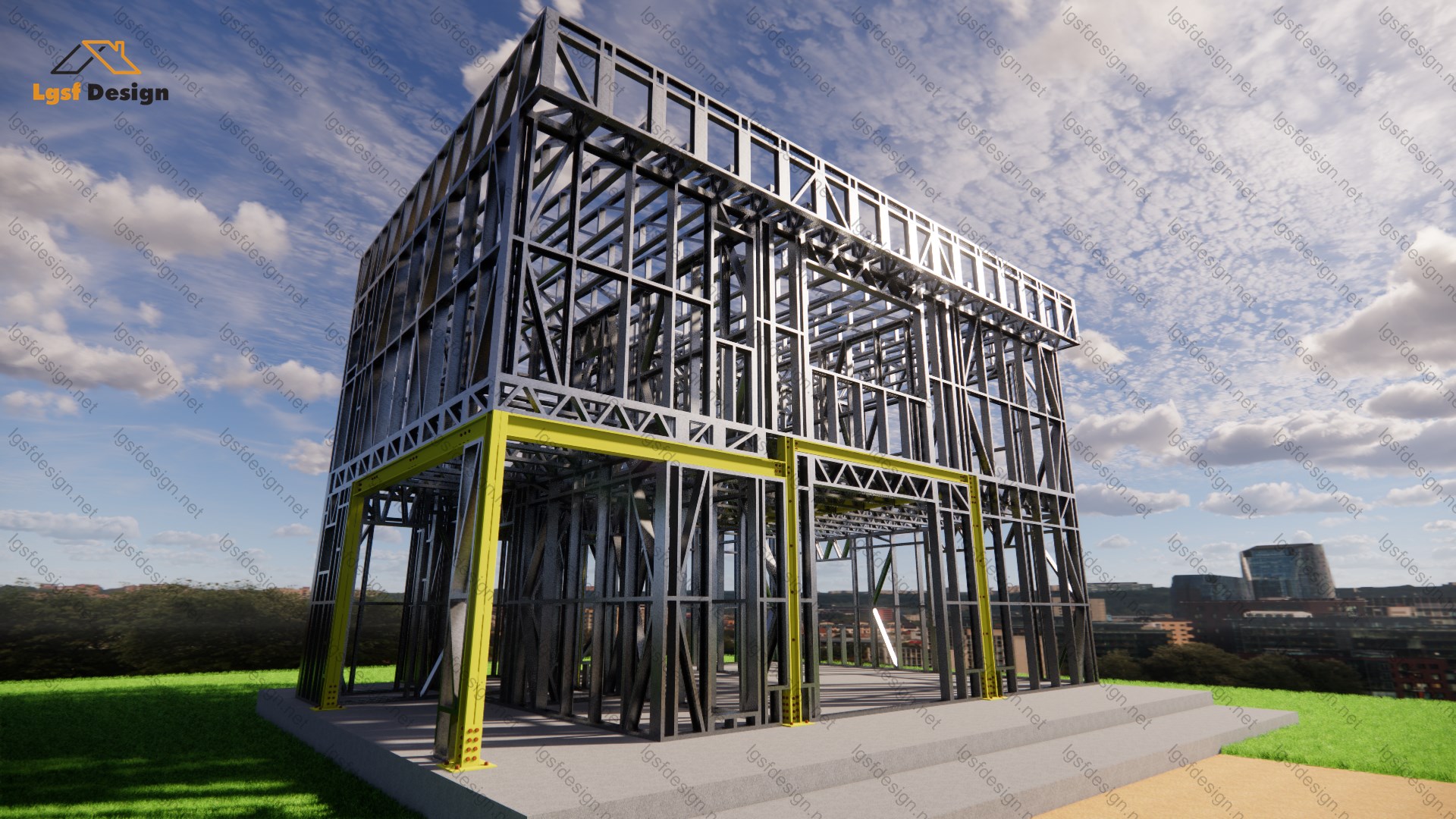

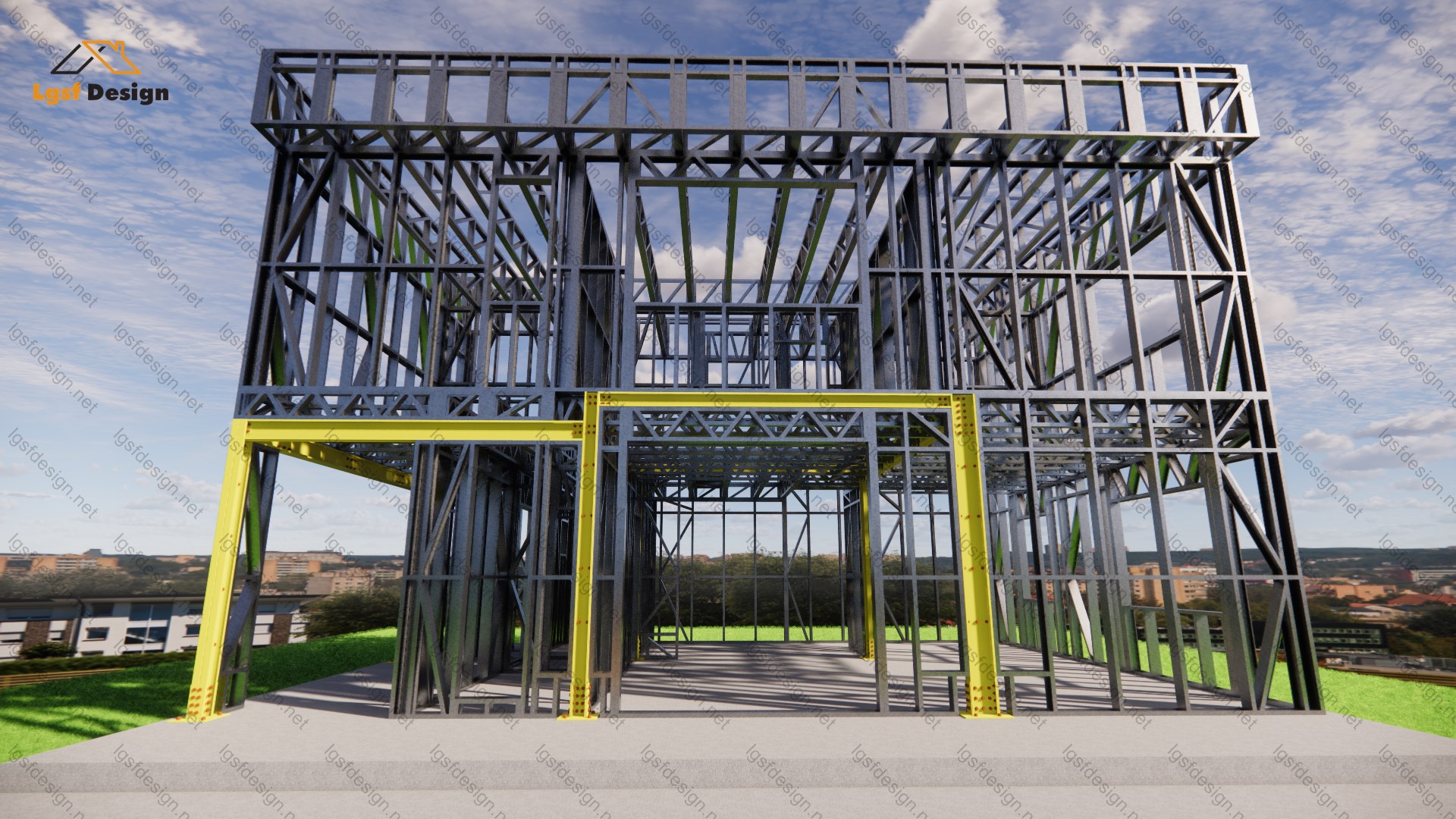

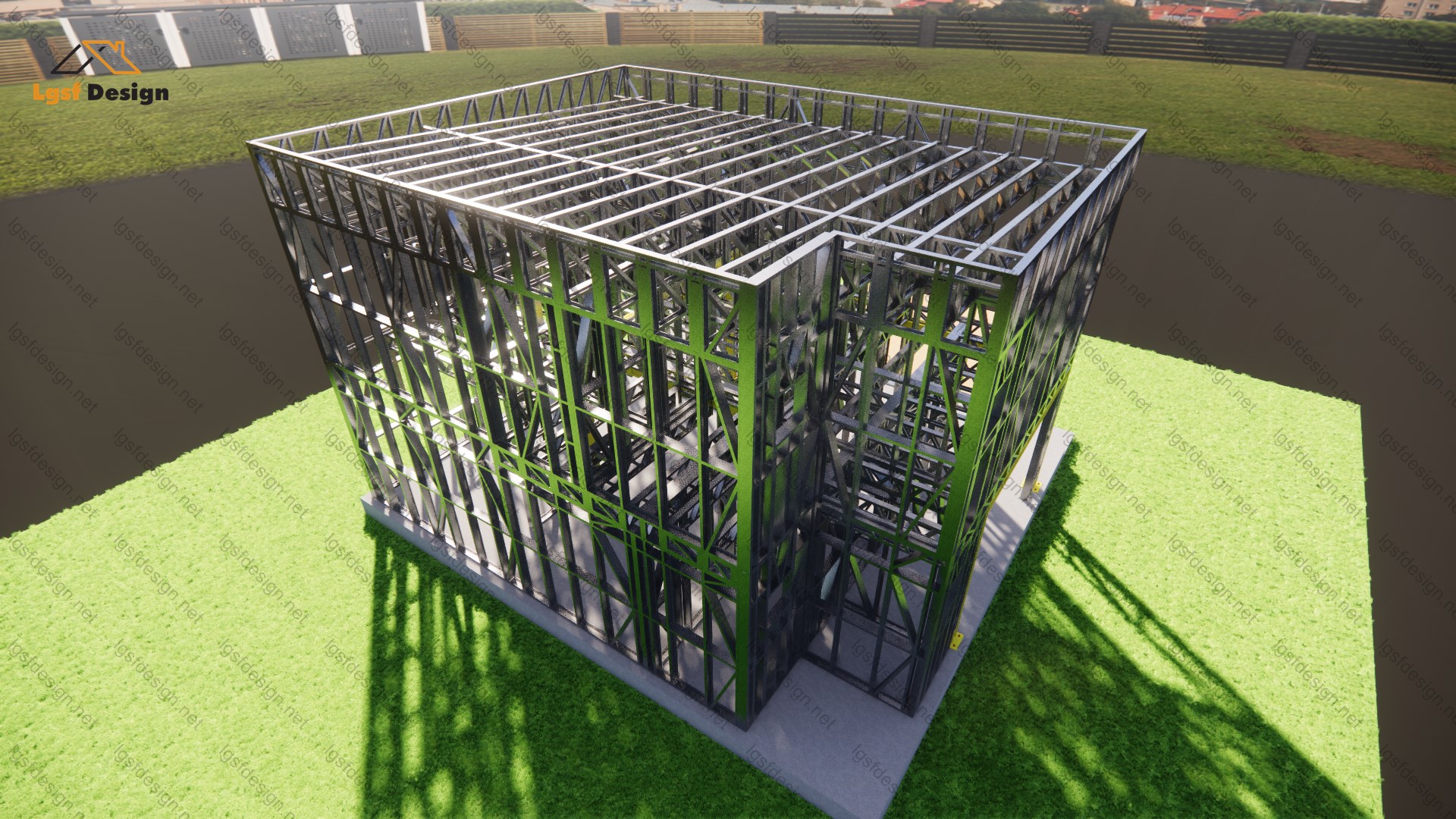

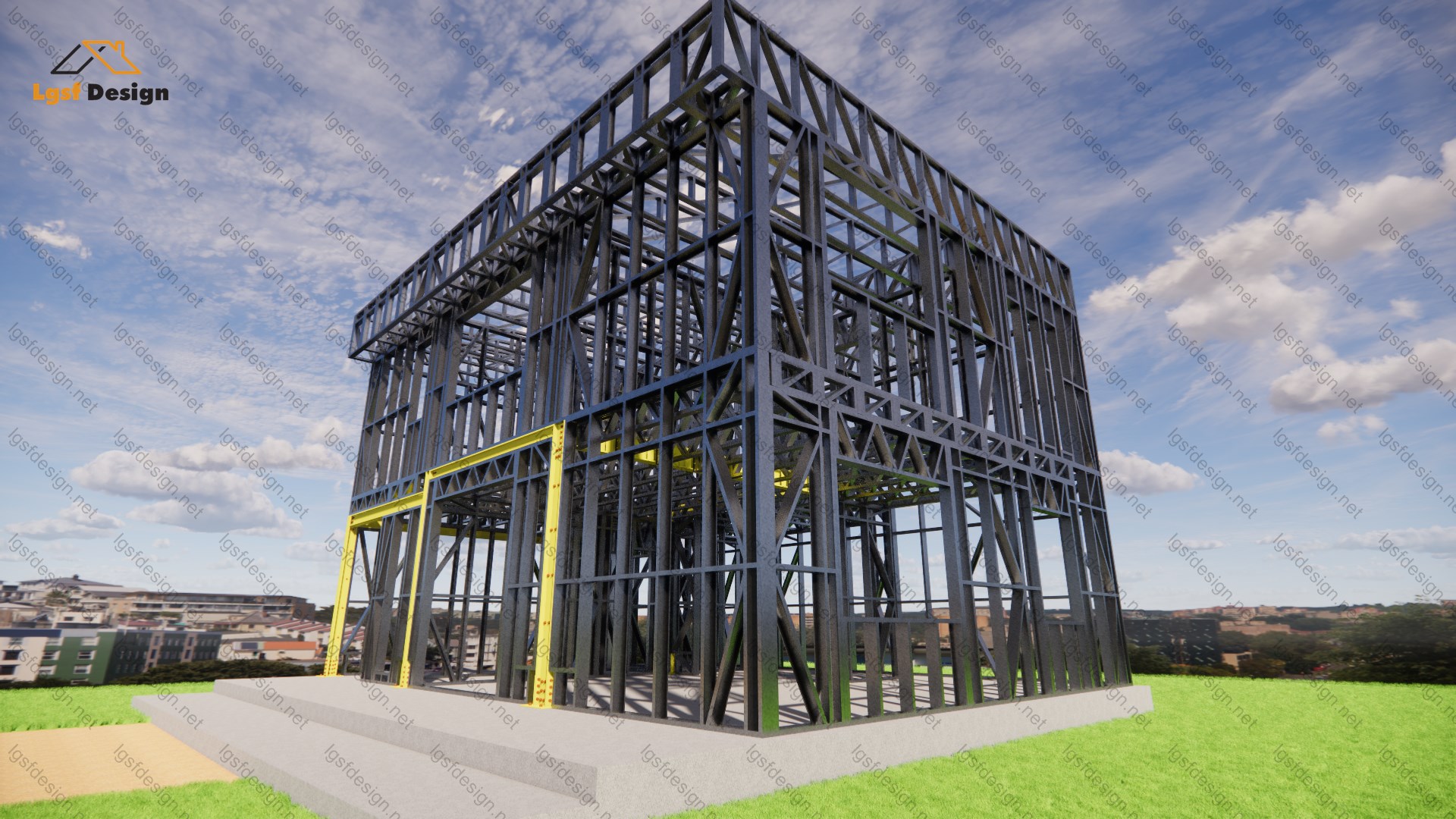

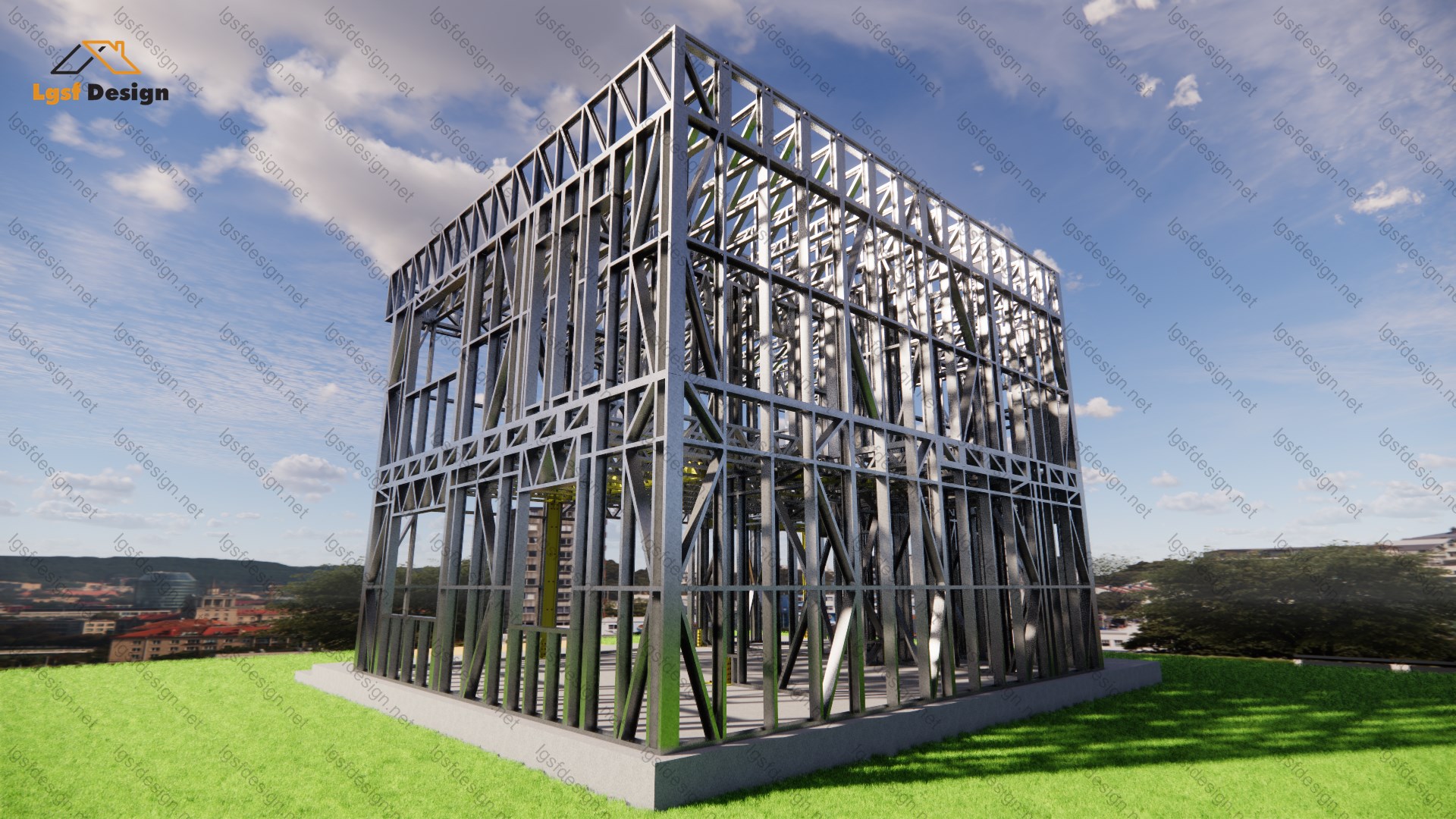

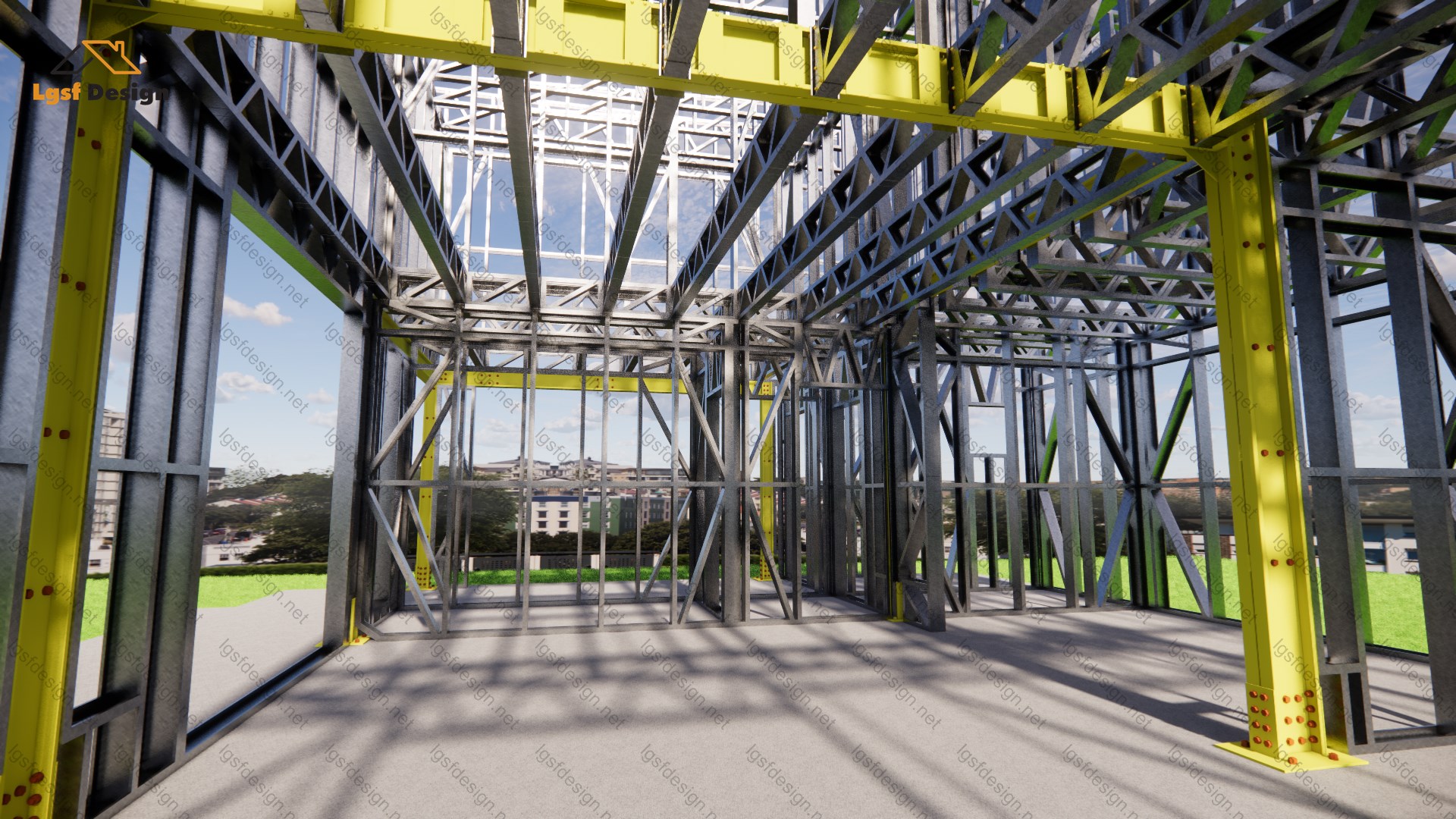

Sometimes, using hot rolled steel  in a project isn't feasible, yet the client insists on using galvanized steel  for building the house structure. In this project, 2 and 3 millimeter galvanized steel  have been used to construct load-bearing frames. These profiles are formed to the required dimensions using a bending machine and then screwed together according to the provided drawings . With this method, there's no need for welding, painting, or cutting at the installation site, enabling the entire project to be completed quickly and efficiently in a very short timeframe.



Key Specs

  • Title :

  • Location :

  • Area :

  • Bedroom :

  • Bathroom :

  • JOSIPA

  • Croatia

  • 160 m2

  • 3

  • 2

Additional Details

  • Heavy Steel :

  • Roll Former Machine :

  • Longest Member :

  • Time to Design :

  • No

  • Dahezb

  • 8.00 m

  • 3 Days

Load Conditions

  • Designing Code :

  • Characteristic Value of Snow Load :

  • Fundamental Basic Wind Velocity :

  • Basic Velocity Pressure :

  • Reference Value of Peak Ground Acceleration :

  • IBC 2021

  • 1.50 kN/m2

  • 30.00 m/s

  • 0.60 kN/m2

  • 0.20 m/s2

Leave a message if you have similar project and need to design.
