B38158

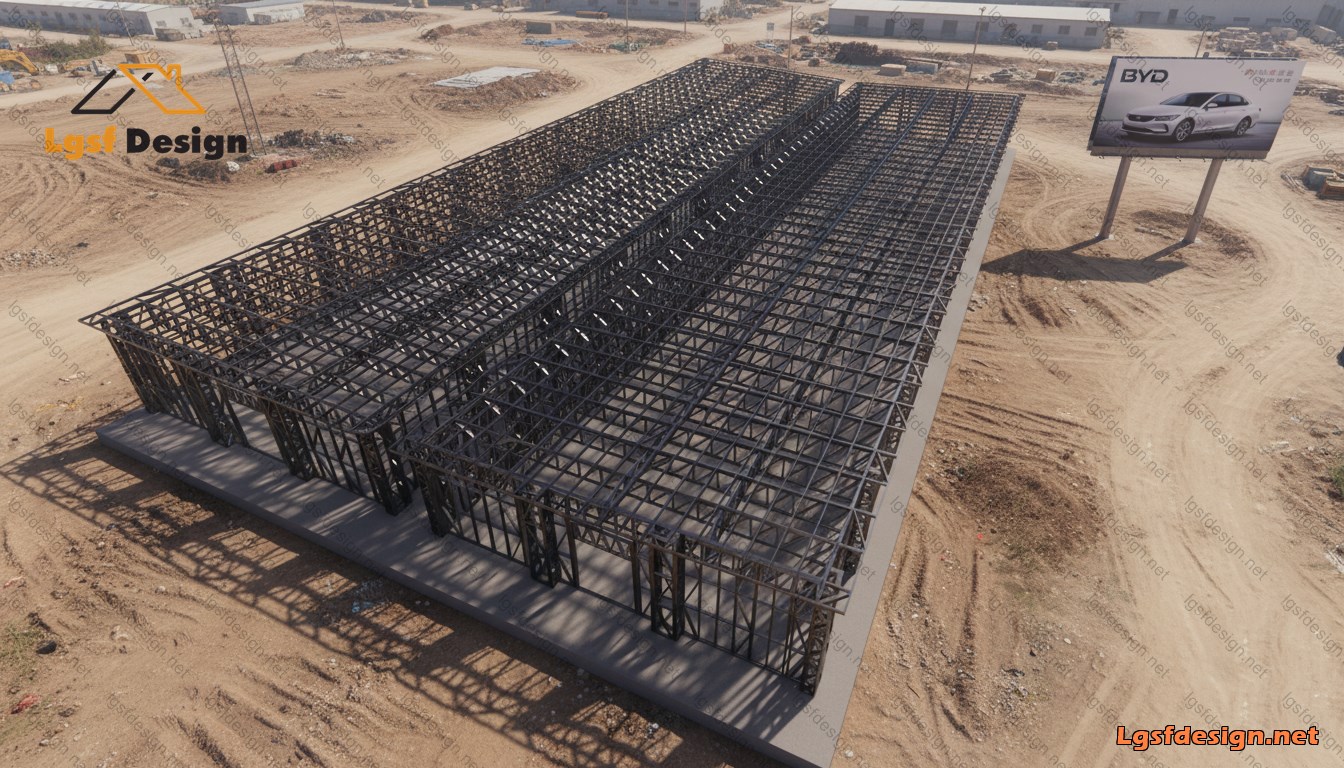

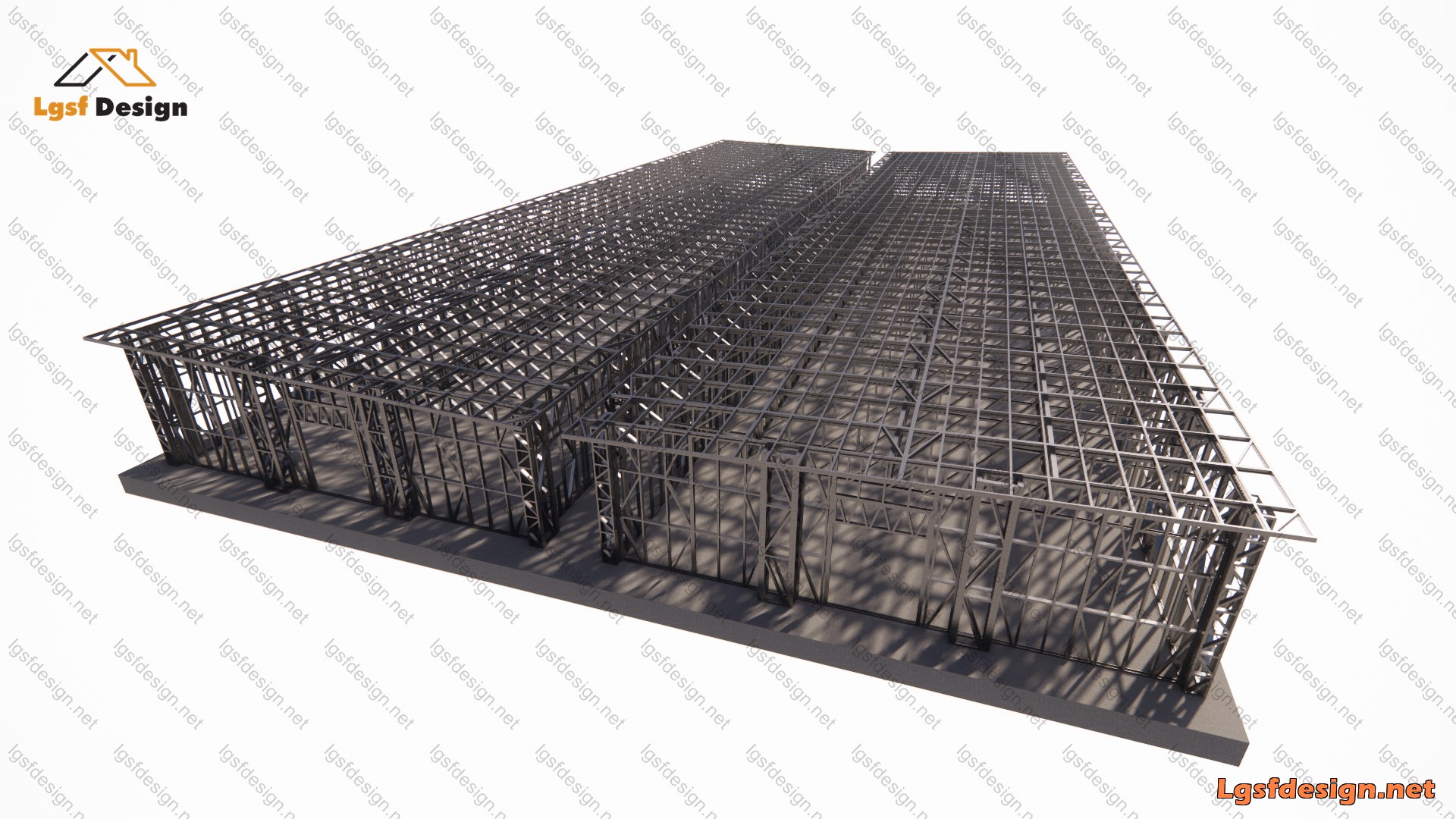

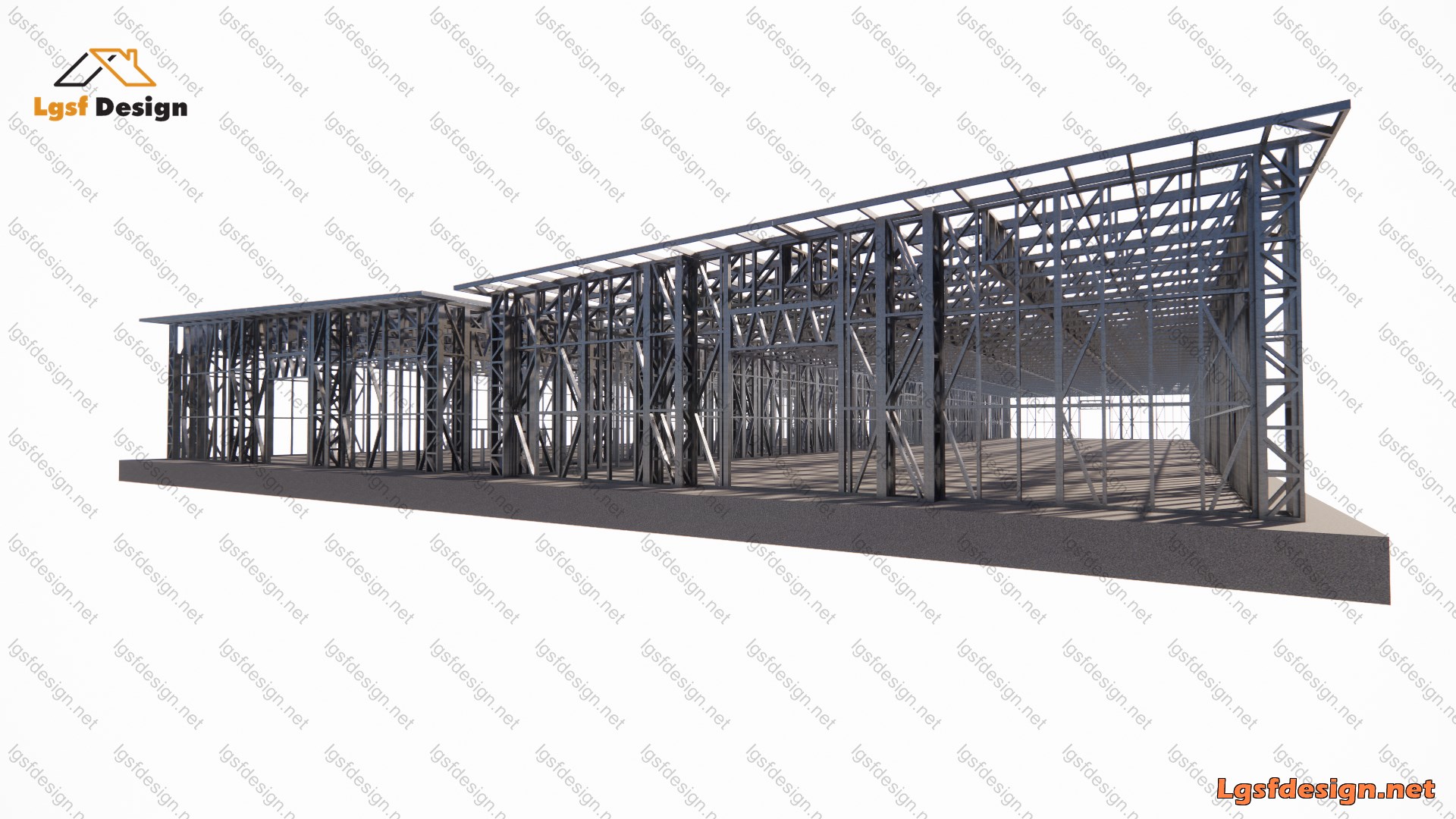

3D Structure Model
Description

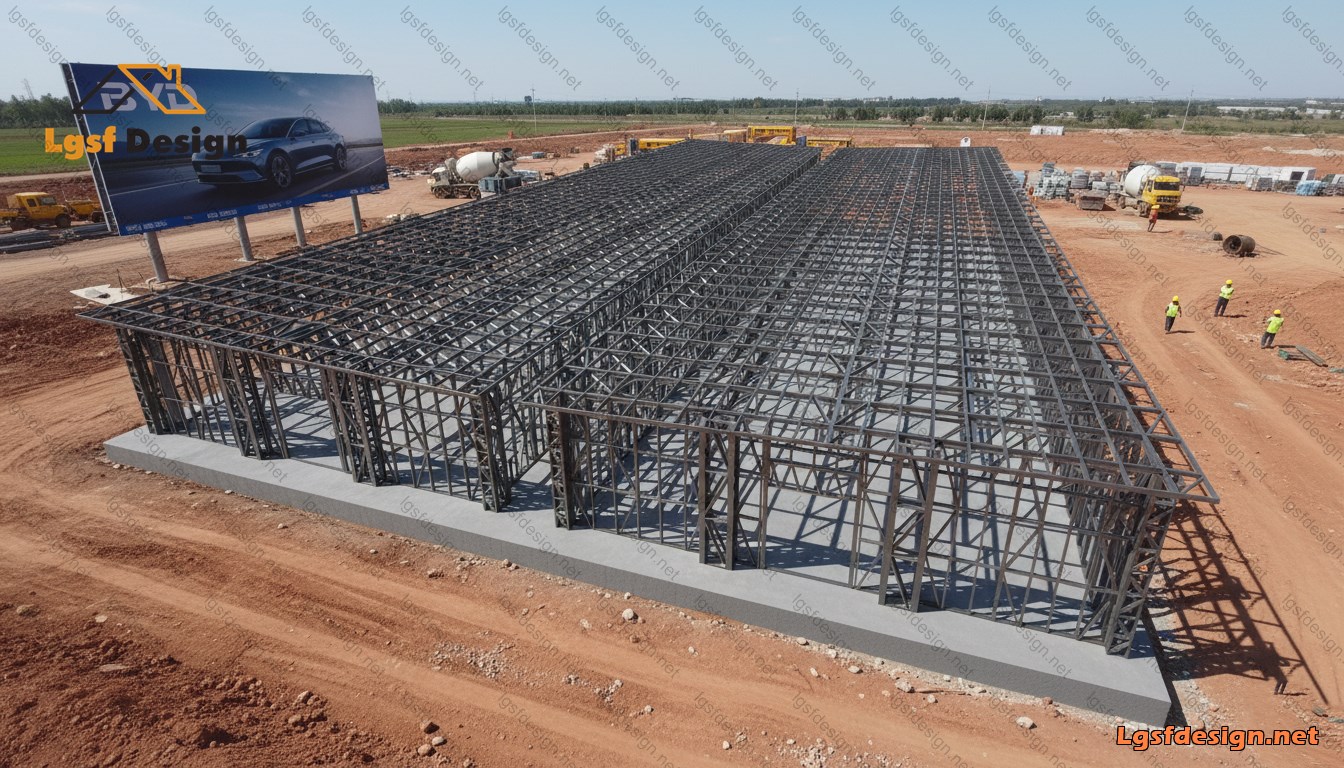

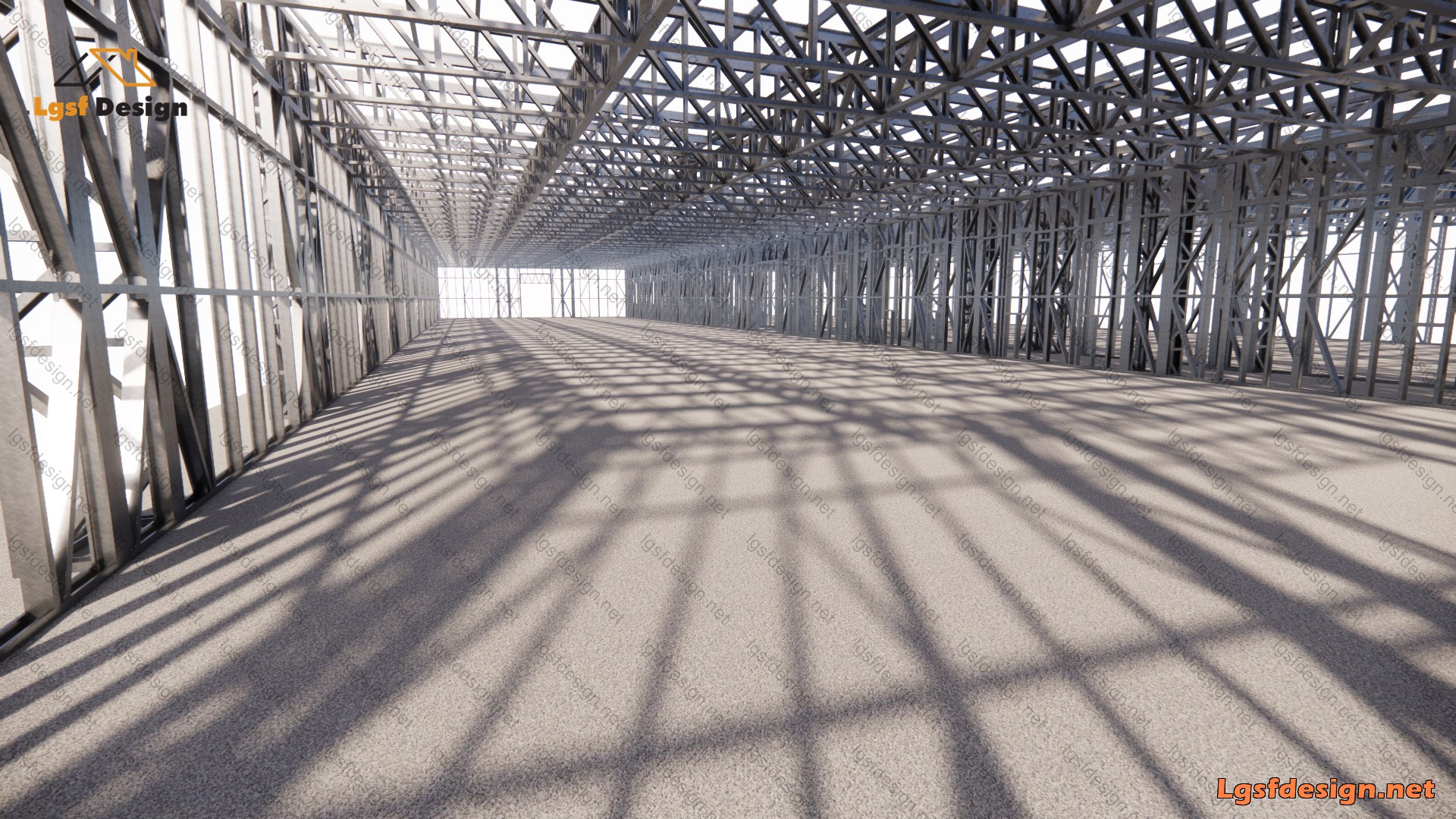

This storage building was designed and built using the LSF system — combining strength, precision, and modern engineering. With dimensions of 38 ft × 158 ft × 10 ft, it offers a spacious open-plan interior with no internal walls, perfect for flexible storage solutions. Designed to withstand wind speeds up to 40 m/s, this structure ensures durability and long-term reliability with a clean, efficient design.
Key Specs
Title :
Location :
Area :
B38158
Pakistan1140 m2
Additional Details
Heavy Steel :
Roll Former Machine :
Longest Member :
Time to Design :
No
Framecad
11.50 m
3 Days
Load Conditions
Designing Code :
Characteristic Value of Snow Load :
Fundamental Basic Wind Velocity :
Basic Velocity Pressure :
Reference Value of Peak Ground Acceleration :
IBC 2021
0.00 kN/m2
40.00 m/s
1.00 kN/m2
0.20 m/s2
Ask Question
LGSF DESIGN
+98-902-199-0949
info@lgsfdesign.net
Leave a message if you have similar project and need to design.
