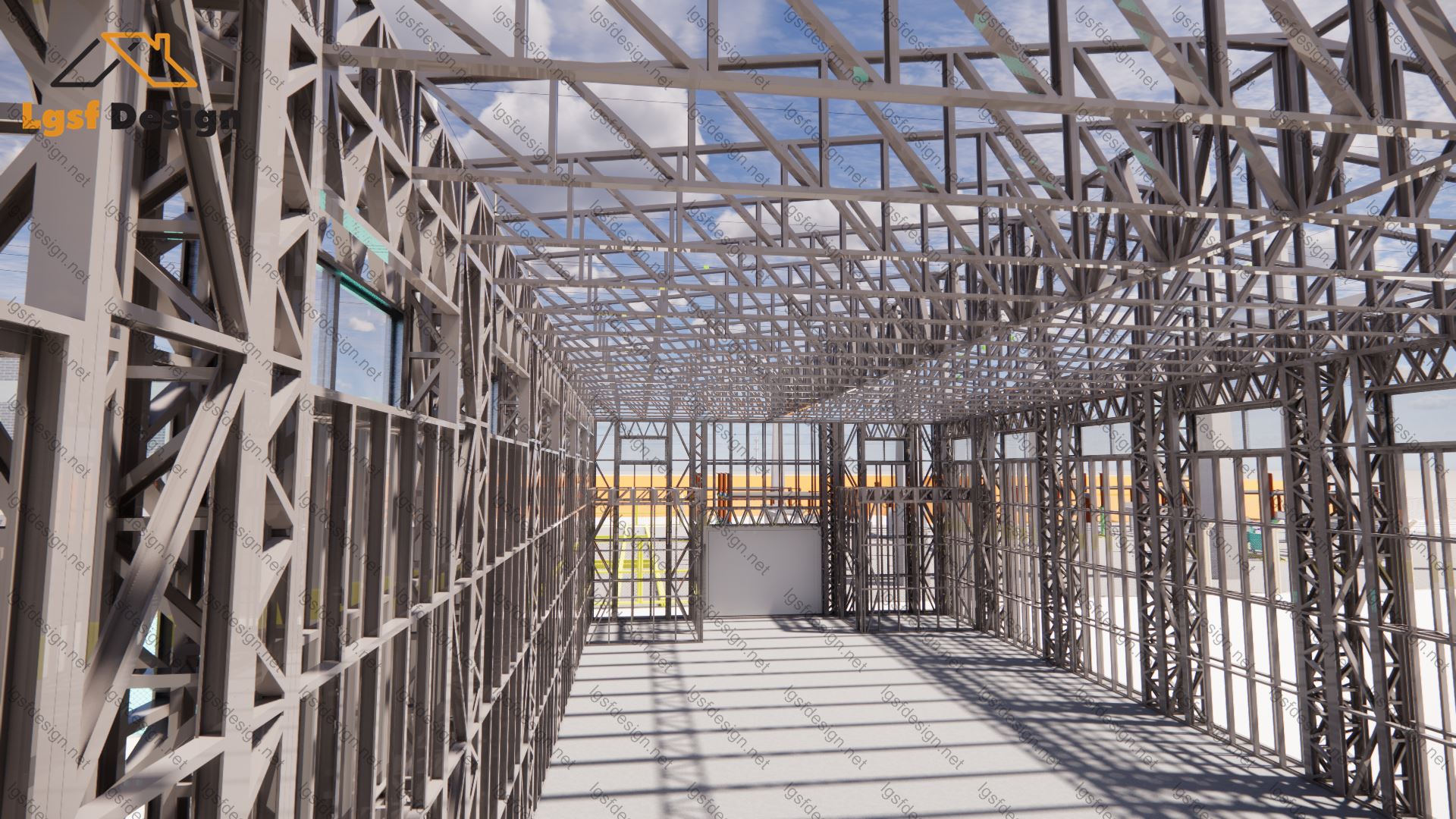

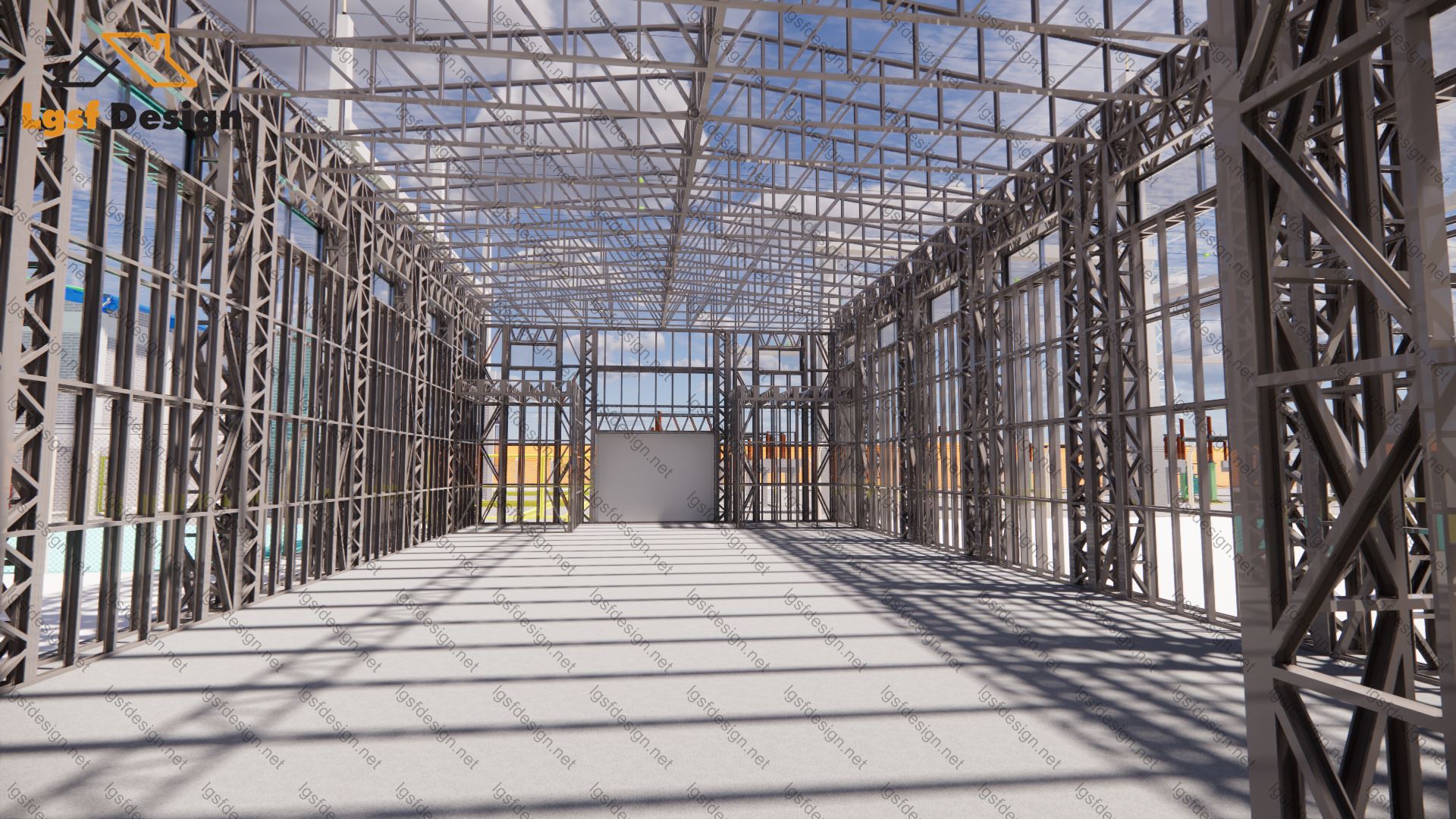

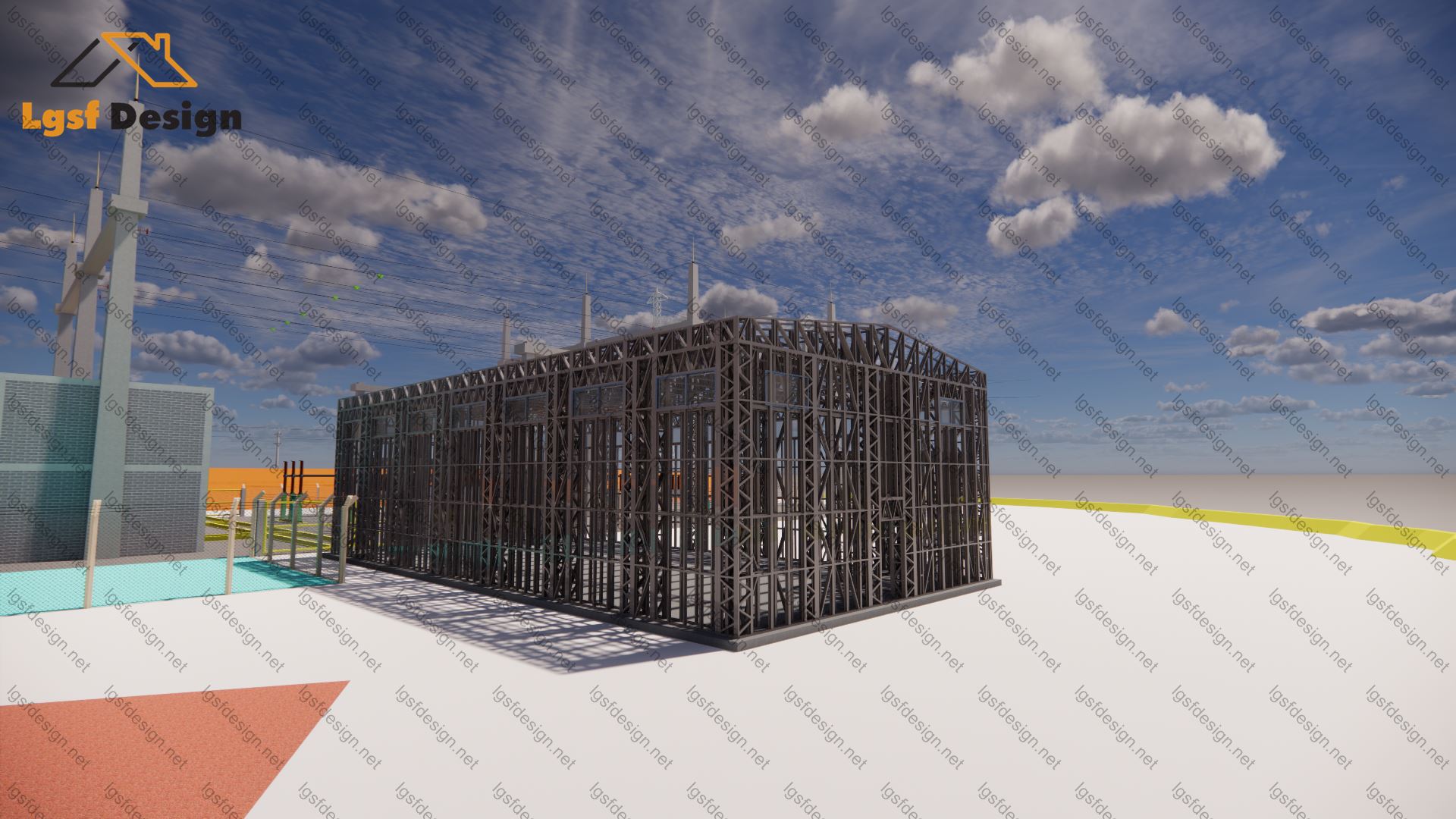

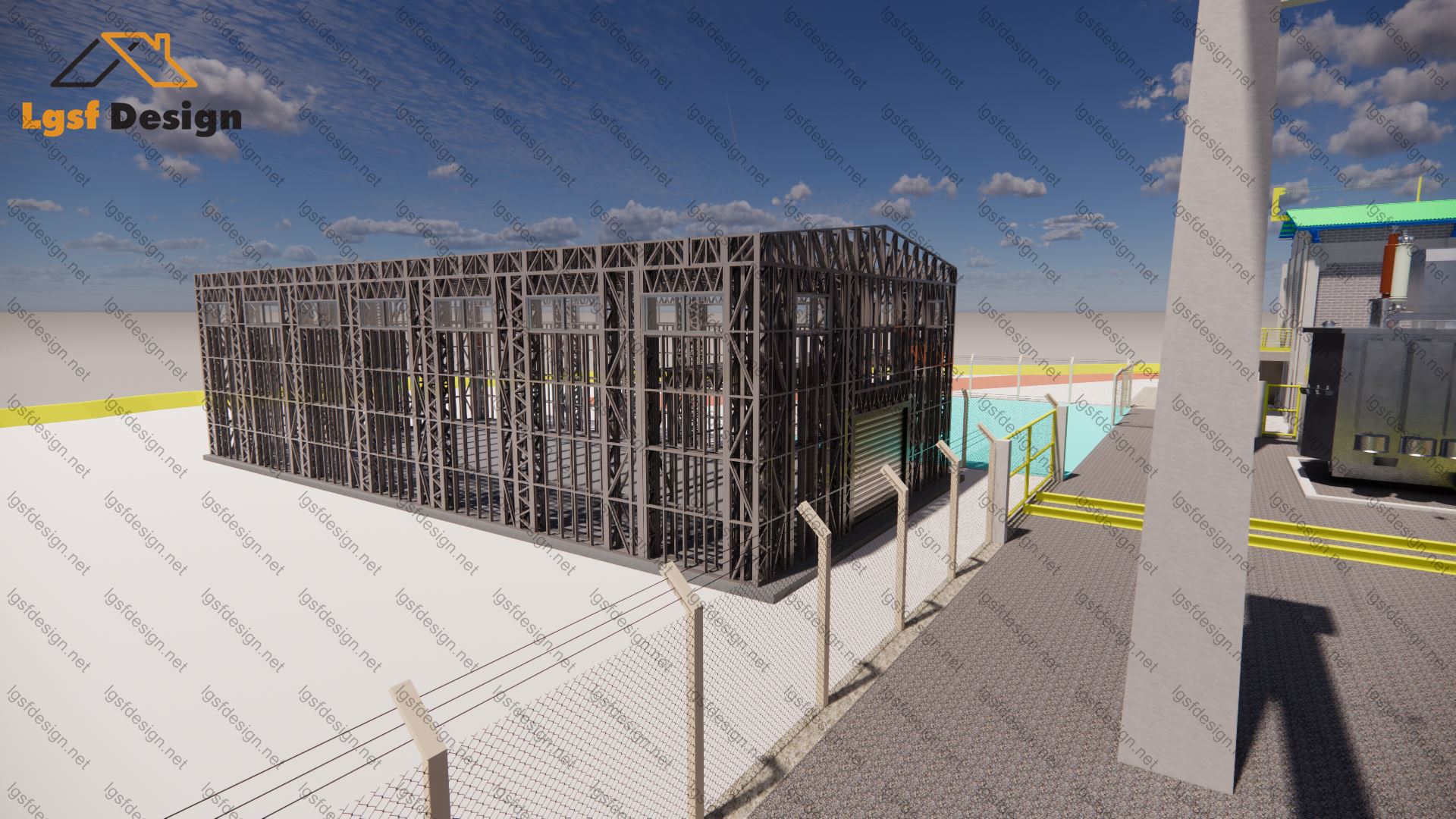

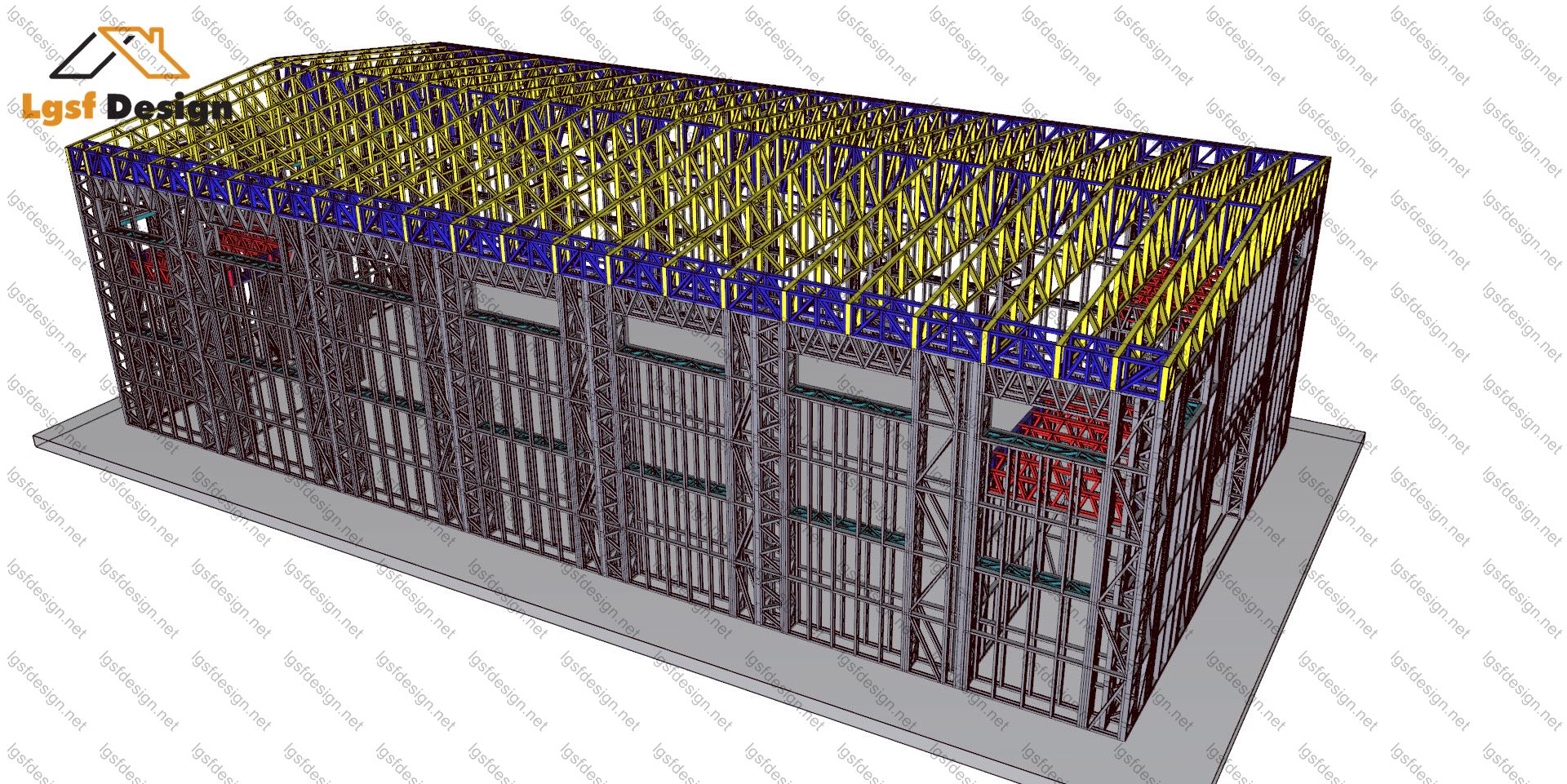

SUBSTATION CONTROL ROOM
Description
Project Name : Substation Control Room
Type : Industrial shed
Dimensions :13m width X30m long X7 m Height
Area : 390 sqm
time to design : 2 Days
Location : Lebanon
Using HRS Section : No
steel section :89S41
Key Specs
Title :
Location :
Area :
SUBSTATION CONTROL ROOM
Lebanon390 m2
Additional Details
Heavy Steel :
Time to Design :
No
2 Days
Load Conditions
Designing Code :
Characteristic Value of Snow Load :
Fundamental Basic Wind Velocity :
Basic Velocity Pressure :
Reference Value of Peak Ground Acceleration :
IBC 2021
0.00 kN/m2
40.00 m/s
1.00 kN/m2
0.00 m/s2
Ask Question
LGSF DESIGN
+98-902-199-0949
info@lgsfdesign.net
Leave a message if you have similar project and need to design.
