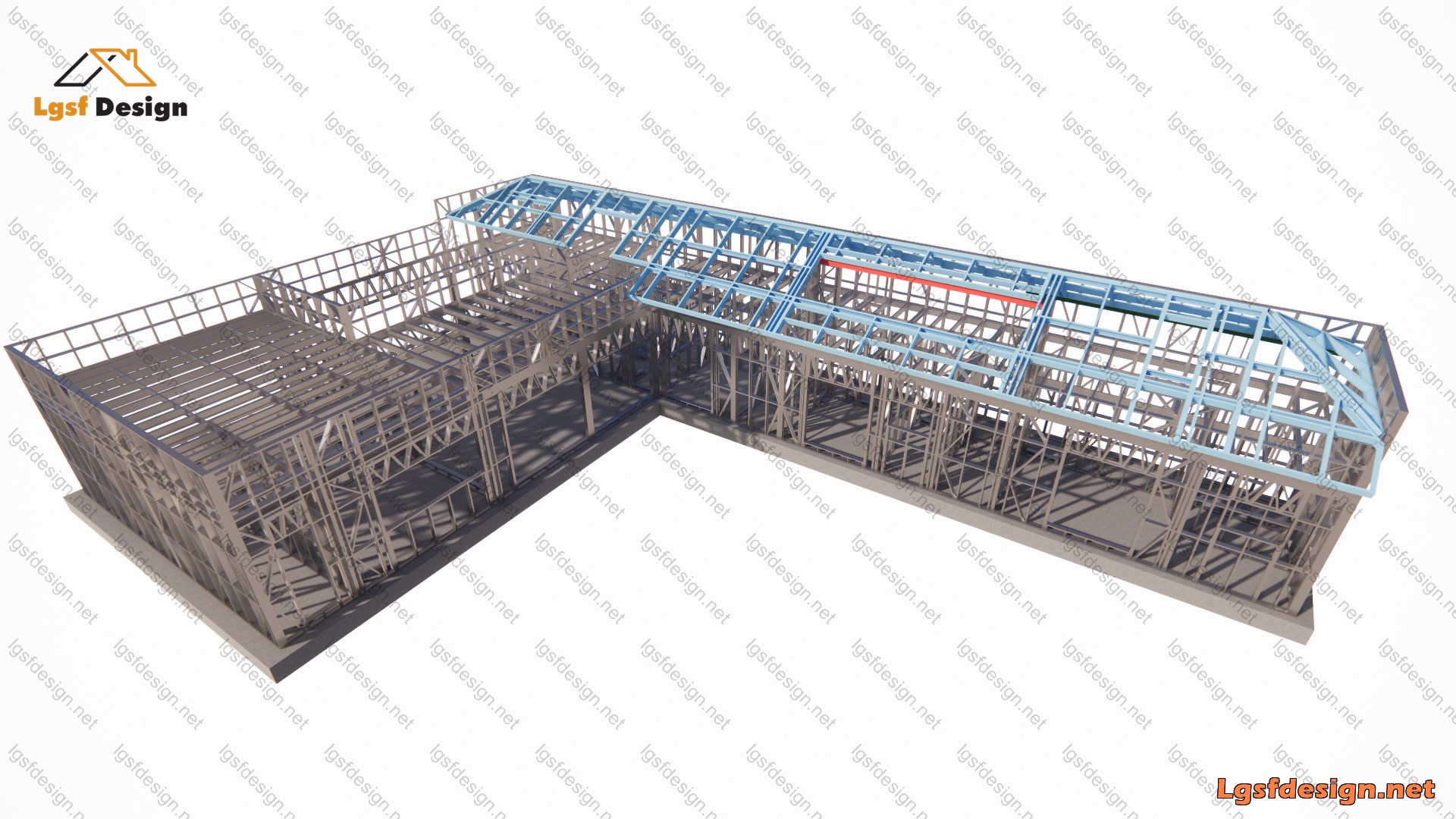

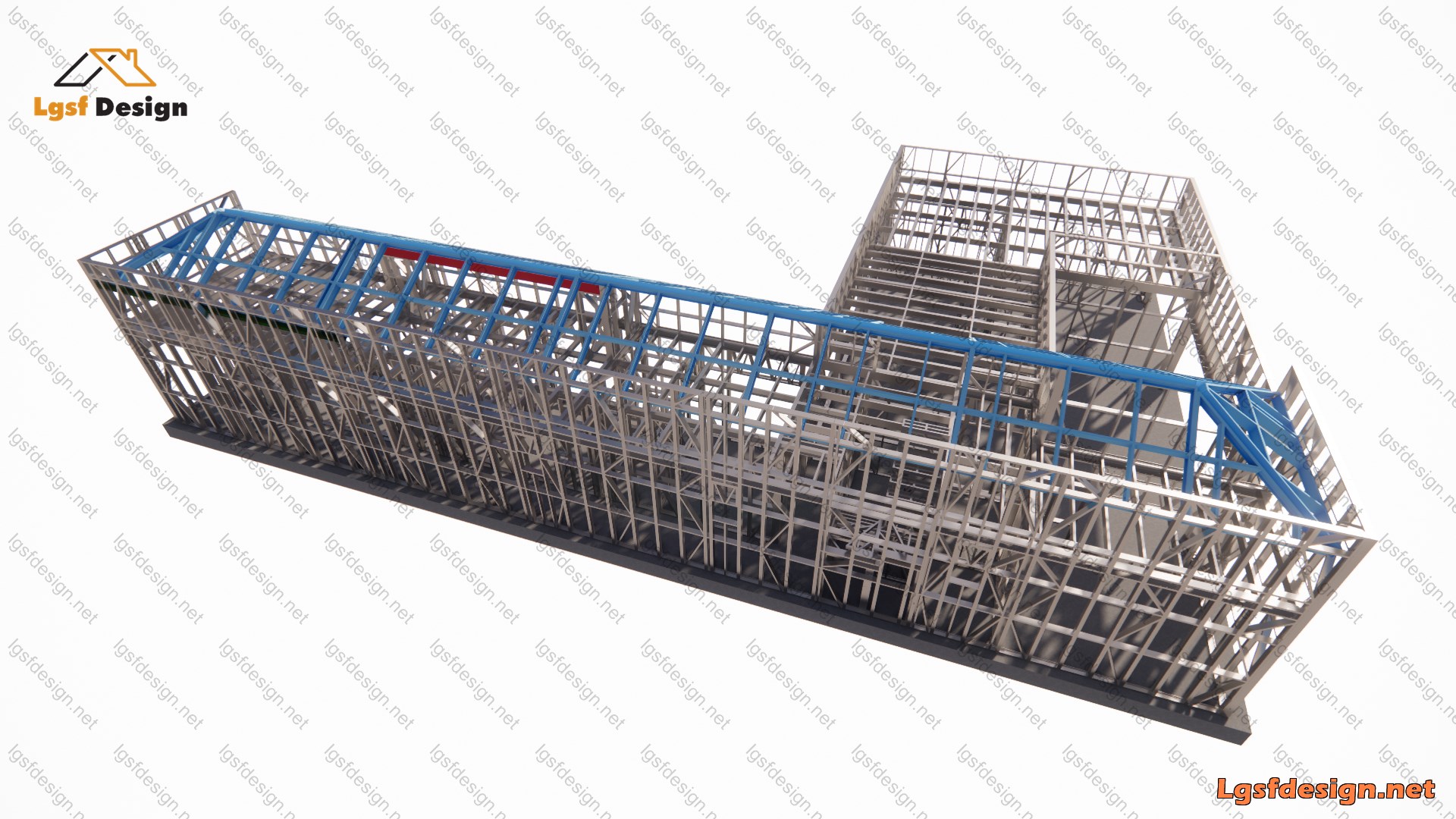

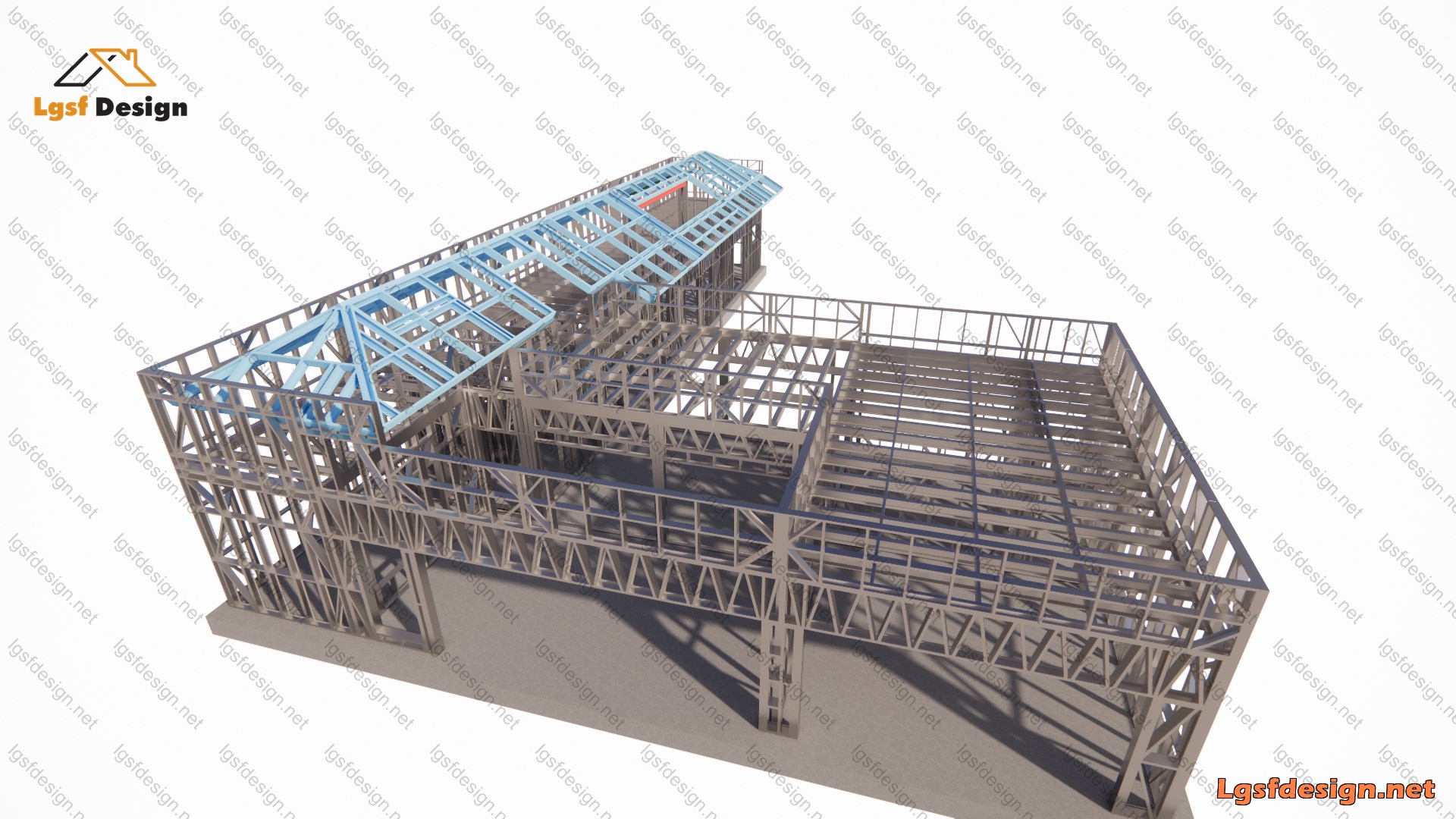

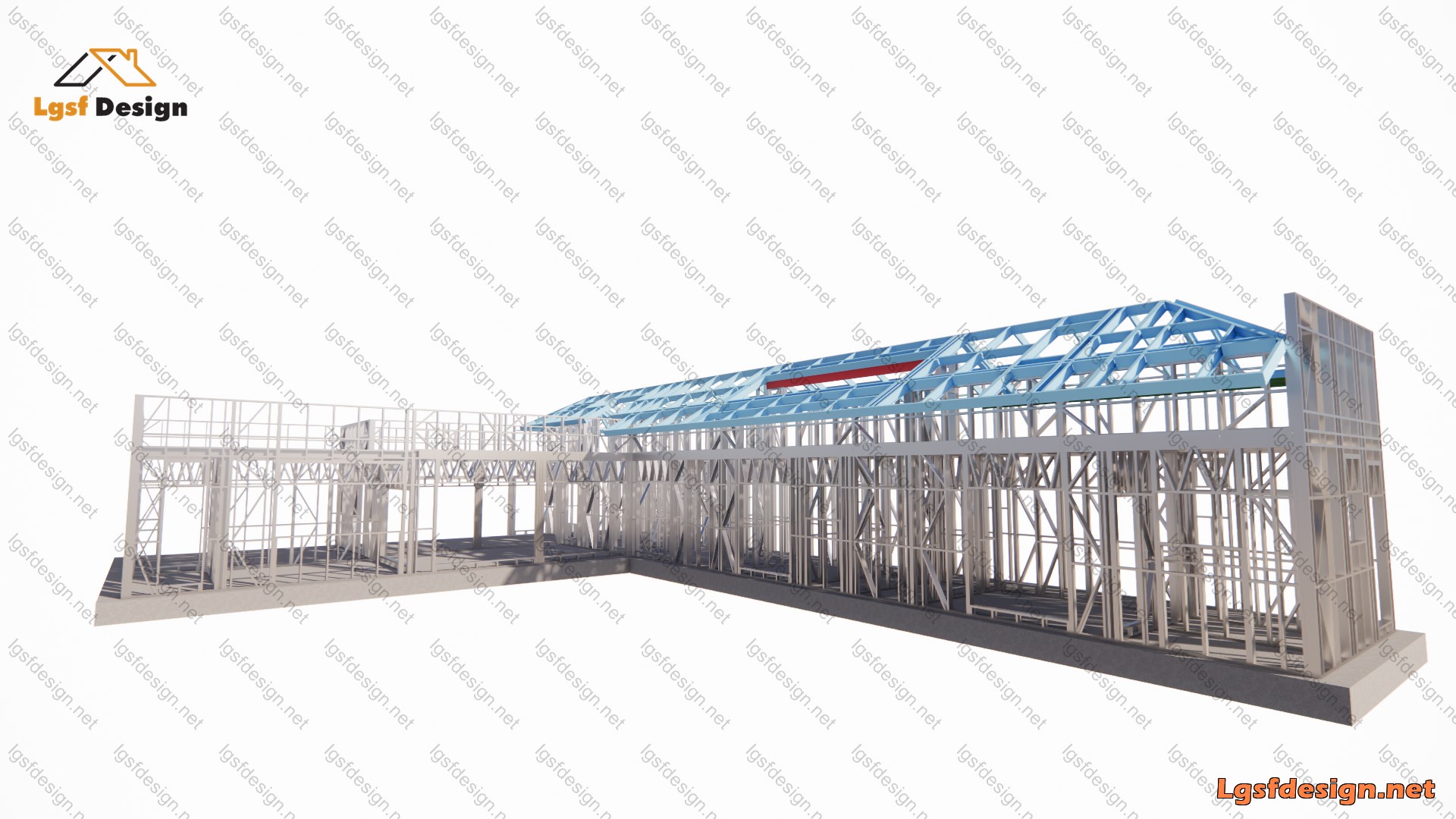

3D Structure Model

Click here to view the 3D model online or download .wrl or .ifc file
EXPLORE 3D STRUCTURE VISUALIZATION

Description

This project is a residential floor plan with a total built-up area of 276 m². The layout is designed to provide a clear separation between private and shared spaces while maintaining efficient circulation throughout the house. The plan includes three bedrooms, each sized for comfortable residential use, along with three bathrooms that are strategically positioned to serve both private rooms and common areas. The living, dining, and kitchen zones are organized as an open and functional space, creating a strong connection between daily living areas and enhancing natural light and usability. Two garages are integrated into the plan, providing secure parking and direct access to the interior of the building, which improves convenience and functionality. The structural system of the building is based on LSF (Light Steel Frame) construction. Load-bearing walls, floor joists, and roof elements are all designed using cold-formed steel profiles, ensuring high structural efficiency, precision, and seismic performance. This system also allows for faster construction, reduced structural weight, and improved quality control compared to traditional building methods. The building is intended to be constructed in Croatia, in compliance with local regulations and standards.

Key Specs

  • Title :

  • Location :

  • Area :

  • Bedroom :

  • Bathroom :

  • PAJEK

  • Croatia

  • 276 m2

  • 3

  • 3

Additional Details

  • Heavy Steel :

  • Roll Former Machine :

  • Longest Member :

  • Time to Design :

  • No

  • Dahezb

  • 5.00 m

  • 3 Days

Load Conditions

  • Designing Code :

  • Characteristic Value of Snow Load :

  • Fundamental Basic Wind Velocity :

  • Basic Velocity Pressure :

  • Reference Value of Peak Ground Acceleration :

  • IBC 2021

  • 1.20 kN/m2

  • 28.00 m/s

  • 0.40 kN/m2

  • 0.20 m/s2
