LGS WAREHOUSE WITH PORTAL FRAME
Description

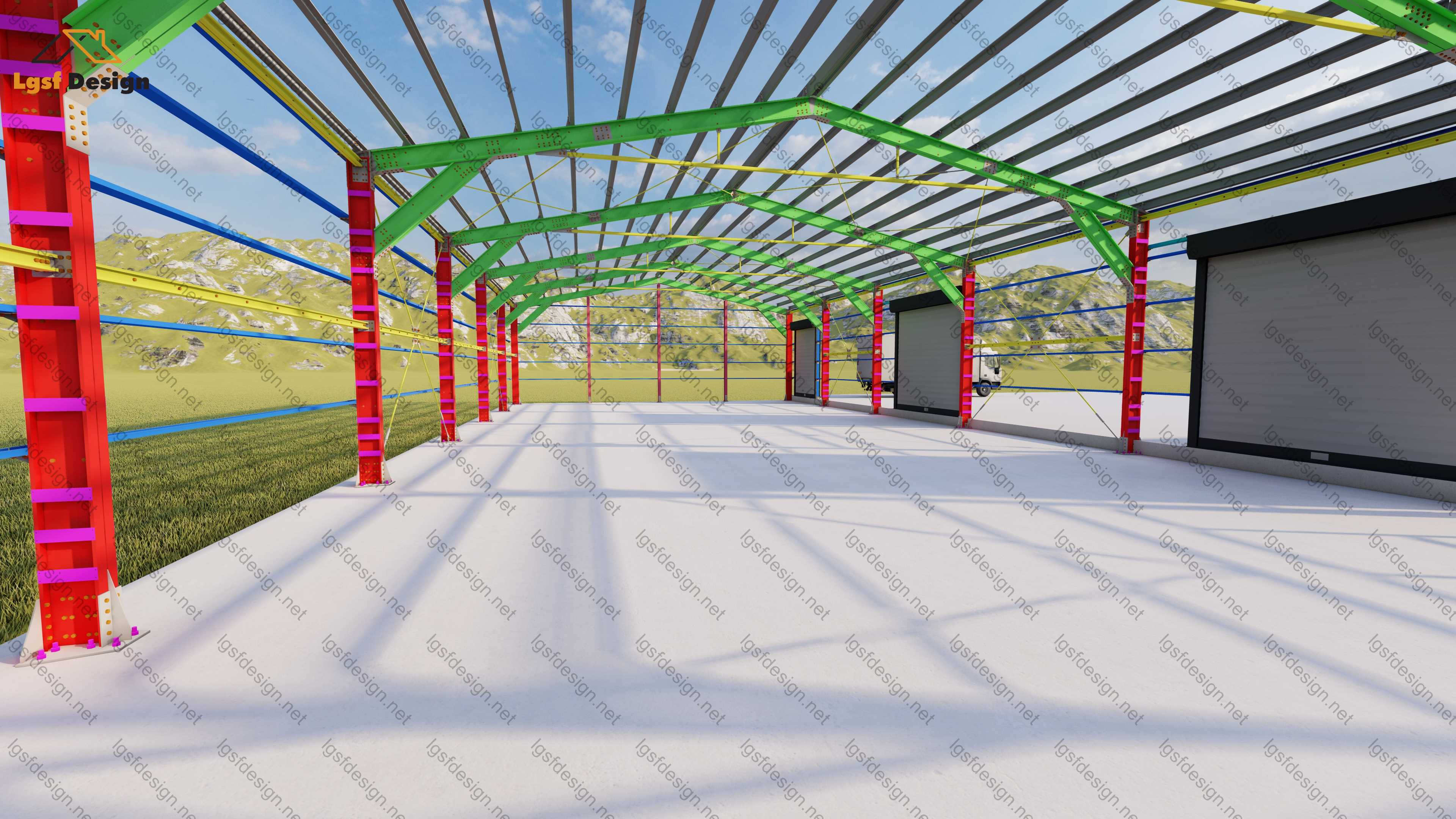

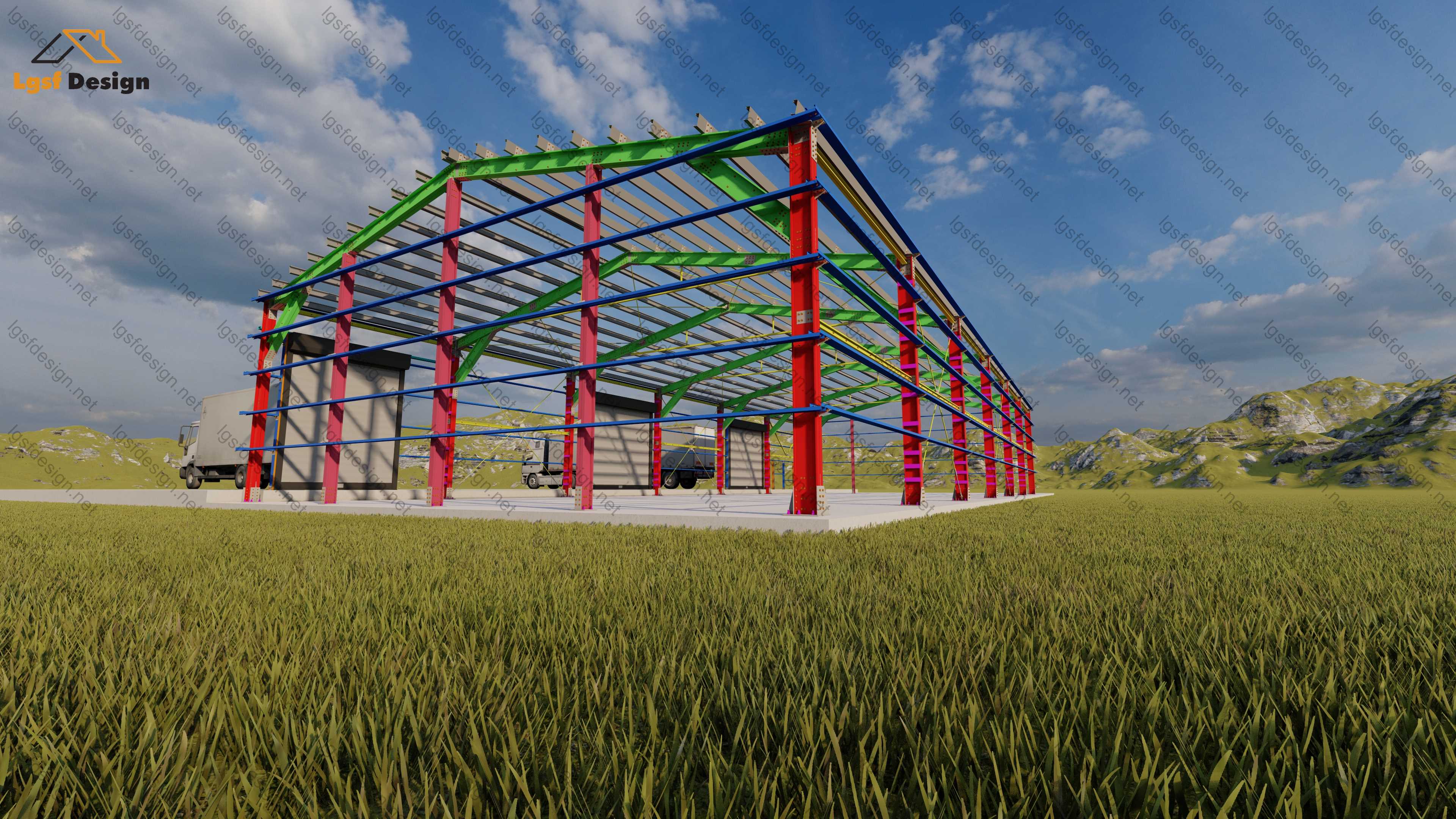

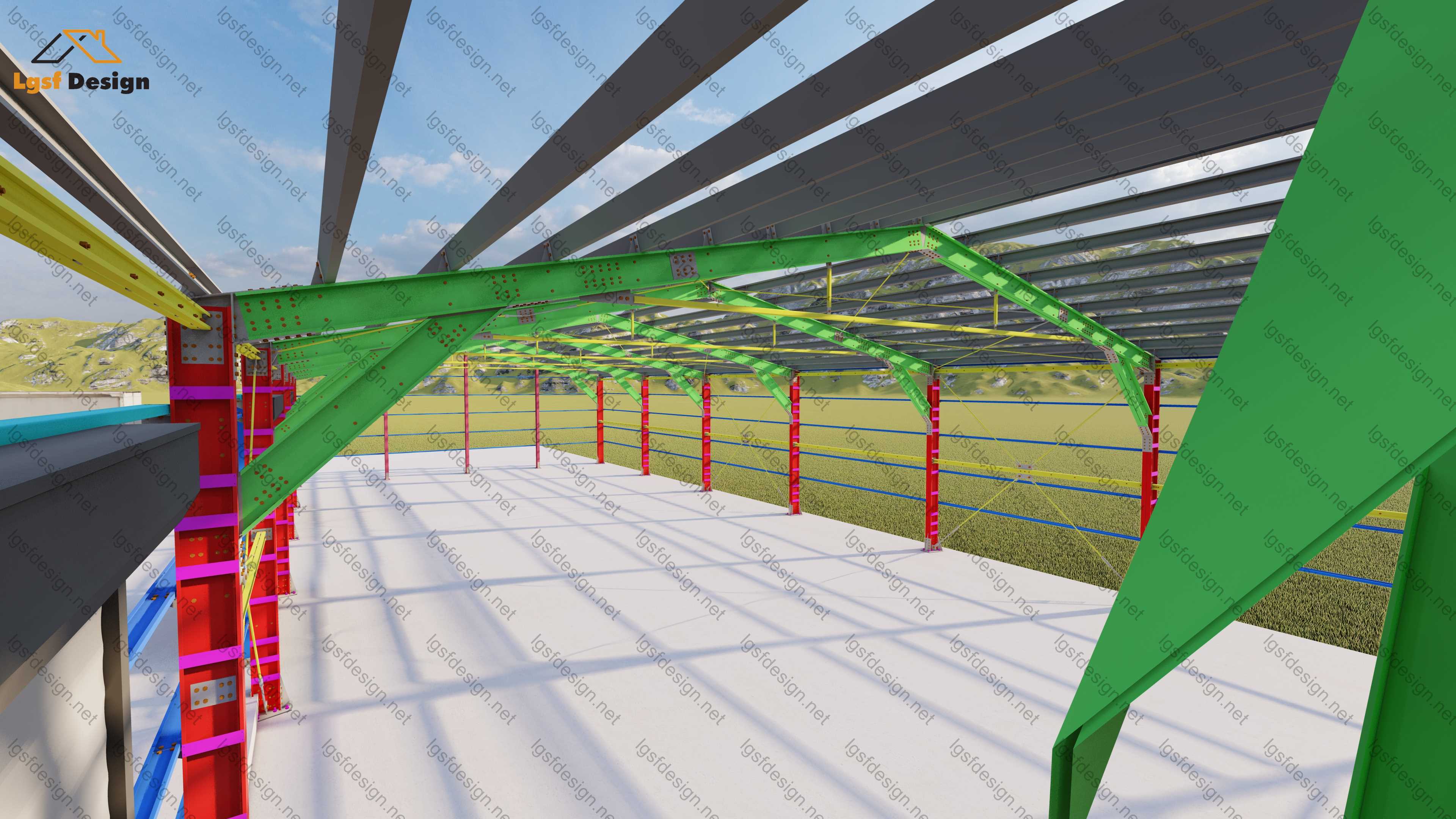

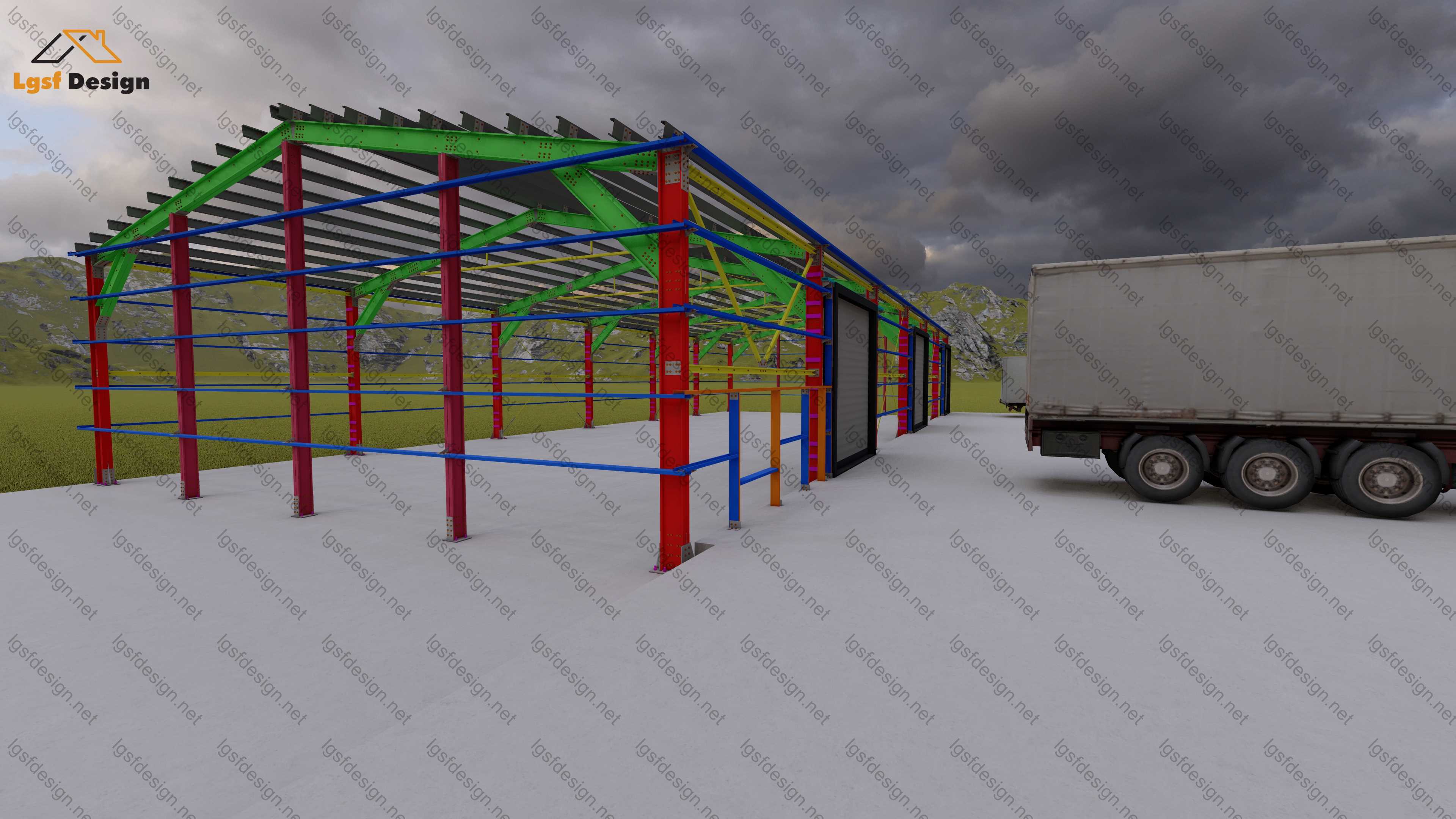

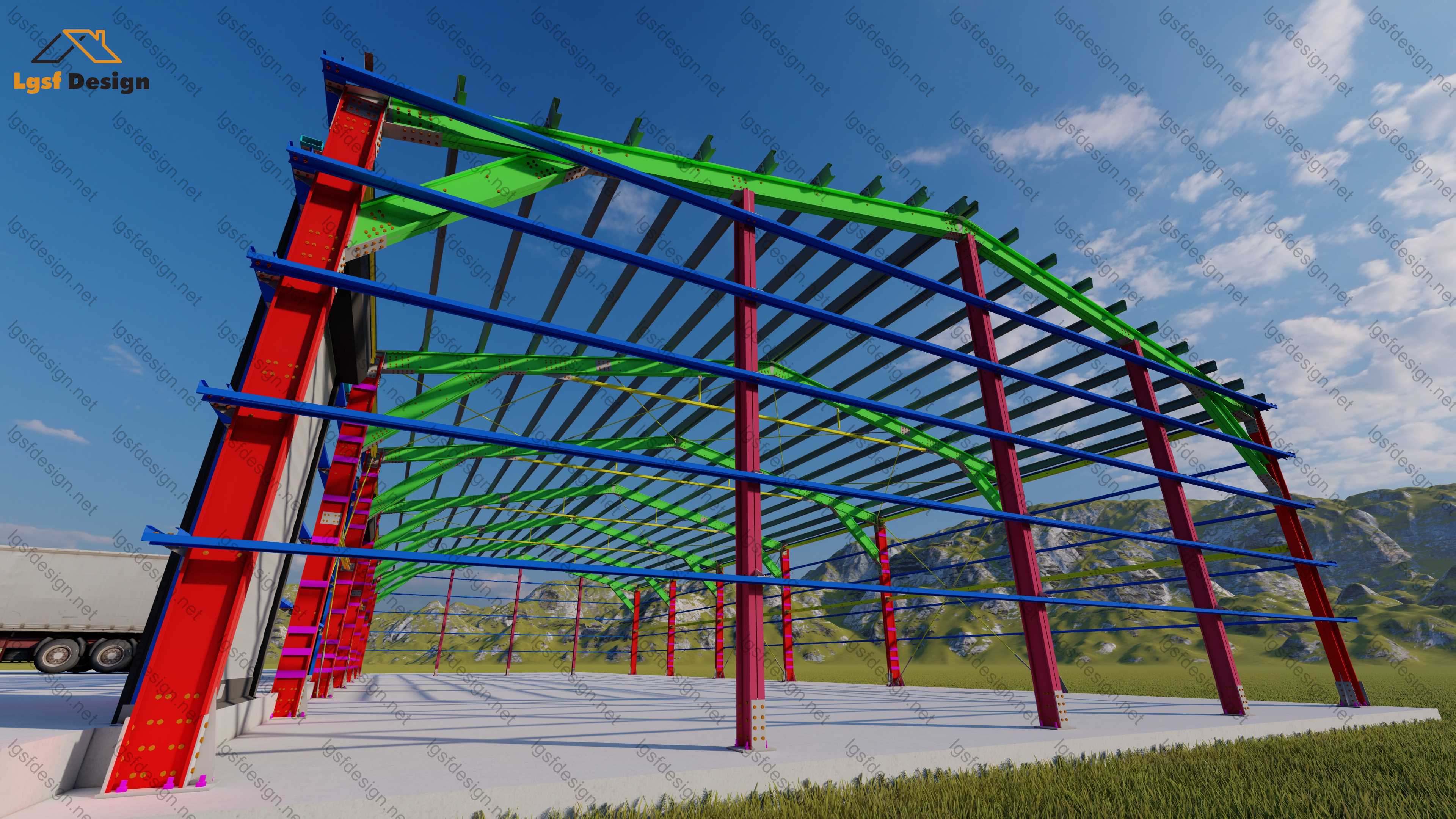

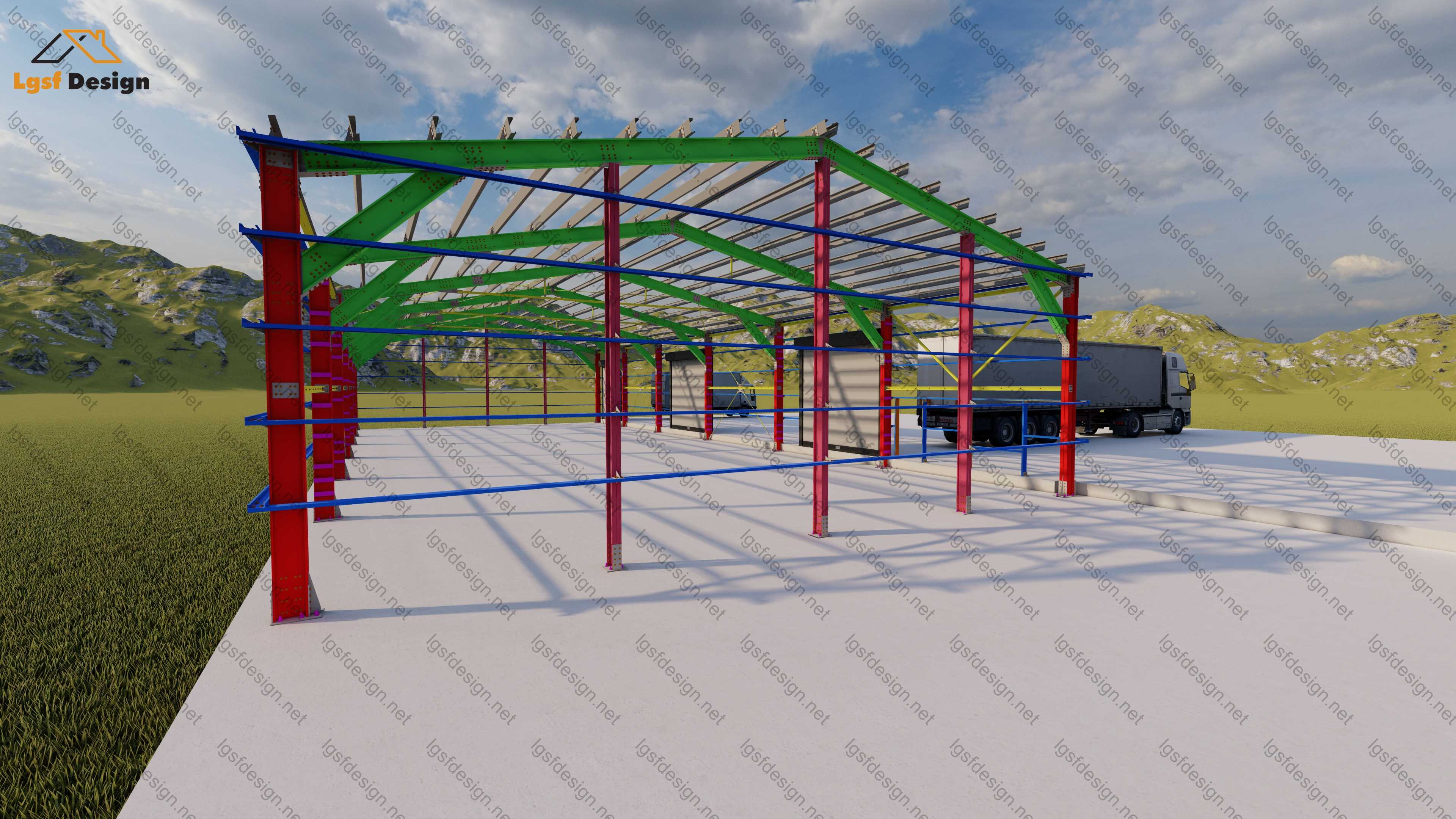

One of the most cost-effective and fastest ways to build a warehouse is to use the LSF system. The project you are looking at is a warehouse measuring 15 x 30 meters, which was produced, installed, and completed in two weeks.
Project Spec: Span:15m
Length:32m
Eave Height:4.5m
Apex Height:6 m
Snow Load :2.5KN/m2
wind speed :30 m/s
Steel Section:100S41-143S41 -180S41-220S41-300S41
Key Specs
Title :
Location :
Area :
LGS WAREHOUSE WITH PORTAL FRAME
Romania480 m2
Additional Details
Heavy Steel :
Time to Design :
No
1 Week
Load Conditions
Designing Code :
Characteristic Value of Snow Load :
Fundamental Basic Wind Velocity :
Basic Velocity Pressure :
Reference Value of Peak Ground Acceleration :
IBC 2021
0.00 kN/m2
40.00 m/s
1.00 kN/m2
0.00 m/s2
