JAM2016

Previous in Jamaica
Jam2016

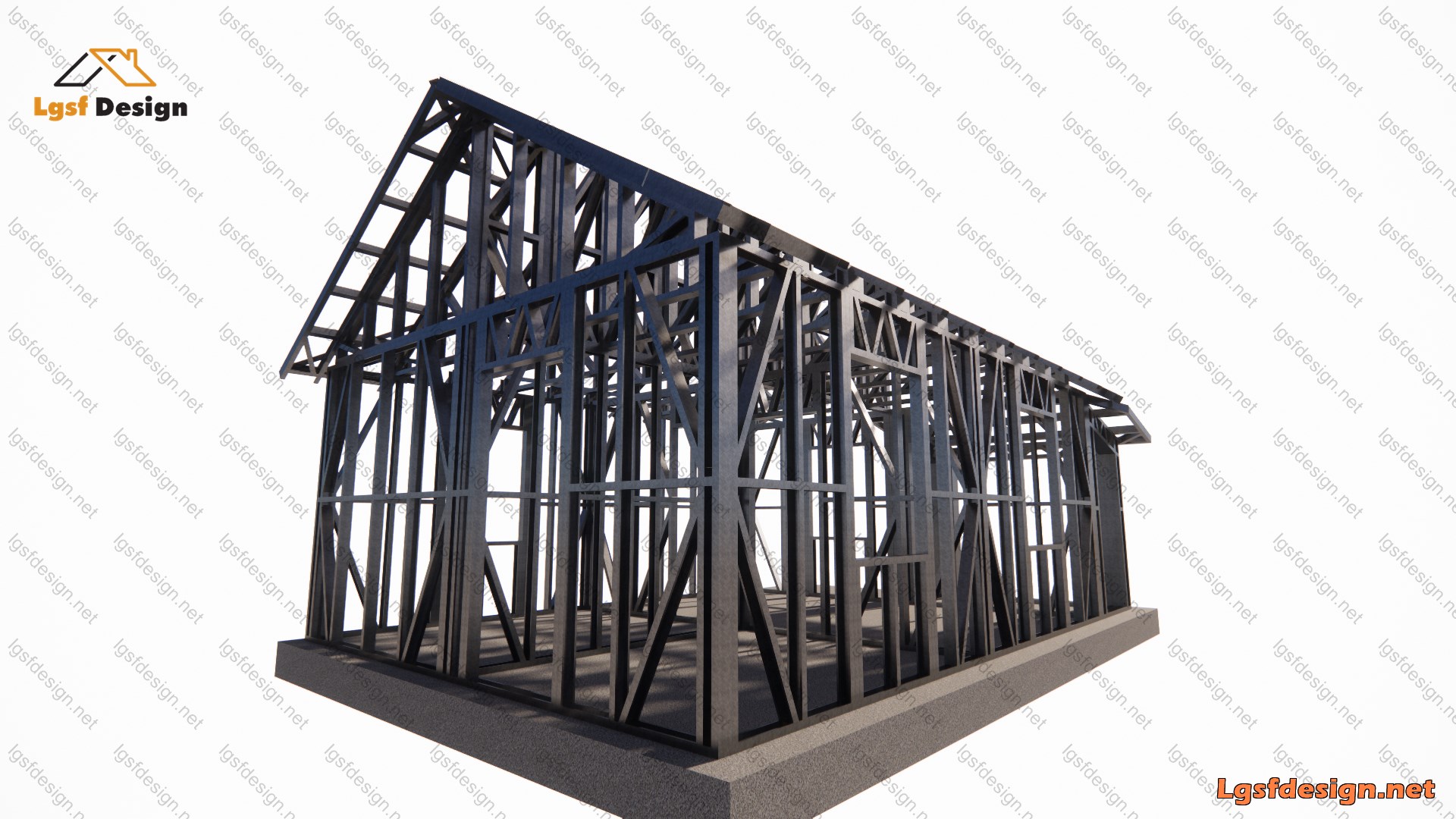

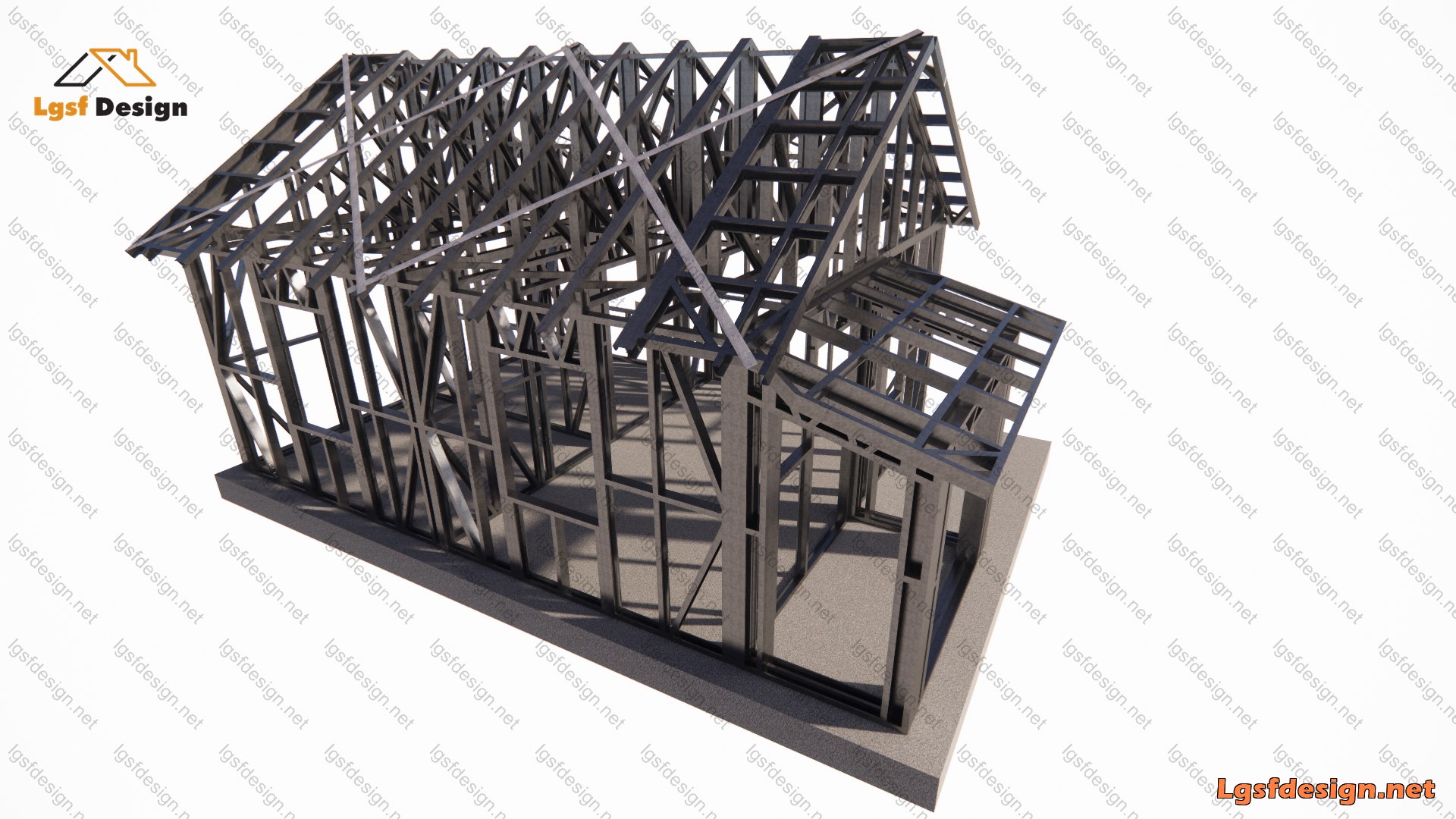

3D Structure Model

Click here to view the 3D model online or download .wrl or .ifc file
EXPLORE 3D STRUCTURE VISUALIZATION

Description

A compact 30 m² emergency house designed for fast, practical accommodation. Ideal for worker housing and rapid-deployment projects. This unit was recently designed for a project in Jamaica.



Key Specs

  • Title :

  • Location :

  • Area :

  • Bedroom :

  • Bathroom :

  • JAM2016

  • Jamaica

  • 30 m2

  • 2

  • 1

Additional Details

  • Heavy Steel :

  • Roll Former Machine :

  • Longest Member :

  • Time to Design :

  • No

  • Framecad

  • 5.00 m

  • 1 Day

Load Conditions

  • Designing Code :

  • Characteristic Value of Snow Load :

  • Fundamental Basic Wind Velocity :

  • Basic Velocity Pressure :

  • Reference Value of Peak Ground Acceleration :

  • IBC 2021

  • 0.00 kN/m2

  • 55.00 m/s

  • 1.20 kN/m2

  • 0.20 m/s2

Leave a message if you have similar project and need to design.
