CHITILA

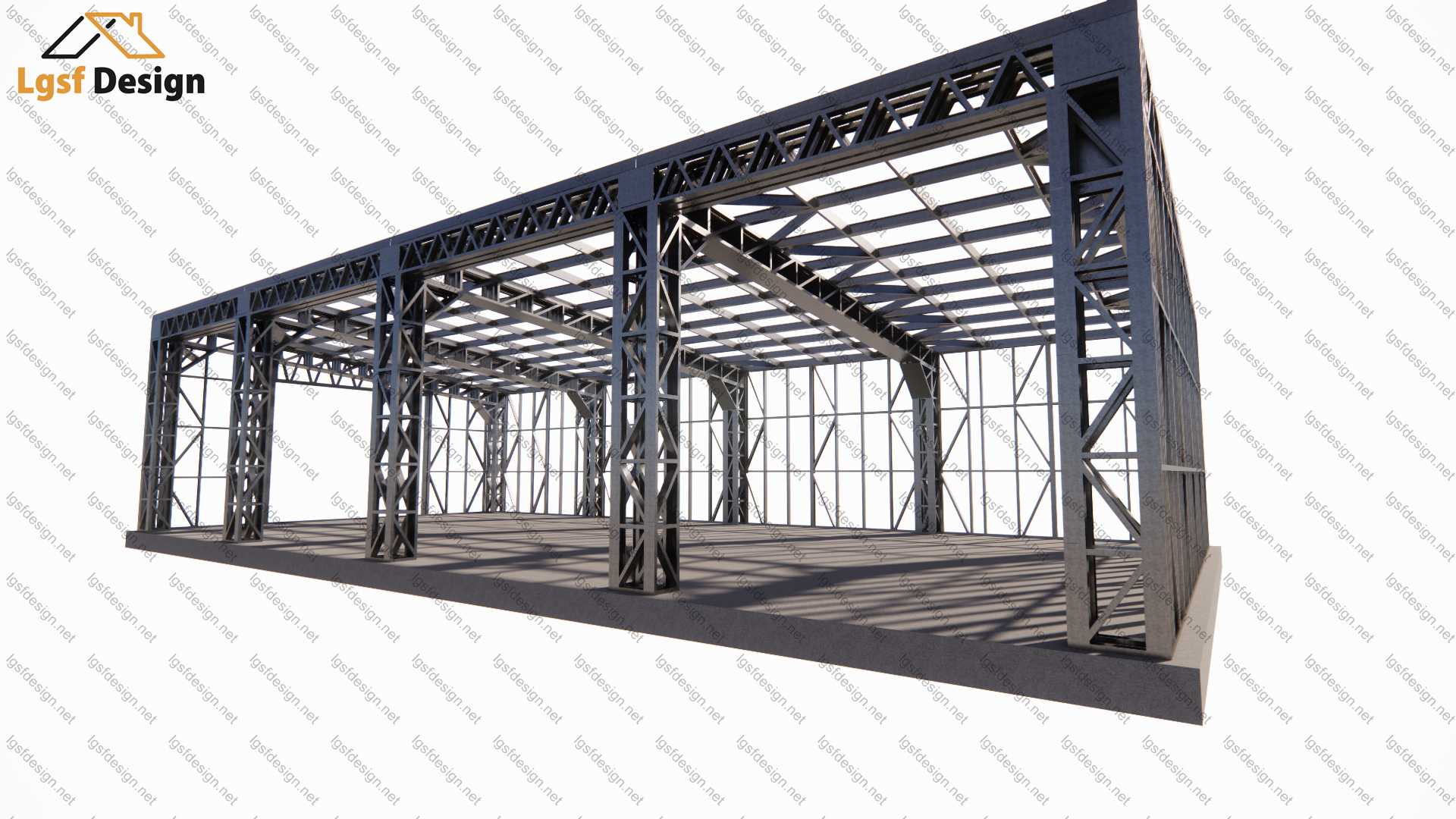

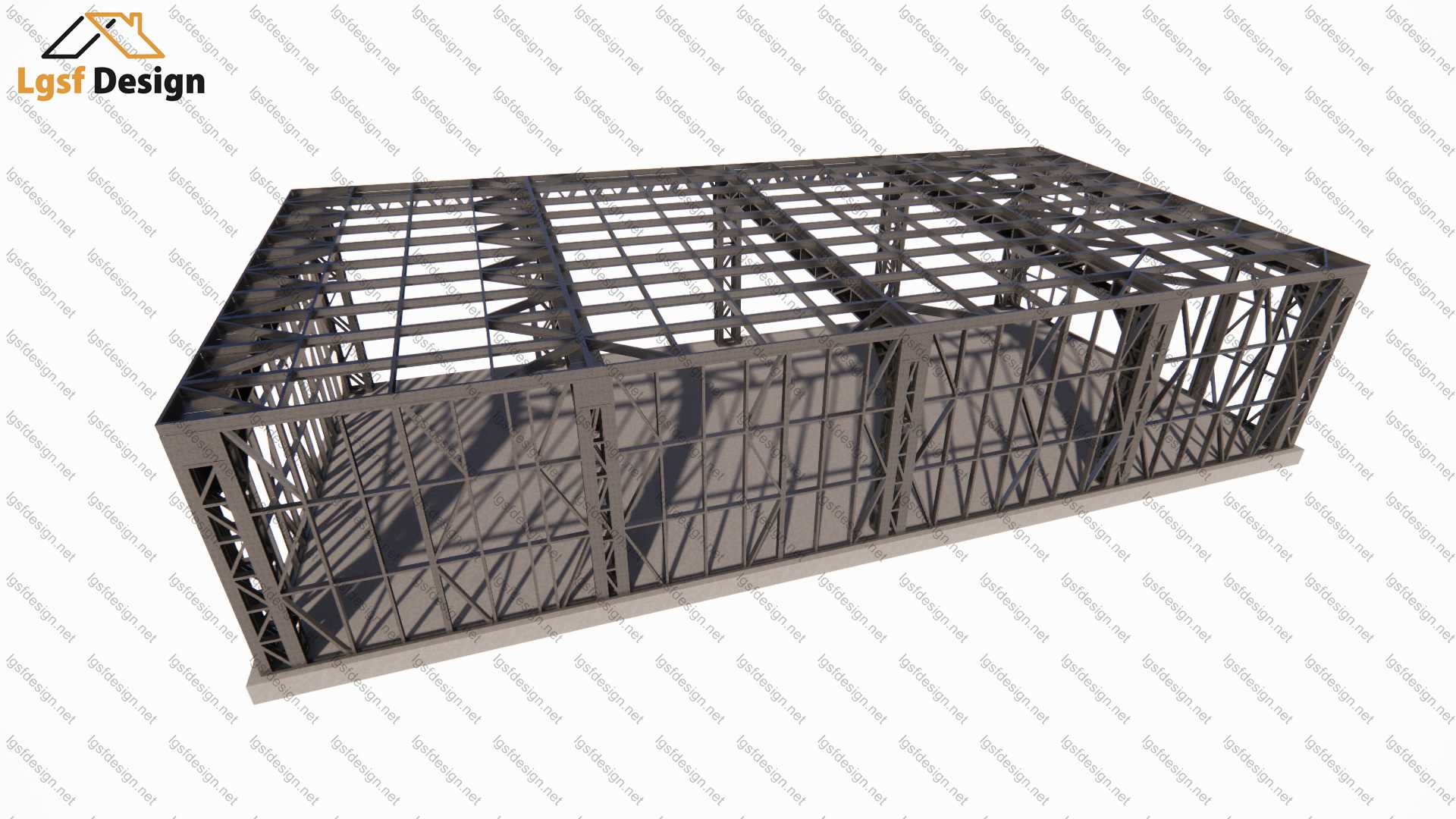

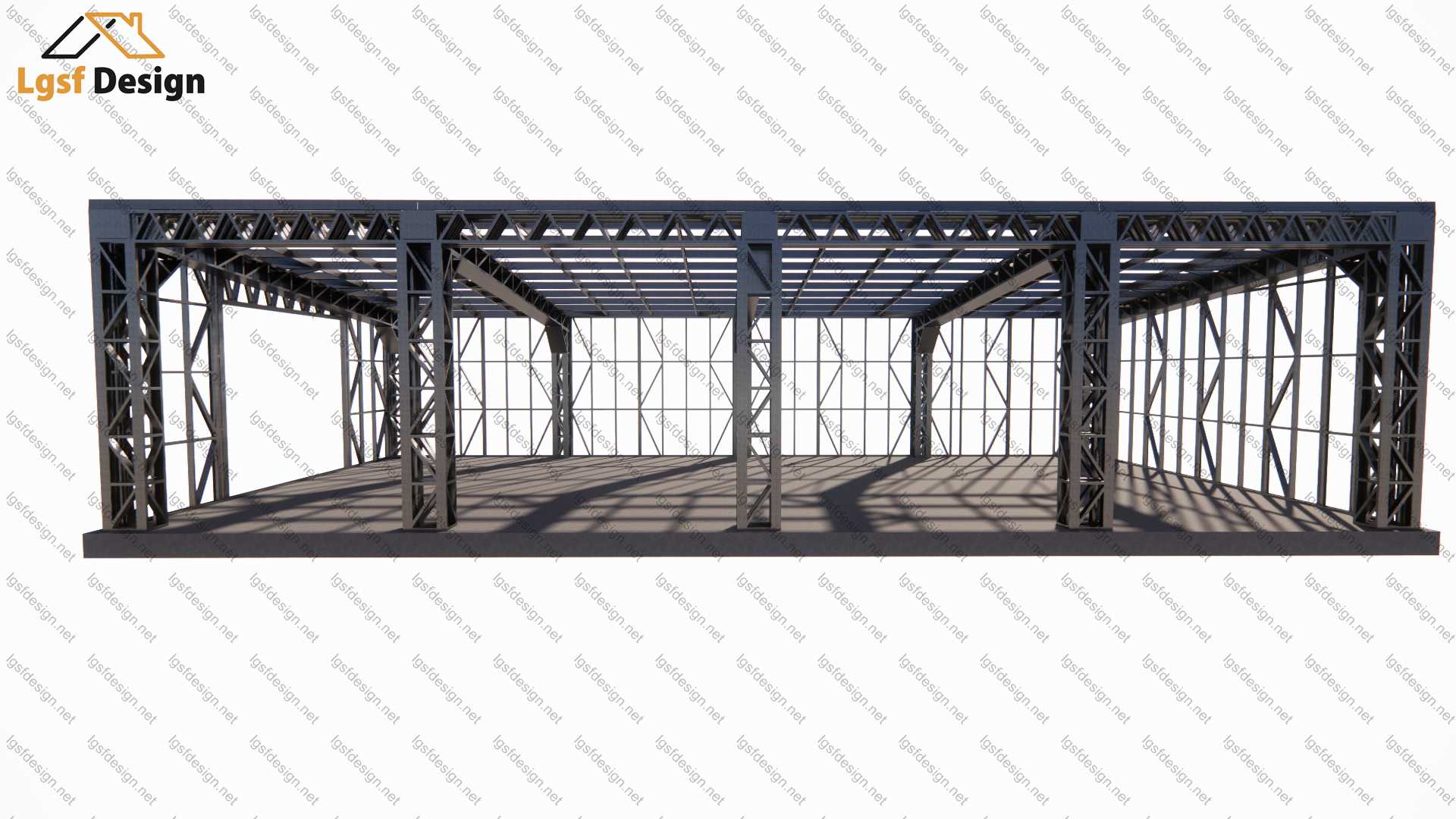

3D Structure Model
Description

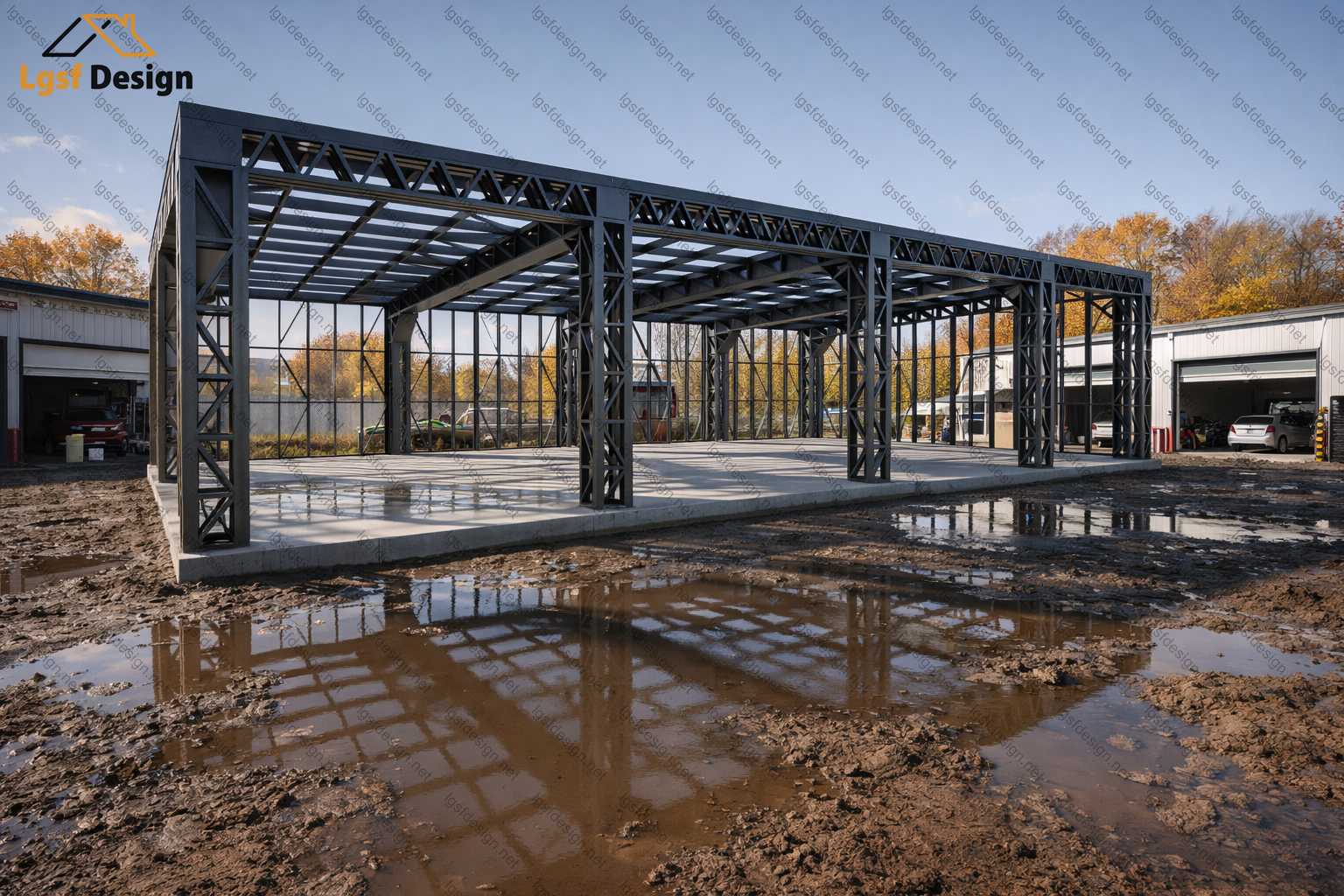

Modern steel-frame car wash structure designed for efficiency and durability. With dimensions of 19 × 9 m, this open-span layout allows smooth vehicle flow and easy equipment installation. Built on a solid concrete slab, it offers long-term performance with minimal maintenance—an ideal solution for modern automotive service environments.
Key Specs
Title :
Location :
Area :
CHITILA
Romania171 m2
Additional Details
Heavy Steel :
Roll Former Machine :
Longest Member :
Time to Design :
No
Dahezb
9.00 m
1 Day
Load Conditions
Designing Code :
Characteristic Value of Snow Load :
Fundamental Basic Wind Velocity :
Basic Velocity Pressure :
Reference Value of Peak Ground Acceleration :
IBC 2021
1.00 kN/m2
25.00 m/s
0.40 kN/m2
0.20 m/s2
