3D Structure Model
Description

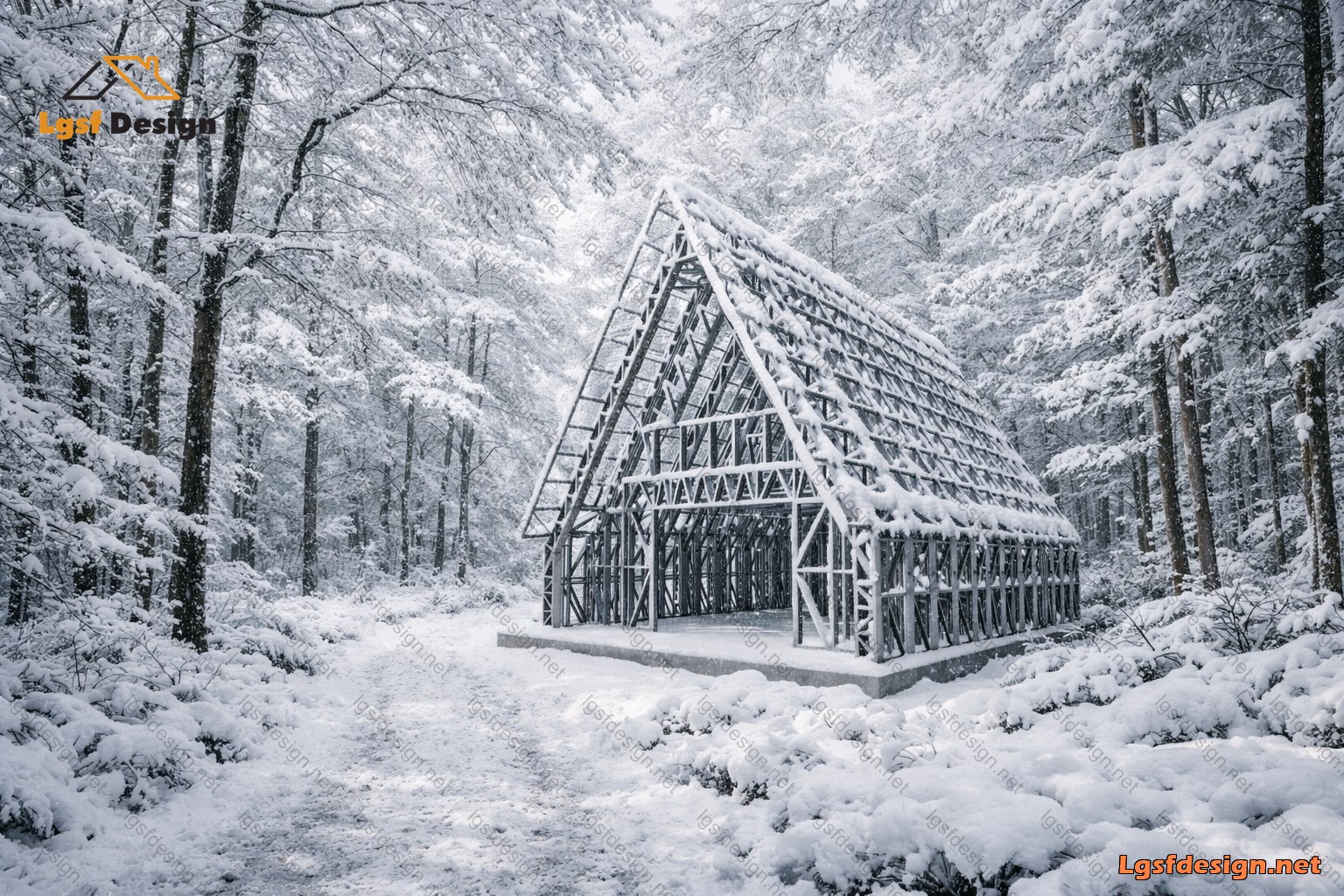

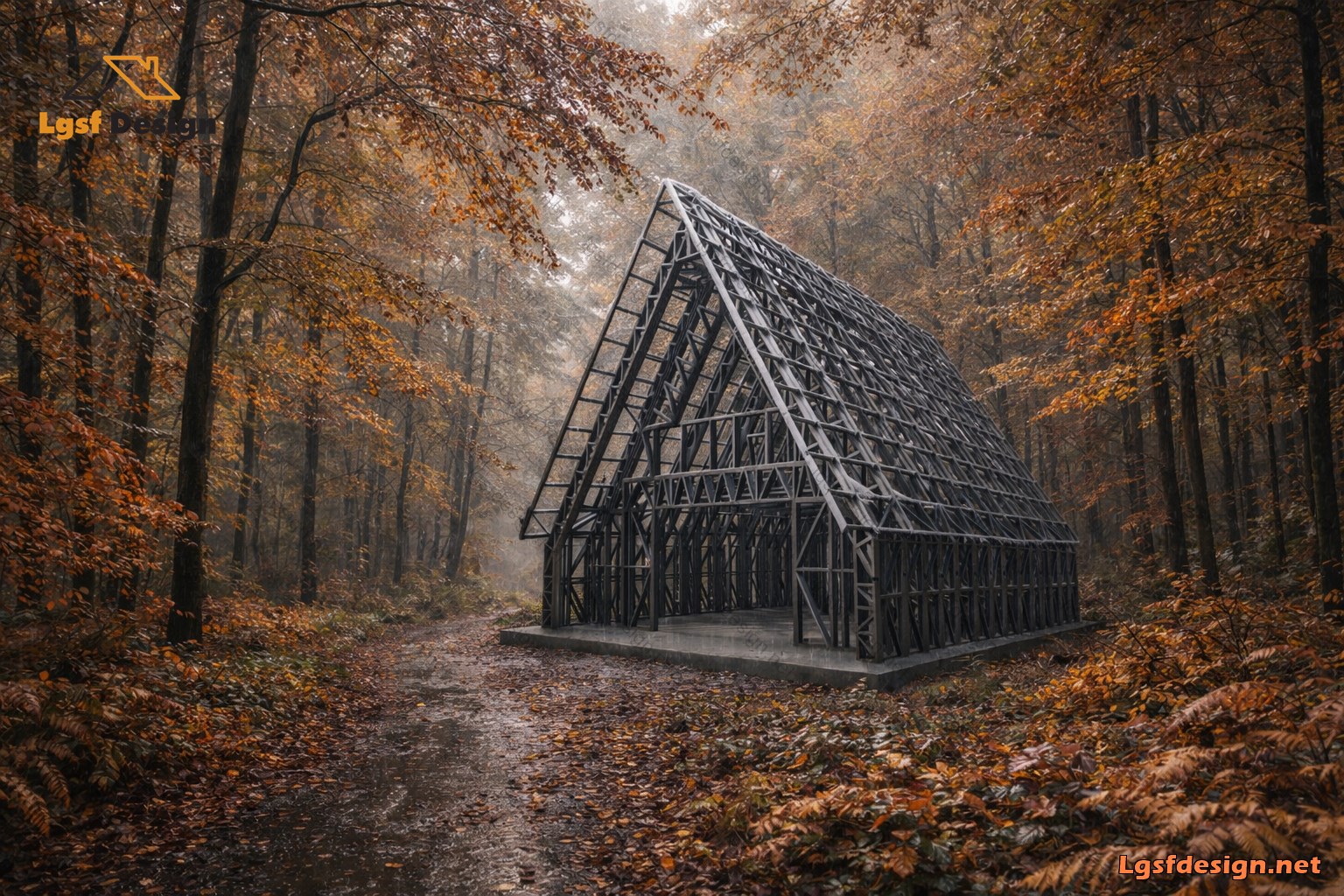

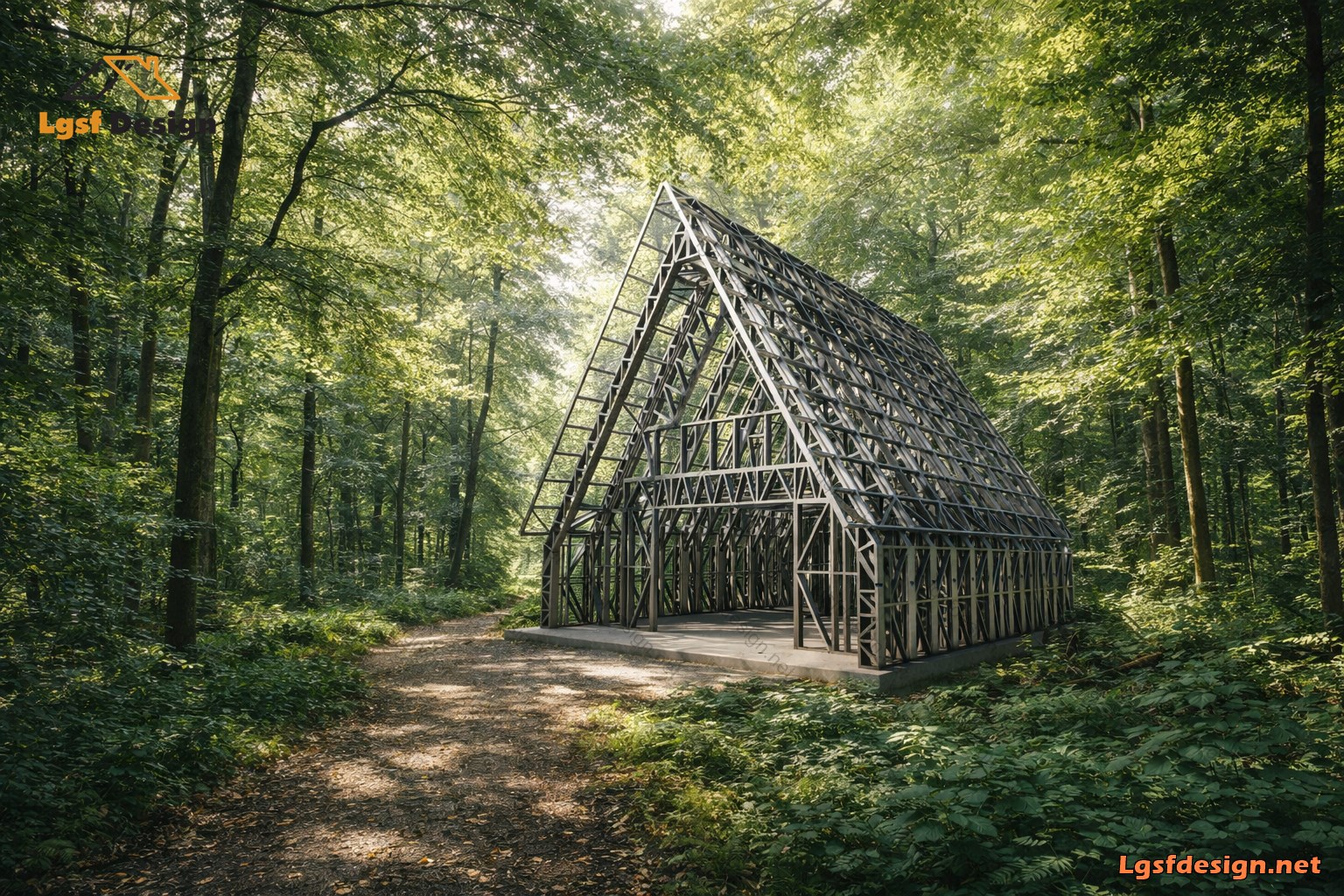

This A-frame structure is a compact yet expressive two-storey building with a total floor area of 86 m². Its steeply pitched roof defines the iconic triangular form, creating a strong architectural identity while efficiently enclosing the interior spaces. The geometry is not decorative theater; it is structural logic doing honest work.
Inside, the layout is organized across two levels and accommodates four bedrooms, making the building surprisingly generous for its footprint. The vertical volume of the A-frame allows the upper floor to feel open and airy despite the modest area, with the sloping roof shaping the spaces rather than constraining them. A single bathroom is positioned for efficient access from all bedrooms, emphasizing practicality and compact living.
The structure balances simplicity and functionality. Every square meter is used deliberately, avoiding wasted circulation while maintaining comfort. The result is a small-scale building that feels larger than its numbers suggest, combining structural clarity, efficient planning, and the timeless character of the A-frame form.
Key Specs
Title :
Location :
Area :
Bedroom :
Bathroom :
AF86
Bosnia and Herzegovina86 m2
4
1
Additional Details
Heavy Steel :
Roll Former Machine :
Longest Member :
Time to Design :
No
Dahezb
8.00 m
2 Days
Load Conditions
Designing Code :
Characteristic Value of Snow Load :
Fundamental Basic Wind Velocity :
Basic Velocity Pressure :
Reference Value of Peak Ground Acceleration :
IBC 2021
0.75 kN/m2
28.00 m/s
0.40 kN/m2
0.20 m/s2
