About this plan
- With its modern style and open floor plan, makes a perfect lake house or beach getaway.

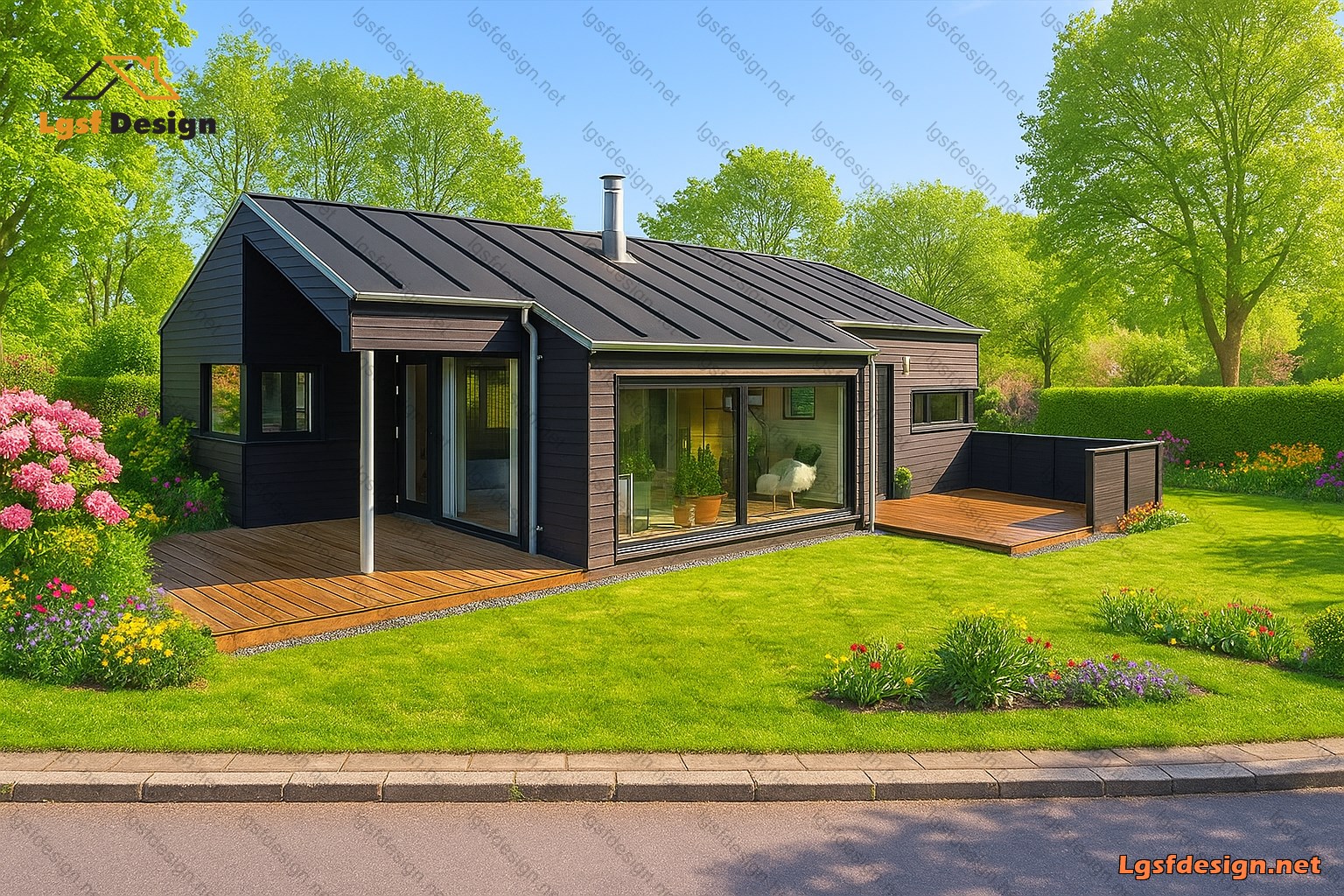

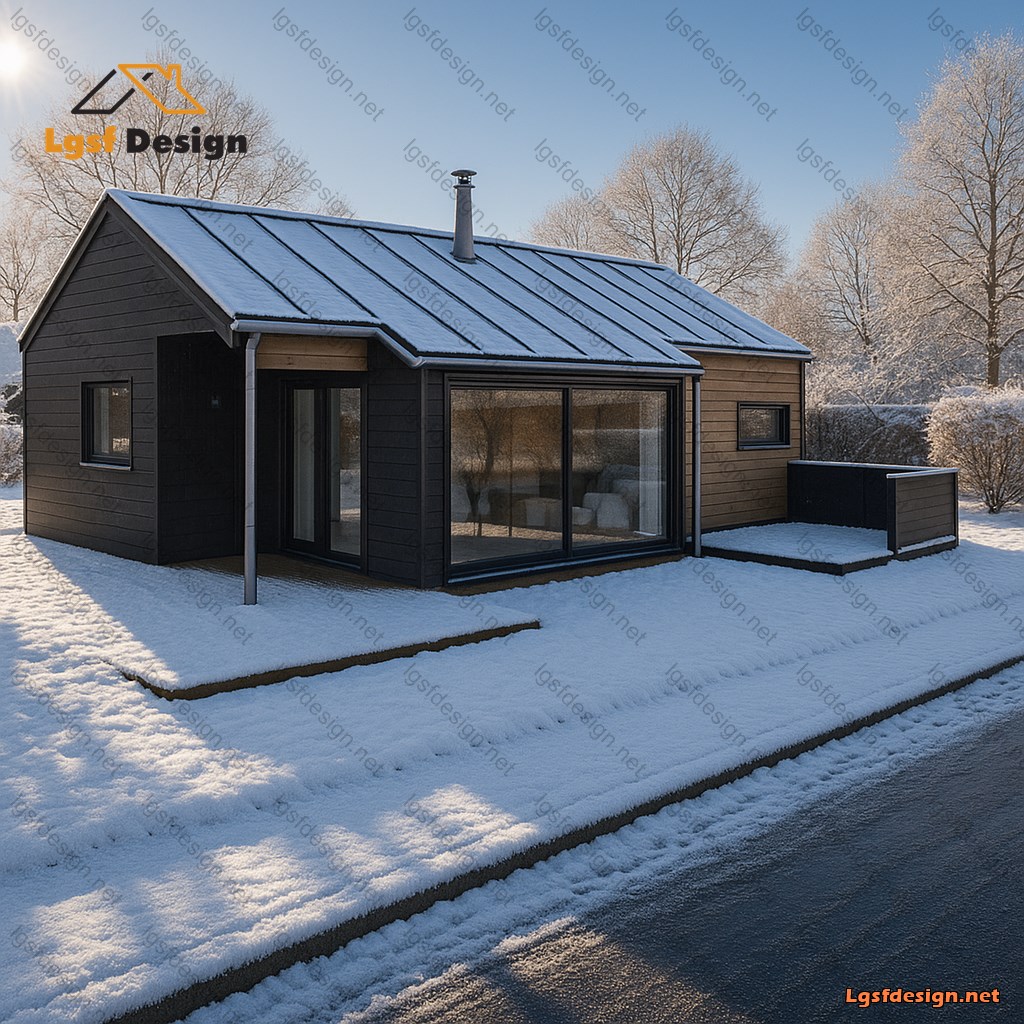

-The exterior is inviting with stone accents and numerous windows to provide plenty of natural light.
- Inside you'll find a large living room that opens up to a full kitchen.

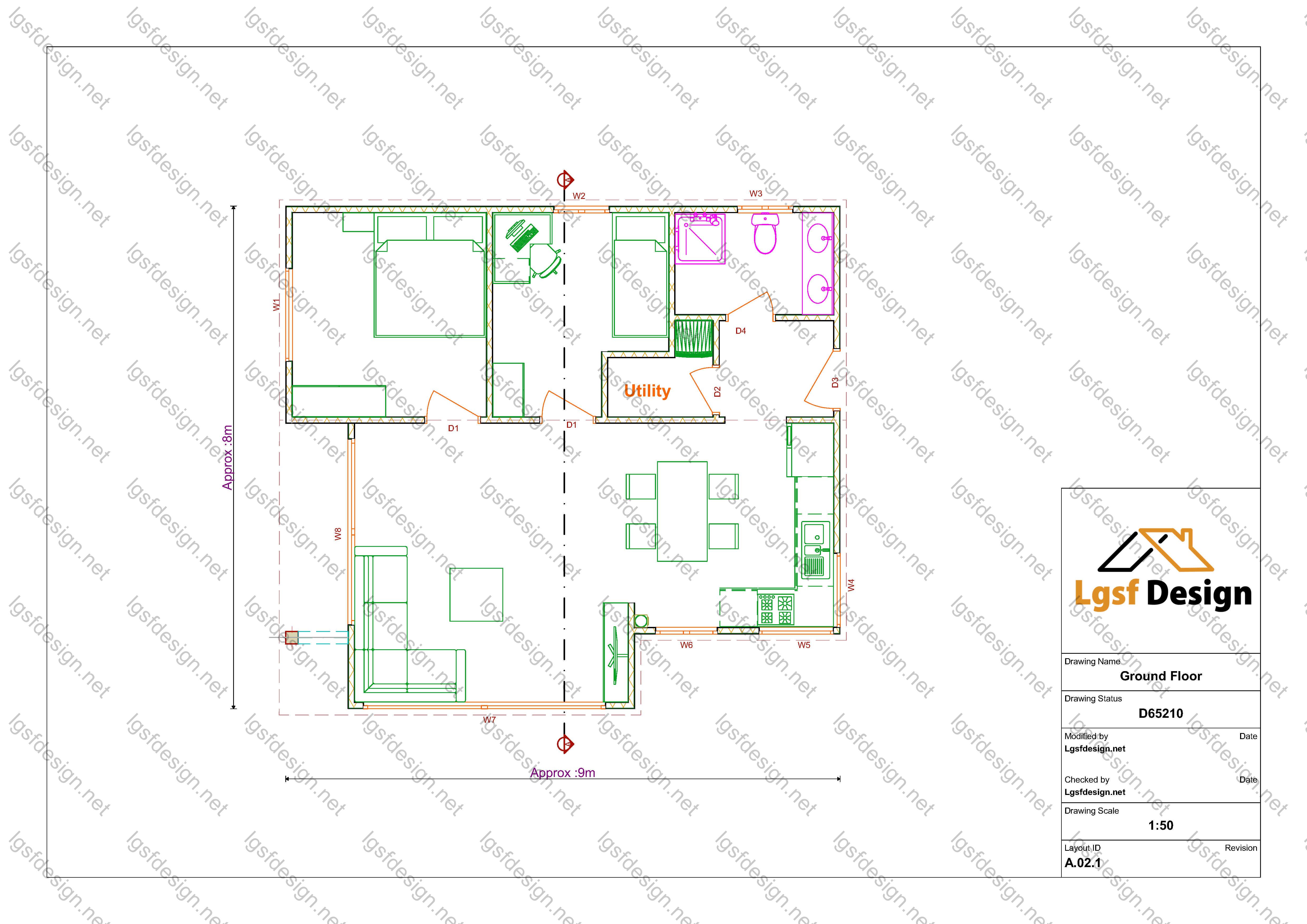

Floor plan
Package options
Start with the full manufacture-ready package, or request individual deliverables.
Best value
Full package
Complete drawings, calculations, CNC files, and BOQ for D65210.
$ 310
Order NowIndividual deliverables
- Foundation $70
- Architectural Drawings $80
- Complete BOQ $80
- Drawings, calculations & CNC files $80
Technical details
Structural, material, and design-load values for this package.

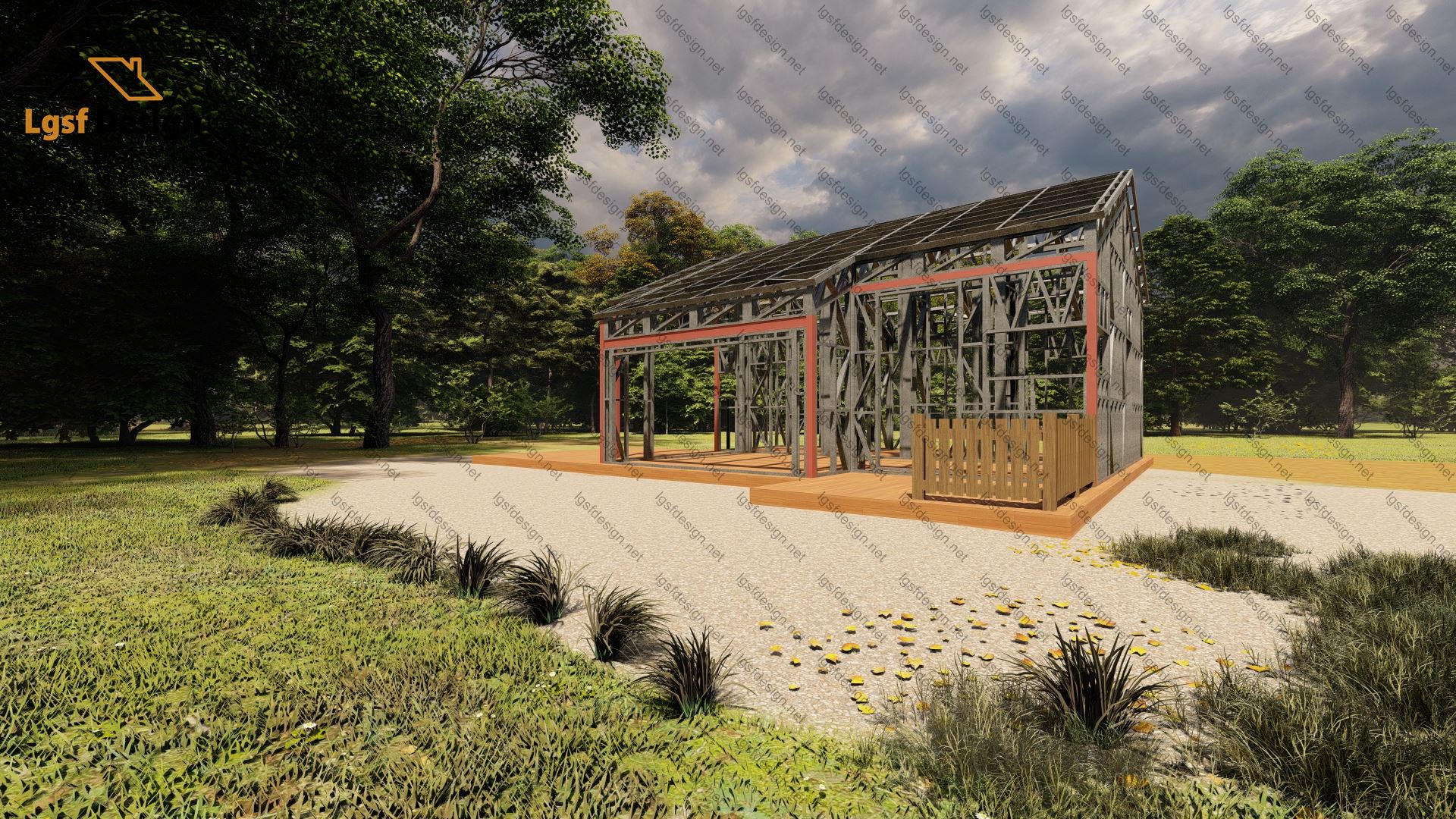

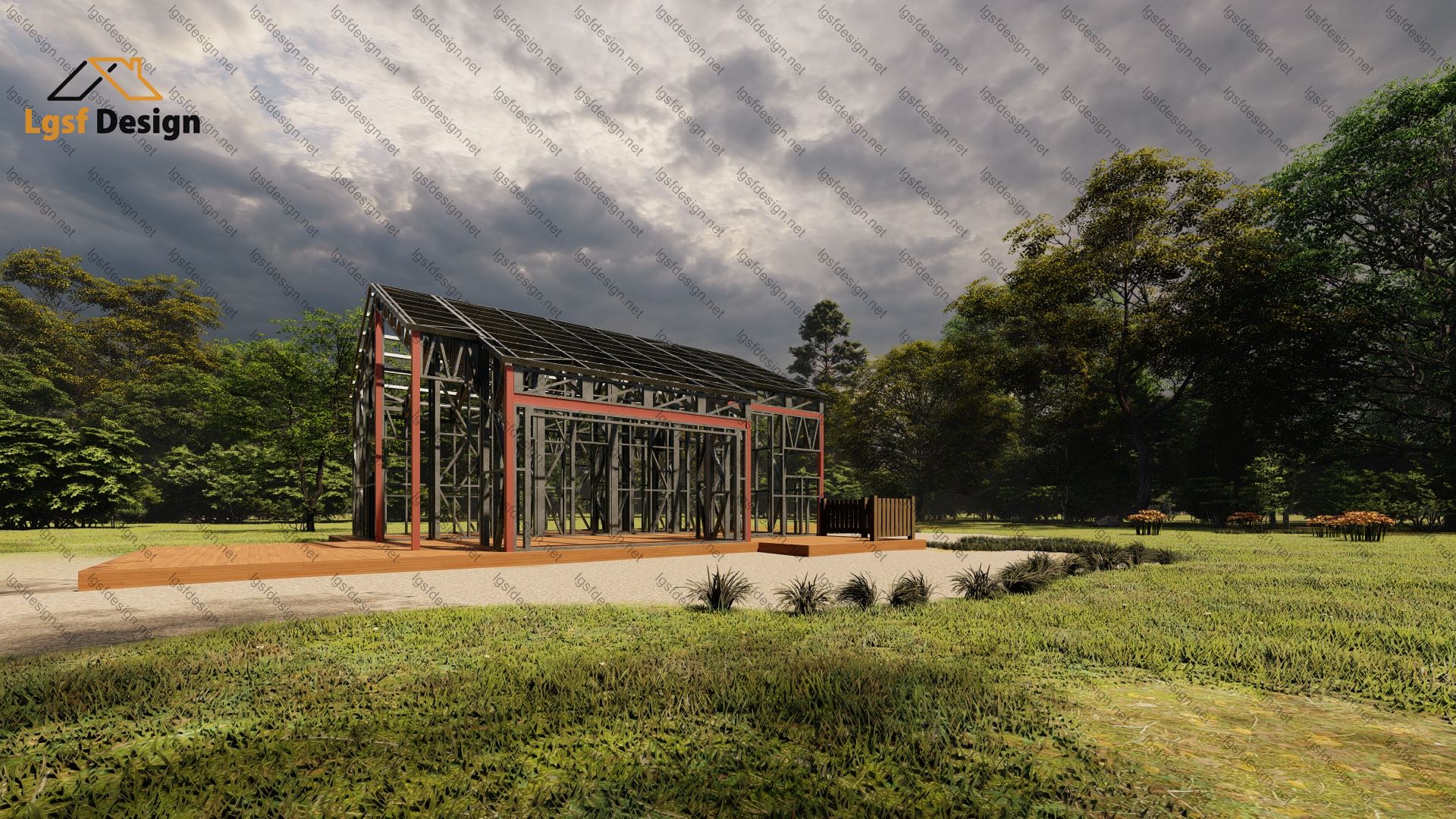

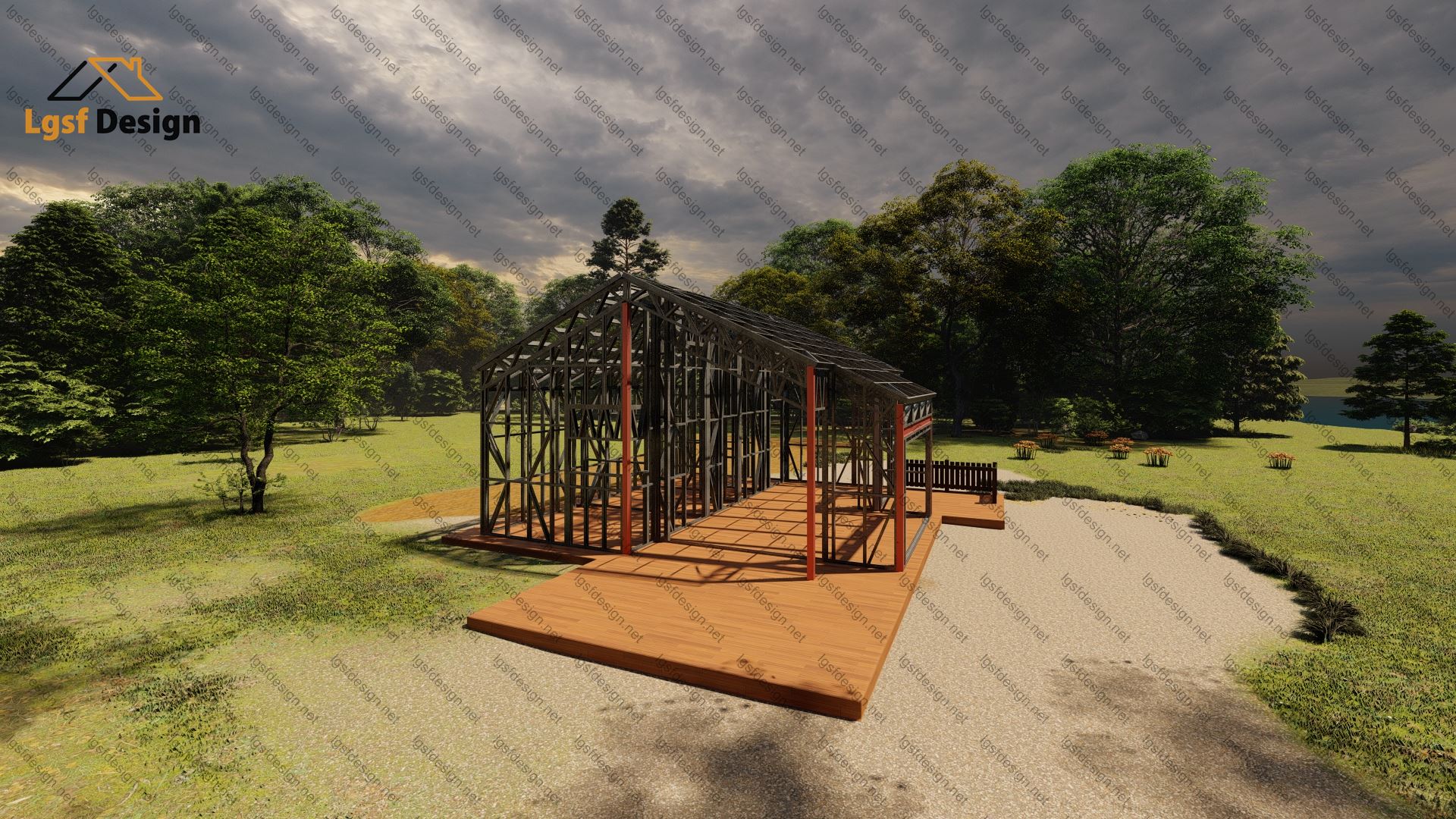

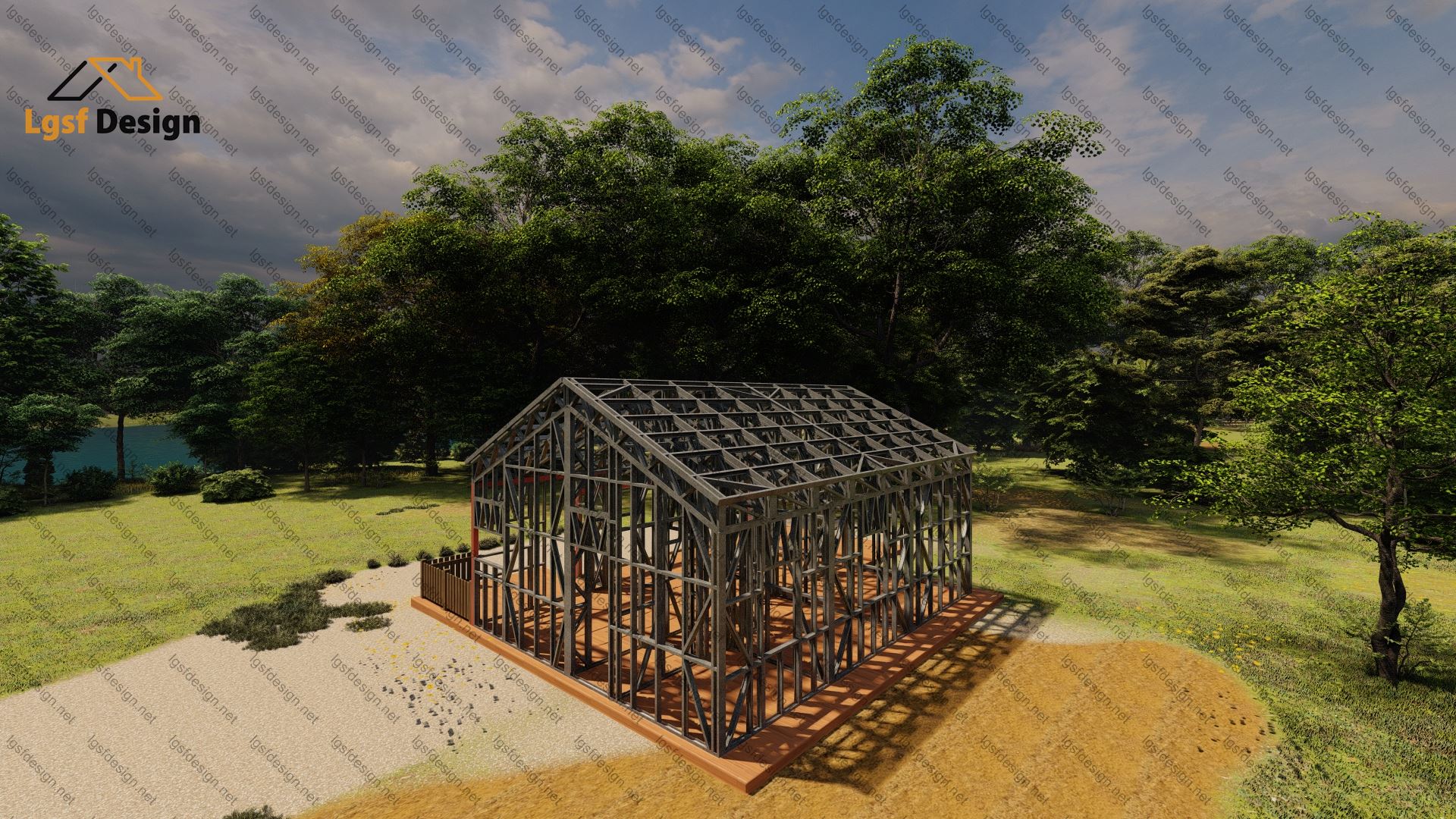

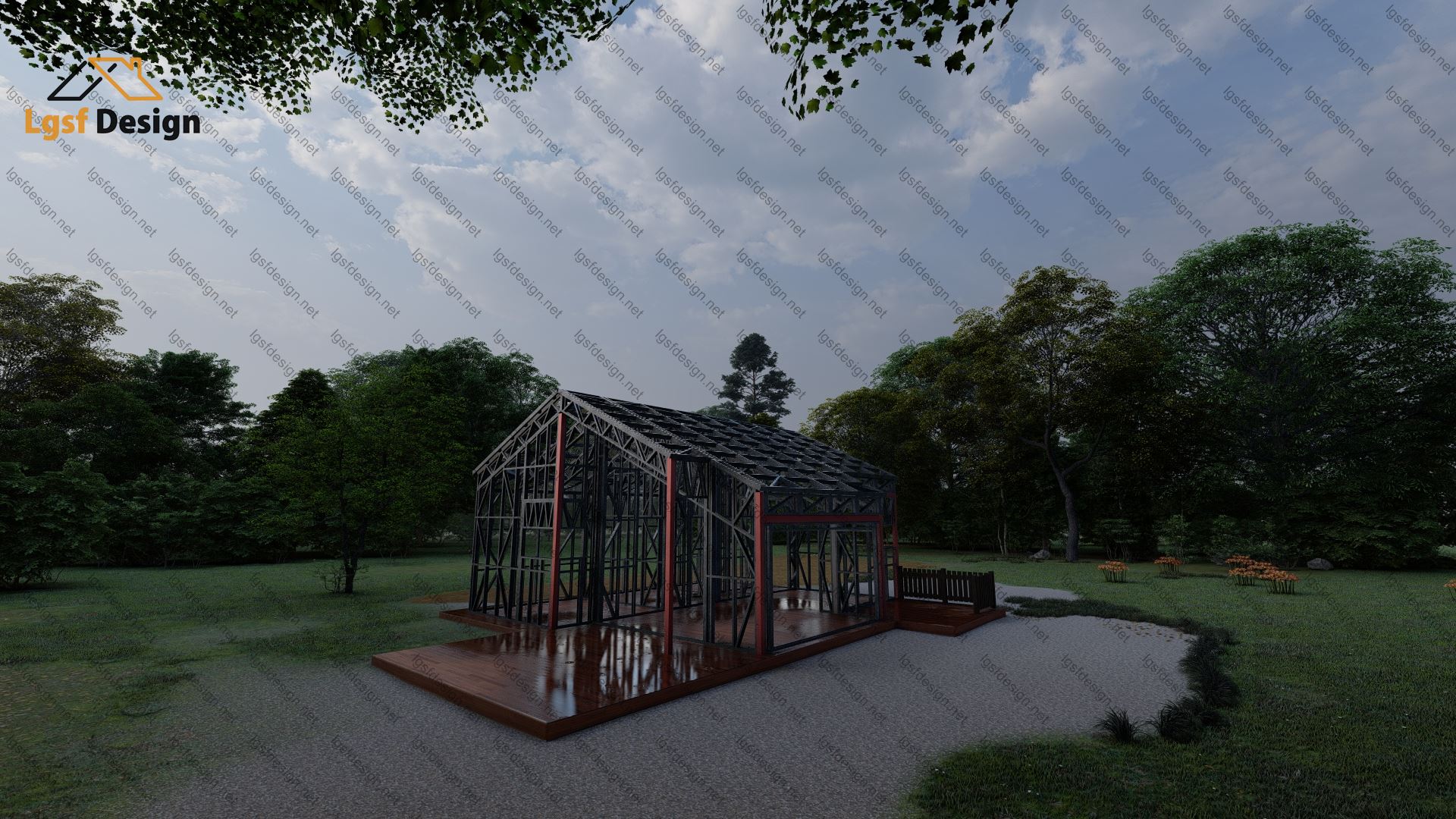

Structure
Weight
2364 kg
Materials
- Steel sections
-
- 89S41G350-0.75 mm
- 89S41G350-0.95 mm
Load conditions
Design code
IBC 2021
Snow load
0.5 kN/m²
Wind velocity
40 m/s
Wind pressure
1 kN/m²
Peak ground accel.
0.2 m/s²
