About this plan

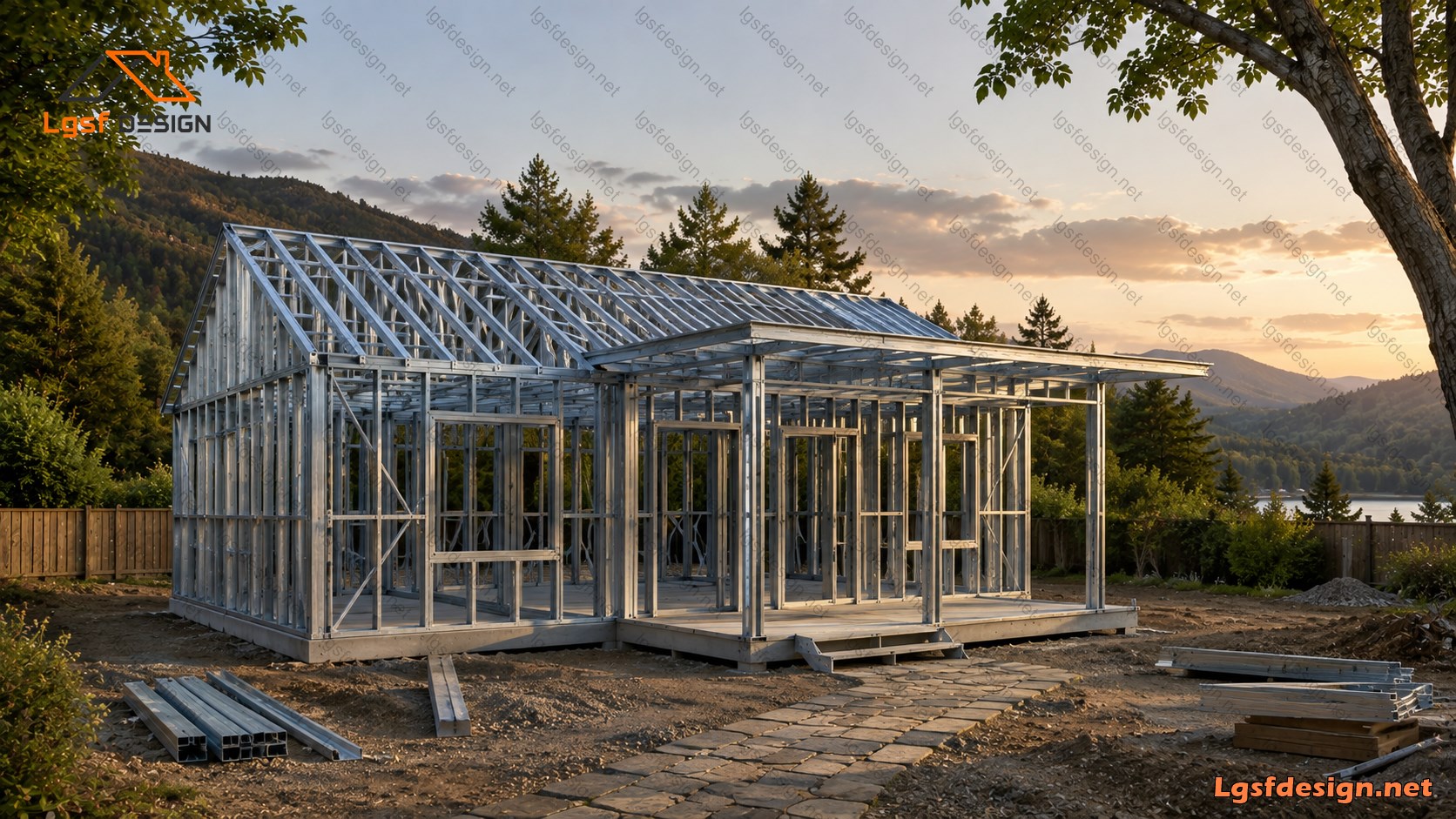

Architectural Plan Description This compact two-bedroom, one-bathroom home is designed with a practical and efficient layout within an overall footprint of approximately 36'-0" × 32'-0" . The plan features two bedrooms located on the left side of the house, with dedicated closets and convenient access to the central bathroom.

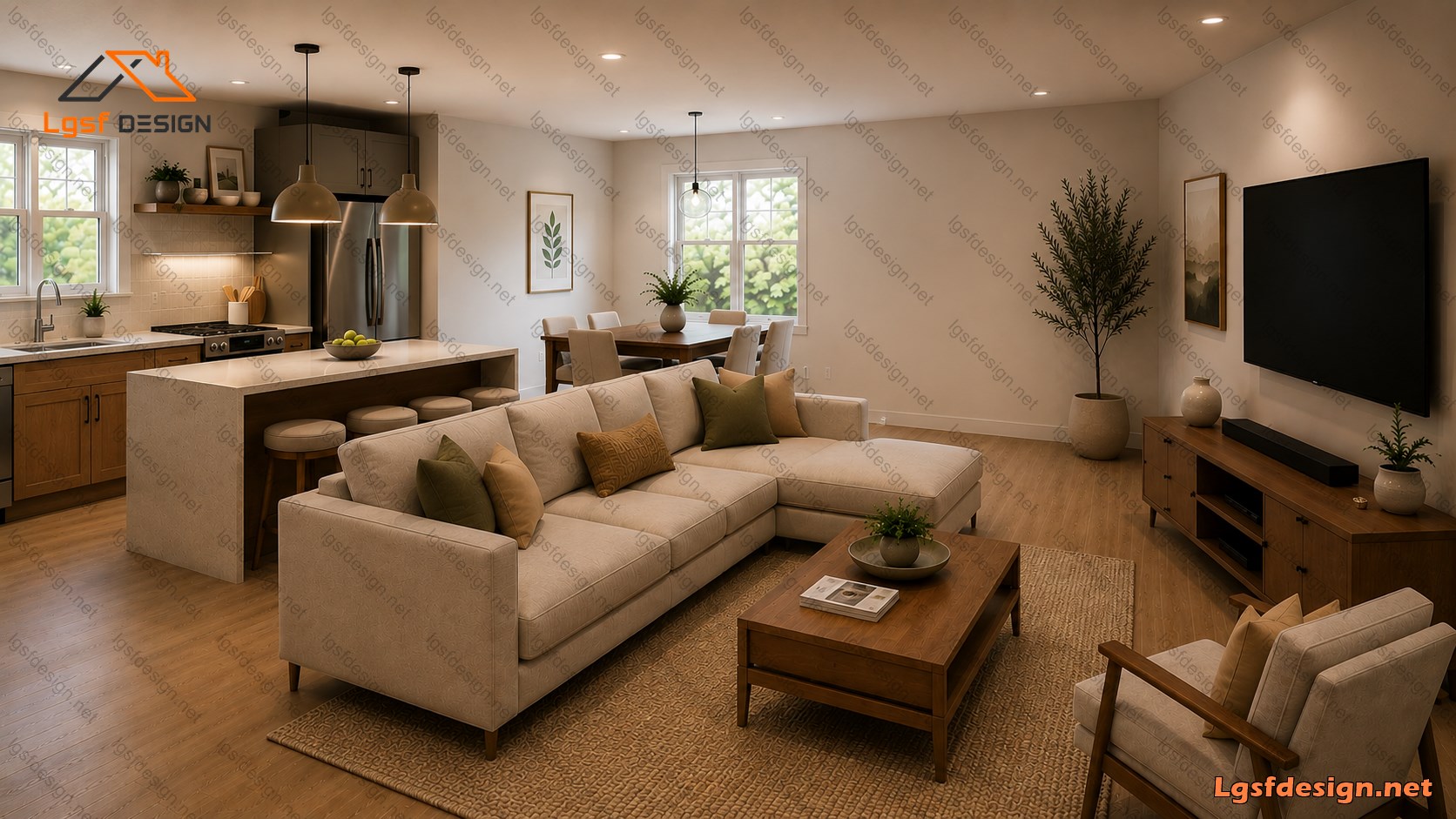

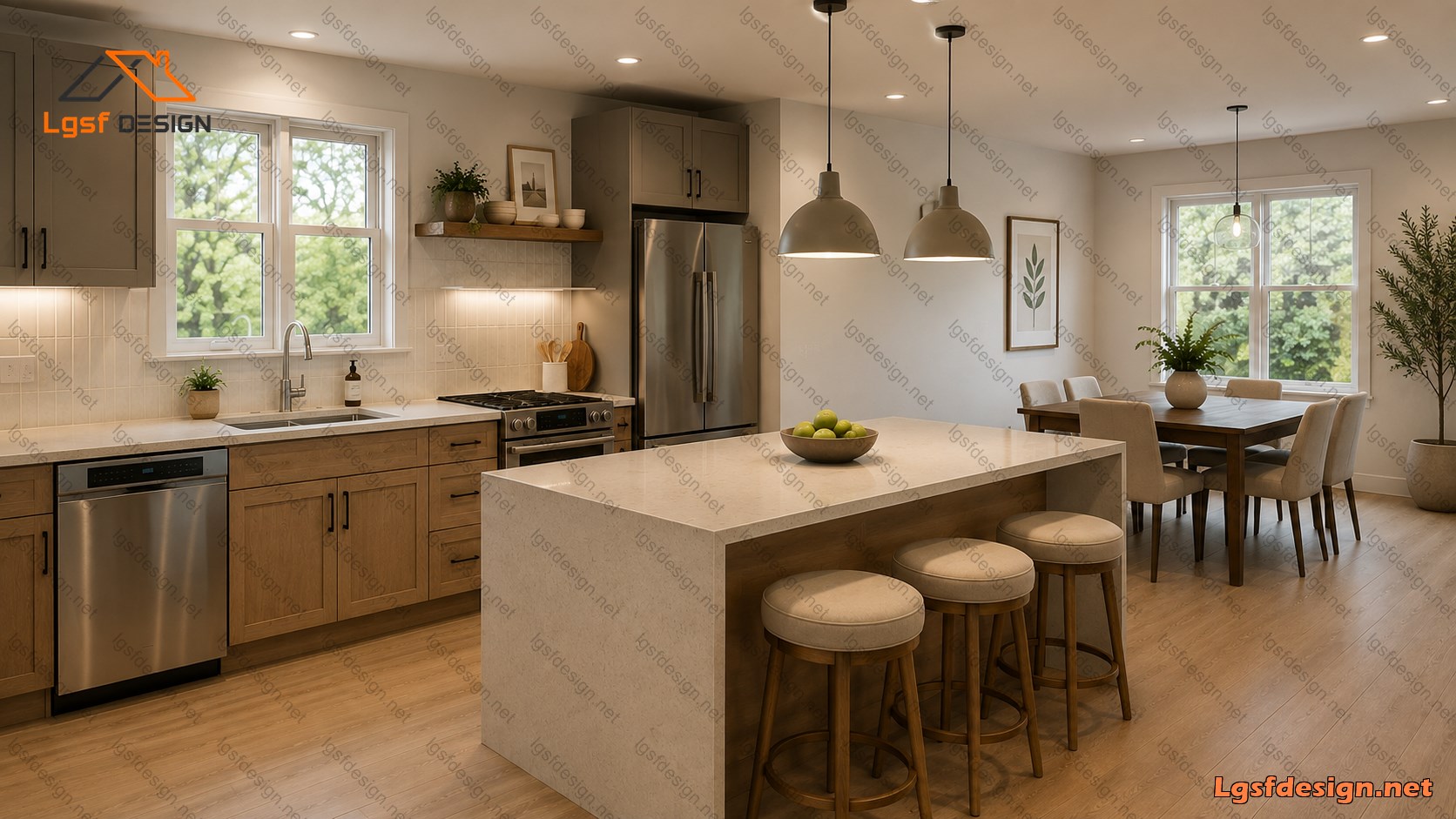

The right side forms an open-concept living area , combining the kitchen, dining area, and living room into one spacious and connected space. The kitchen includes an island with seating, while the dining area is positioned adjacent to the kitchen for easy circulation.

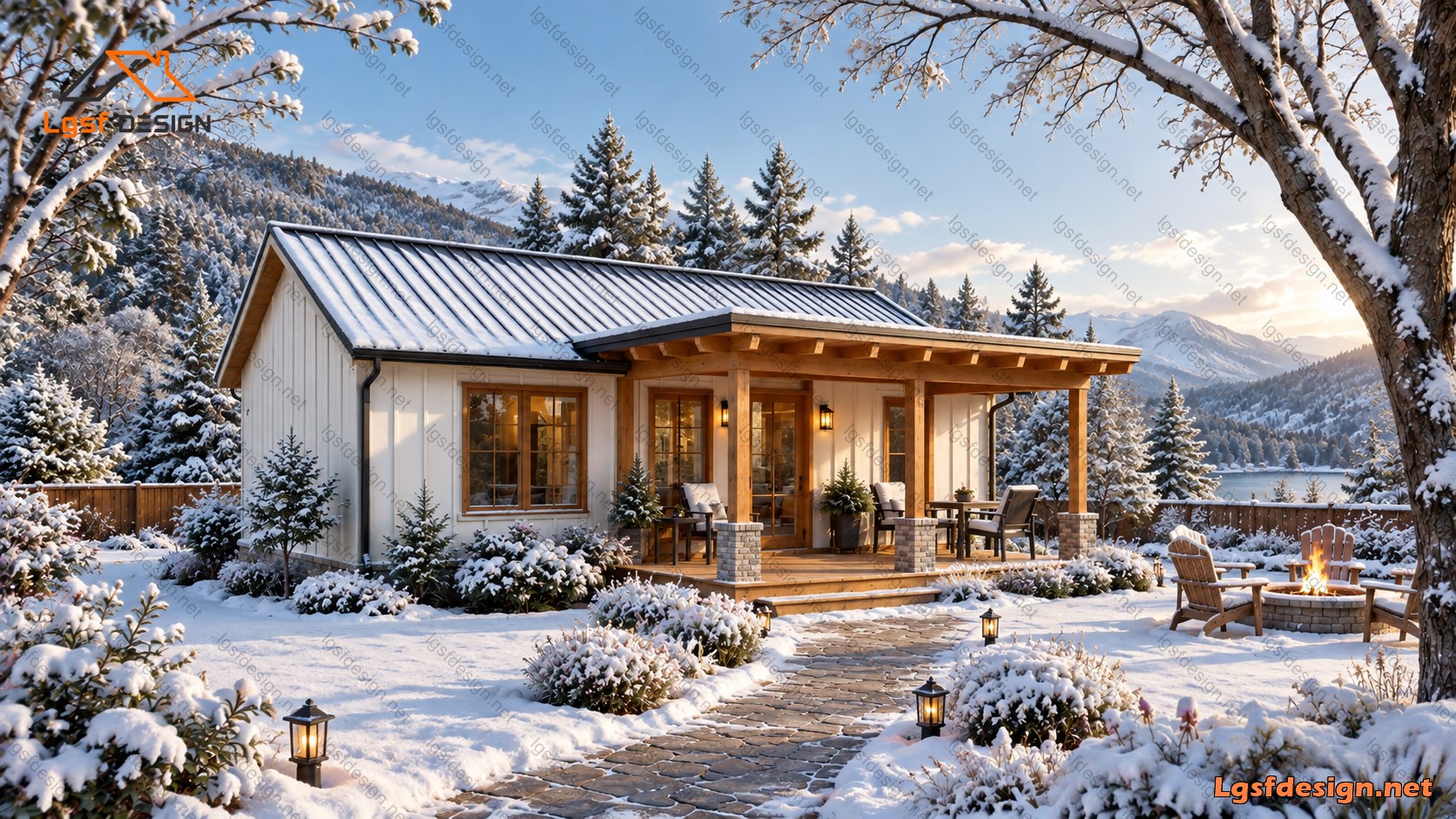

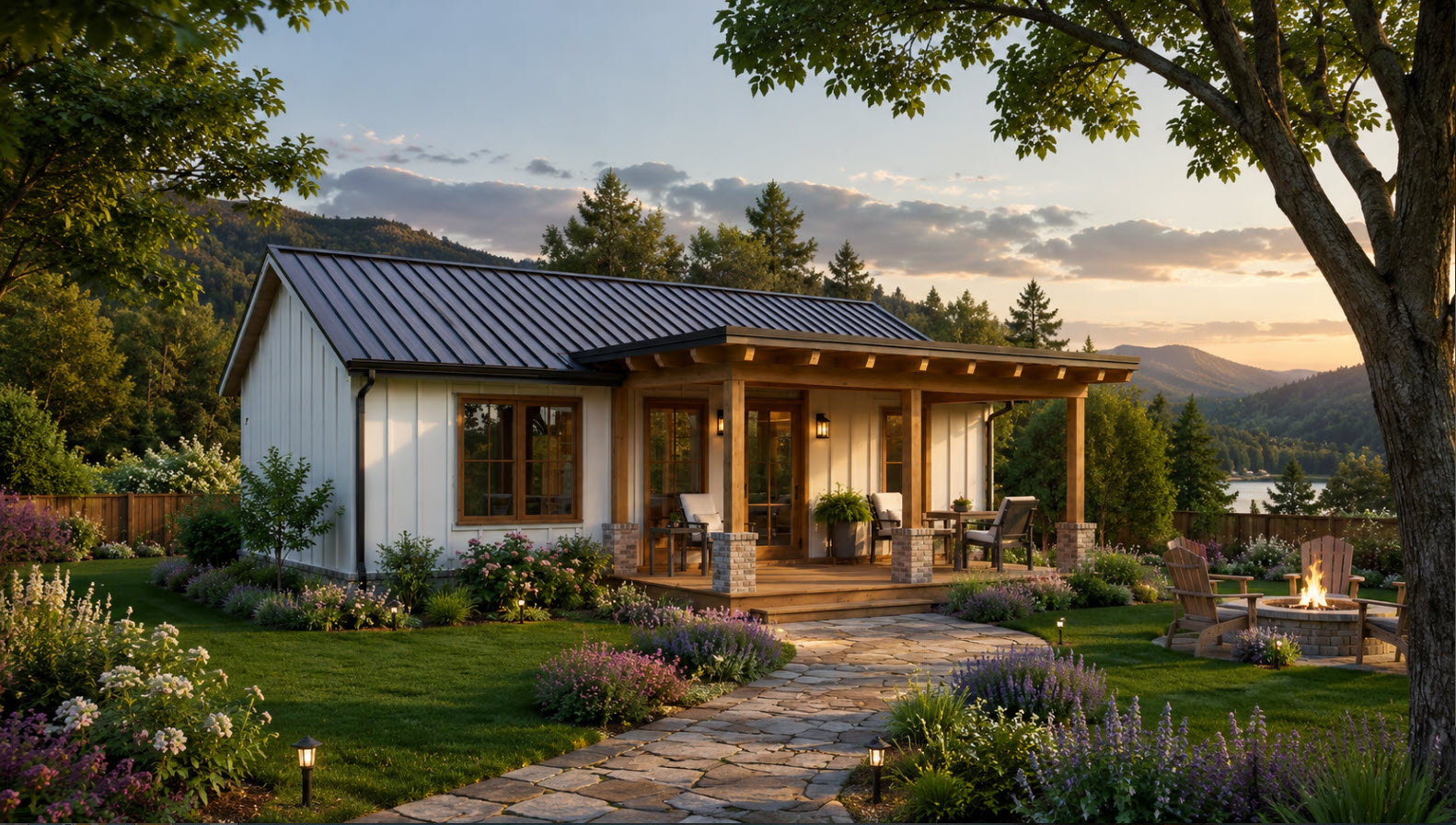

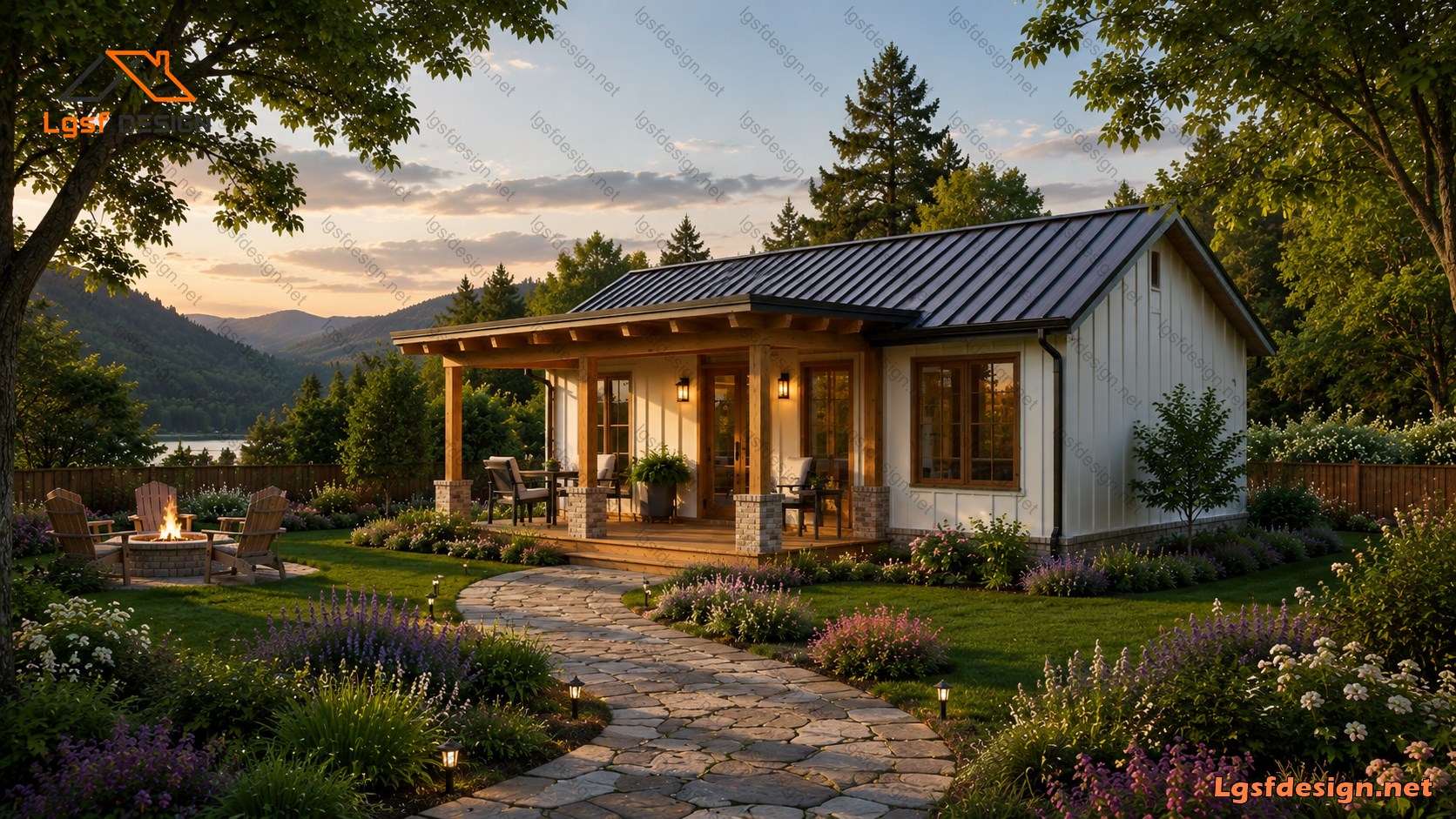

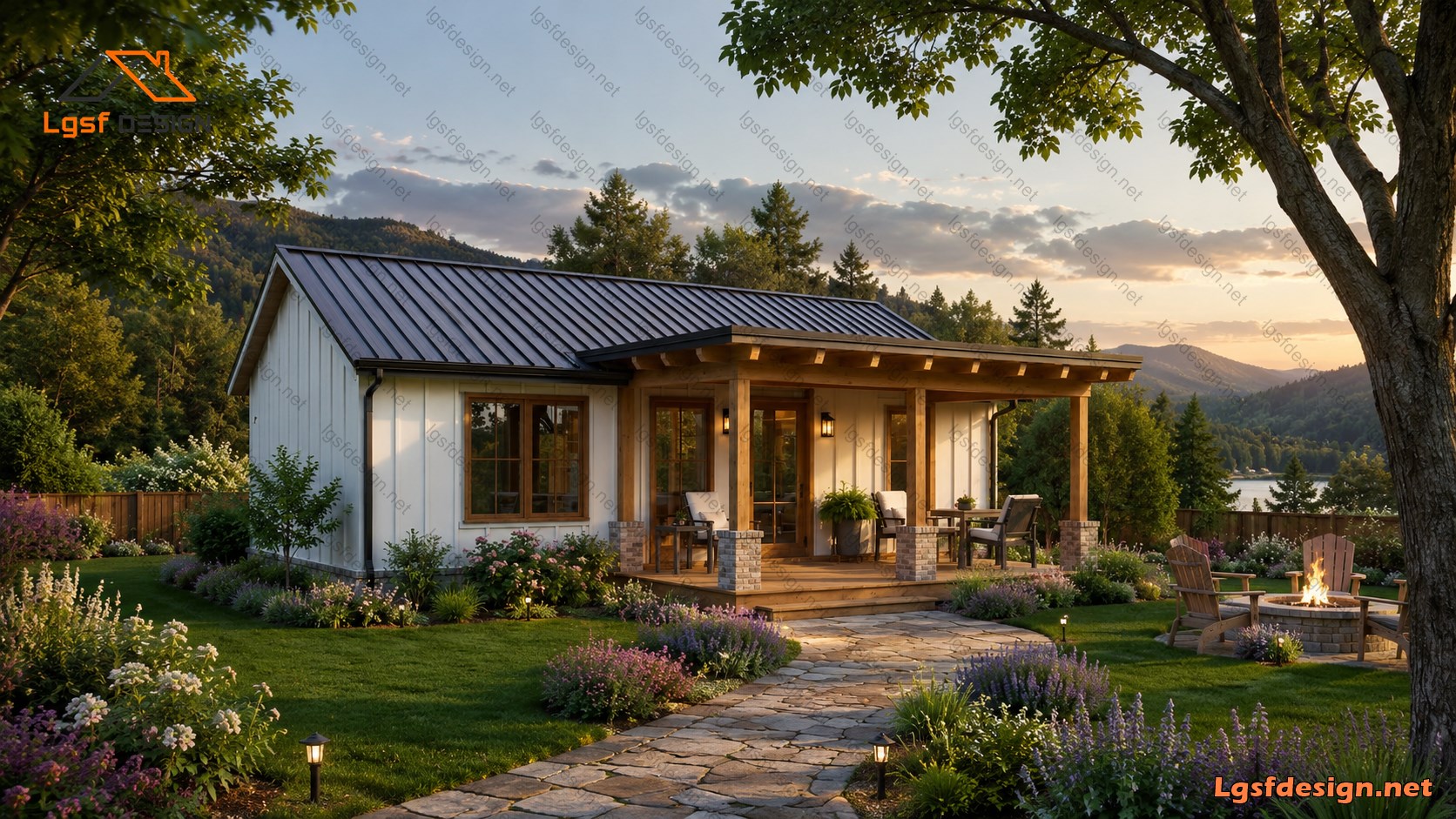

A centrally located laundry and water-heater area provides functional service space without interrupting the main living areas. The primary entrance opens directly from the front 19'-0" × 8'-0" covered porch , creating a comfortable transition between the exterior and the interior living space.
Overall, the plan emphasizes efficient circulation, functional zoning, natural openness, and a simple residential layout suitable for a compact LSF home .

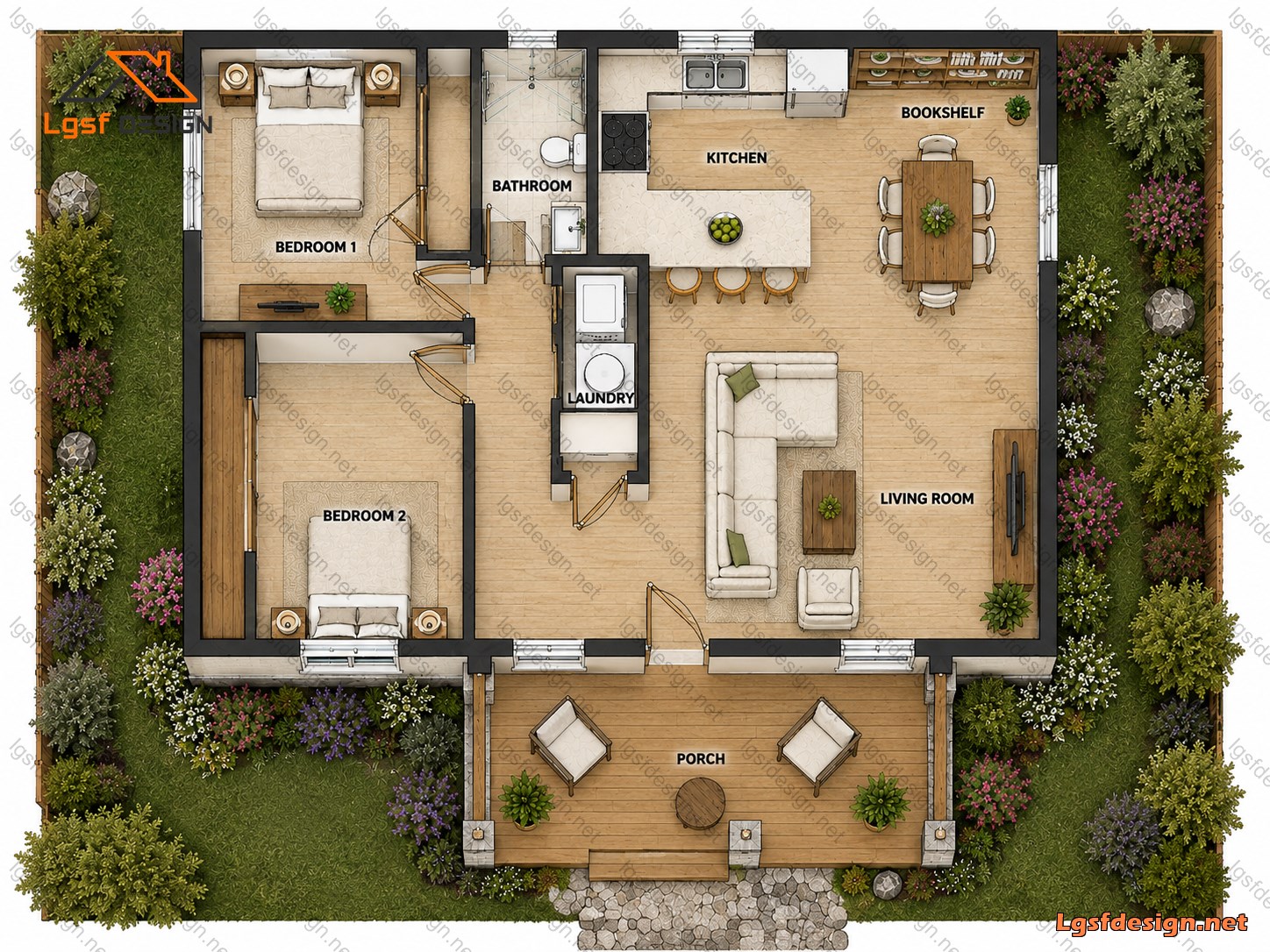

Floor plan
Package options
Start with the full manufacture-ready package, or request individual deliverables.
Best value
Full package
Complete drawings, calculations, CNC files, and BOQ for D94210.
$ 460
Order NowIndividual deliverables
- Foundation $100
- Architectural Drawings $110
- Complete BOQ $80
- Drawings, calculations & CNC files $120
- 3D IFC File $50
Technical details
Structural, material, and design-load values for this package.
Structure
Weight
3553 kg
Longest member
8 m
Materials
- Steel sections
-
- 362S162
Load conditions
Design code
IBC 2021
Snow load
0.5 kN/m²
Wind velocity
45 m/s
Wind pressure
1 kN/m²
Peak ground accel.
0.2 m/s²
