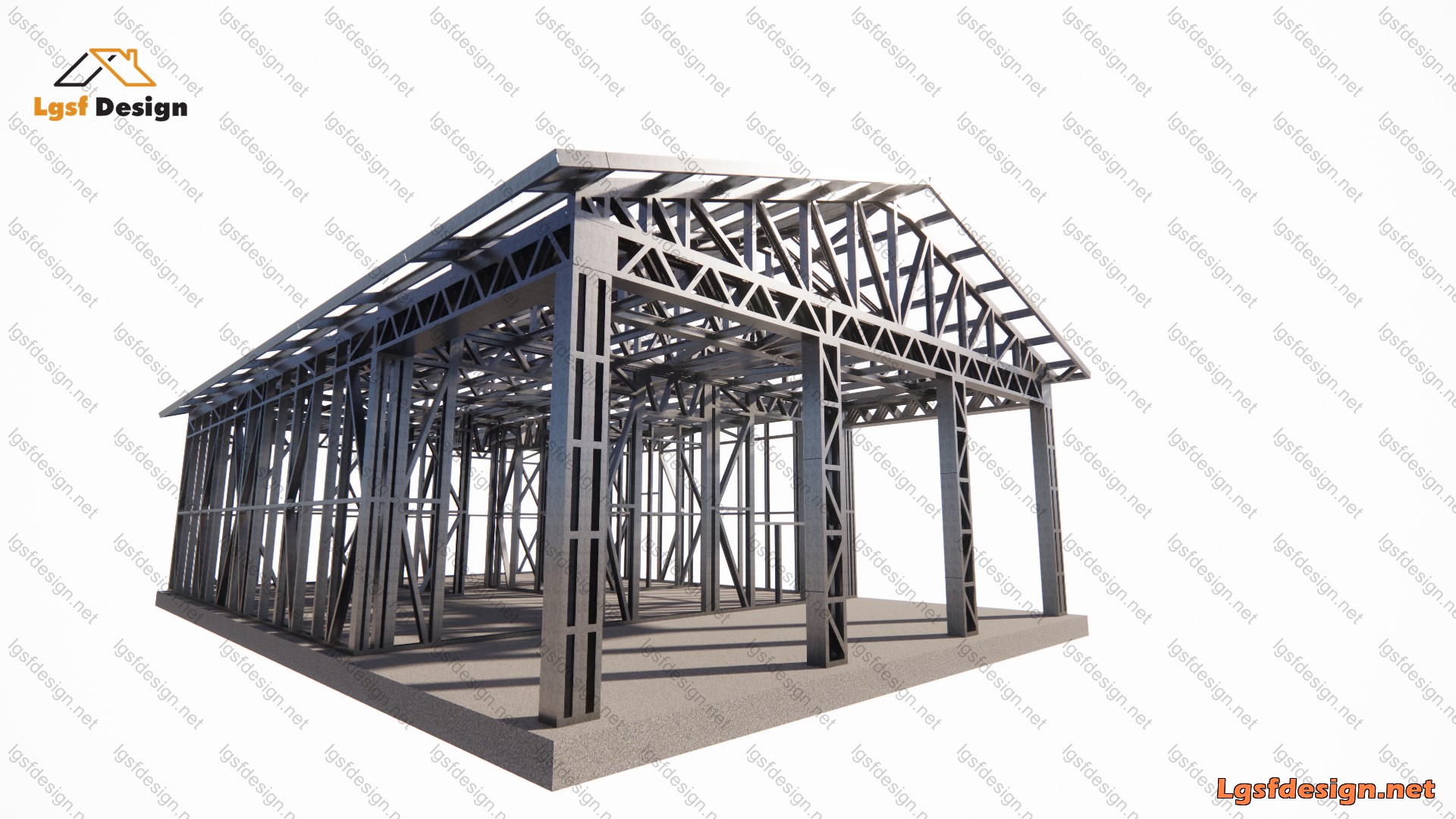

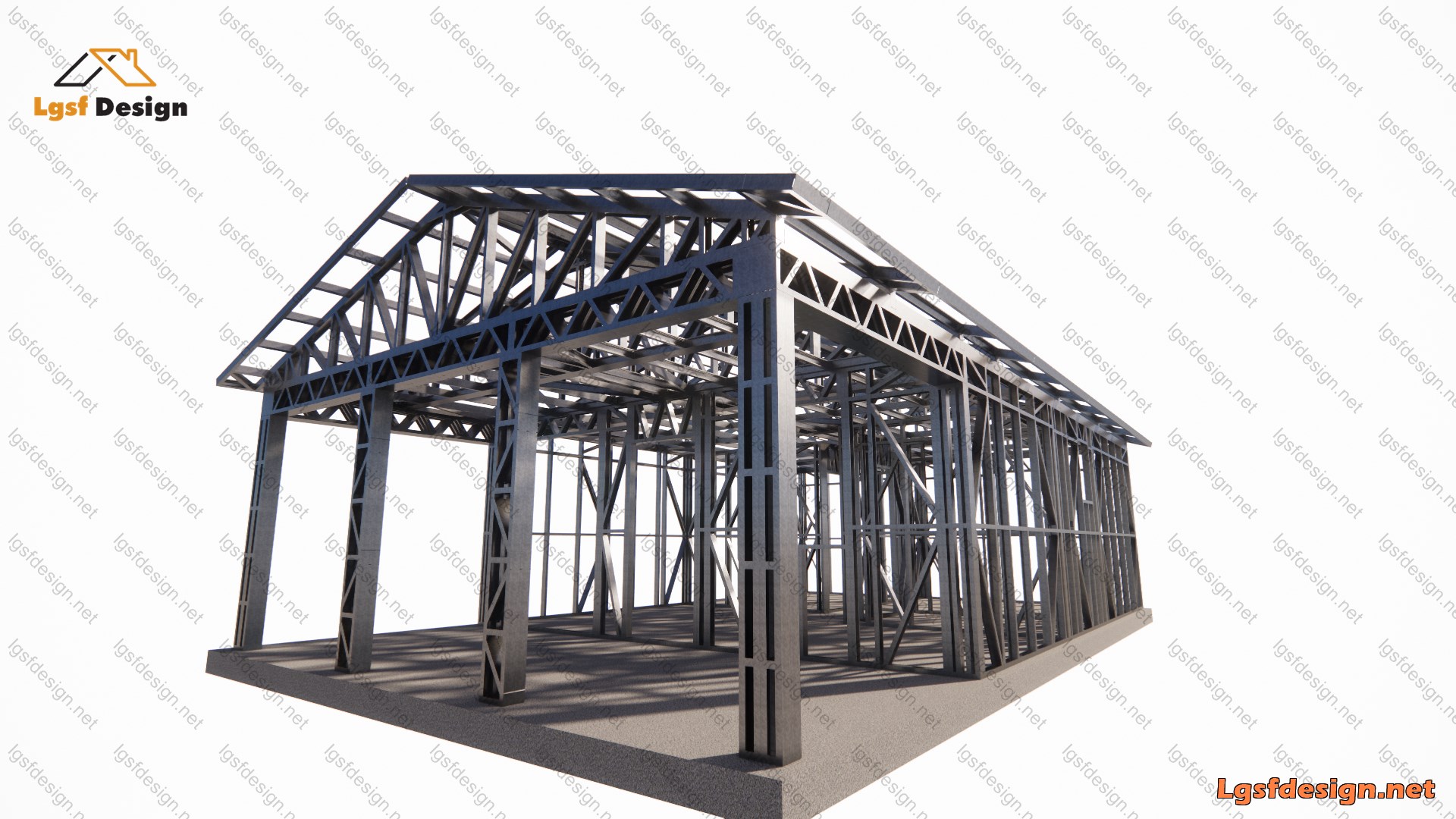

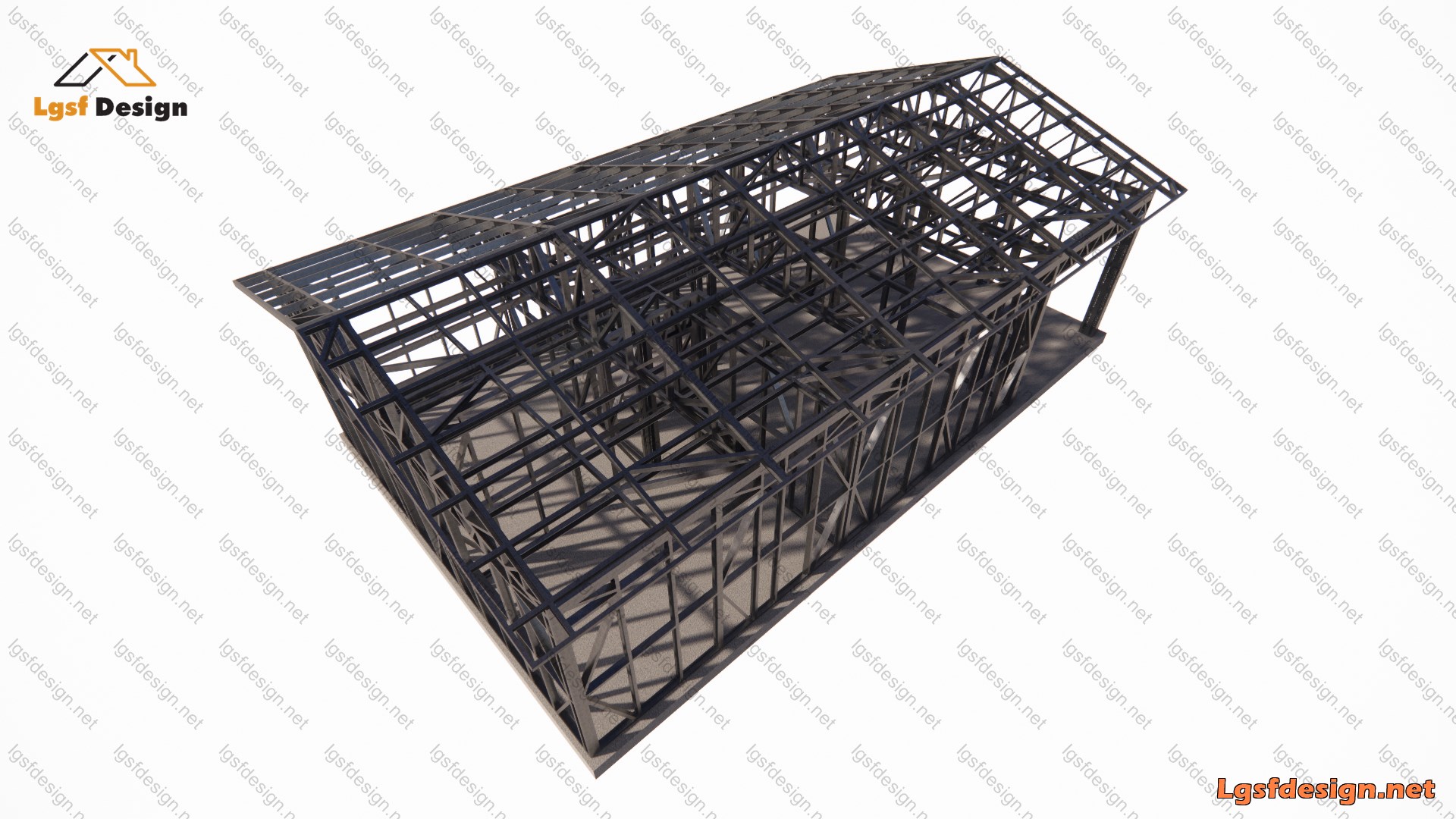

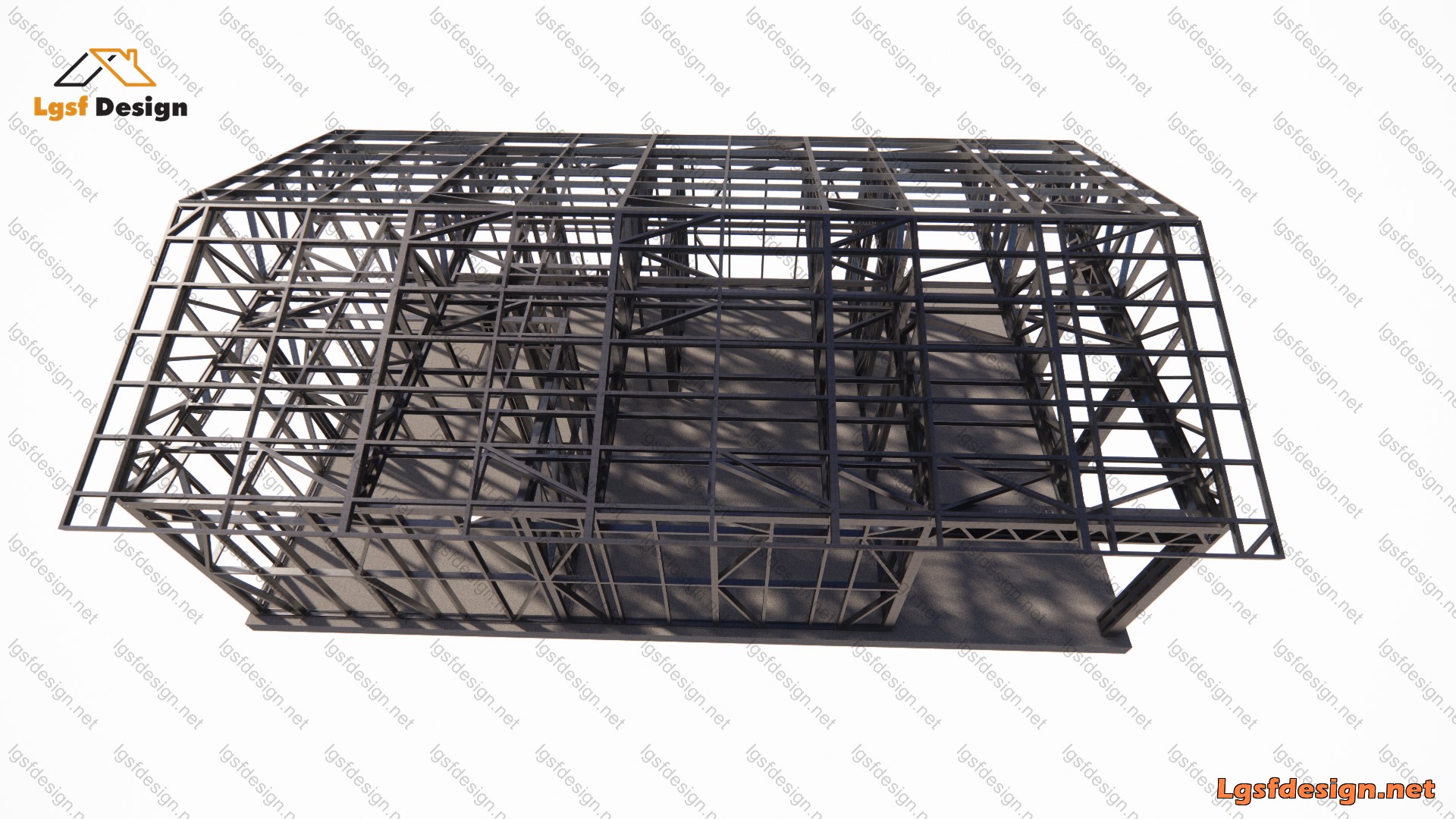

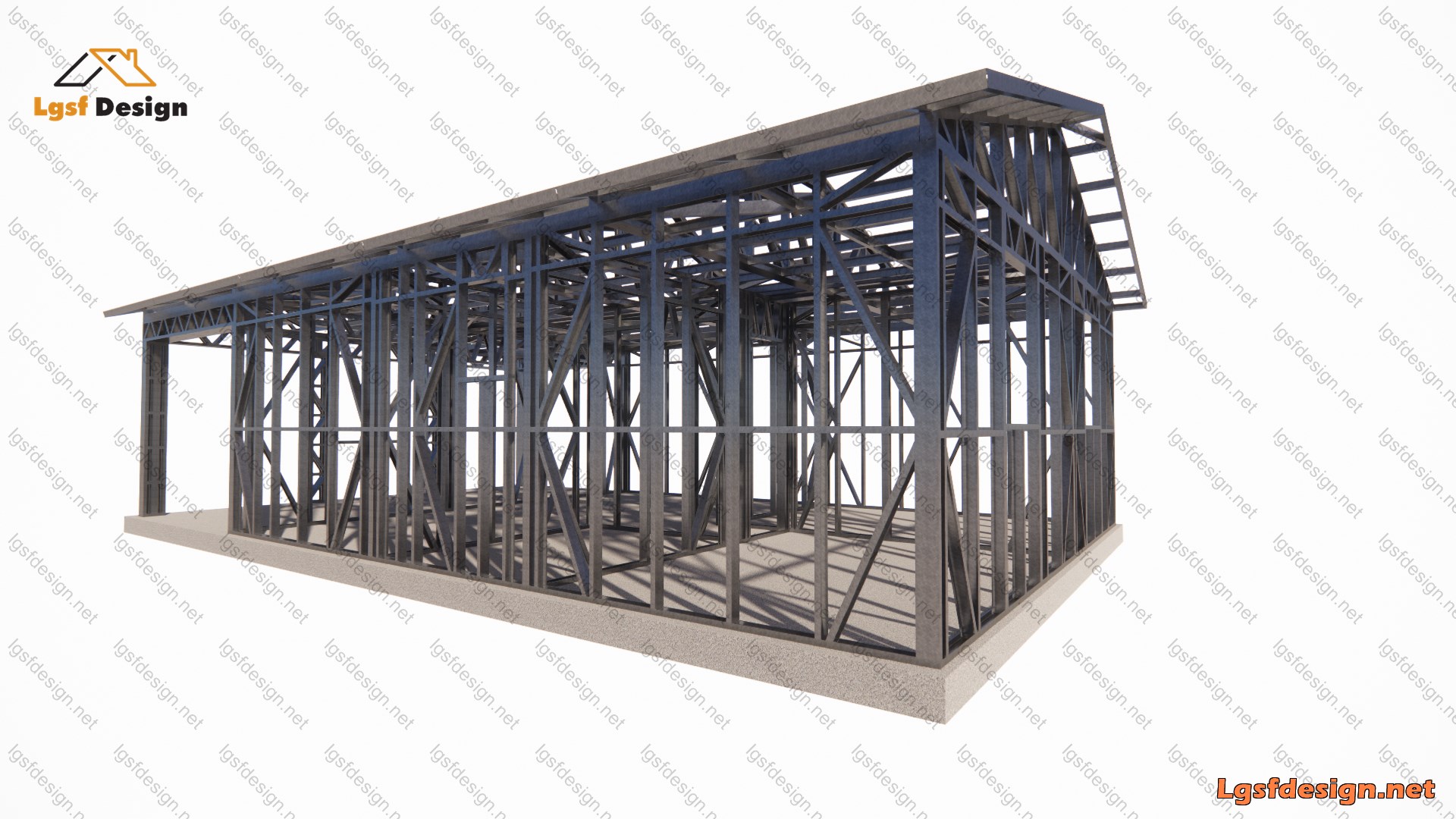

3D Structure Model
Description
This structure is for 80 m² residential unit constructed using an LSF structure. The layout includes a spacious living room of 18 m², two bedrooms measuring 11 m² each, a compact kitchen and dining area with ceramic flooring (6 m²), and a well-equipped bathroom (6 m²). The living room opens onto a semi-covered terrace of 19 m², providing a comfortable outdoor relaxation area. Thanks to the LSF system, the structure benefits from fast construction, excellent thermal and acoustic insulation, and is an energy-efficient solution suitable for various climates.
Key Specs
Title :
Location :
Area :
Bedroom :
Bathroom :
CACIC
Croatia80 m2
2
1
Additional Details
Heavy Steel :
Roll Former Machine :
Longest Member :
Time to Design :
No
Dahezb
6.00 m
1 Day
Load Conditions
Designing Code :
Characteristic Value of Snow Load :
Fundamental Basic Wind Velocity :
Basic Velocity Pressure :
Reference Value of Peak Ground Acceleration :
IBC 2021
1.50 kN/m2
30.00 m/s
0.60 kN/m2
0.20 m/s2
