AFRAME75
3D Structure Model
Description

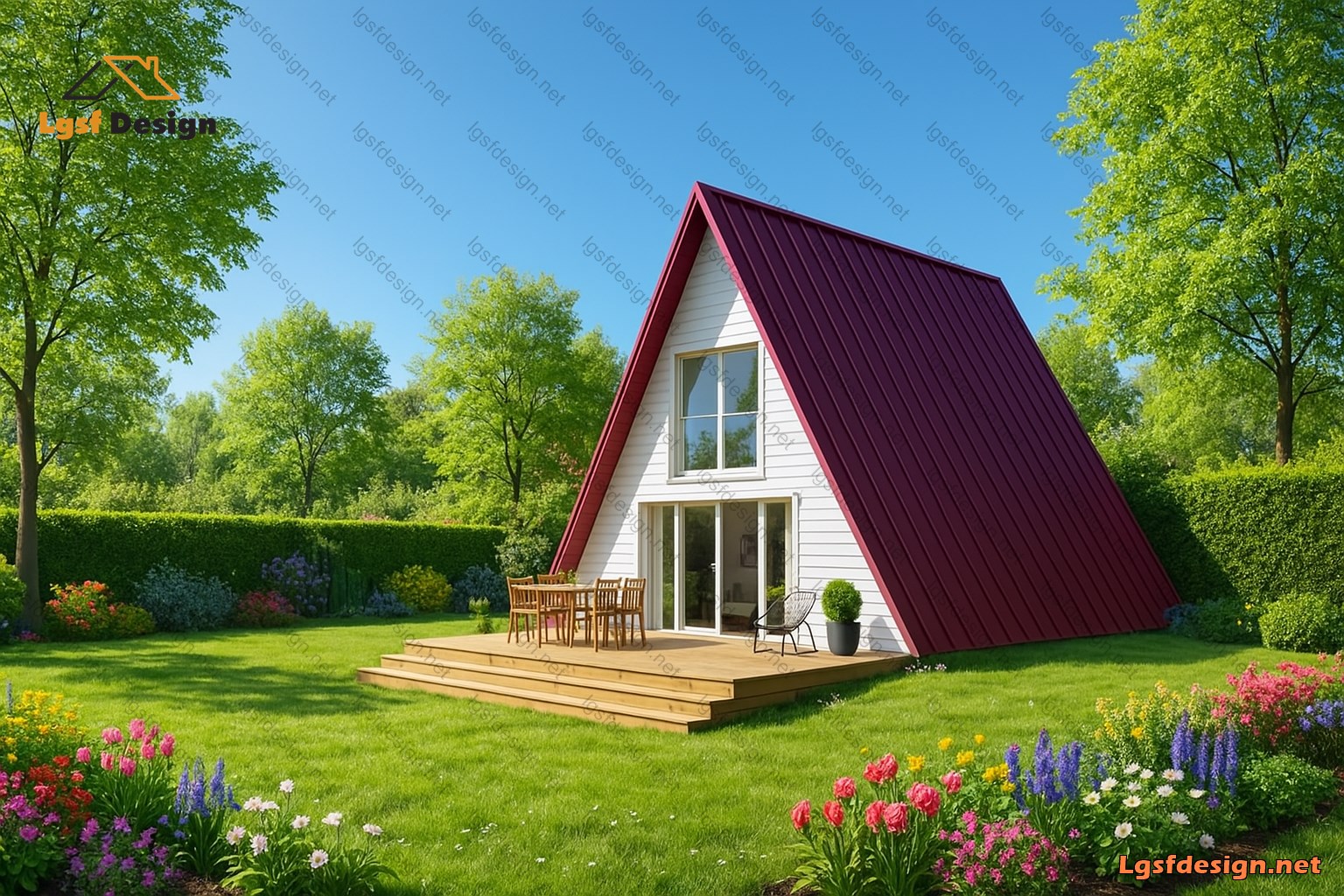

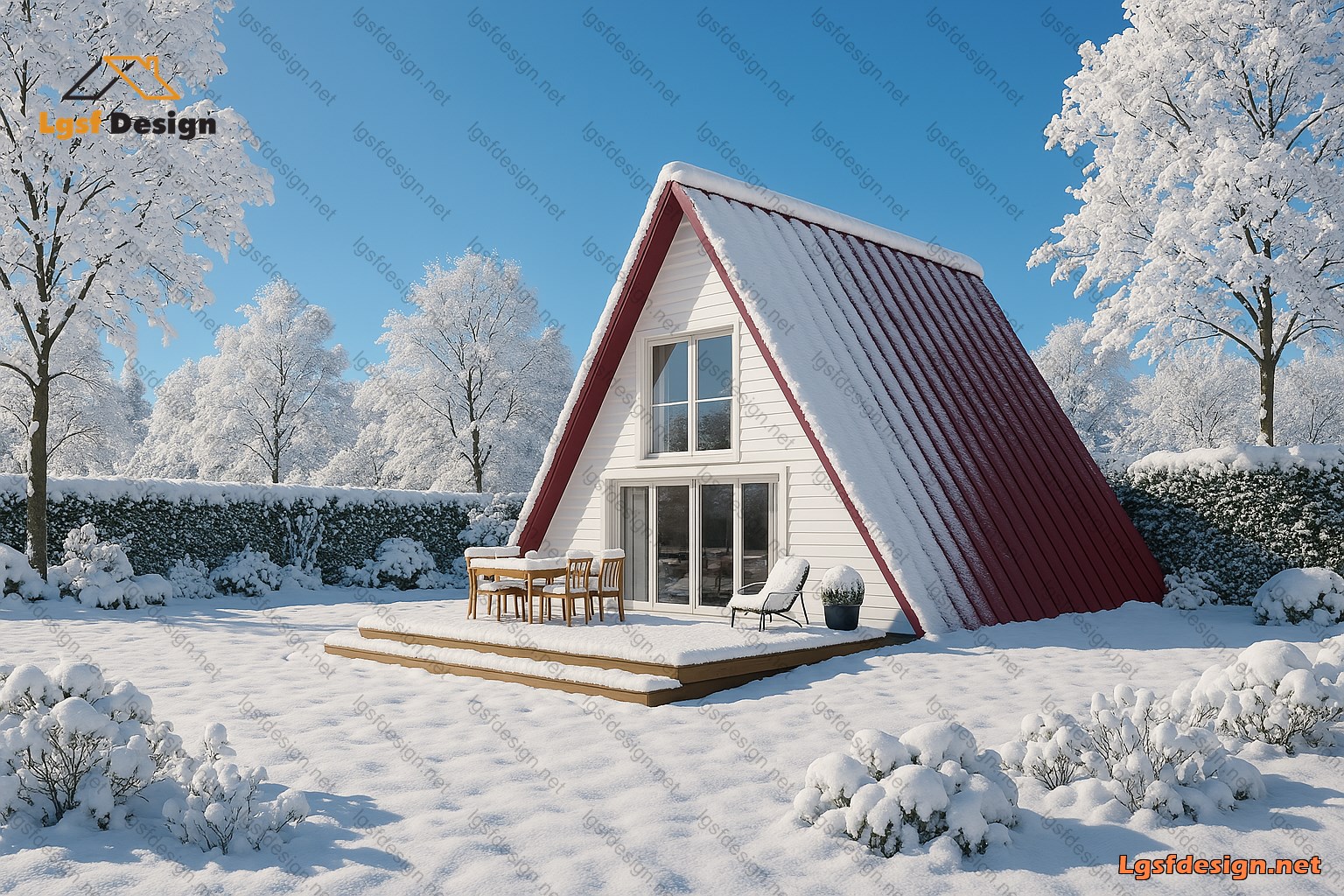

This is a beautifully designed 75 m² (approximately 807 ft²) A-frame structure, engineered using an LSF (Light Steel Frame) system. The distinctive triangular form not only creates a striking architectural silhouette but also enhances structural efficiency by distributing loads evenly along the frame. The open front section provides ample space for glazing or entrance features, while the robust steel framing ensures durability, precision, and quick assembly on site.
Ideal for use as a modern cabin, vacation home, or compact residential unit, this A-frame combines contemporary aesthetics with lightweight, high-performance construction.
If you're interested in designing a similar project or need structural design services for an A-frame or other LSF-based buildings, feel free to contact us.
Key Specs
Title :
Location :
Area :
AFRAME75
Croatia75 m2
Additional Details
Heavy Steel :
Roll Former Machine :
Longest Member :
Time to Design :
No
Dahezb
7.50 m
2 Days

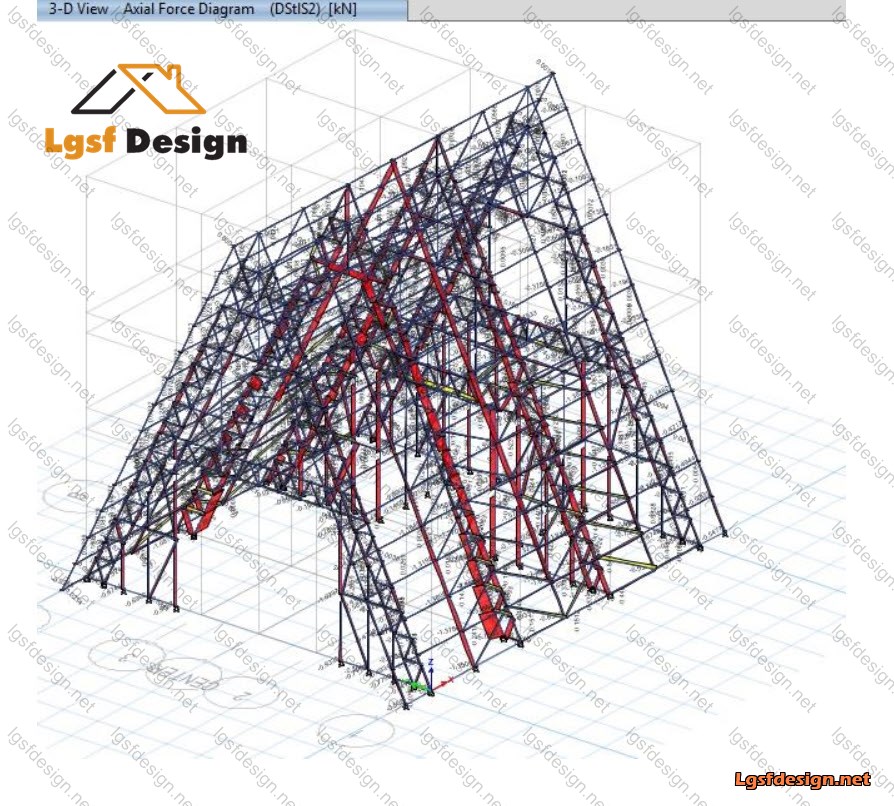

Load Conditions
Designing Code :
Characteristic Value of Snow Load :
Fundamental Basic Wind Velocity :
Basic Velocity Pressure :
Reference Value of Peak Ground Acceleration :
IBC 2021
1.50 kN/m2
30.00 m/s
0.60 kN/m2
0.20 m/s2
