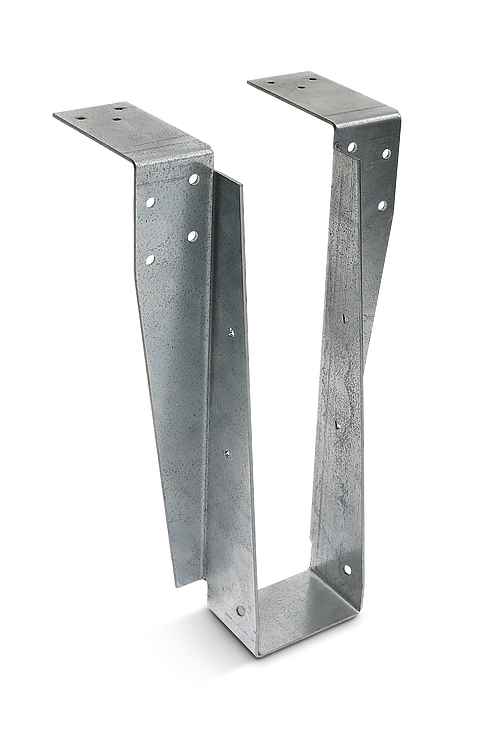

The S/DHUTF top-mount hanger is designed to carry joist loads to a CFS stud wall through two layers of 5/8" gypsum board (drywall). This hanger installs after the drywall is in place and comes in sizes that accommodate most typical joists used in multi-family and commercial construction.

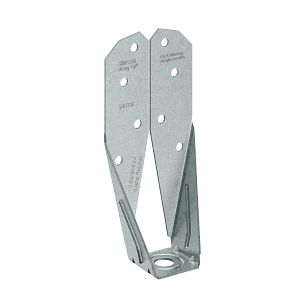

The S/DTT is suitable for lighter-duty hold-down (holdown) applications on single or back-to-back studs, and installs easily with #14 self-drilling screws. These light tension ties are ideal for retrofit or new construction projects. They provide high-strength, post-pour, concrete-to-steel connections.

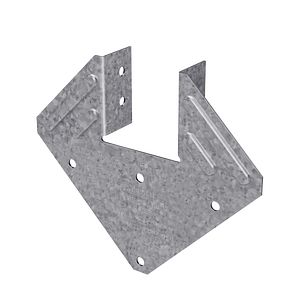

The versatile S/H1A is designed to resist seismic and wind forces in cold-formed steel applications. These double-sided hurricane ties hold the rafter or truss for high uplift load resistance. The S/H1A is ideal for several proprietary truss chords. It features embossments that add stiffness in crucial areas for improved performance.

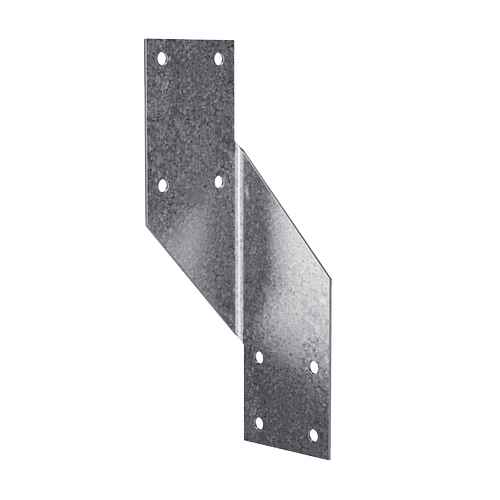

The S/H2.5 and S/H3 are designed to resist seismic and wind forces in cold-formed steel applications. These single-sided hurricane ties form part of a continuous load path for both lateral and uplift loads. The S/H2.5 is made for moderate loads at the rafter/truss, while the S/H3 is made for moderate loads at the rafter/truss-to-top-track connection.

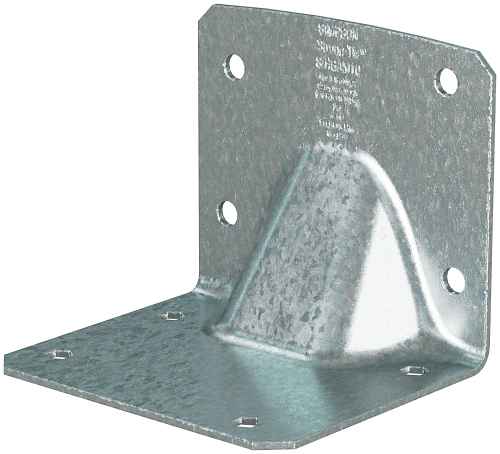

The S/HGAM is designed to secure the bottom chord of a gable end truss or other framing member to masonry. The engineered gusset in the angle increases strength for lateral and uplift loads. This hurricane gusset angle installs easily with #14 screws to a rafter or truss and with Titen Turbo™ masonry screws to concrete or masonry.
The S/VGT2.5 is a high-capacity girder tiedown designed for cold-formed steel applications. This variable-pitch tiedown is used for single- or multi-ply CFS girder truss projects. The S/VGT2.5 features a predeflected crescent washer that allows it to accommodate top-chord pitches up to 8/12.

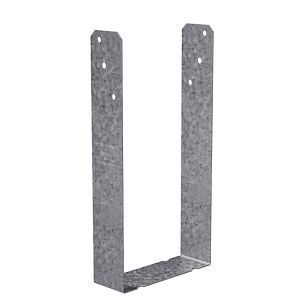

The SP4, SP6 and SP8 are designed as stud-to-plate connections to resist roof uplift in cold-formed steel (CFS) applications. These U-shaped straps have a horizontal portion that bears against the steel top plates or sill plates and two vertical legs that are screwed to the steel stud. These ties are a cost-effective option when properly installed before the placement of the wall.

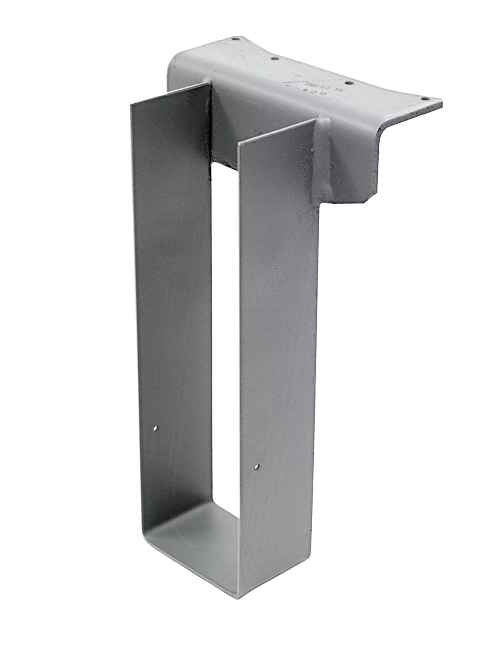

The WP is designed to support joists on purlins or beams and may be used for wood-to-wood or wood-to-steel applications. This top-flange hanger offers exceptional flexibility and versatility with the ability to be skewed up to 84° and/or sloped to a maximum of 45°. The WP is an economical choice with a low installed cost requiring a small number of nails for maximum downloads.
